Kennametal Jobber Drill 14.6mm 135° Point Solid Carbide 76275569
Kennametal Jobber Drill 14.6mm 135° Point Solid Carbide 76275569
Regular price
$103.77 USD
Regular price
$220.00 USD
Sale price
$103.77 USD
Shipping calculated at checkout.
Couldn't load pickup availability
MSRP: $220.00
Model: 76275569
Description:
Drill Bit Size (mm) : 14.60
Drill Bit Size (Decimal Inch) : 0.5748
Drill Point Angle: 135
Drill Bit Material: Solid Carbide
Drill Bit Finish/Coating: Multilayer TiCN
Flute Type: Spiral Spiral
Cutting Direction: Right Hand
Shank Type: Straight
Coolant Through: Coolant Through
Flute Length (mm): 83.00
Flute Length (Decimal Inch): 3.2677
Overall Length (mm): 133.00
Overall Length (Decimal Inch): 5.2362
Flute Length x Diameter Ratio: 5xD
Point Type: Standard SGL Point
Shank Diameter (mm): 16.00
Shank Diameter (Decimal Inch): 0.6299
Maximum Drilling Depth (Decimal Inch): 2.4803
Maximum Drilling Depth (mm): 63.00
Spiral Type: Regular Spiral
Shank Length (Decimal Inch): 1.8898
Specification Designation: DIN
Web Configuration: Tapered
Drill Bit Diameter Tolerance (mm): 0.007 to 0.025
Number of Flutes: 2
Specification Number: DIN 6537K
Material Grade: KCM15
Series/List: B211A-HP

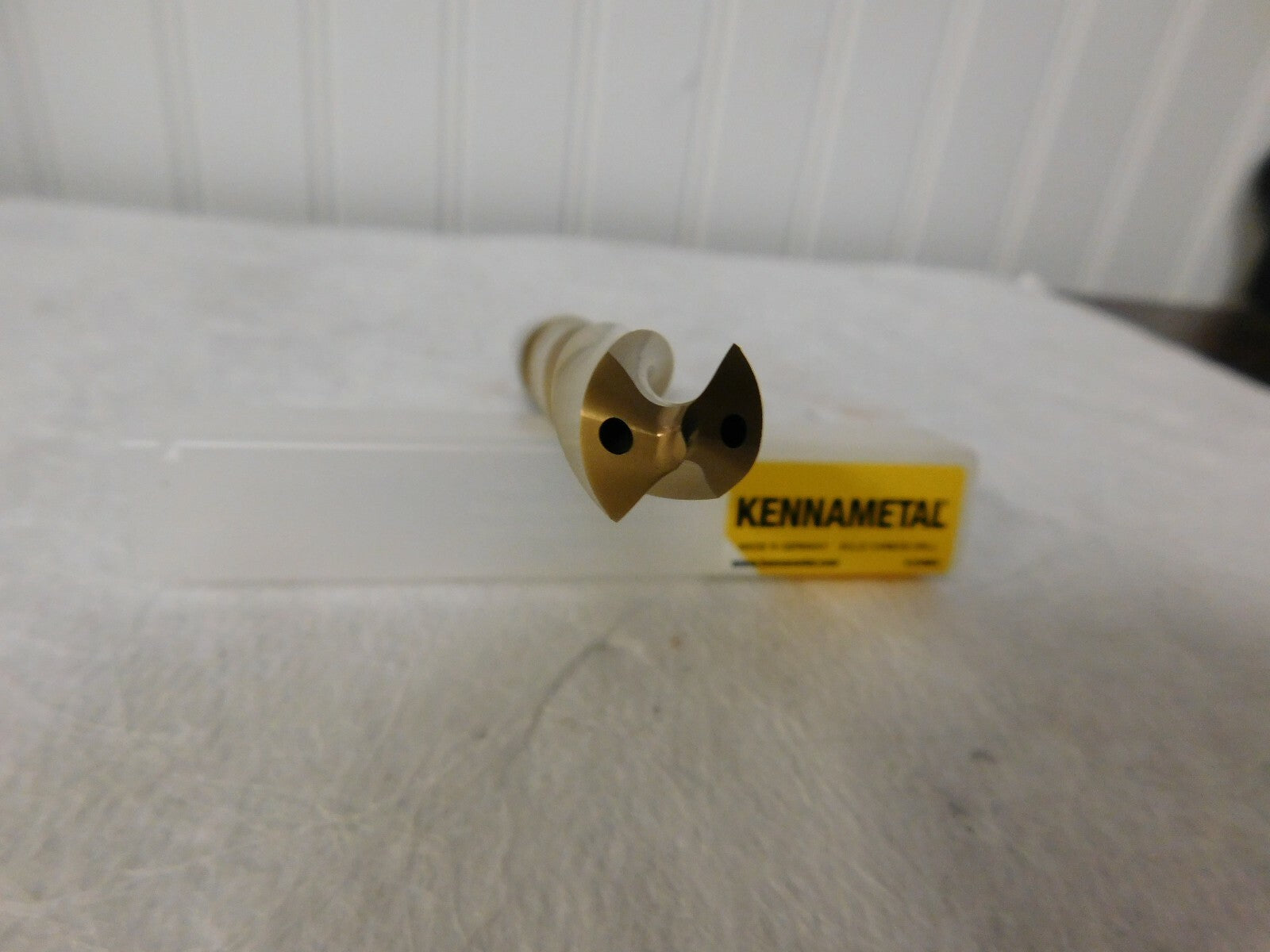

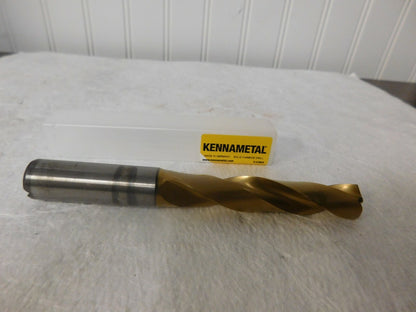

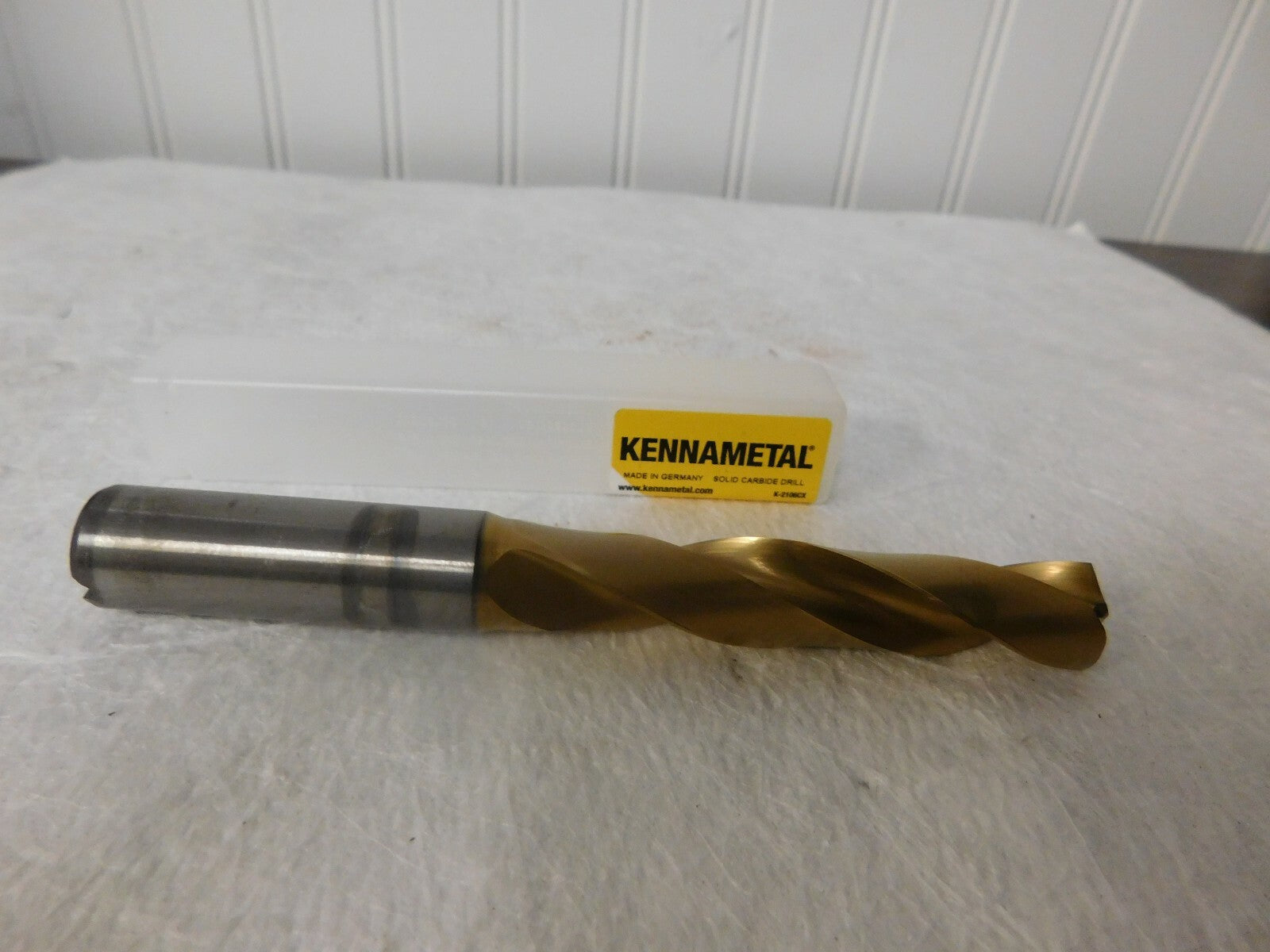

This listing is for One Jobber Drill that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
