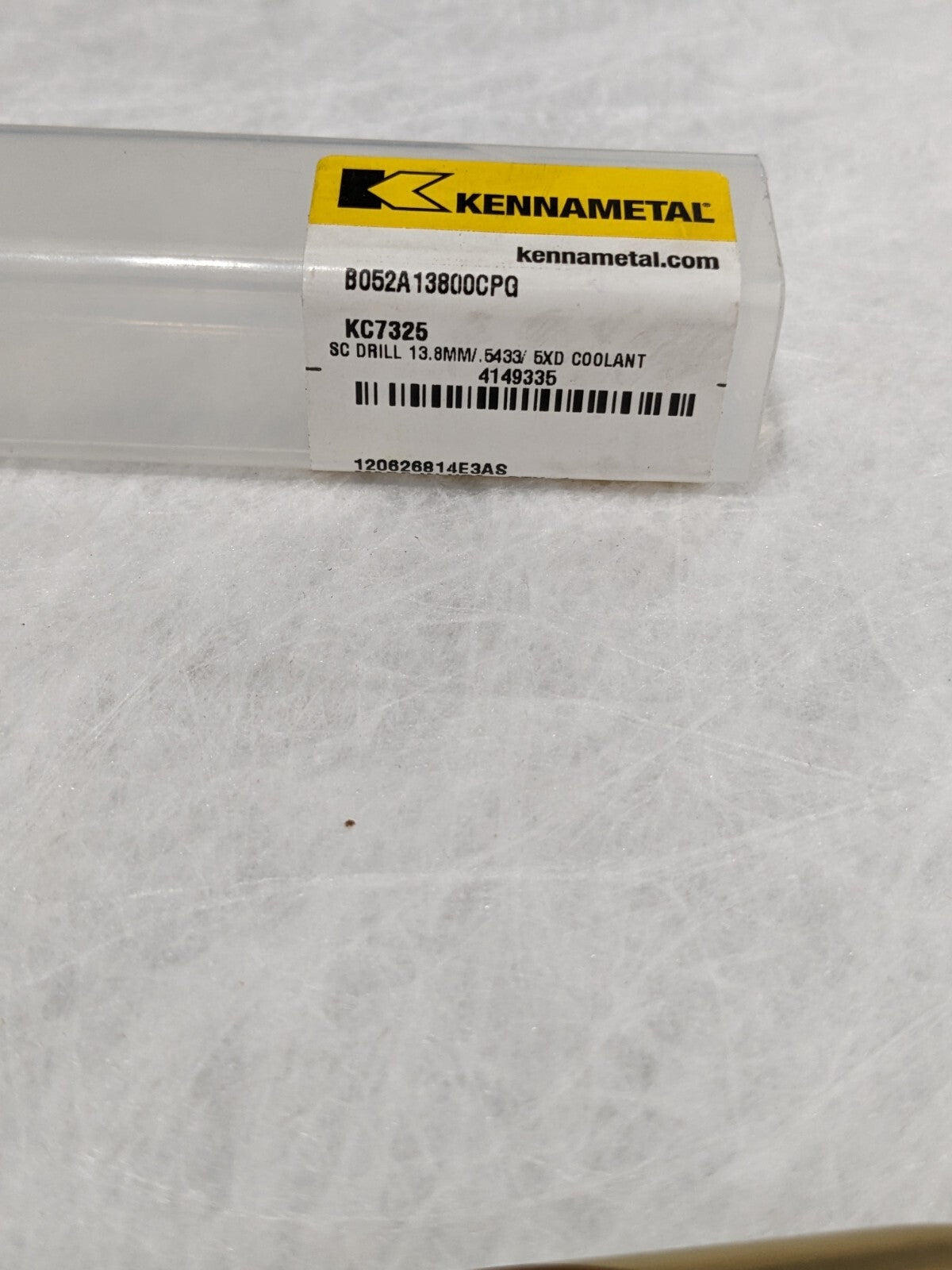

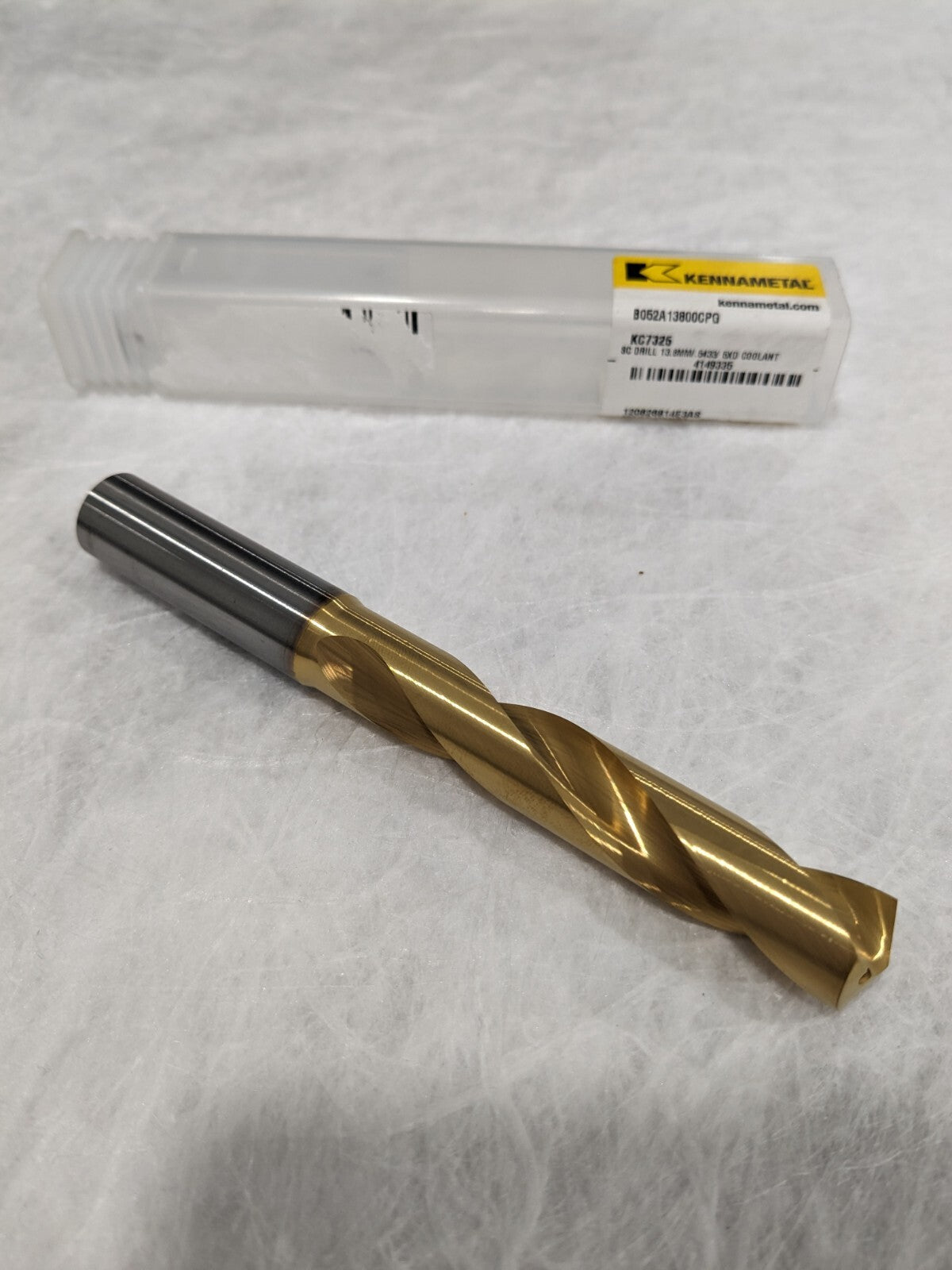

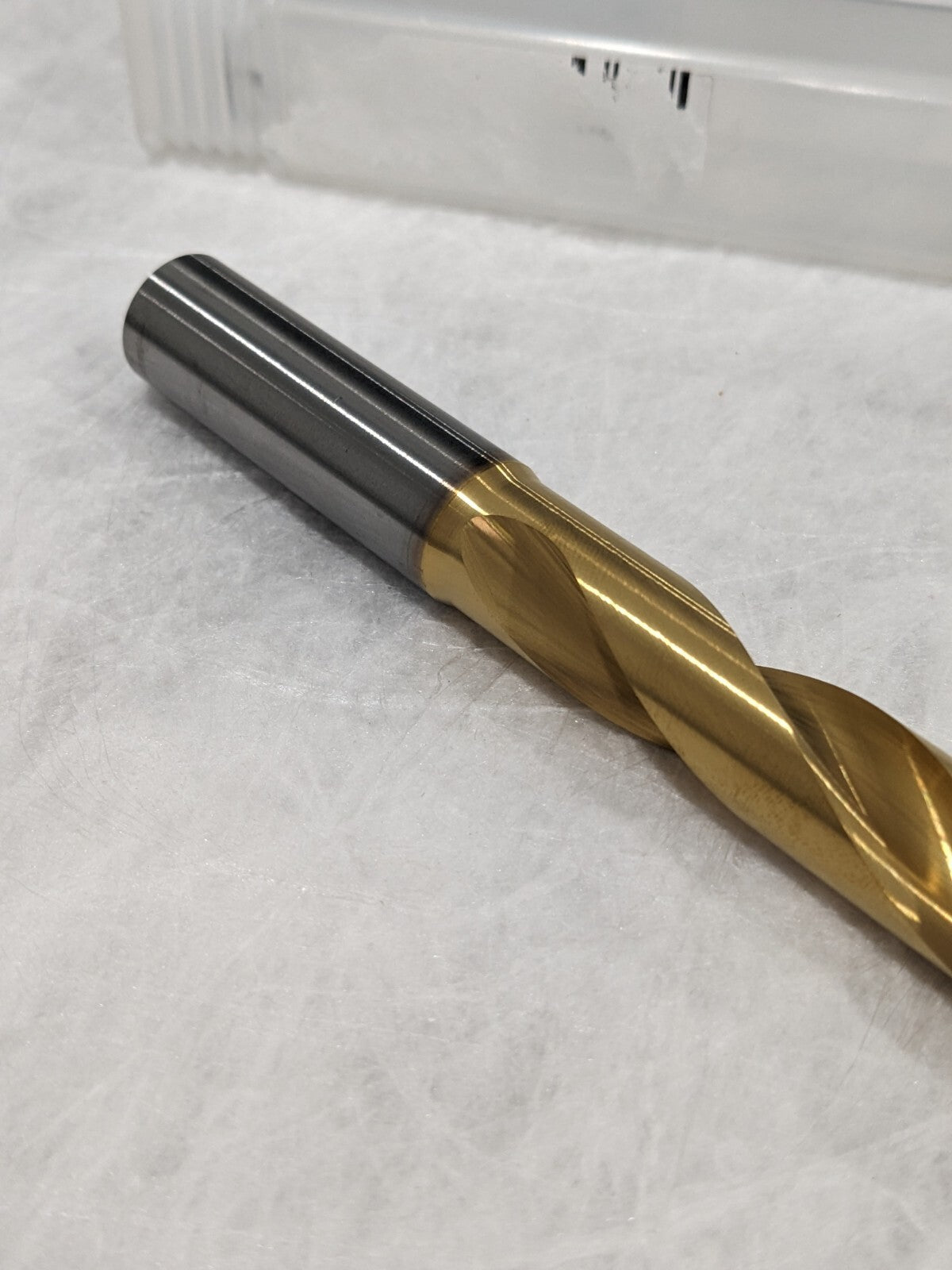

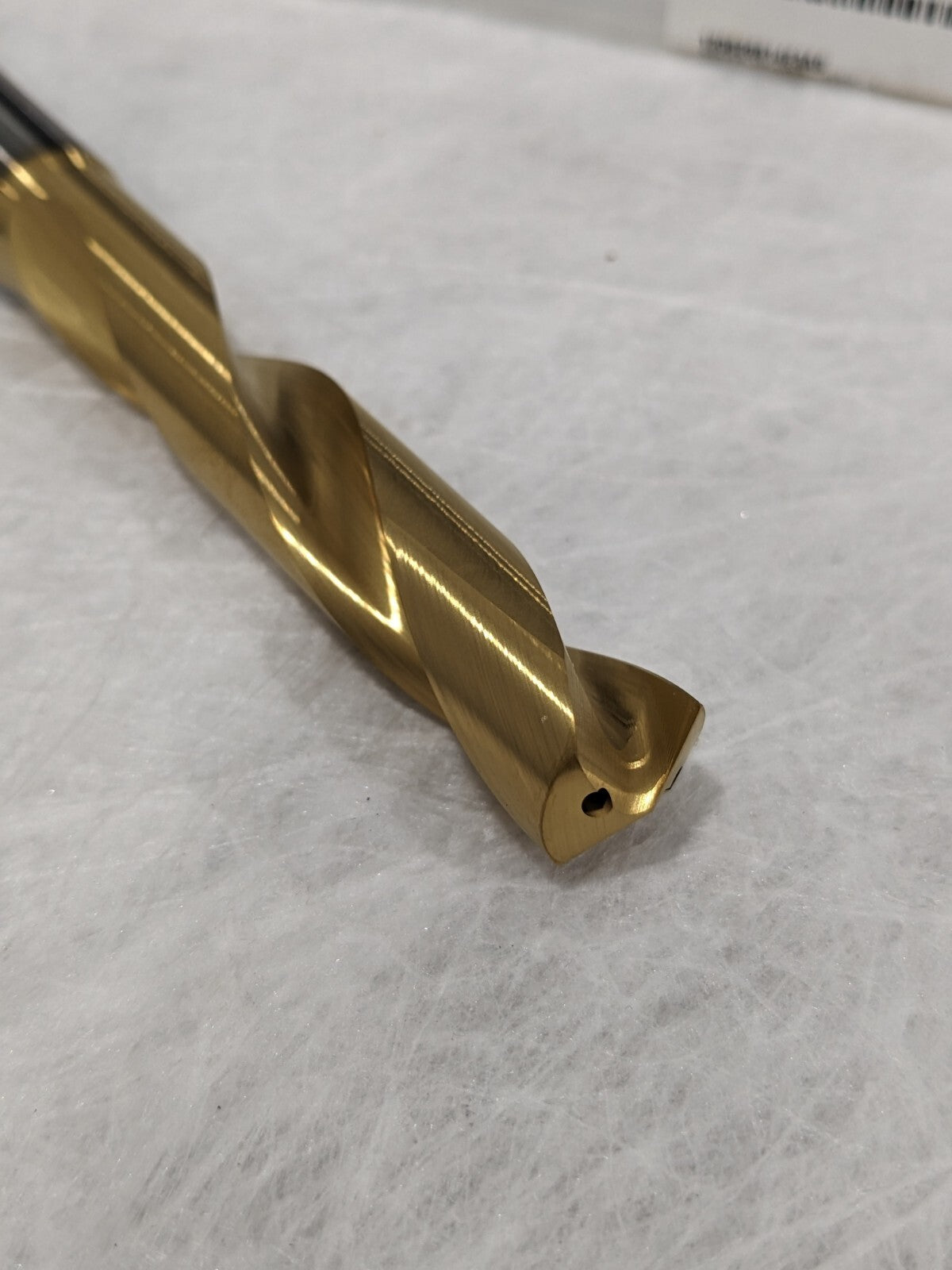

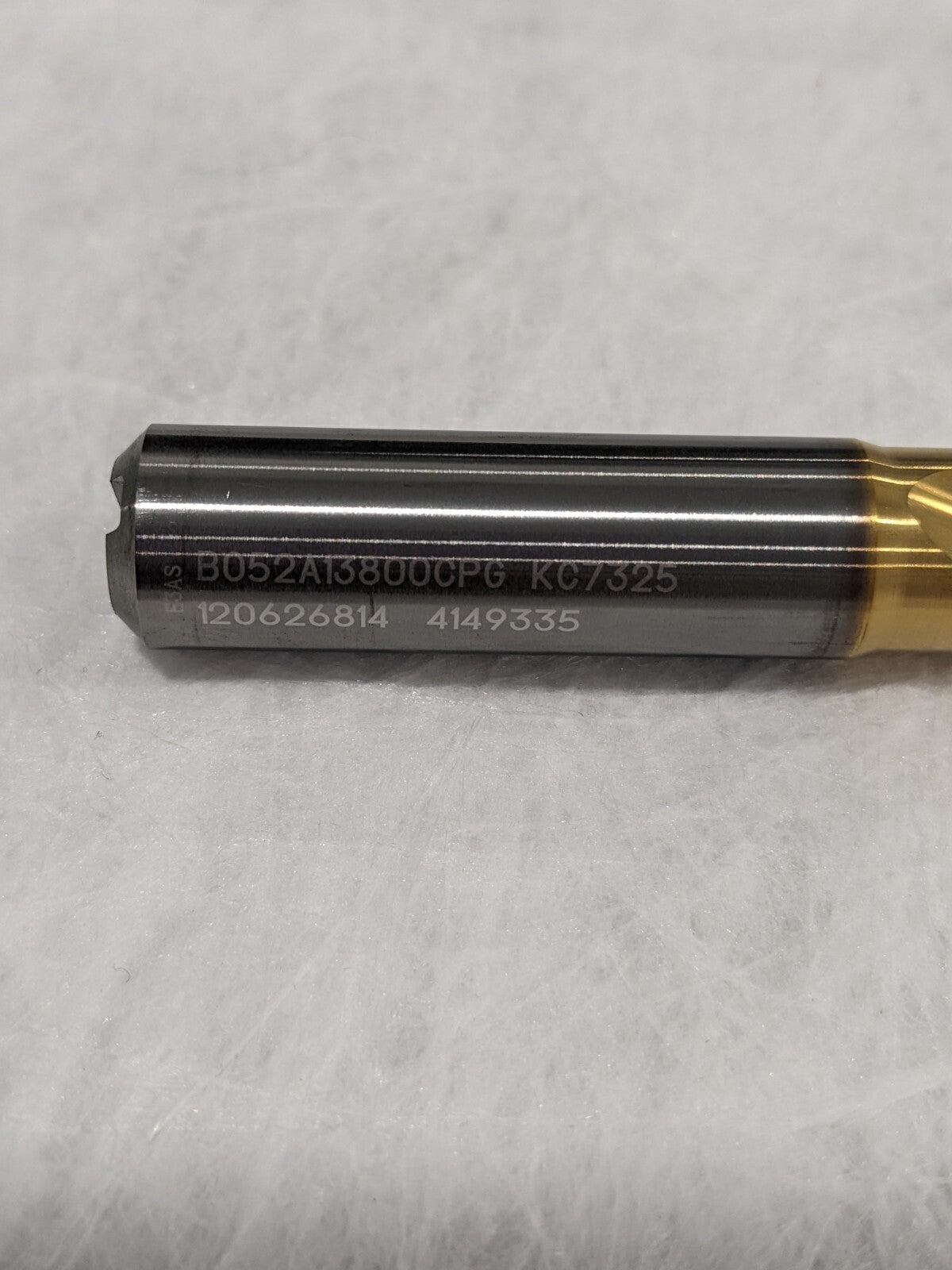

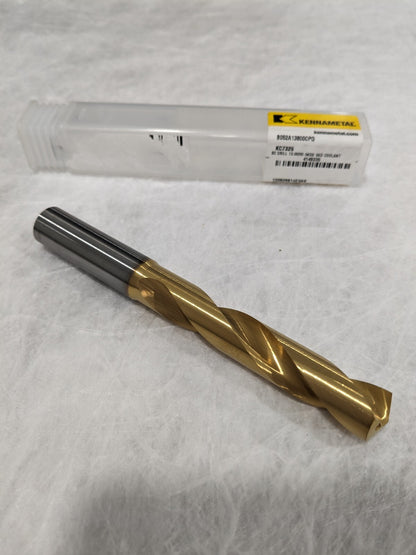

KENNAMETAL Jobber Drill: 13.80 mm Dia, 140 deg Point, Solid Carbide 4149335

Kennametal
Jobber Drill

MSRP: $200.00

• Drill Bit Size (mm) 13.80
• Drill Bit Size (Decimal Inch) 0.5433
• Drill Bit Material Solid Carbide
• Drill Point Angle (Degrees) 140
• Coating/Finish Multilayer TiAlN
• Spiral Type Regular
• Flute Type Spiral
• Cutting Direction Right Hand
• Point Type Standard
• Specification Number DIN 6537K
• Coolant Through Yes
• Shank Diameter (Decimal Inch) 0.5512
• Overall Length (mm) 124.00
• Overall Length (Decimal Inch) 4.8819
• Flute Length (mm) 77.00
• Flute Length (Decimal Inch) 3.0315
• Flute By Diameter Ratio 5xD
• Shank Diameter (mm) 14.00
• Maximum Drilling Depth (Decimal Inch) 2.3622
• Maximum Drilling Depth (mm) 60.00
• Shank Length (mm) 45.00
• Shank Length (Decimal Inch) 1.7717
• Drill Point Length (mm) 2.38
• Drill Point Length (Decimal Inch) 0.0937
• Drill Bit Diameter Tolerance -0.0007 to 0.0000 in
• Web Configuration Tapered
• Shank Type Straight-Cylindrical
• Number of Flutes 2
• Drill Bit Size Range (Decimal Inch) 0.5000 - 0.6500
• Drill Bit Size Range (mm) 12.50 - 15.00
• Specification Designation DIN
• UNSPSC Code 23241634

This item appears to be new and in good condition. SOLD AS IS.

Please review photos, comes as shown.
