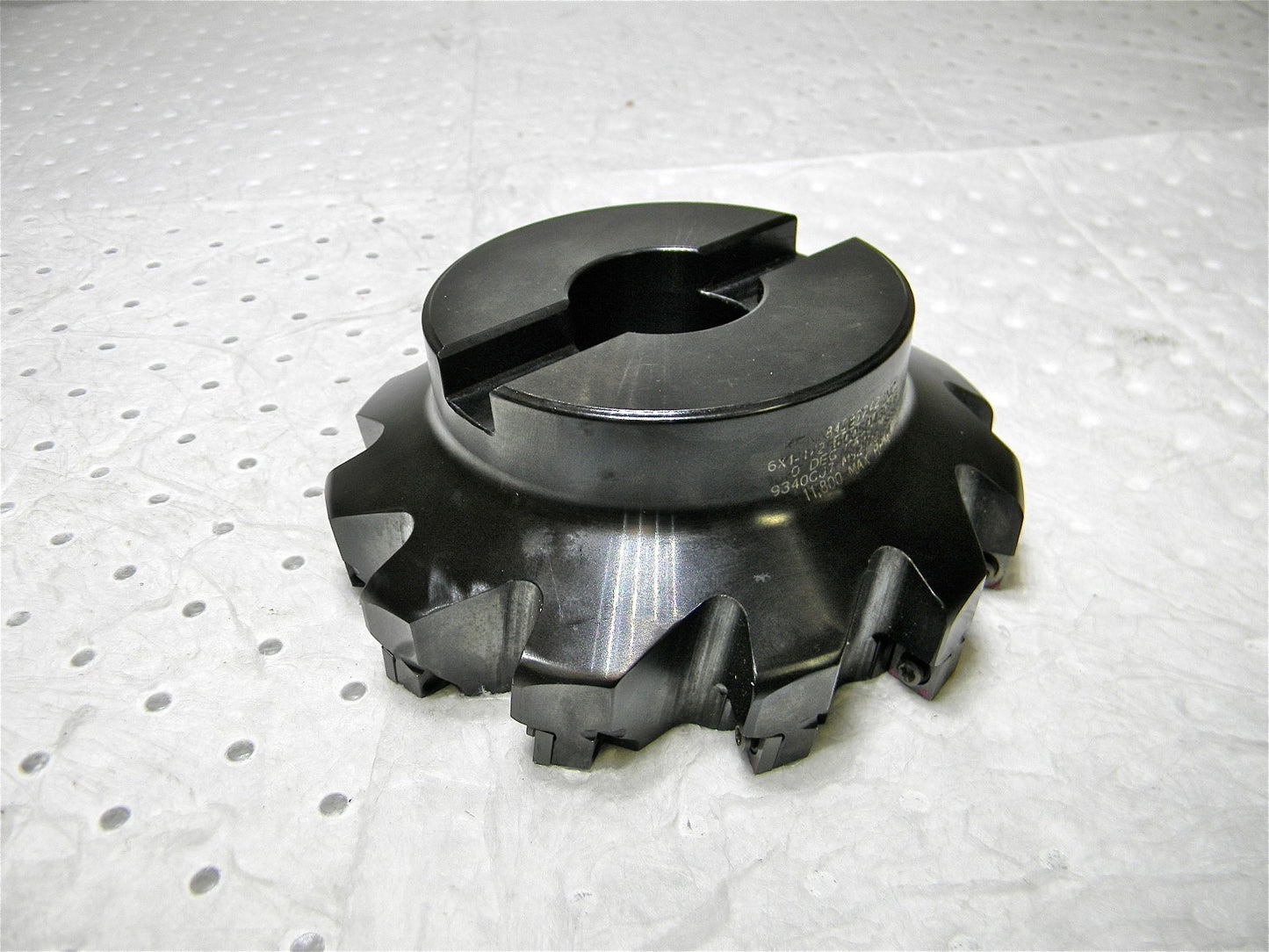

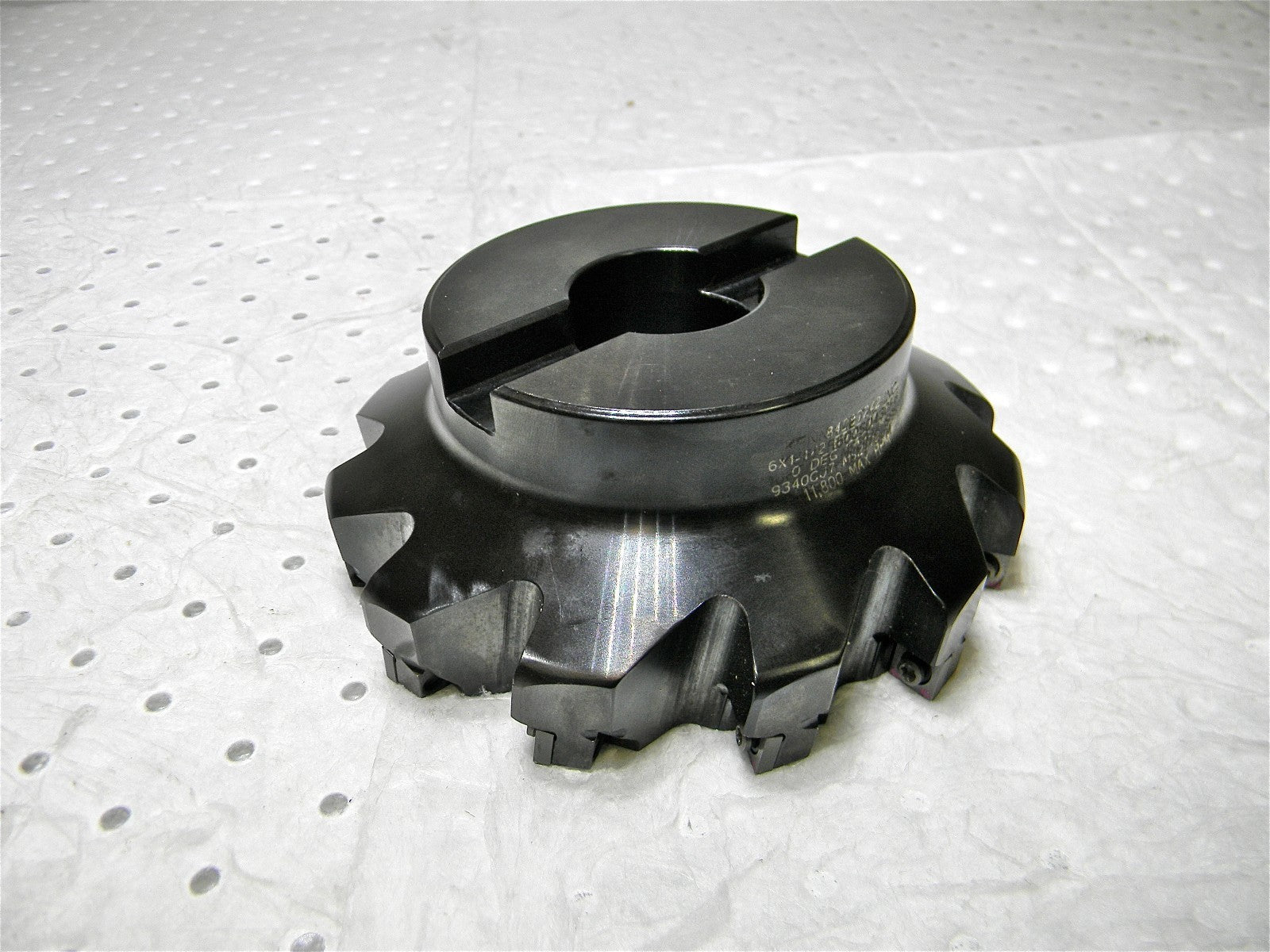

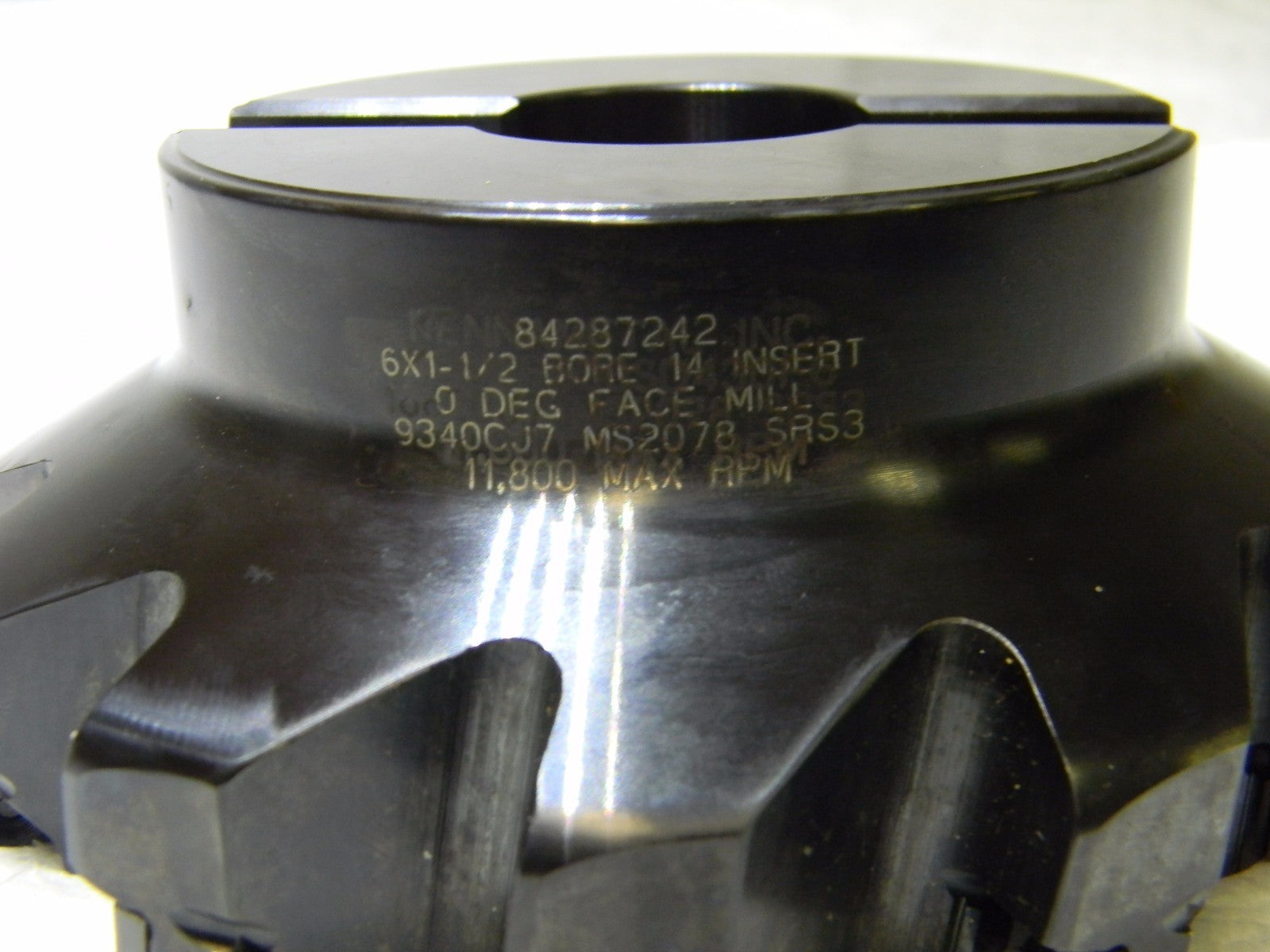

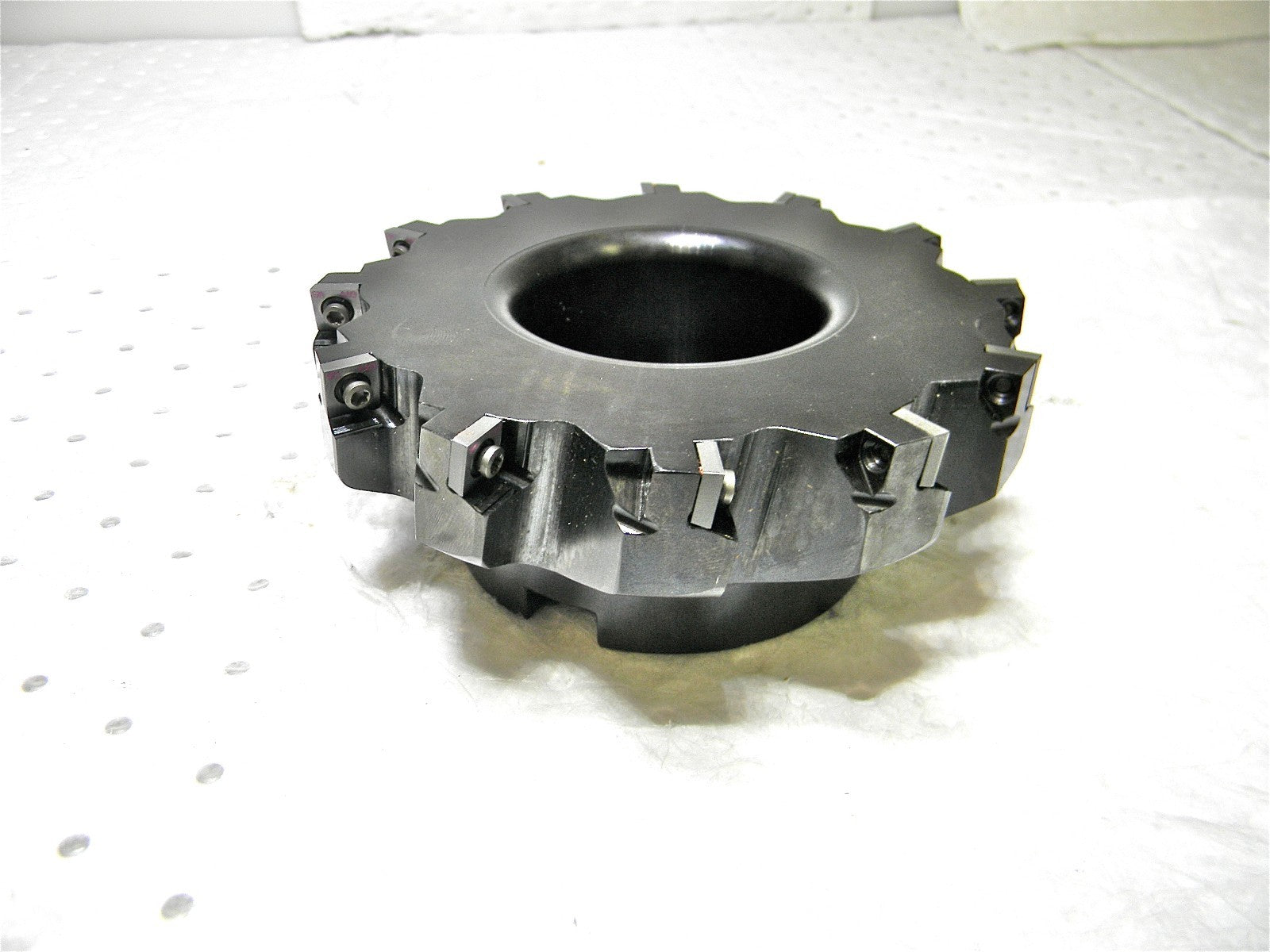

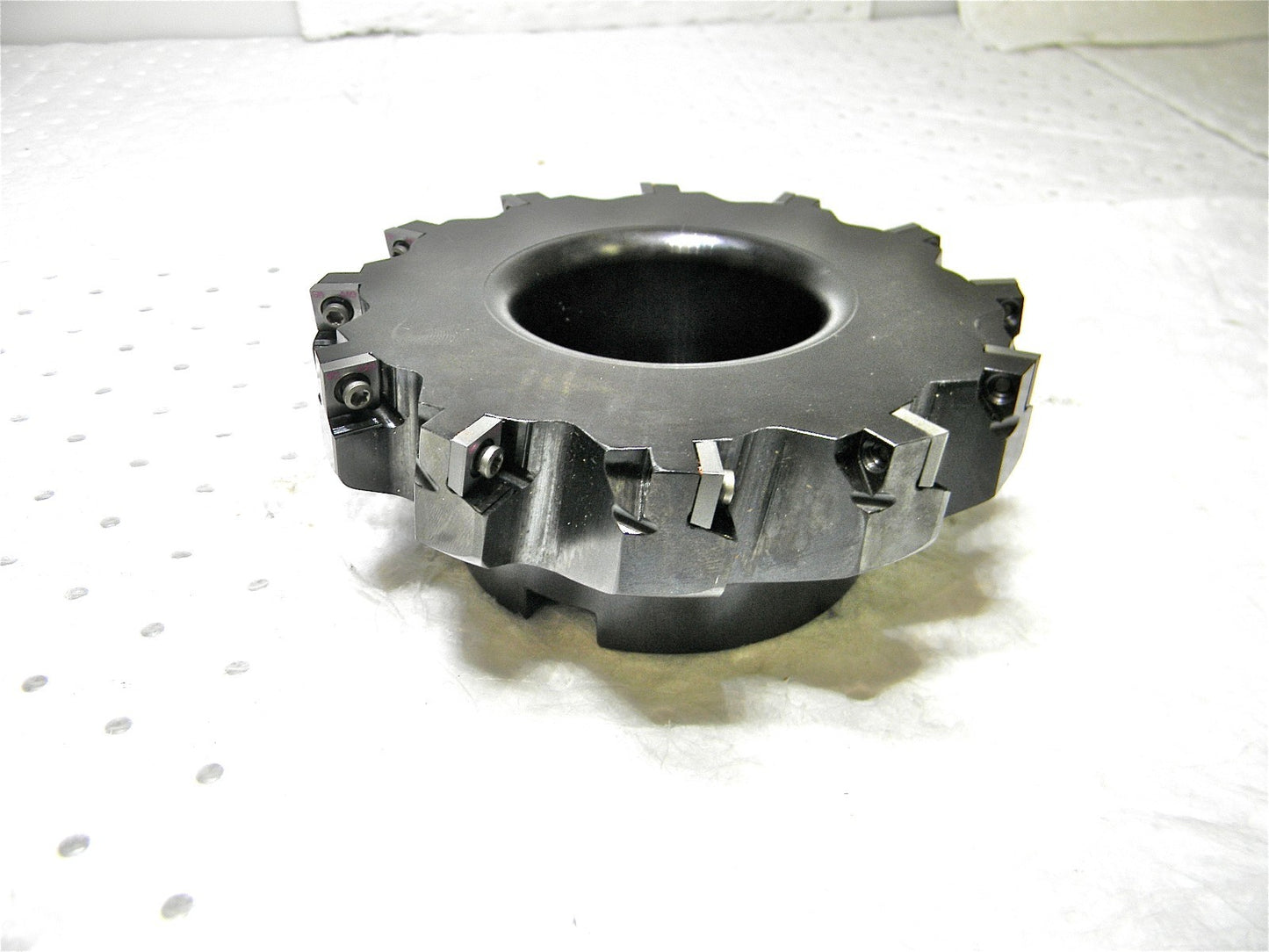

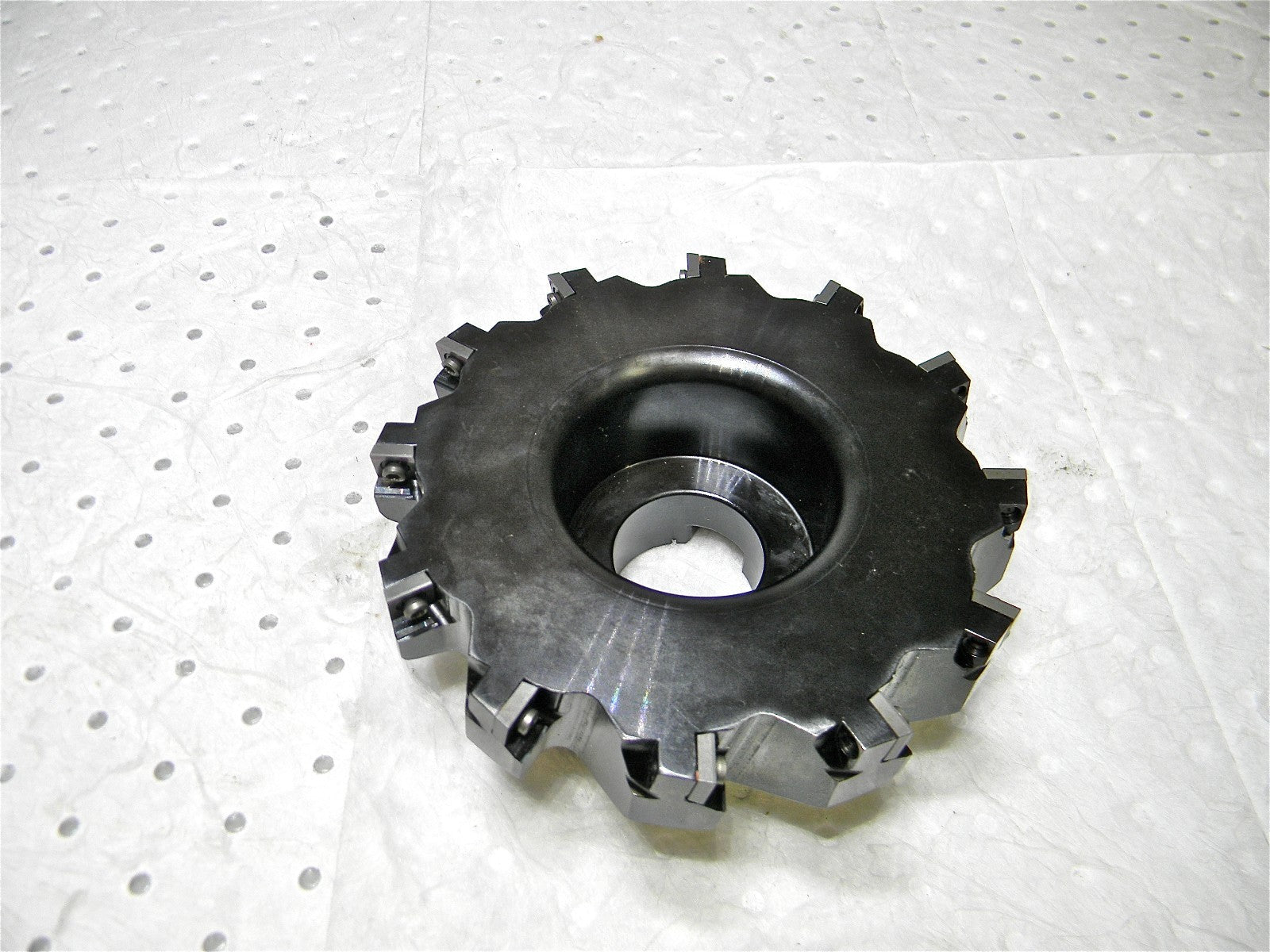

Kennametal Indexible Sq Shoulder Shell Mill 6" Cut Dia 0.361" Max DOC 1024968
Kennametal Indexible Sq Shoulder Shell Mill 6" Cut Dia 0.361" Max DOC 1024968
Regular price
$188.68 USD
Regular price
$400.00 USD
Sale price
$188.68 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Kennametal
MSRP: $400.00
Model:1024968
Description:
Cutting Diameter (Inch) 6
Cutting Diameter (Decimal Inch) 6.0000
Arbor Hole Diameter (mm) 38.10
Arbor Hole Diameter (Inch) 1-1/2
Arbor Hole Diameter (Decimal Inch) 1.5000
Lead Angle 0/90
Overall Height (Decimal Inch) 2.3800
Insert Compatibility SD.T 43..
Series KSSM
Through Coolant No
Maximum Depth of Cut (Decimal Inch) 0.3610
Cutting Direction Right Hand
Number of Cutter Inserts 12
Insert Holding Method Screw
Cutter Style KSSISR
Number of Flutes 12
Hub Diameter (Decimal Inch) 3.6850
Keyway Width (Decimal Inch) 0.6400
Maximum Body Diameter (Decimal Inch) 5.9360
Maximum RPM 11800
Pitch Fine
Complete Insert Compatibility SDCW 433PDSR8GN; SDCW 43PDSR8GN; SDPT 43PDER8GB2; SDPT 43PDSR8GB2
This listing is for One Indexible Sq Shoulder Shell Mill that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
Tina Dec 05 2019
TB 3130
Shelf B 2
