KENNAMETAL Indexable Threading Toolholder: External, RH 1097585

MSRP: $140

• Thread Type External
• Hand of Holder Right Hand
• Shank Width/Diameter (Decimal Inch) 1.0000
• Shank Width/Diameter (mm) 25.40
• Toolholder Style NS
• Insert Compatibility N.2R
• Insert Holding Method Clamp
• Shank Height (mm) 25.40
• Shank Height (Decimal Inch) 1.0000
• Overall Length (mm) 127.00
• Overall Length (Decimal Inch) 5.0000
• Multi-use Tool Yes
• Cutting Tool Application Grooving; Threading
• Head Length (Decimal Inch) 0.7500
• Head Length (mm) 19.05
• Maximum Depth of Cut (Decimal Inch) 0.1380
• Maximum Depth of Cut (mm) 3.51
• Back of Bar to Cutting Edge (Decimal Inch) 1.2500
• Center to Cutting Edge (Decimal Inch) 0.3500
• UNSPSC Code 23291800
• MSC/Manufacturer Number NSR/L162C
• Coolant Through No
• Series Top Notch

(Description).

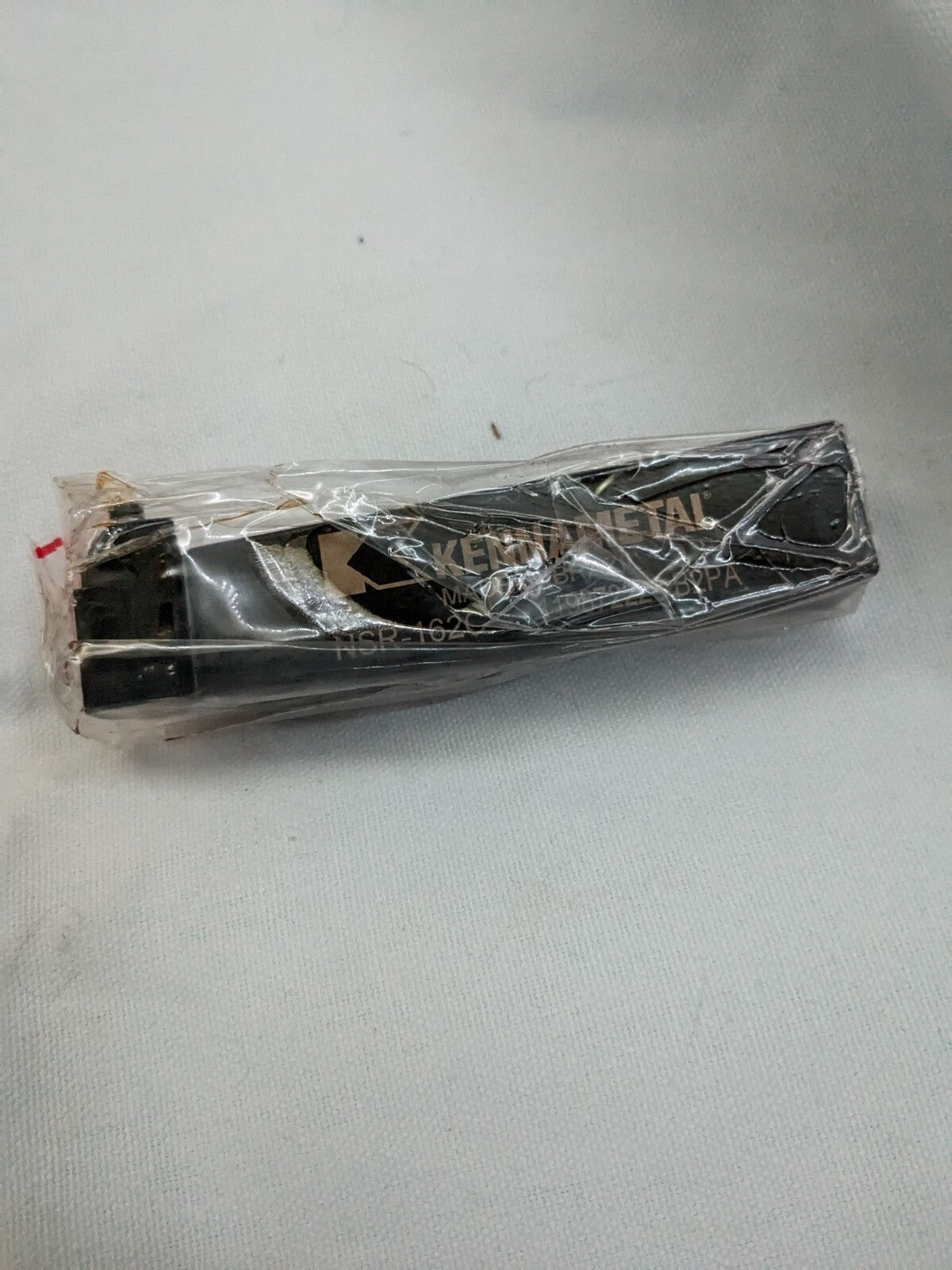

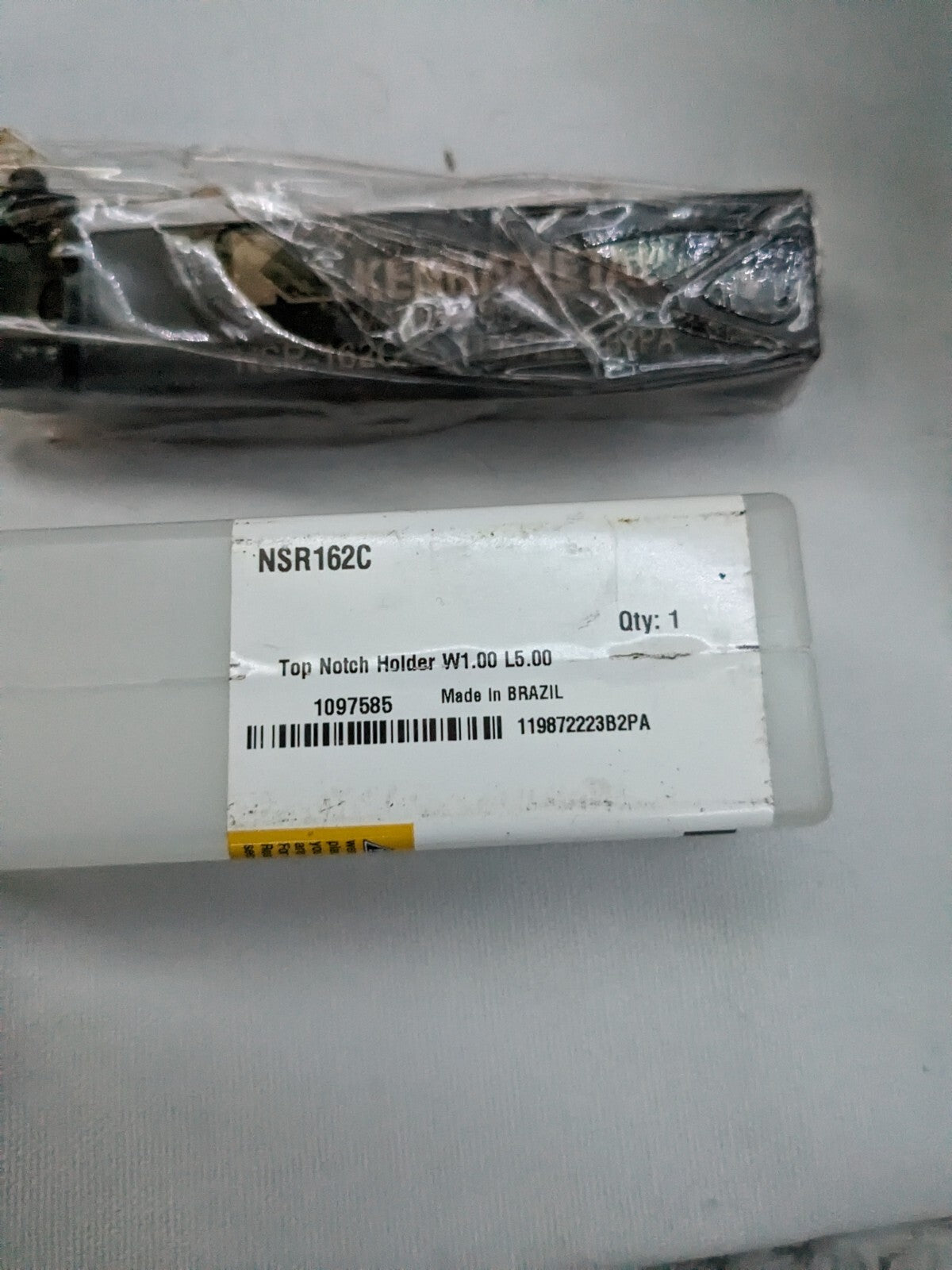

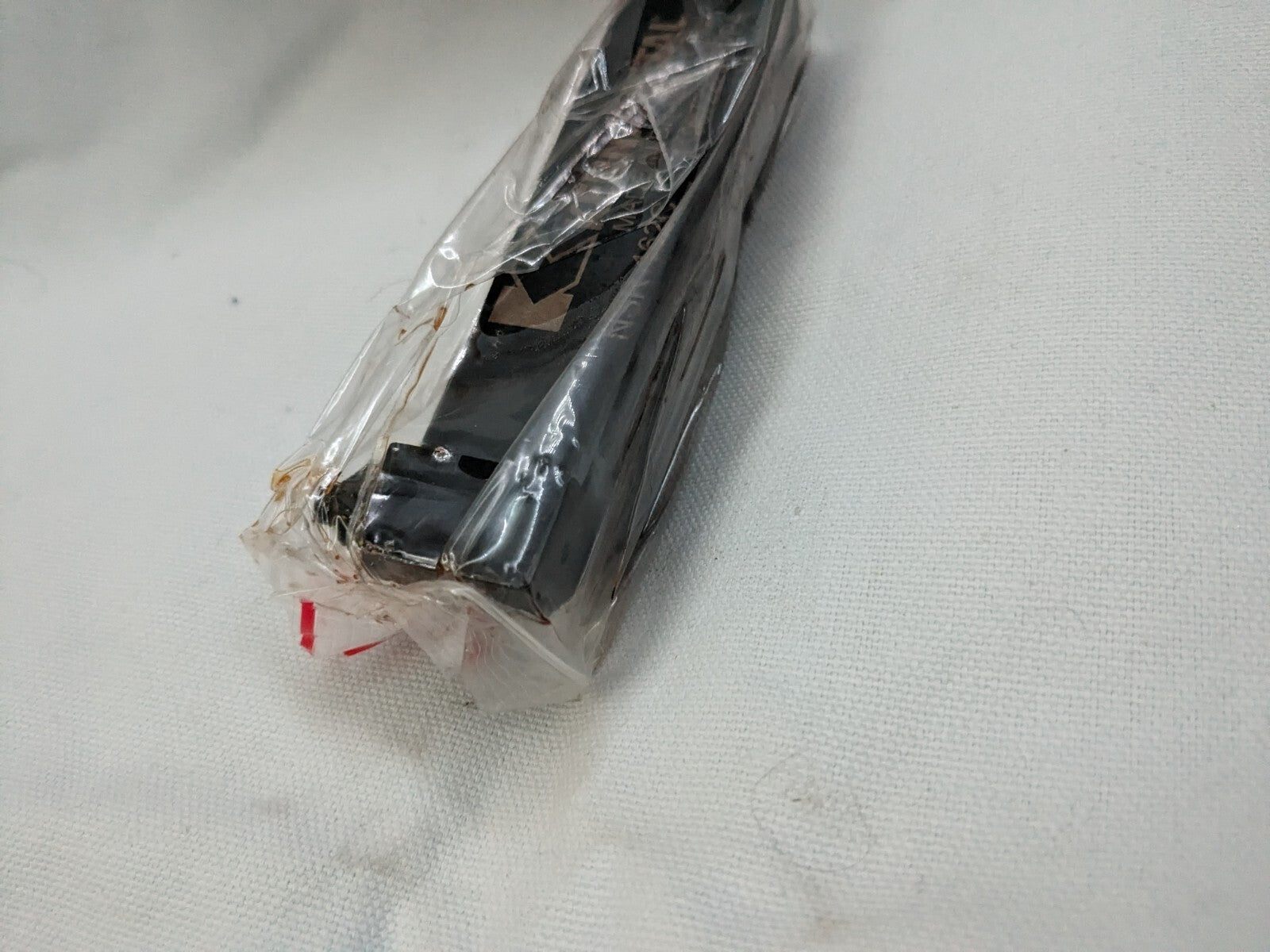

Please review photos, comes as shown.
