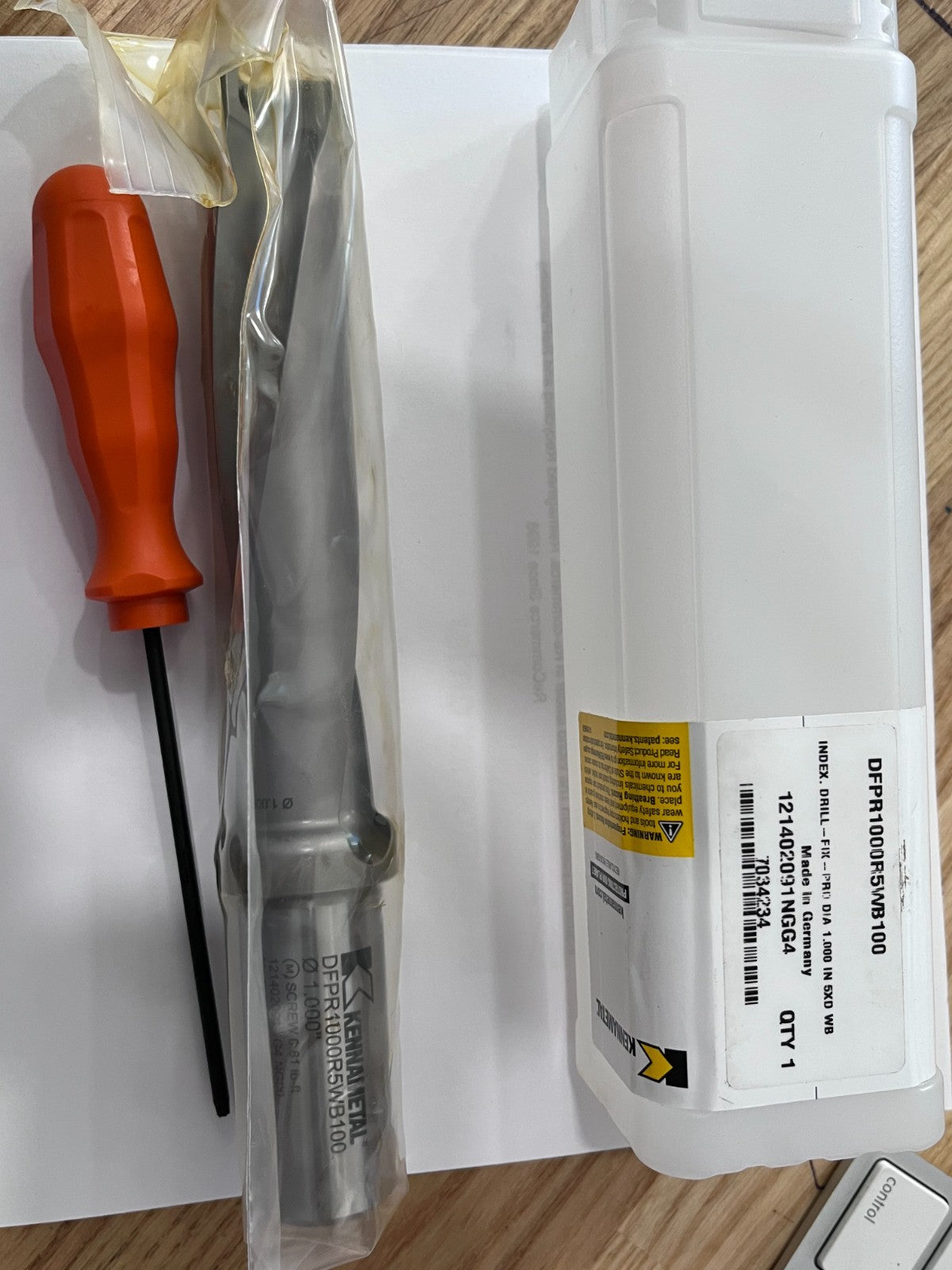

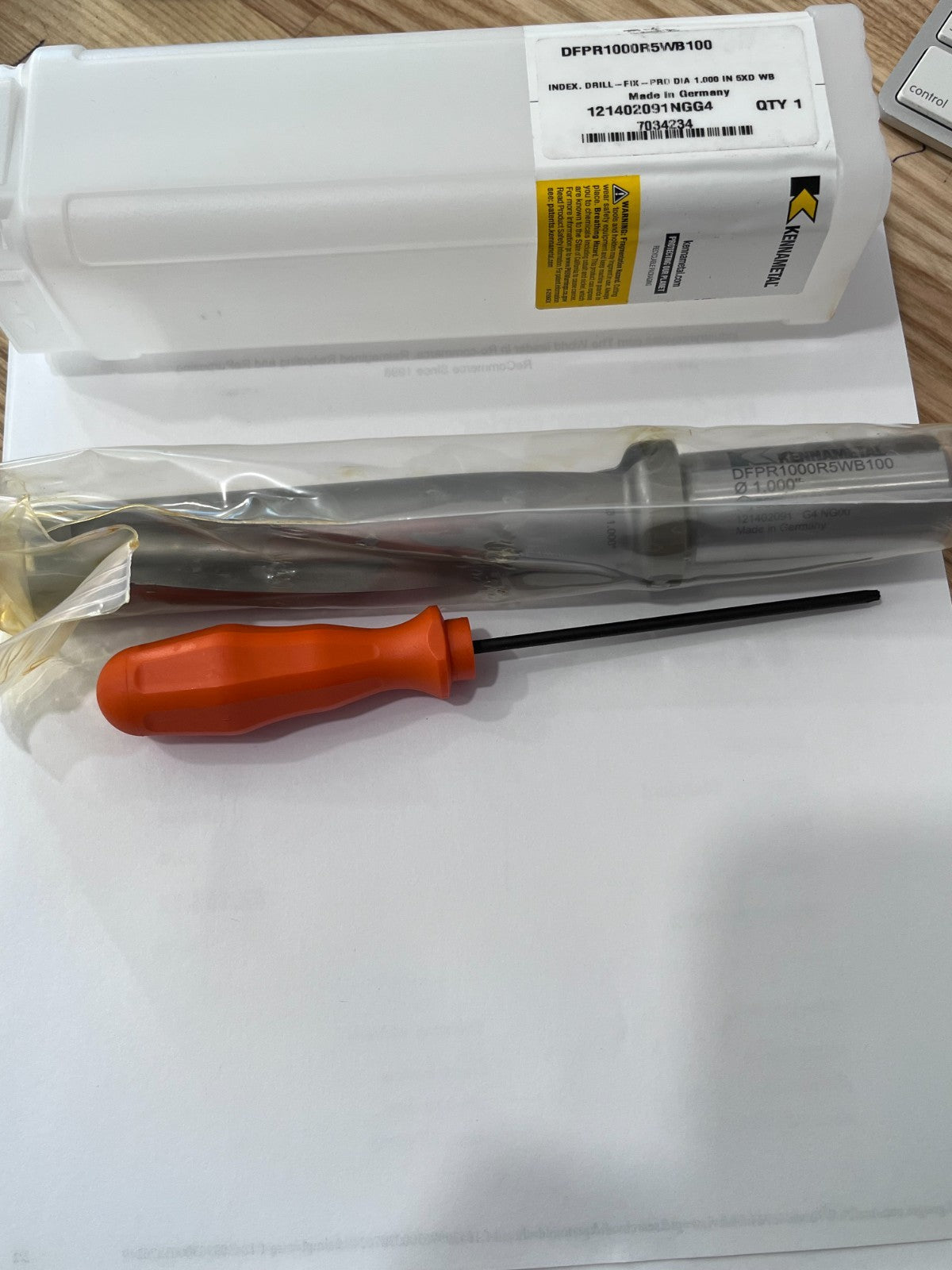

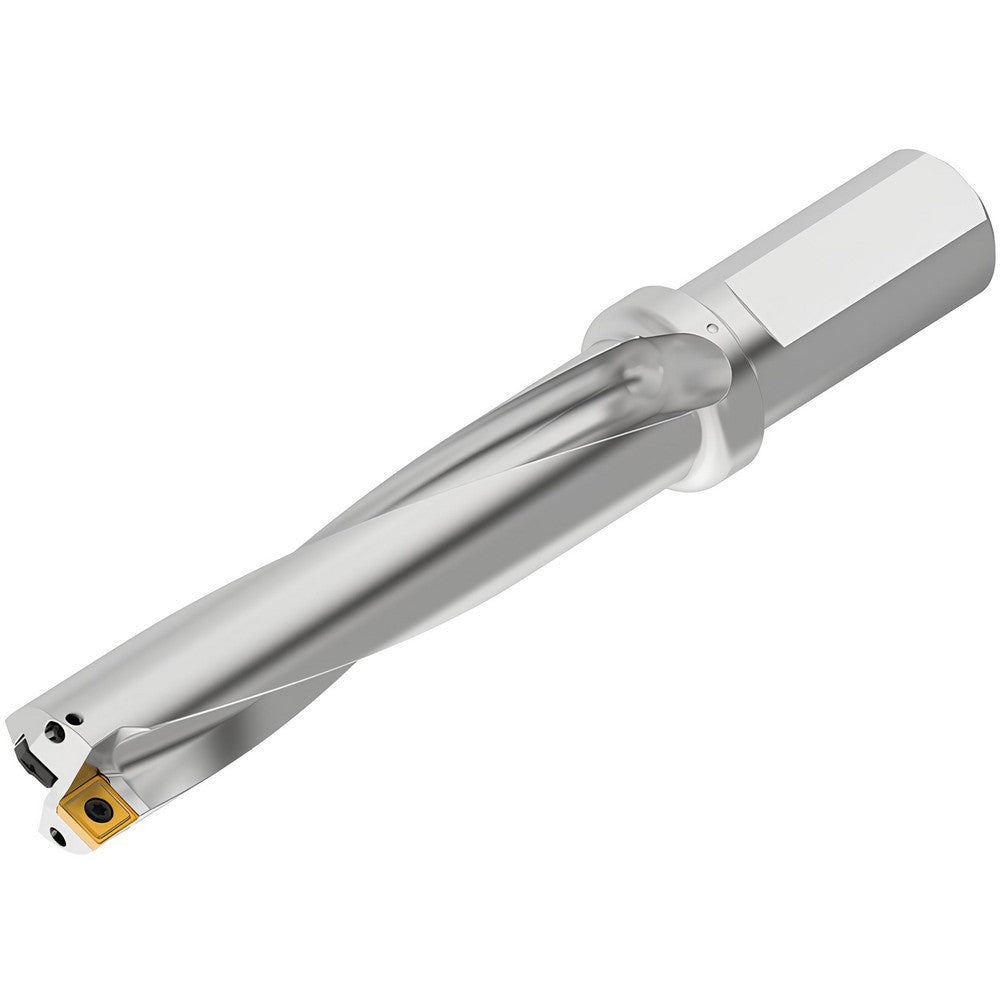

Kennametal Indexable Insert Drill DFPR1000R5WB100 Weldon Flat & Flange Shank
Kennametal Indexable Insert Drill DFPR1000R5WB100 Weldon Flat & Flange Shank
Regular price
$342.65 USD
Regular price
$700.00 USD
Sale price
$342.65 USD
Shipping calculated at checkout.
Couldn't load pickup availability
BRAND Kennametal
Item
MSRP: $700.00
- specs
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (Decimal Inch) | 1.0390 |
| Maximum Drill Depth (Inch) | 5 |
| Maximum Drill Depth (Decimal Inch) | 5.0000 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 090305; 100305 |
| Drill Depth by Diameter Ratio | 5xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 7.8730 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 5.0000 |
| Body Length (mm) | 144.00 |
| Body Length (Decimal Inch) | 5.6690 |
| Shank Length (Decimal Inch) | 2.2040 |
| Shank Length (mm) | 56.00 |
| Coolant Hole Thread Size | "1/4-18 NPT" |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.3700x0.1180; 0.3900x0.1180 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR090305__O; DFPR100305__I |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
| Insert Lock Screw | M3-0.5x8T9 |
| Coolant Through | Yes |
| Country of Origin | Germany |
| Ordered as Part # | 7034234 |
(Description).
Please review photos, comes as shown.
