Kennametal
Indexable Insert Drill

MSRP: $565

• Compatible Drill Style DFPR
• Maximum Drill Diameter (Decimal Inch) 1.0390
• Maximum Drill Depth (Inch) 3
• Maximum Drill Depth (Decimal Inch) 3.0000
• Shank Type Flange; Weldon Flat
• Shank Diameter (Inch) 1
• Shank Diameter (Decimal Inch) 1.0000
• Number of Drill Inserts 2
• Cutting Direction Right Hand
• Maximum Drill Depth Range (Decimal Inch) 3.0000 to 4.0000
• Tool Material Steel
• Compatible Insert Style DFPR
• Compatible Insert Size Code 090305; 100305
• Drill Depth by Diameter Ratio 3xD
• Coolant Entry Style Code 3- Axial Concentric & Radial
• Overall Length (Decimal Inch) 7.0630
• Series DFPR
• Flute Length (Decimal Inch) 3.0000
• Body Length (Decimal Inch) 4.0630
• Shank Length (Decimal Inch) 3.0000
• Coolant Hole Thread Size "1/4-18 NPT"
• Tool Application Drilling
• Tool Performance General Purpose
• Insert Size (Decimal Inch) 0.3700x0.1180; 0.3900x0.1180
• UNSPSC Code 23291503
• Insert Compatibility DFPR090305__O; DFPR100305__I
• Body Side Coolant Hole Thread Size (Inch) 1/8-27
• Shank End Coolant Hole Thread Size (Inch) 1/4-18
• Insert Lock Screw M3-0.5x8T9
• Coolant Through Yes

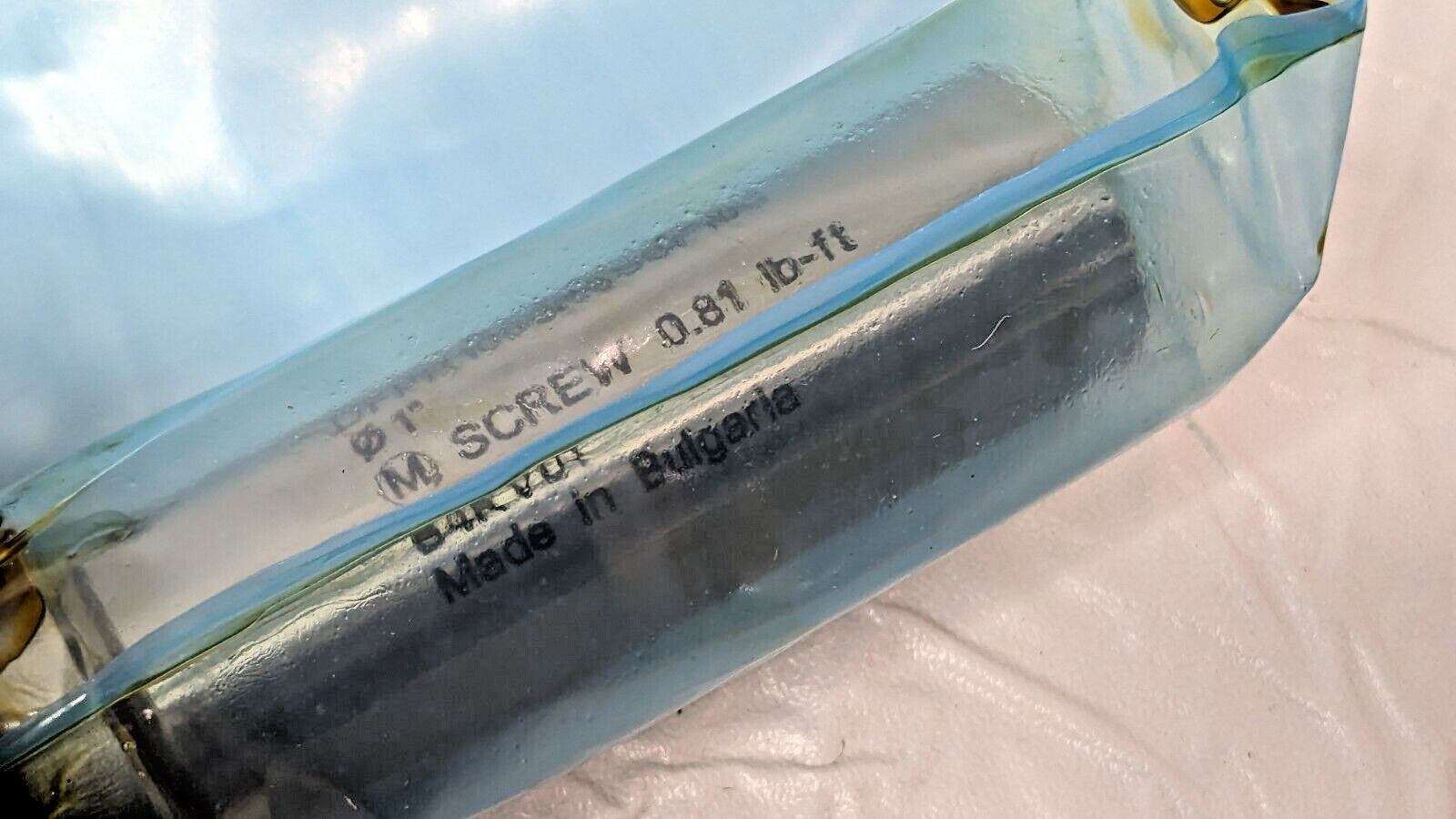

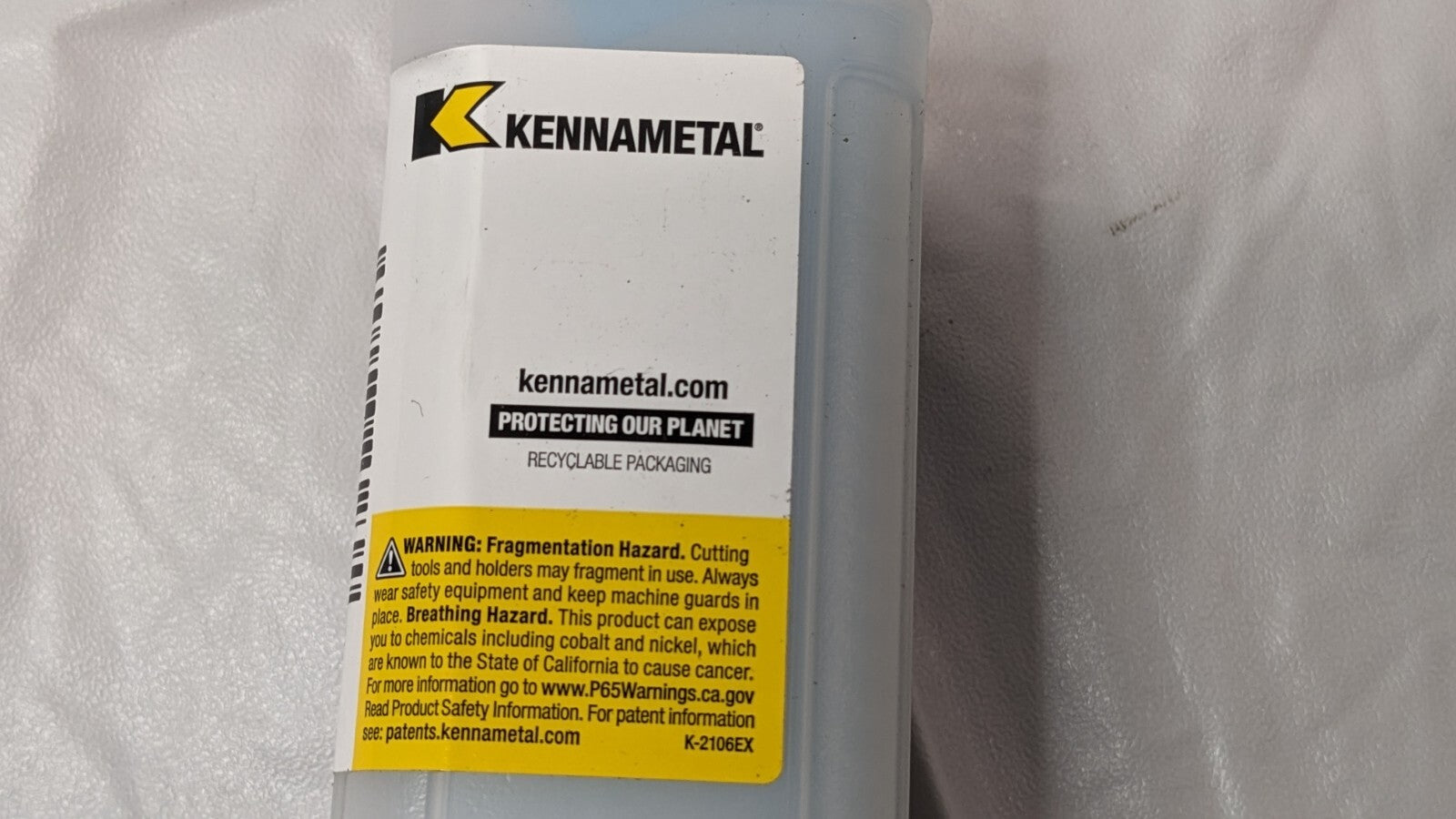

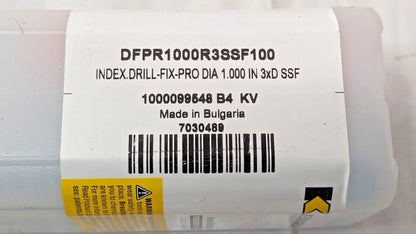

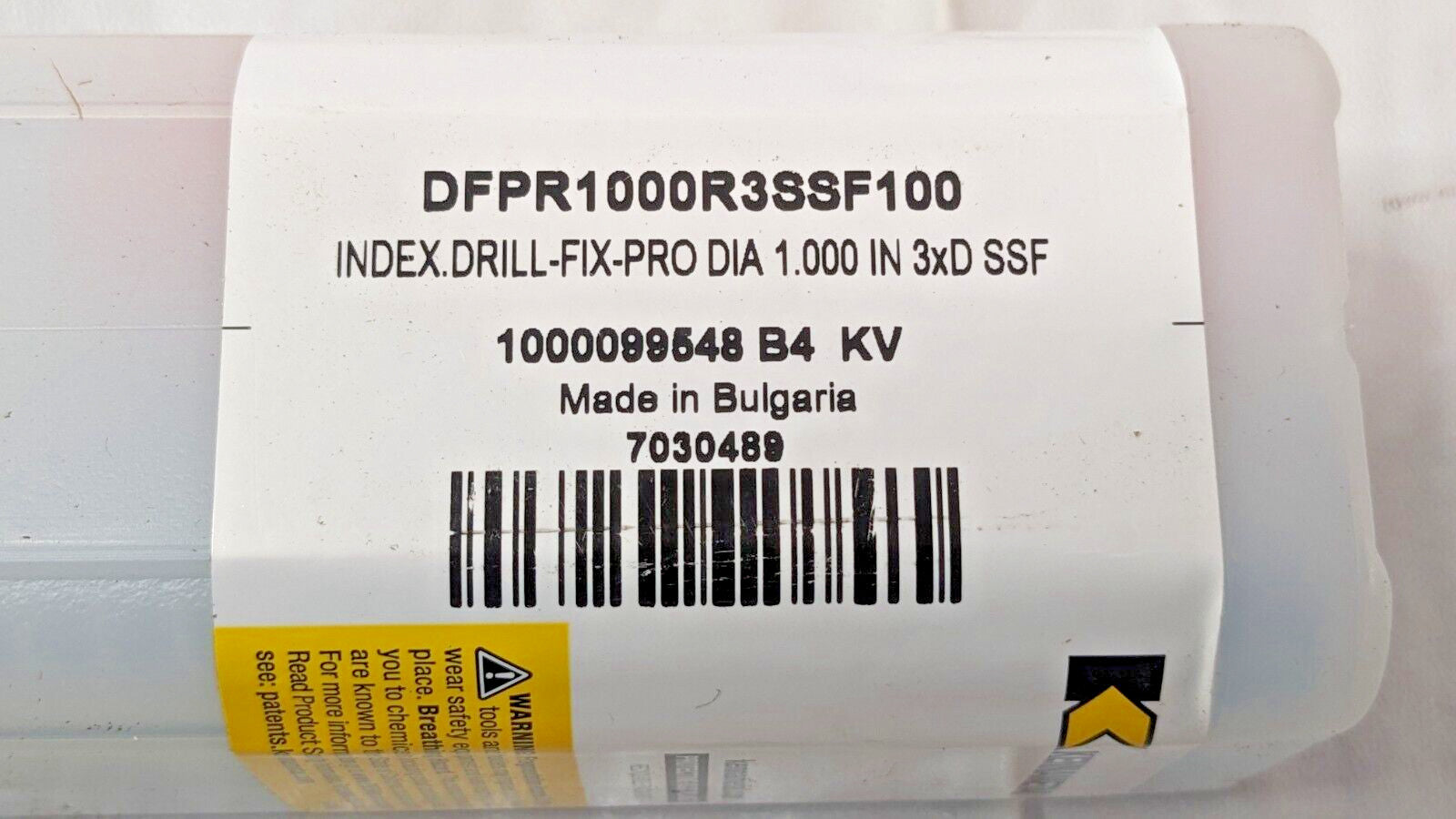

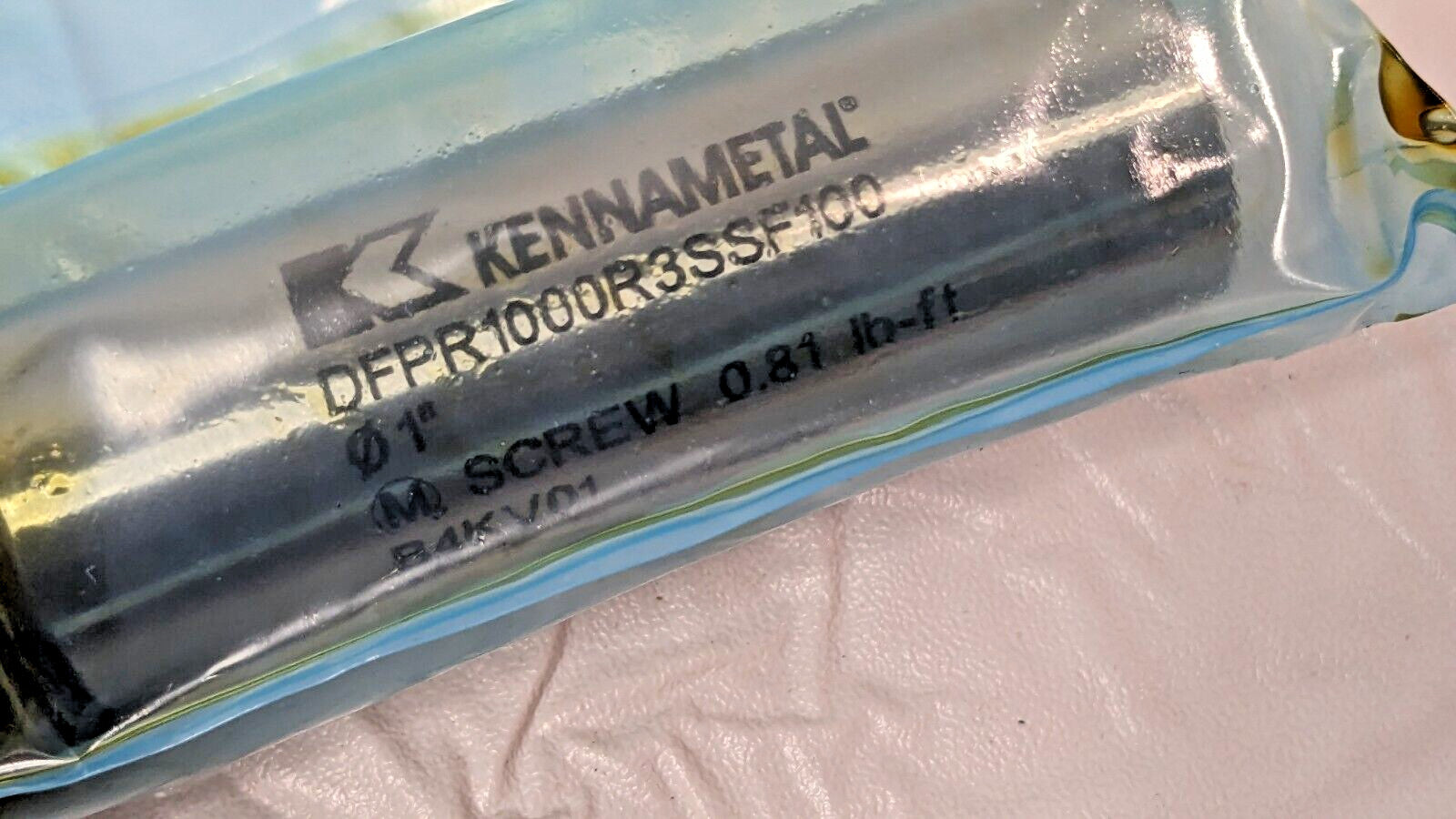

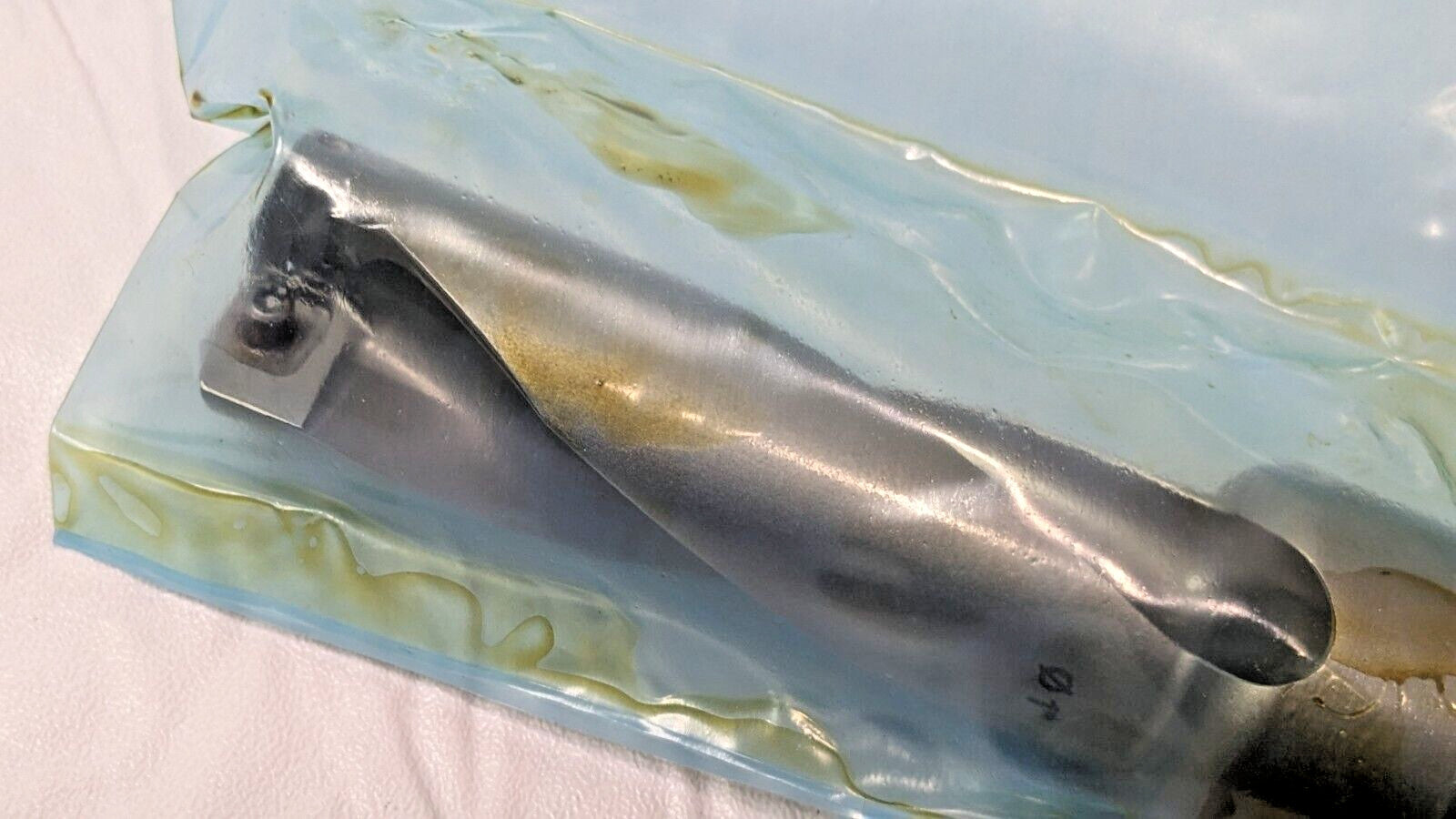

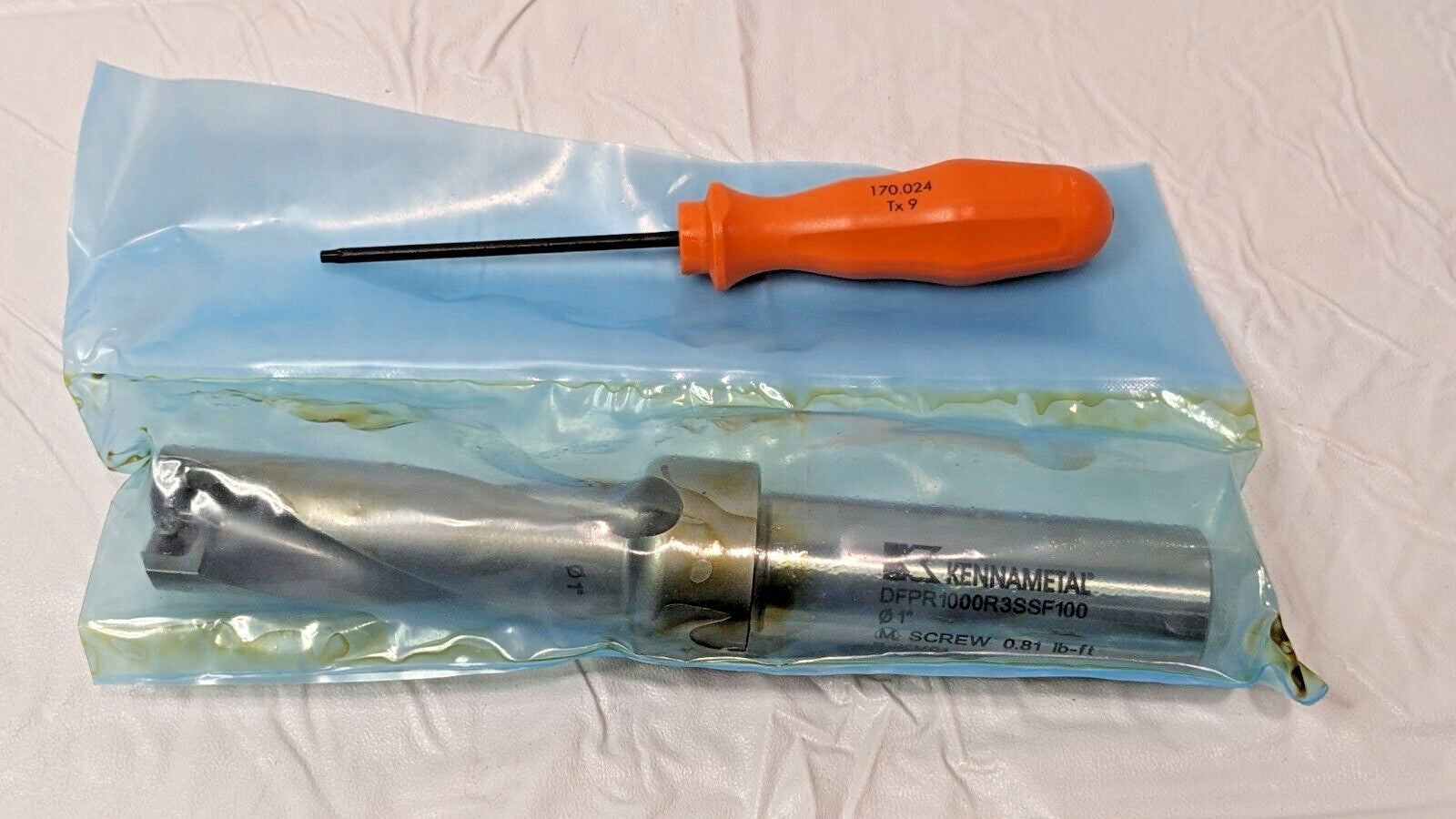

*NIB* Open package for inspection & Photos only.

Please review photos, comes as shown.
