KENNAMETAL Grooving Inserts 5pc: NG3K KCP25B, Solid Carbide 5967946

KENNAMETAL Grooving Inserts 5pc: NG3K KCP25B, Solid Carbide 5967946

MSRP: $105

• Insert Style NG
• Cutting Width (Decimal Inch) 0.0620
• Cutting Width (mm) 1.58
• Insert Hand Left Hand
• Maximum Depth of Cut (Decimal Inch) 0.0940
• Maximum Depth of Cut (mm) 2.39
• Insert Material Solid Carbide
• Manufacturer Grade KCP25B
• Full Radius No
• Corner Radius (Decimal Inch) 0.0075
• Corner Radius (mm) 0.19
• Rake Positive
• Insert Holding Method Clamp
• Insert Size 3
• Cutting Height (mm) 8.74
• Maximum Depth Of Cut Range (Decimal Inch) 0.0750 to 0.1000
• Cutting Height (Decimal Inch) 0.3440
• Maximum Depth Of Cut Range (mm) 2.00 to 3.00
• Lead Angle 1
• Multi-use Tool No
• Series Top Notch
• Coating Process CVD
• Rake Angle 3.00
• Maximum Corner Radius (Decimal Inch) 0.0620
• Minimum Corner Radius (Decimal Inch) 0.0050
• Insert Thickness (Decimal Inch) 0.3440
• UNSPSC Code 23242105
• Chip Breaker K
• Insert Seat Size 3
• Gage Diameter (Decimal Inch) 0.3750
• Gage Diameter (Inch) 3/8
• Overall Width (mm) 4.98
• Overall Width (Decimal Inch - 4 Decimals) 0.1960
• Coating/Finish TiOCN
• Single Or Double End Double

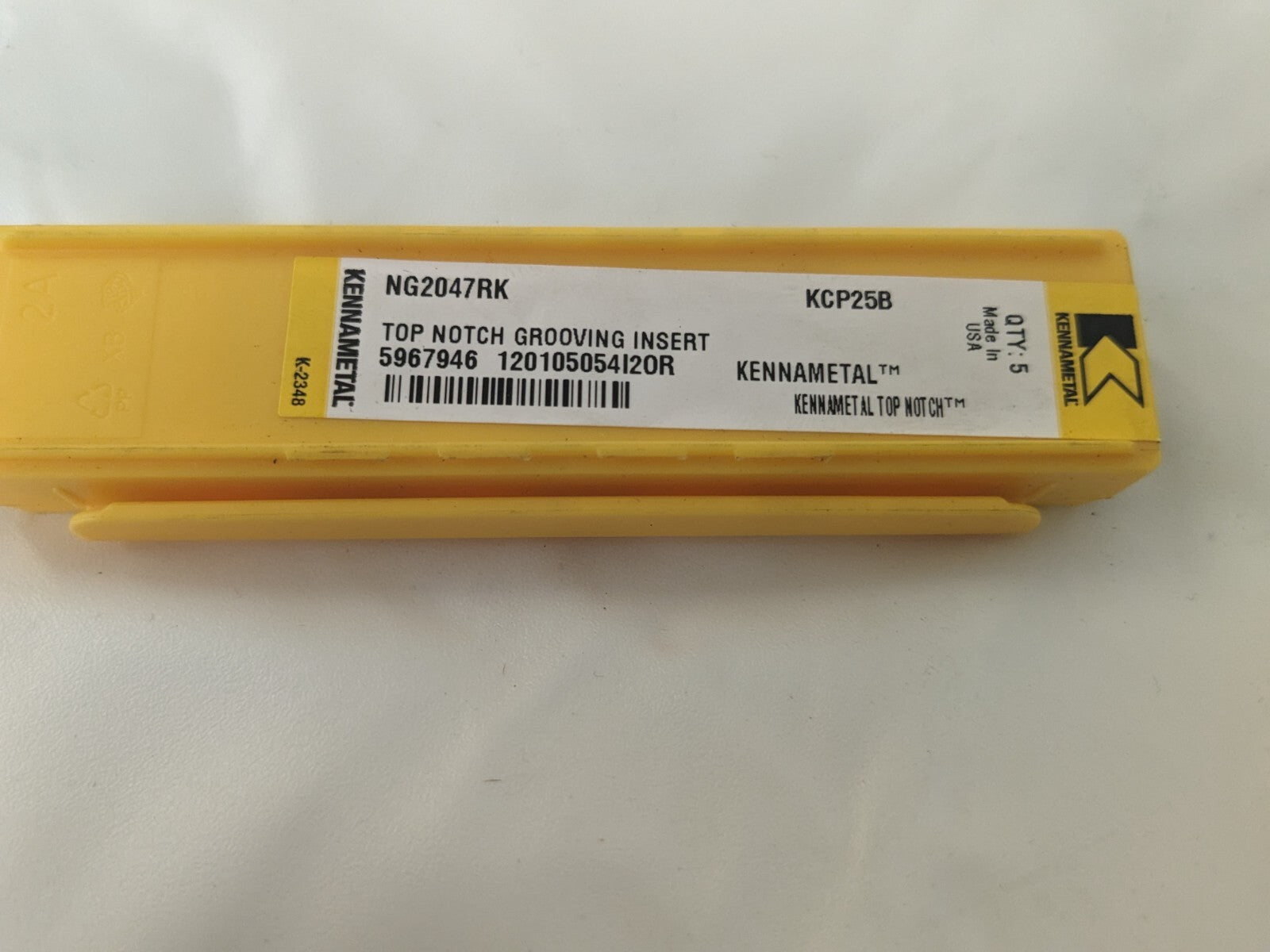

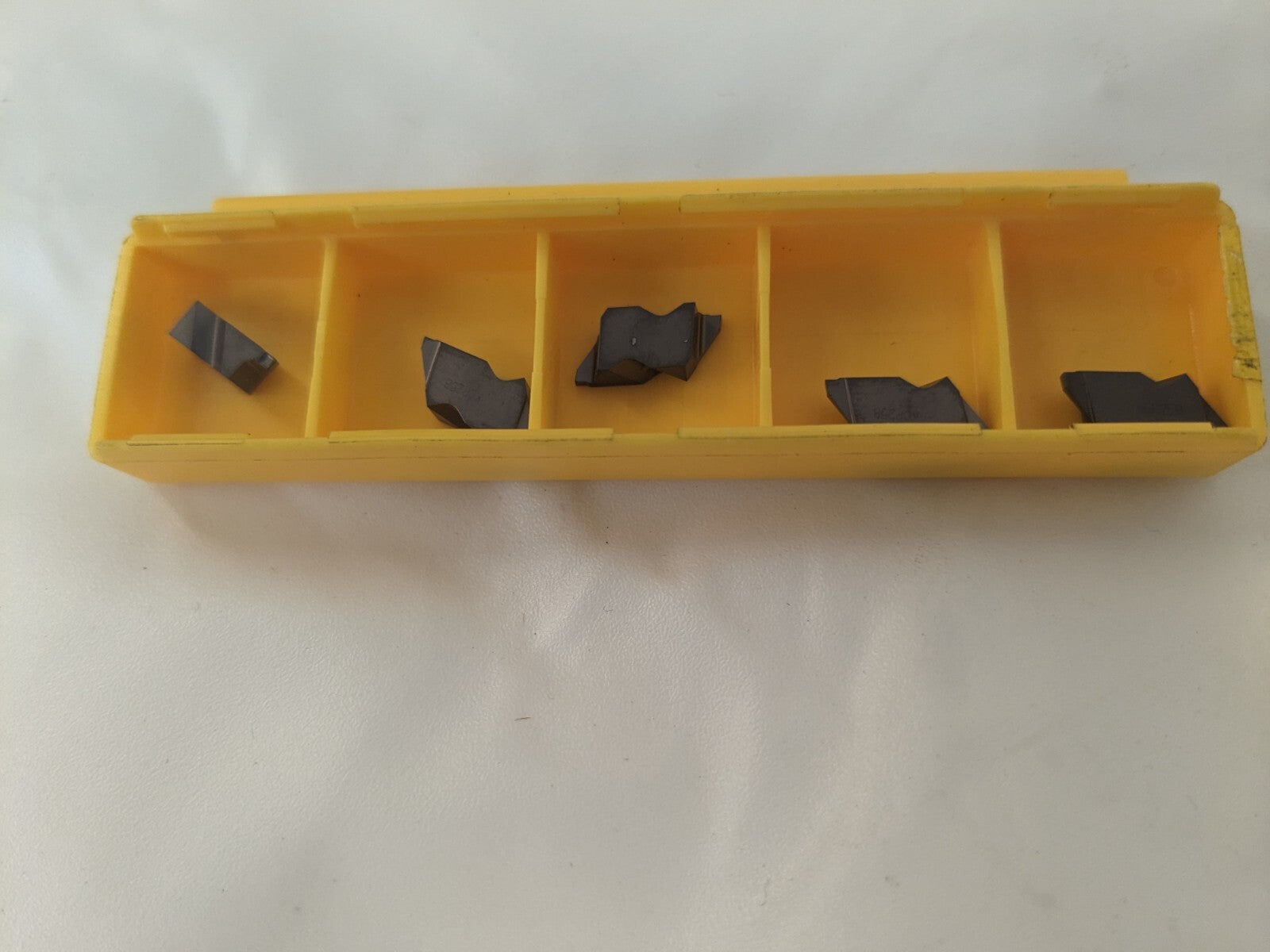

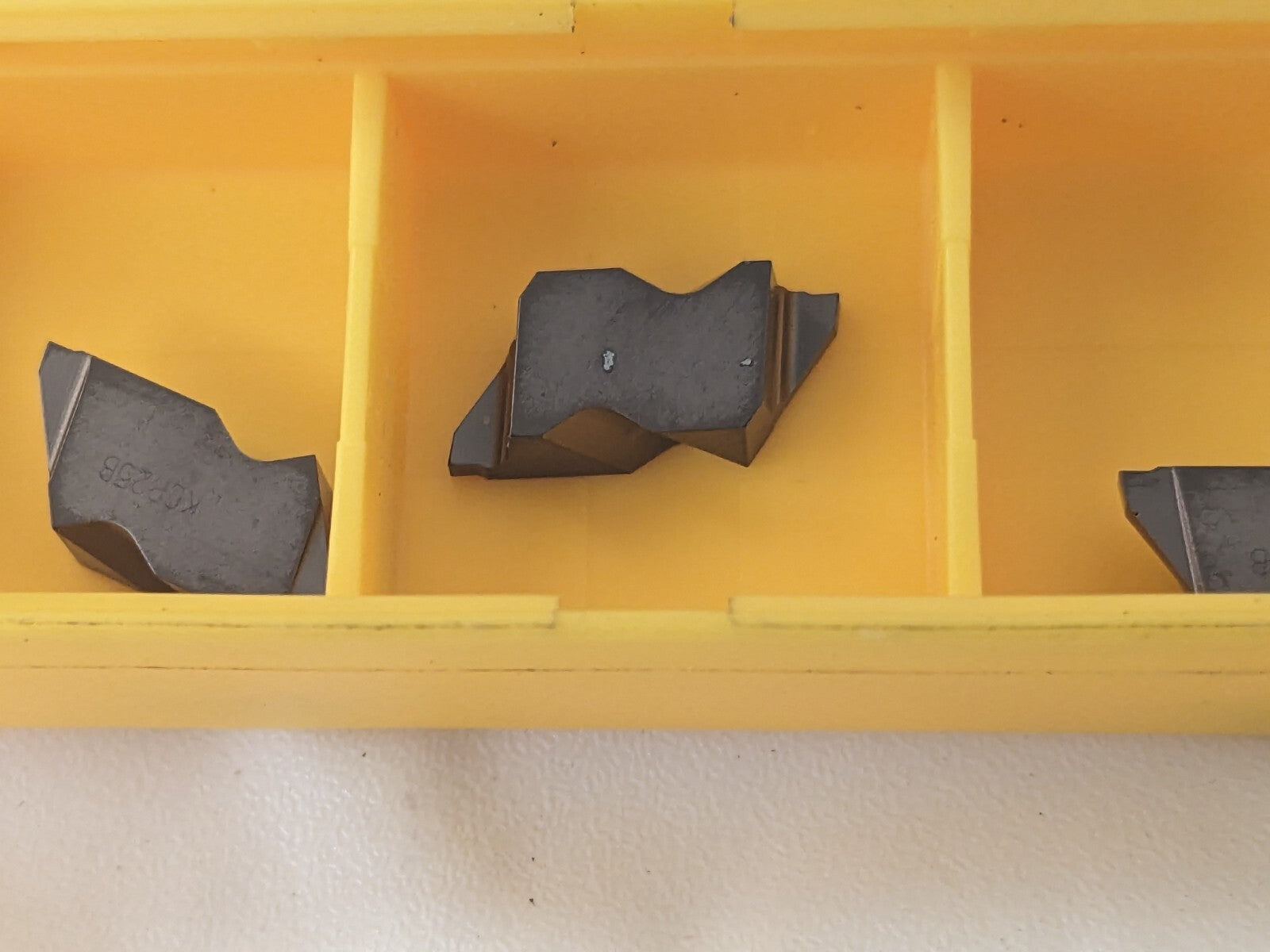

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
