KENNAMETAL

 Extra Length Drill Bit: 0.0938? Dia 135 ° Point, Solid Carbide 402888
MSRP: $250

•

• Overall Length (mm) 101.00
• Flute Length (mm) 63.00
• Tool Material Solid Carbide
• Coating/Finish Bright/Uncoated
• Drill Point Angle 135
• Shank Type Straight-Cylindrical
• Coolant Through Yes
• Flute Type Spiral
• Series B272-HPS
• Point Type Standard
• Cutting Direction Right Hand
• Spiral Type Regular
• Drill Bit Diameter Tolerance -0.014 to 0.000 mm; -0.0006 to 0.0000 in
• Number Of Flutes 2
• Web Configuration Tapered
• Drill Bit Size (Decimal Inch) 0.0938
• Drill Point Length (mm) 0.44
• Drill Point Length (Decimal Inch) 0.0173
• Shank Diameter (Decimal Inch) 0.1181
• Shank Diameter (mm) 3.00
• Shank Length (Decimal Inch) 1.1811
• Shank Length (mm) 30.00
• Flute Length (Decimal Inch) 2.4803
• Flute By Diameter Ratio 23xD
• Maximum Drilling Depth (Decimal Inch) 2.2047
• Maximum Drilling Depth (mm) 56.00

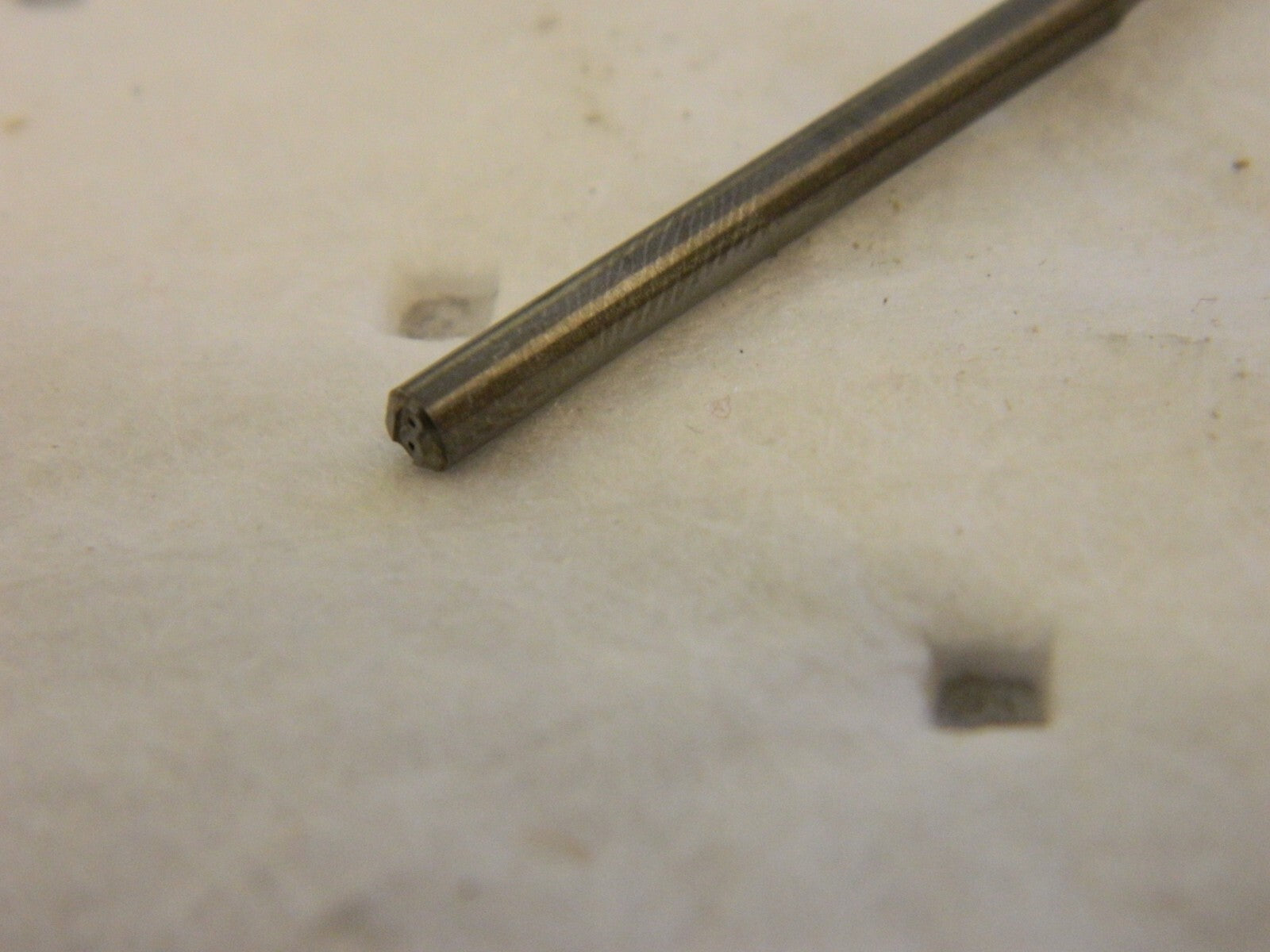

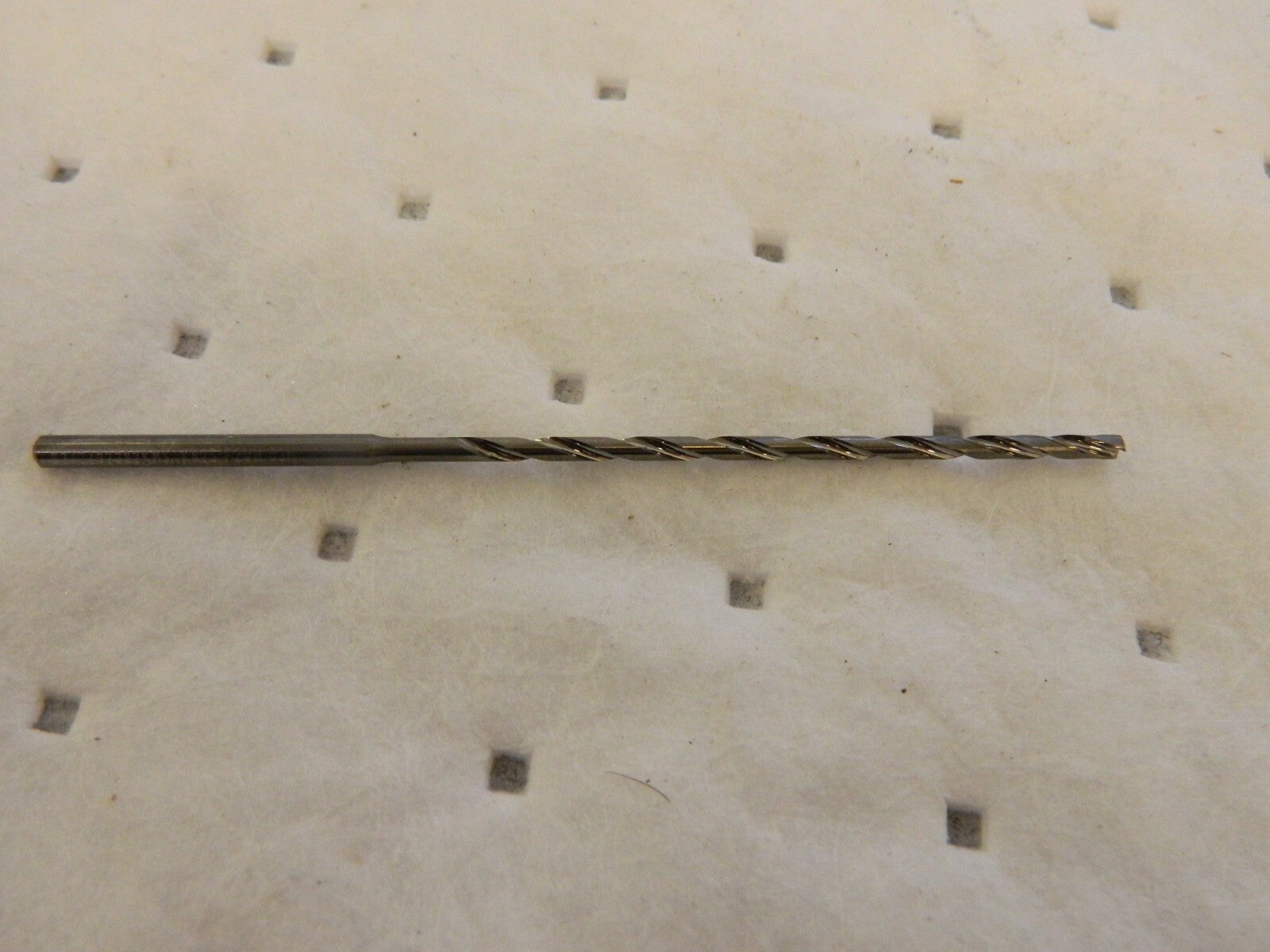

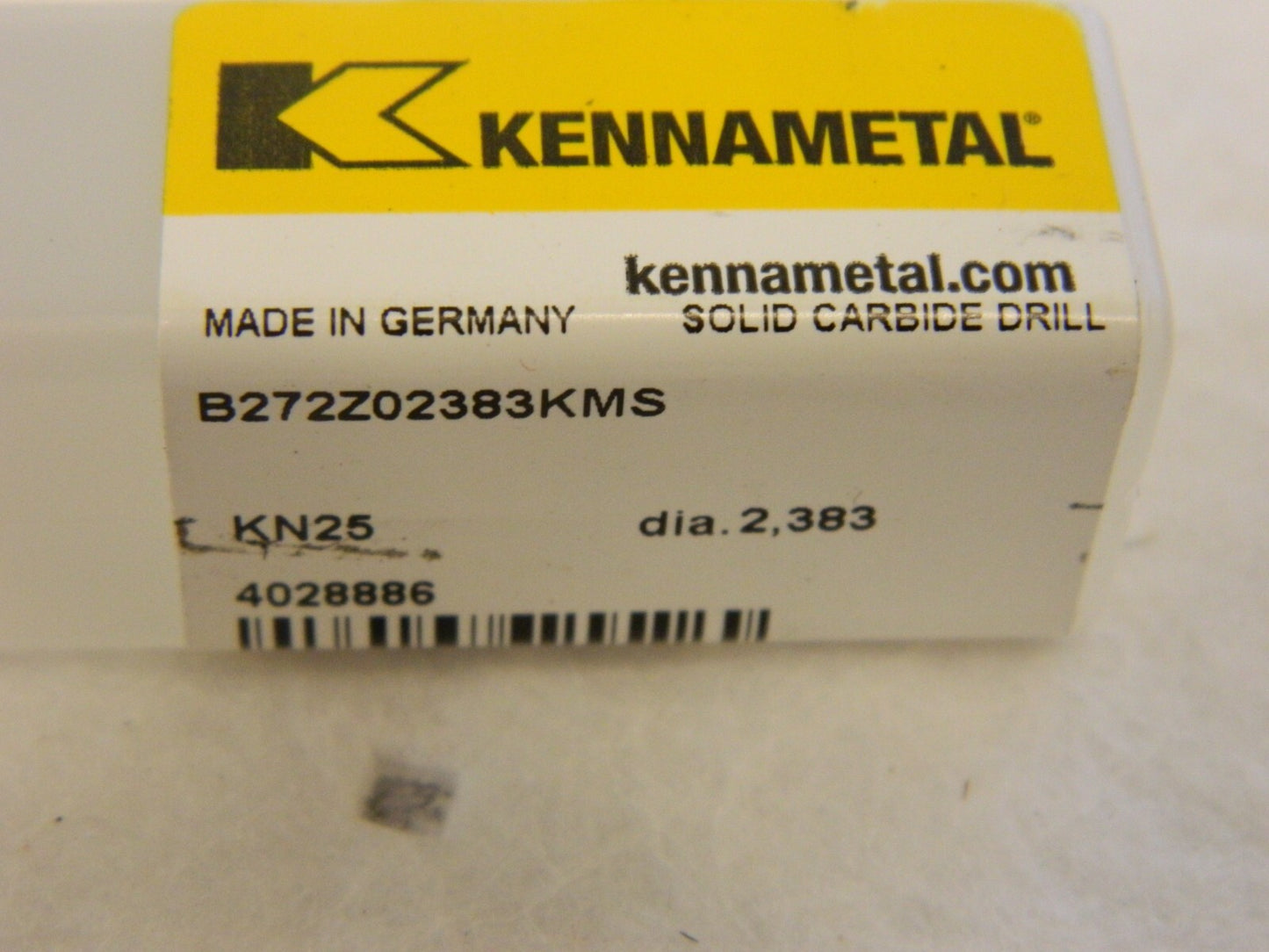

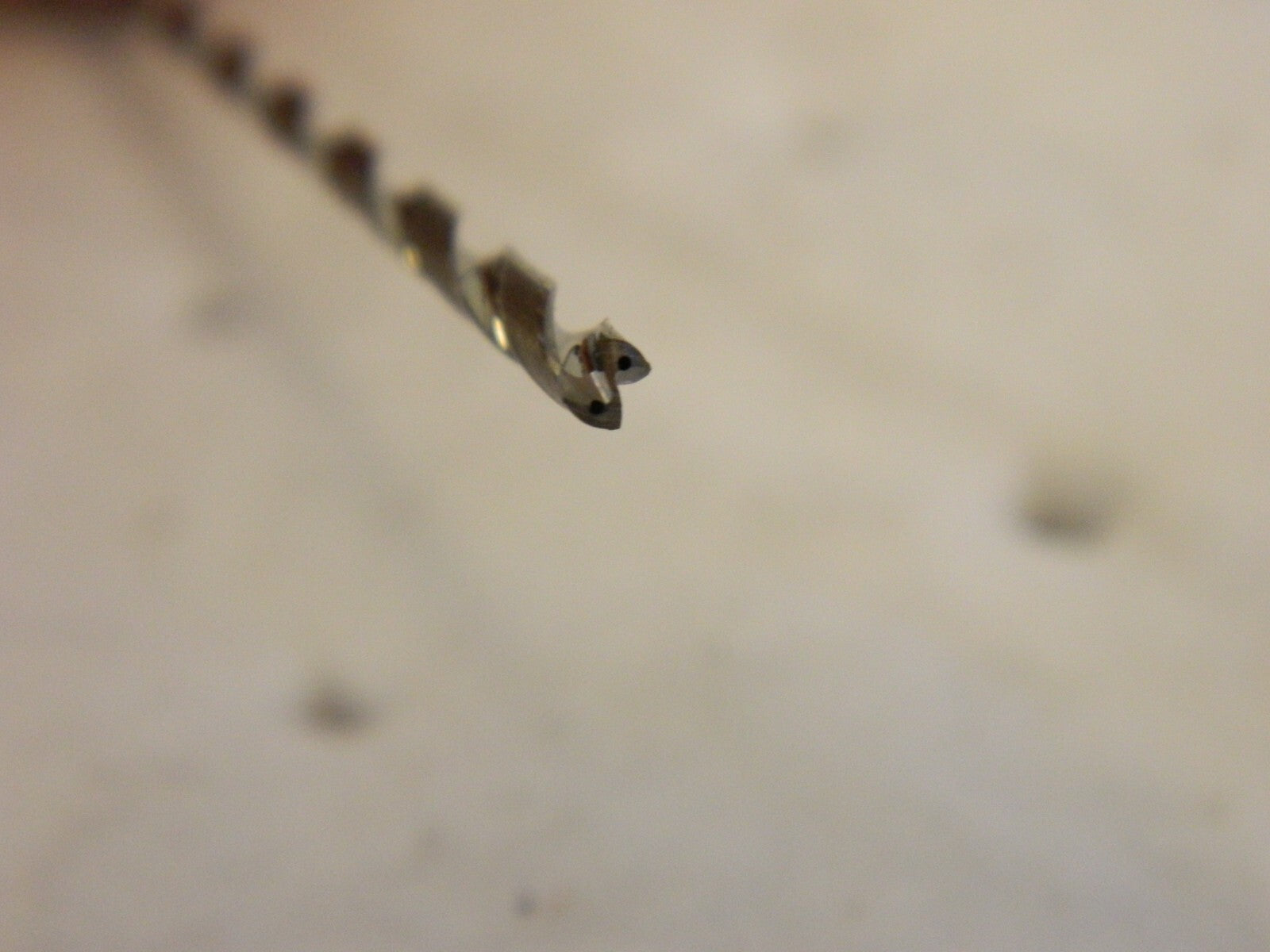

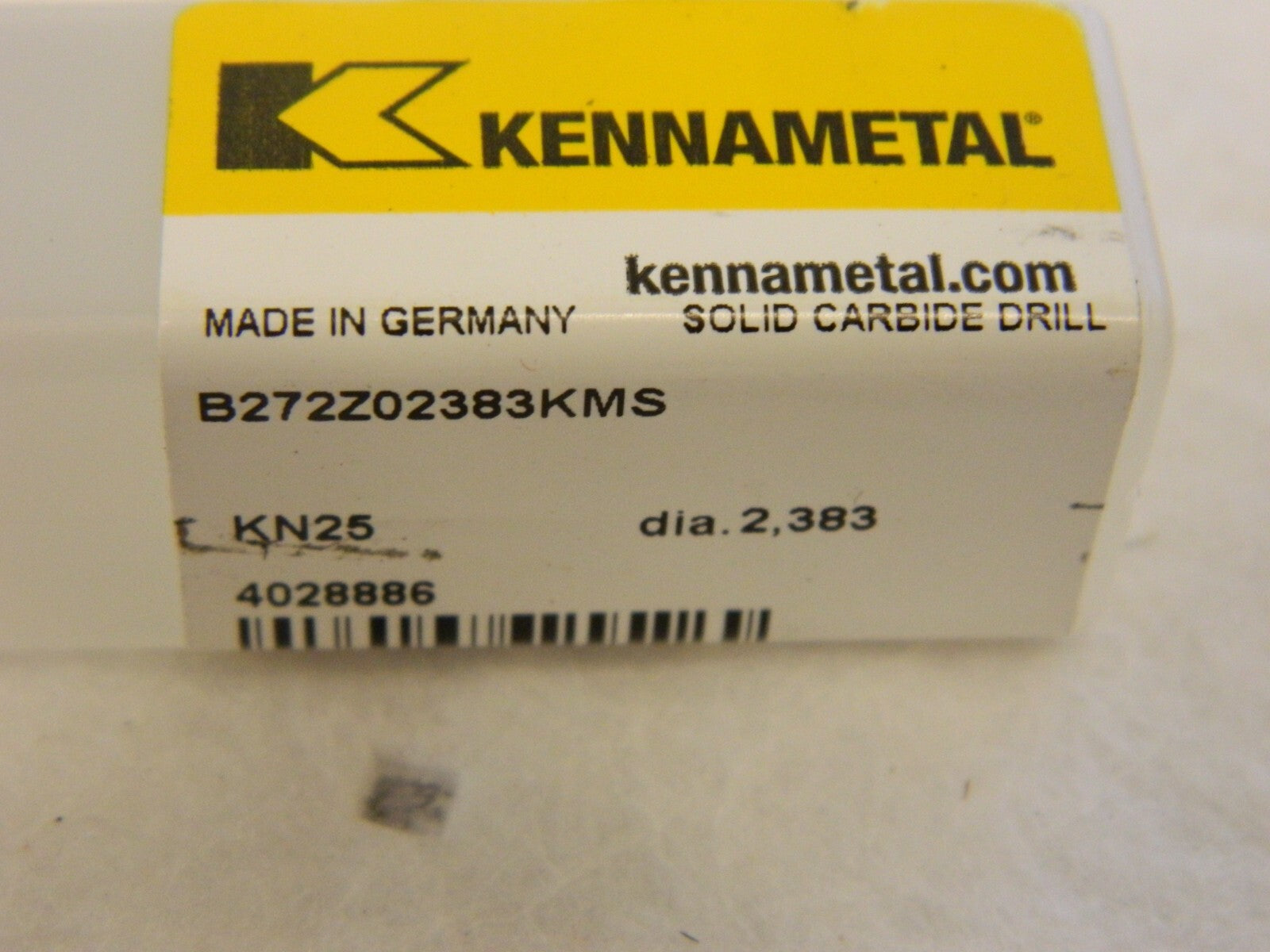

Please review photos, comes as shown.
