Kennametal DNMG433MS DNMG150412MS KC552 Carbide Inserts Qty.5

BRAND Kennametal
Item inserts QTY 5

• specs
• Insert Style
• DNMG
• Insert Size
• 433
• Material
• Carbide
• Inscribed Circle (Decimal Inch)
• 0.5000
• Inscribed Circle (Inch)
• 1/2
• Thickness (Inch)
• 3/16
• Thickness (Decimal Inch)
• 0.1875
• Manufacturer's Grade
• KC5525
• Corner Radius (Inch)
• 3/64
• Corner Radius (Decimal Inch)
• 0.0469
• Coating
• TiAlN
• Material Grade
• C2/C3/C4/C5/C6
• Chip breaker
• MS
• Length (mm)
• 15.50
• Length (Decimal Inch)
• 0.6102
• Hole Diameter (mm)
• 5.16
• Hole Diameter (Decimal Inch)
• 0.2031
• Rake
• Positive
• Rake Angle (Degree)
• 13
• Relief Angle (Degree)
• 0
• Coating Process
• PVD
• Included Angle (Degree)
• 55
• Insert Hand
• Neutral
• Series
• KENLOC®
• Maximum Depth of Cut (mm)
• 1.25
• Maximum Depth of Cut (Decimal Inch)
• 0.0492
• Insert Holding Method
• Screw or Clamp
• Shape
• Diamond

(Description).

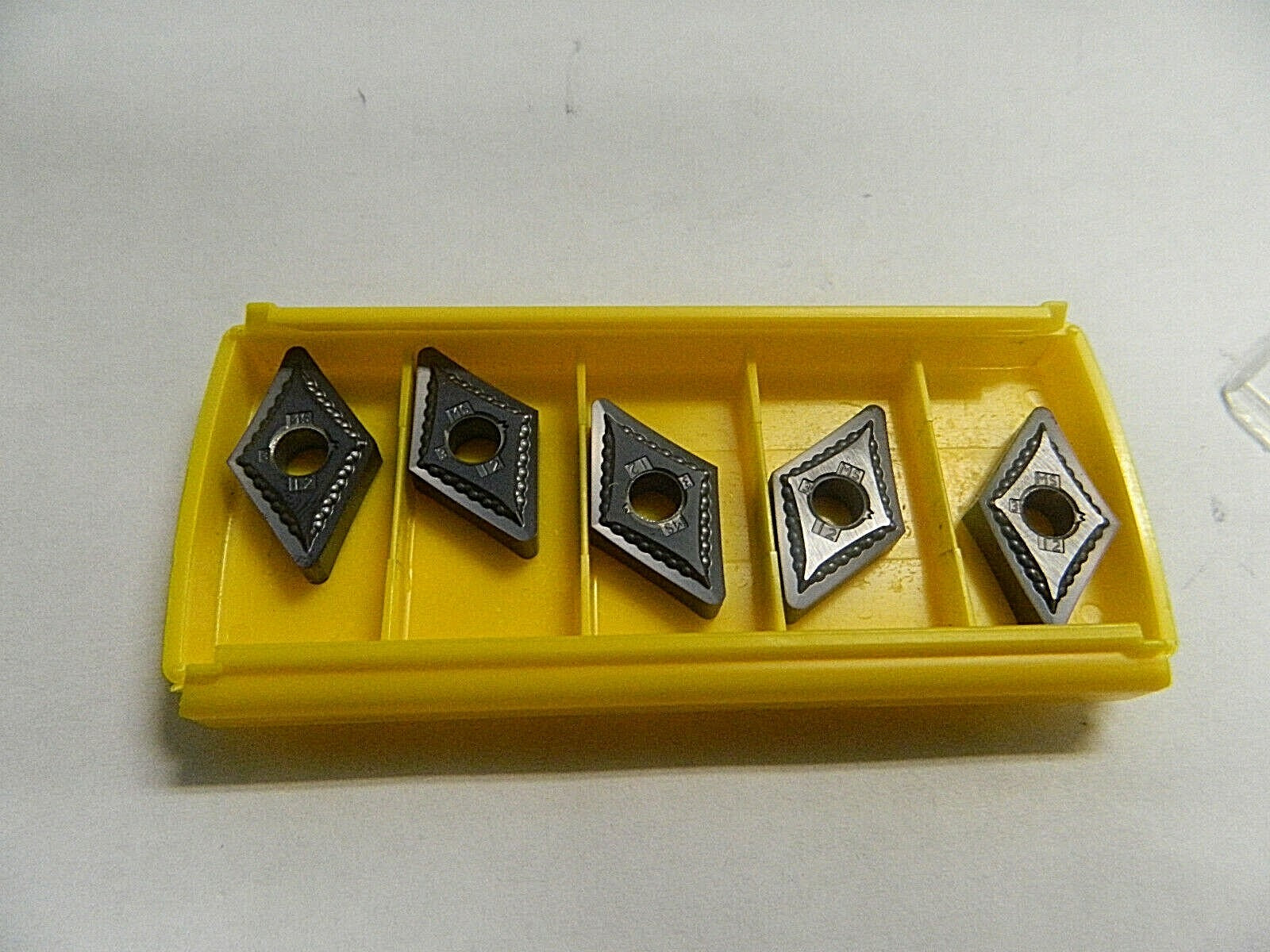

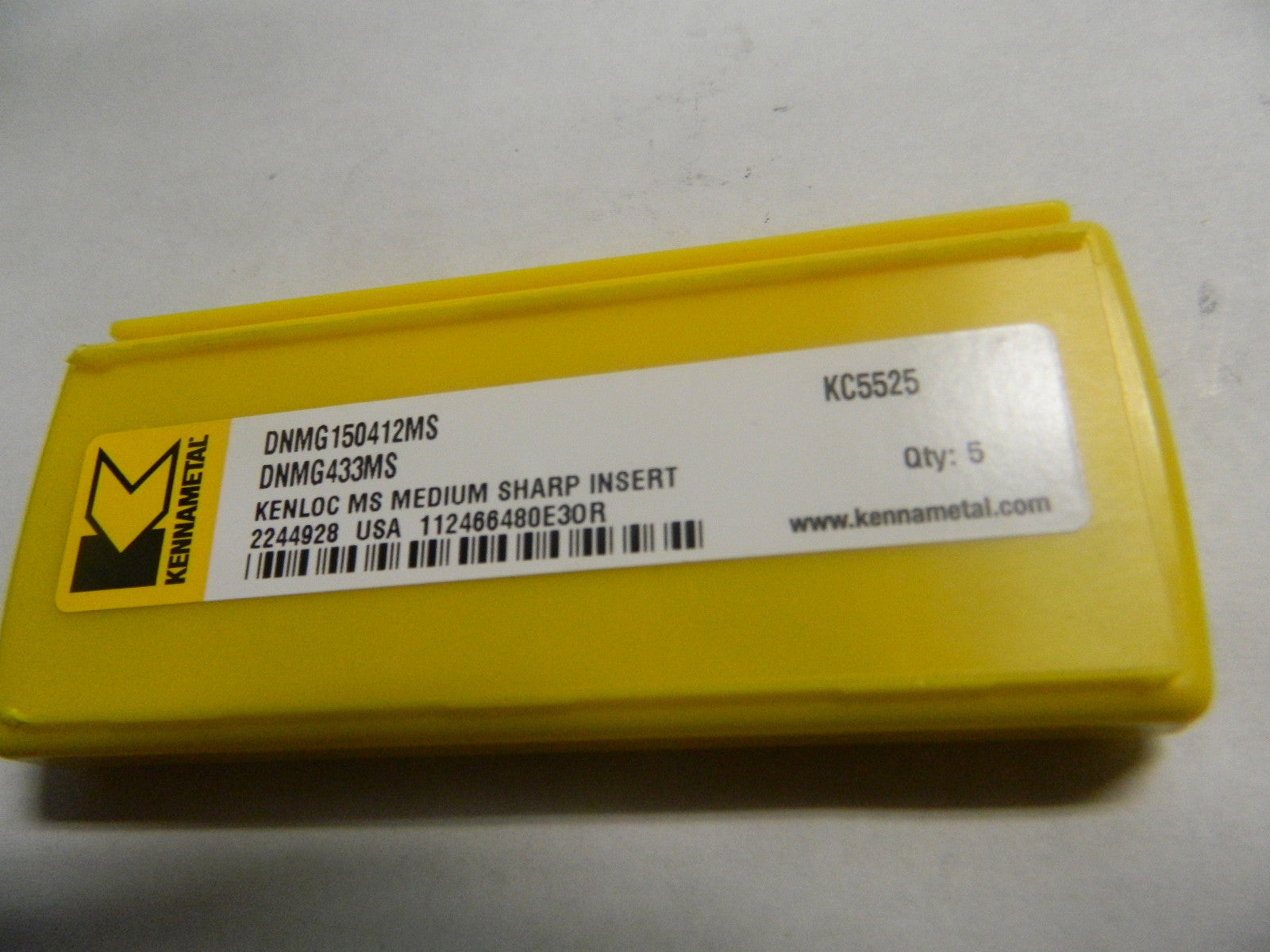

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
