Kennametal DCMT32.52 LF Grade KC9110 Carbide Turning Insert Qty 5 1864958
Kennametal DCMT32.52 LF Grade KC9110 Carbide Turning Insert Qty 5 1864958
Regular price
$29.37 USD
Regular price
$60.00 USD
Sale price
$29.37 USD
Shipping calculated at checkout.
Kennametal
MSRP: $60.00
Model: 1864958
Description:
Insert Style: DCMT
Insert Size: 32.52
Material: Carbide
Length (mm) : 11.63
Length (Decimal Inch) : 0.4579
Inscribed Circle (Decimal Inch) : 0.3750
Inscribed Circle (Inch) : 3/8
Thickness (Inch) : 5/32
Thickness (Decimal Inch) : 0.1563
Corner Radius (Inch) : 1/32
Corner Radius (Decimal Inch) : 0.0312
Manufacturer's Grade: KC9110
Coating: TiCN/Al2O3/TiN
Material Grade: C3/C7
Chip Breaker: LF
Hole Diameter (mm): 4.40
Hole Diameter (Decimal Inch): 0.1732
Rake: Positive
Rake Angle: 5
Relief Angle: 7
Coating Process: CVD
Primary Workpiece Material: P
Secondary Workpiece Material: M
Included Angle: 55
Insert Hand: Neutral
Series: Screw-On
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
Insert Holding Method: Screw
Shape: Diamond

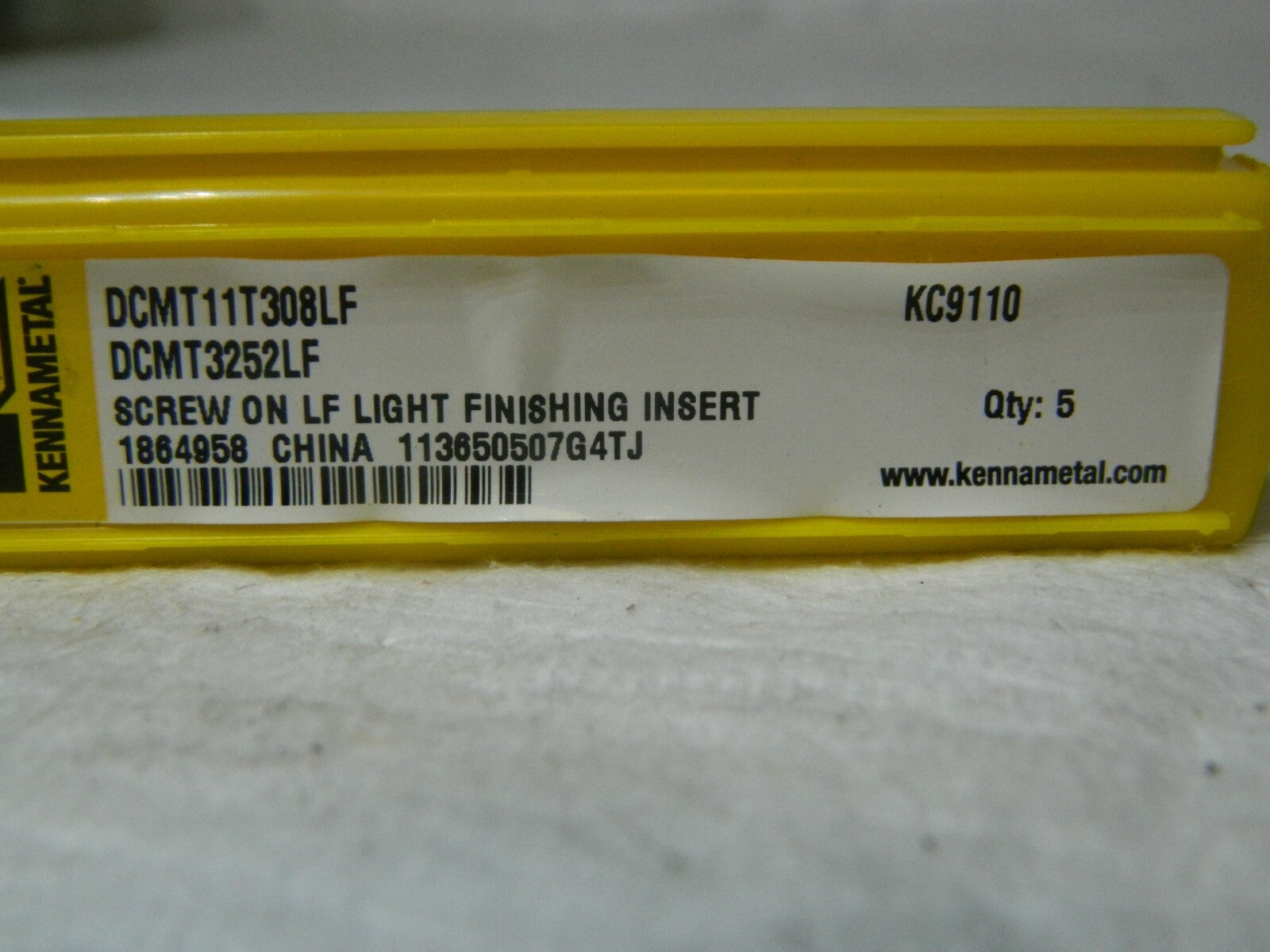

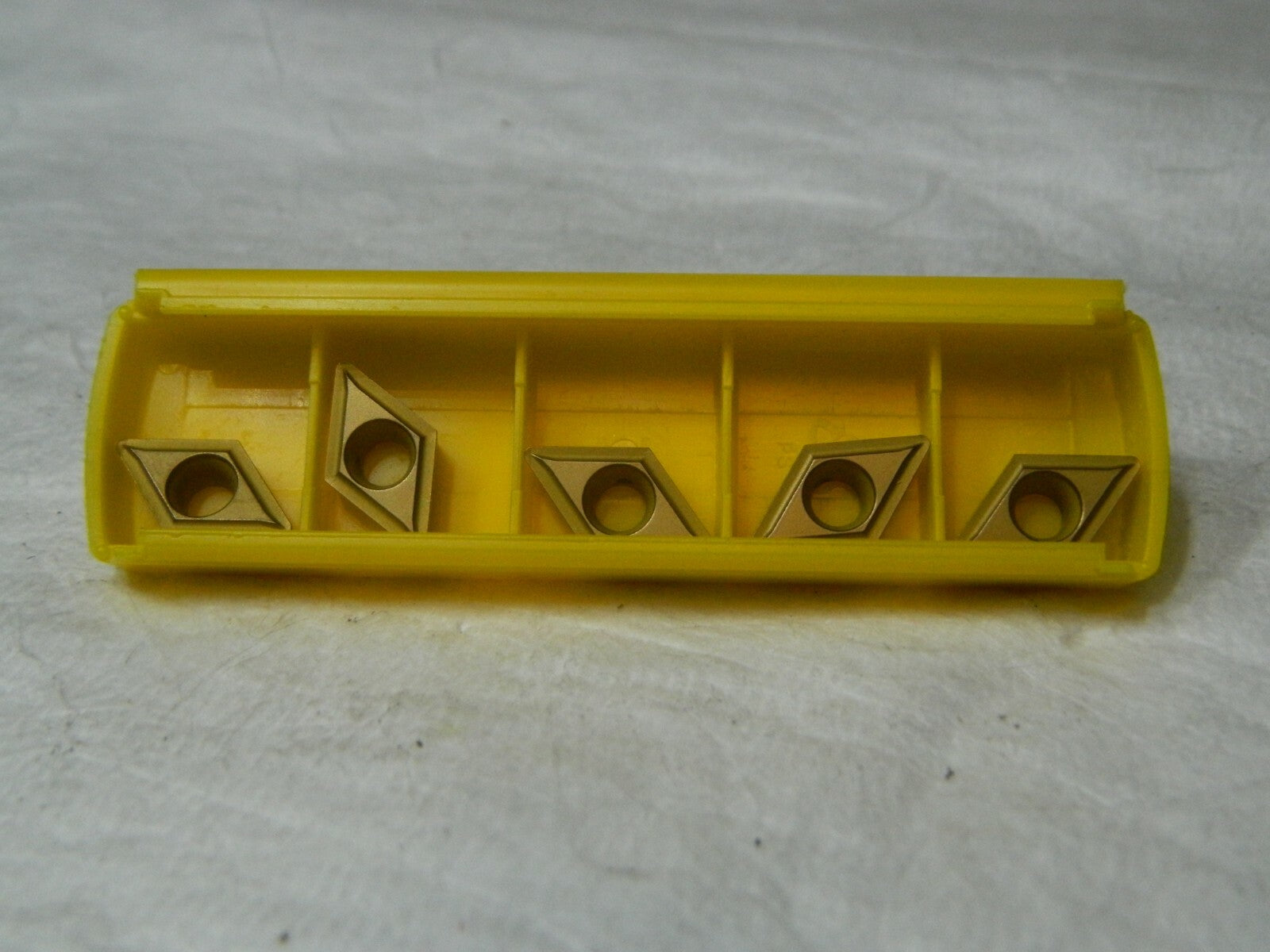

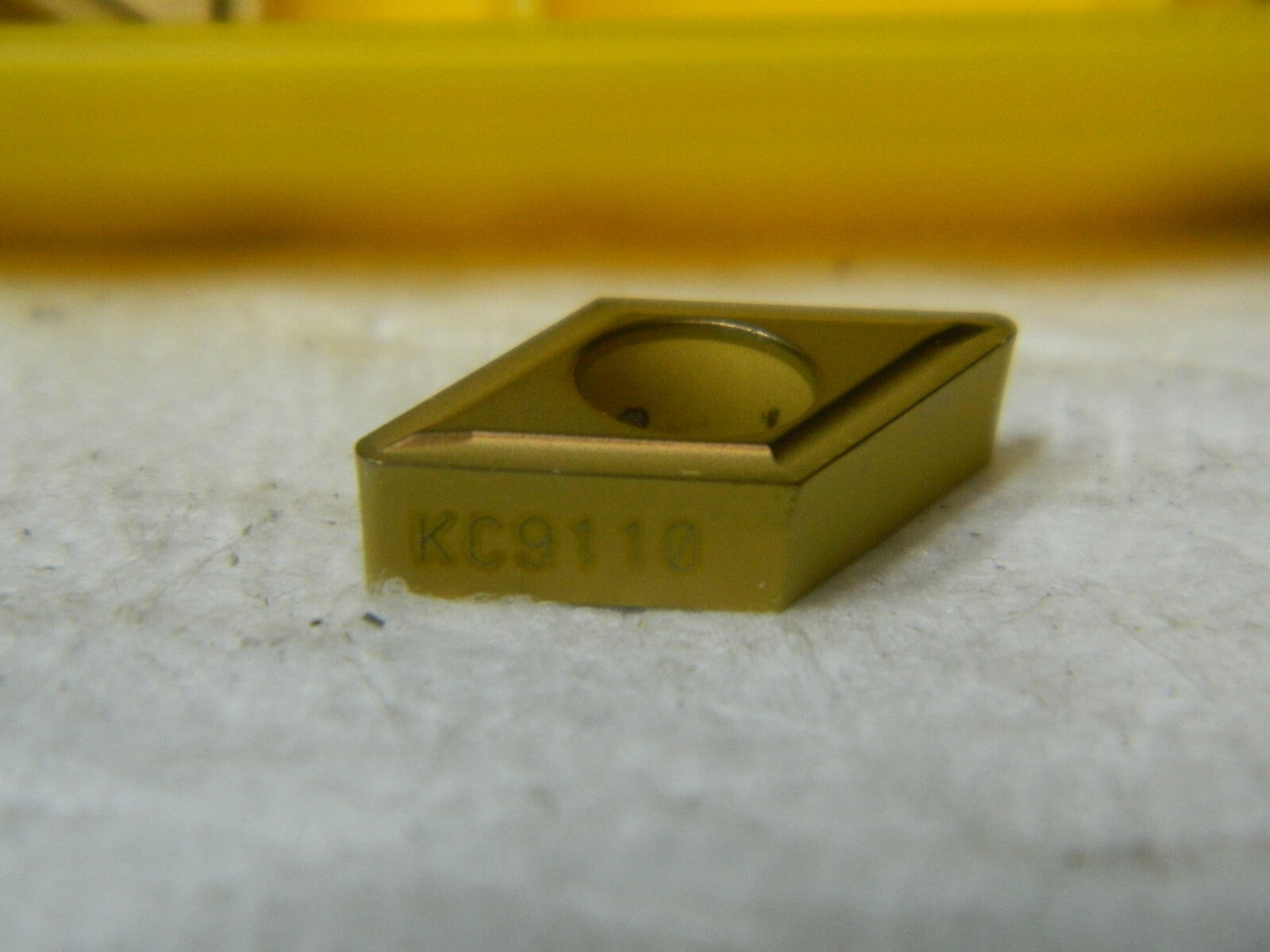

This listing is for One Lot of 5 Inserts that is in the picture as well as described. Please ask any questions prior to buying!
