KENNAMETAL Corner Radius End Mill: 5/8″ Dia 4 Fl 4067264

KENNAMETAL

Corner Radius End Mill: 5/8″ Dia 4 Fl 4067264
MSRP: $200

• Mill Diameter (Inch) 5/8
• Mill Diameter (Decimal Inch) 0.6250
• Number Of Flutes 4
• Length of Cut (Inch) 1-5/8
• Single Or Double End Single
• End Mill Material Solid Carbide
• Coating/Finish AlTiN
• Overall Length (Inch) 3-1/2
• Centercutting Yes
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.1200
• Variable Index No
• Variable Helix No
• Cutting Direction Right Hand
• Coolant Through No
• Pitch Normal
• Overall Length (Decimal Inch) 3.5000
• Chipbreaker No
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 0.3125
• Length Type Standard
• Flute Type Helical
• Extended Reach Yes
• Shank Type Weldon Flat
• Material Removal Type Roughing & Finishing
• Shank Diameter (Decimal Inch) 0.6250
• Shank Diameter (Inch) 5/8
• Reach Length (Decimal Inch) 1.6250
• Reach Length (Inch) 1-5/8
• Mill Diameter Tolerance +0.000000 to -0.002000 in
• Shank Diameter Tolerance +0.00000 to -0.00043 in
• Primary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Steel
• Primary Workpiece Material Code P; H; K; M
• UNSPSC Code 27112803
• Material Grade Submicron
• Series HPHV
• Material Application Hard Material; Stainless Steel; Cast Iron; Steel
• Coating Classification PVD
• For Use With. EM IN-HSK Form A; EM-CV Form AD
• Helix Style High

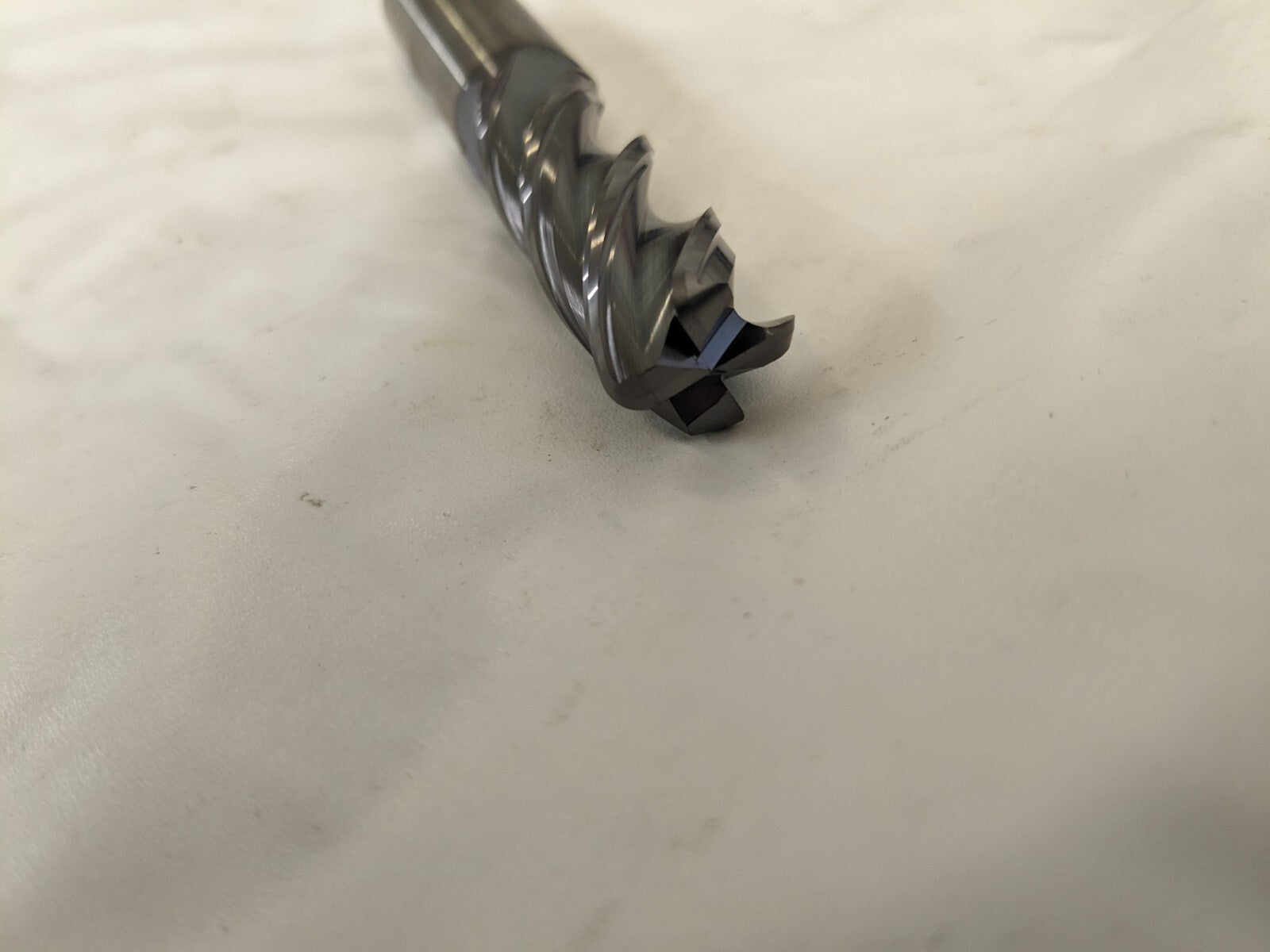

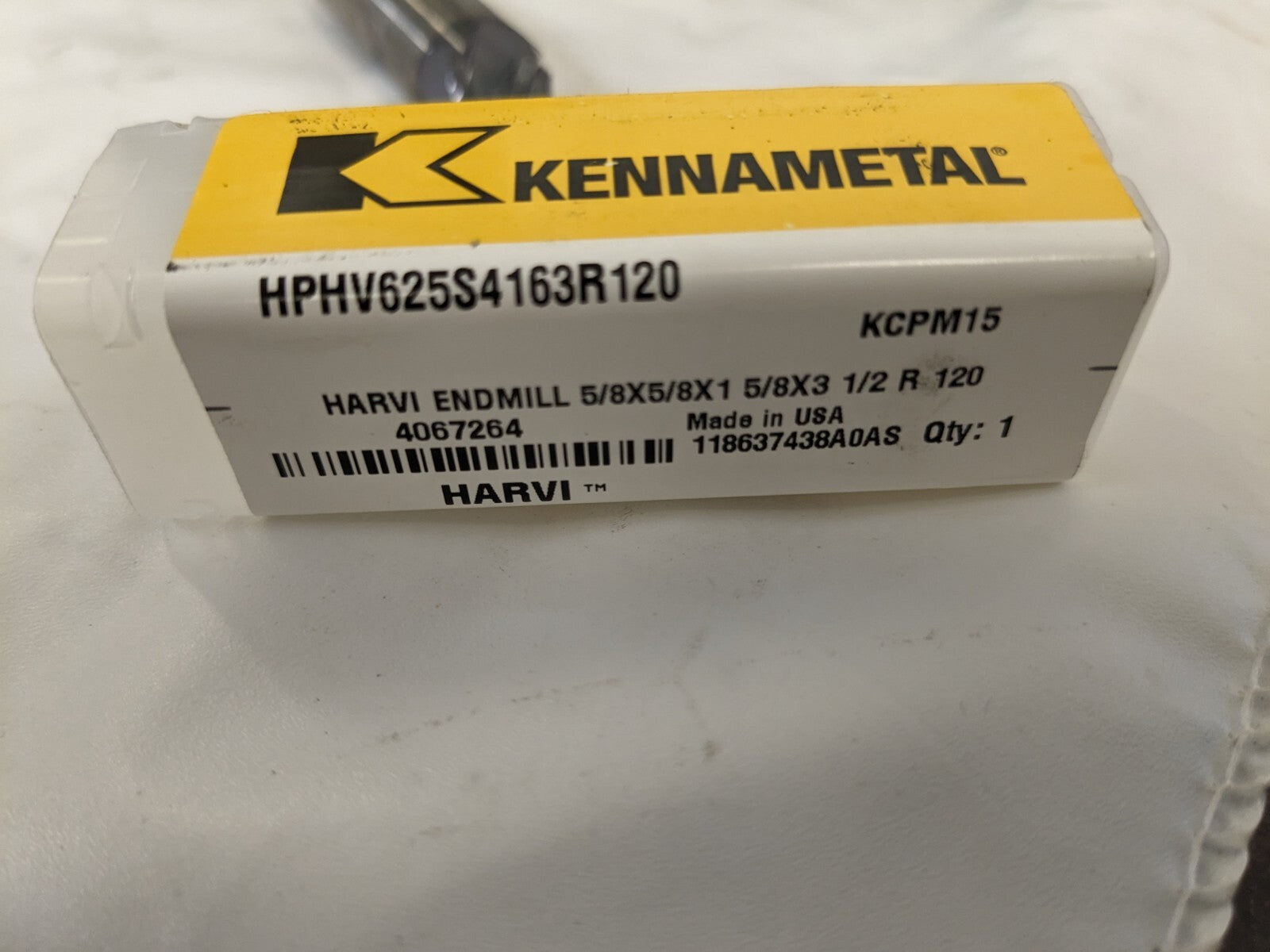

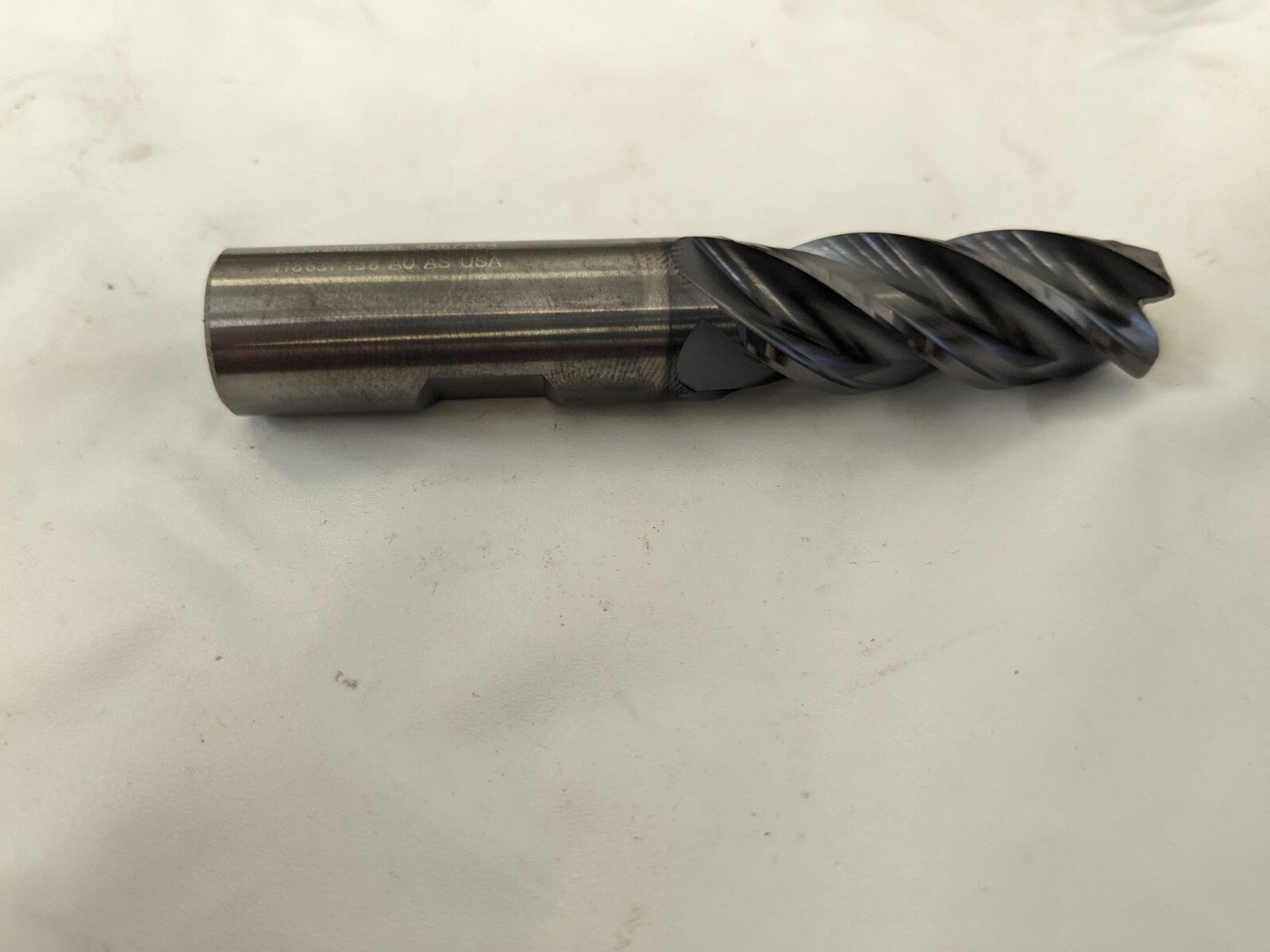

 Please review photos, comes as shown.
