Kennametal CNGP434 Grade KC730 Carbide Turning Insert QTY 3 1160901
Kennametal CNGP434 Grade KC730 Carbide Turning Insert QTY 3 1160901
Regular price
$29.37 USD
Regular price
$60.00 USD
Sale price
$29.37 USD
Shipping calculated at checkout.
Kennametal
MSRP: $60.00
Model:1160901
Description:
Insert Style CNGP
Insert Size 434
Material Carbide
Length (mm) 12.90
Length (Decimal Inch) 0.5079
Inscribed Circle (Decimal Inch) 0.5000
Inscribed Circle (Inch) 1/2
Thickness (Inch) 3/16
Thickness (Decimal Inch) 0.1875
Corner Radius (Inch) 1/16
Corner Radius (Decimal Inch) 0.0625
Manufacturer's Grade KC730
Coating TiN
Material Grade C2/C3/C4
Hole Diameter (mm) 5.20
Hole Diameter (Decimal Inch) 0.2031
Rake Negative
Relief Angle 0
Coating Process PVD
Primary Workpiece Material N
Secondary Workpiece Material S; M
Included Angle 80
Insert Hand Neutral
Series KENLOC
Maximum Depth of Cut (mm) 1.25
Maximum Depth of Cut (Decimal Inch) 0.0492
Insert Holding Method Pin & Clamp
Shape Diamond

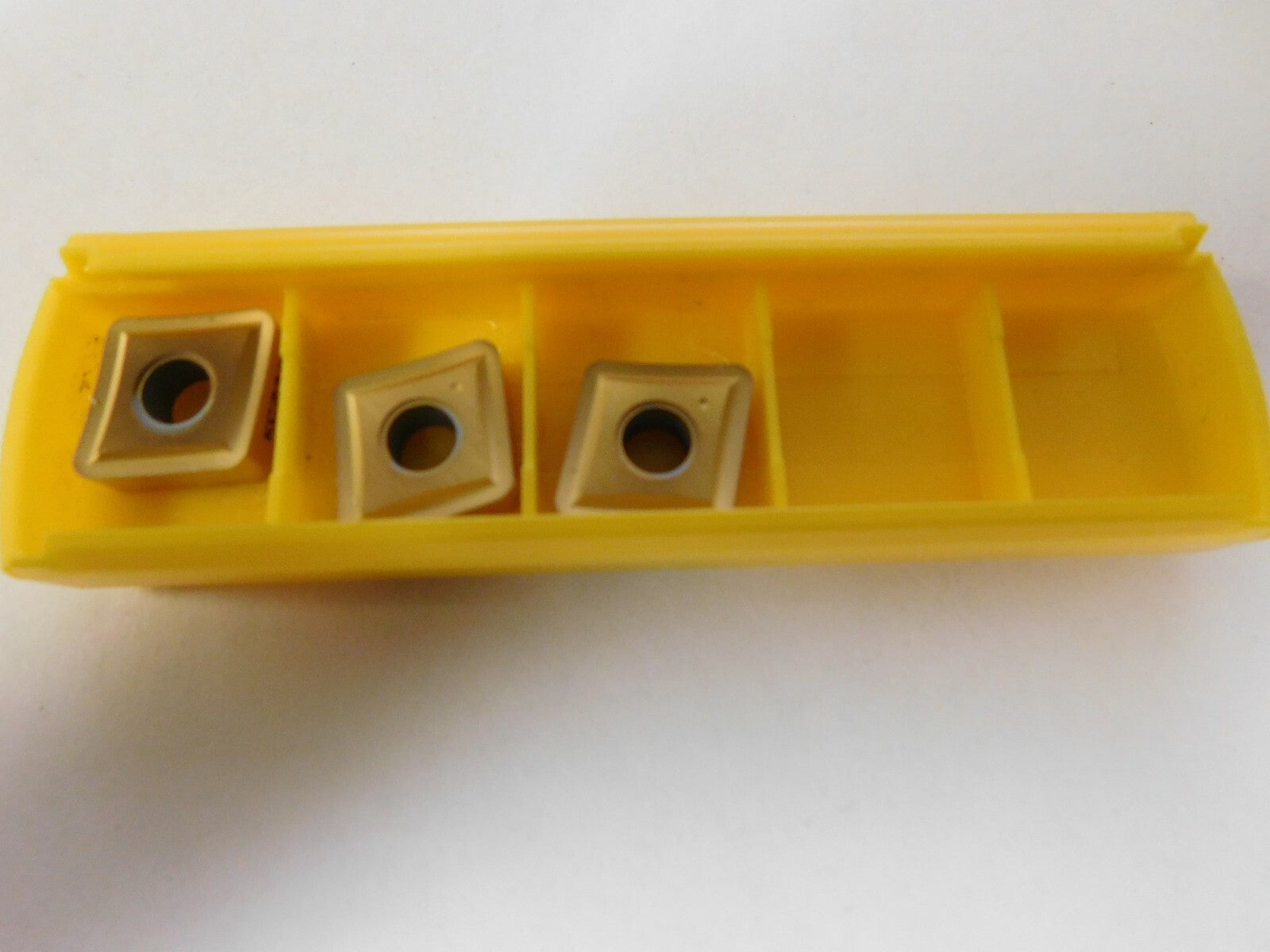

This listing is for One Pack of 3 inserts that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
