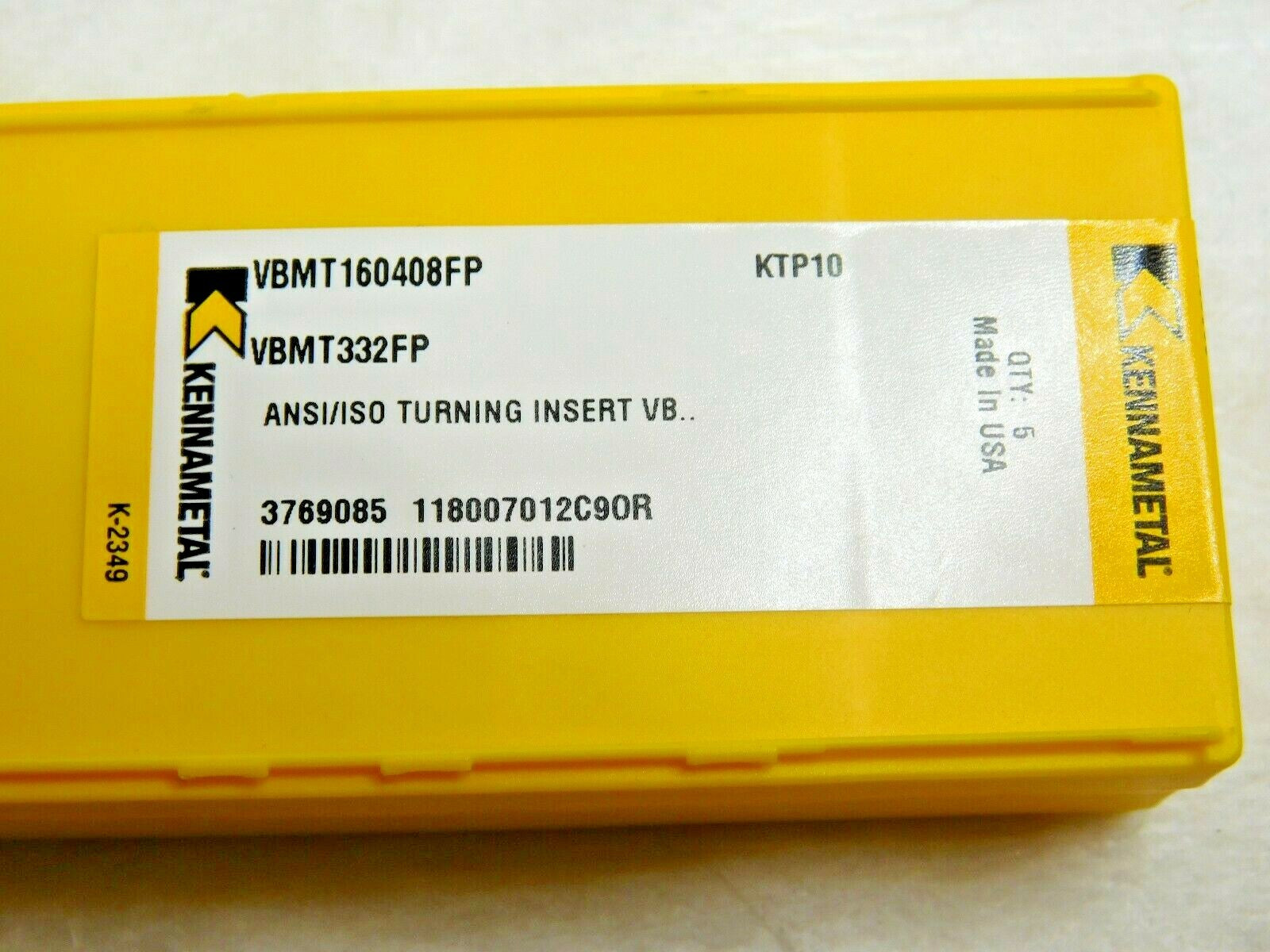

Kennametal Cermet Turning Inserts VBMT332 FP Grade KTP10 QTY 5 3769085
Kennametal Cermet Turning Inserts VBMT332 FP Grade KTP10 QTY 5 3769085
Regular price
$53.84 USD
Regular price
$110.00 USD
Sale price
$53.84 USD
Shipping calculated at checkout.
Kennametal
MSRP: $110.00
Model: 3769085
Description:
Insert Style VBMT
Insert Size 332
Material Cermet
Length (mm) 16.61
Length (Decimal Inch) 0.6539
Inscribed Circle (Decimal Inch) 0.3750
Inscribed Circle (Inch) 3/8
Thickness (Inch) 3/16
Thickness (Decimal Inch) 0.1875
Corner Radius (Inch) 1/32
Corner Radius (Decimal Inch) 0.0312
Manufacturer's Grade KTP10
Coating TiN/TiCN/TiN
Material Grade C3/C7
Chip Breaker FP
Hole Diameter (mm) 4.40
Hole Diameter (Decimal Inch) 0.1732
Rake Positive
Relief Angle 5
Coating Process PVD
Included Angle 35
Series Screw-On
Maximum Depth of Cut (mm) 1.25
Maximum Depth of Cut (Decimal Inch) 0.0492
Insert Holding Method Screw
Shape Diamond

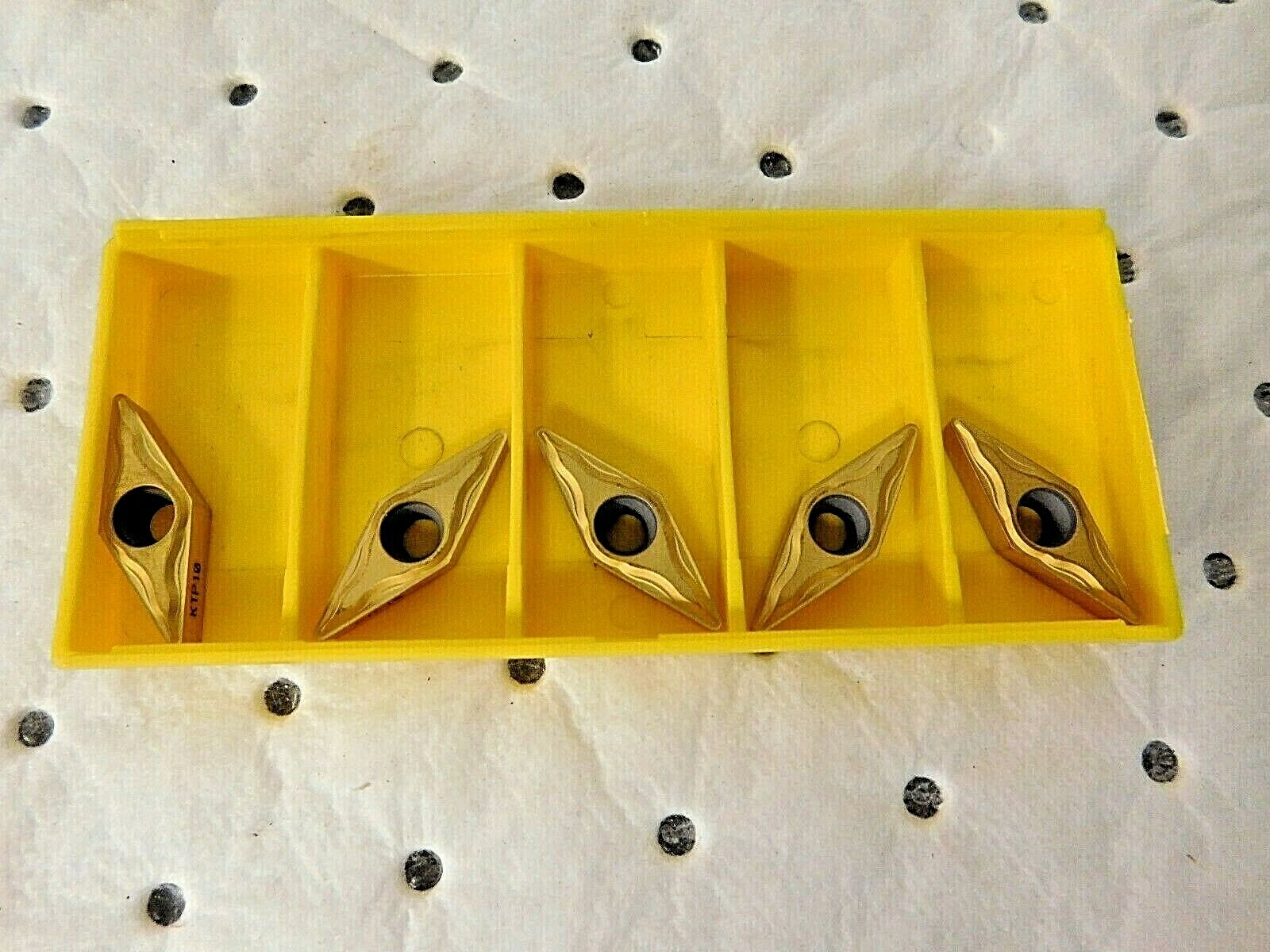

This listing is for One Pack of 5 inserts that is in the picture as well as described. Please ask any questions prior to buying!
