Kennametal Carbide Turning Inserts TNMG432 KC850 Qty 5 1160303

Kennametal
Carbide Turning Inserts

MSRP: $165.00

• Insert Style: TNMG
• ANSI Size Code: 432
• ISO Size Code: 220408
• Insert Shape: T - Triangle
• Included Angle: 60.00
• Inscribed Circle (Decimal Inch): 0.5000
• Inscribed Circle (Inch): 1/2
• Corner Radius (Inch): 1/32
• Corner Radius (Decimal Inch): 0.0313
• Insert Material: Carbide
• Manufacturer Grade: KC850
• Coating/Finish: TiCN; TiN; TiC
• Relief Angle: 0.000
• Wiper Edge: No
• Insert Thickness (Inch): 3/16
• Insert Thickness (Decimal Inch): 0.1875
• Insert Hand: Neutral
• Series: KENLOC
• Chip Breaker Operation: Medium Machining
• Grade Characteristics: Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness
• Side Clearance: Negative
• Number Of Cutting Edges: 6
• Hole Diameter (Decimal Inch): 0.2031
• Hole Diameter (mm): 5.16
• Maximum Depth of Cut (mm): 1.25
• Maximum Depth of Cut (Decimal Inch): 0.0492
• ANSI Insert Code: TNMG432
• ISO Insert Code: TNMG220408
• Insert Holding Method: Pin; Clamp
• Clearance Code: N
• Tolerance Code: M
• Coating Process: CVD
• Rake: Negative
• Insert Length (Decimal Inch): 0.8661
• Insert Length (mm): 22.00
• Primary Workpiece Material: Stainless Steel; Steel
• Primary Workpiece Material Code: P; S; K; M
• Secondary Workpiece Material Code: K; M
• Standards: ISO; ANSI
• Manufacturers Catalog Number: 1160303
• Material Grade: C5; C6
• Proprietary Coating Designation: Multilayer Coating
• Coating Classification: CVD
• Chip Breaker: Common
• Rake Angle: 0
• Cutting Edge Style: Honed; Chamfered
• Industry Standard Number: TNMG432
• Width (Decimal Inch - 4 Decimals): 0.8661
• Multi-Use Tool: Yes
• Full Radius: No
• Multi-Use Application: Facing; Turning; Boring
• UNSPSC Code: 23242105

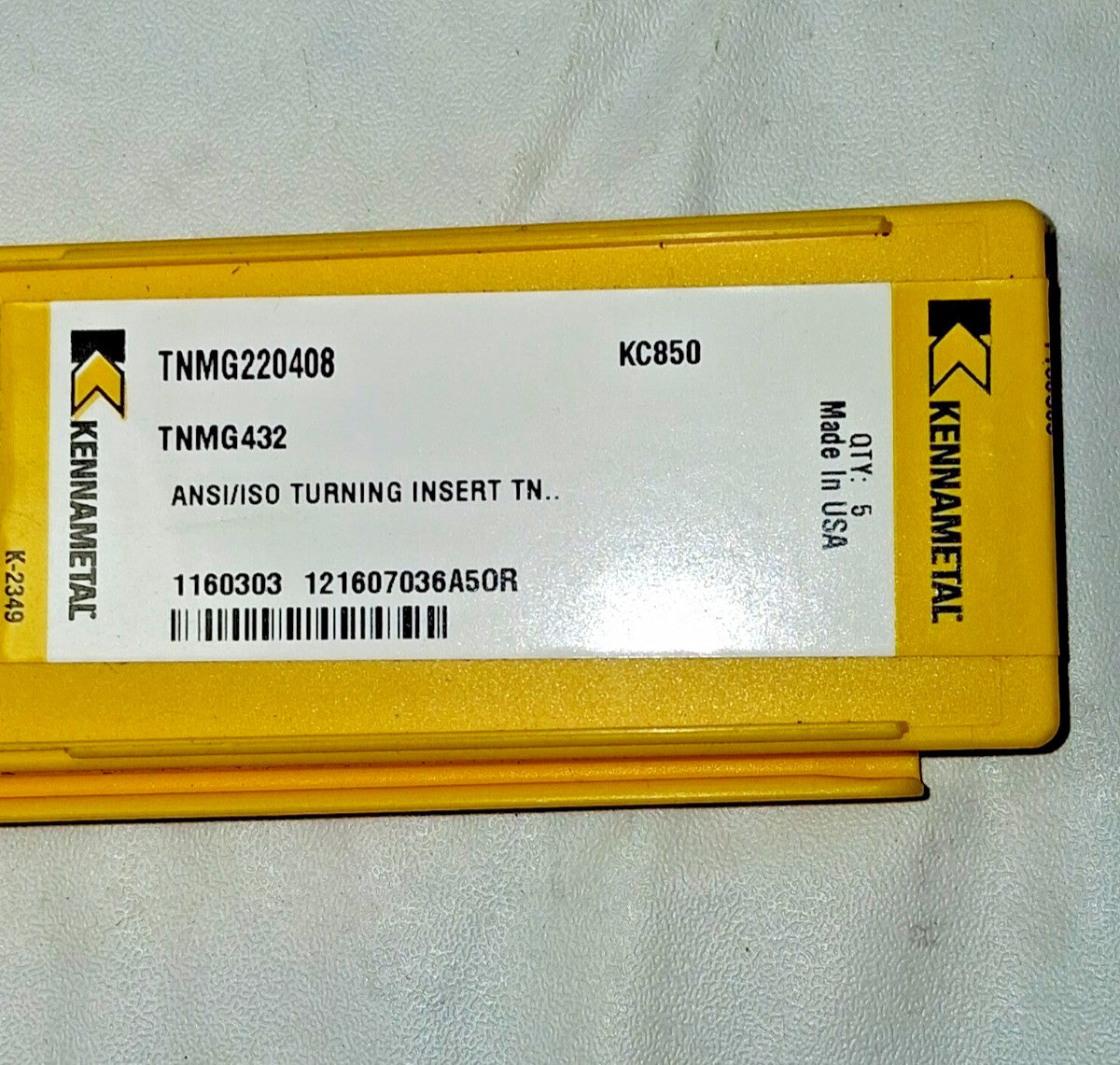

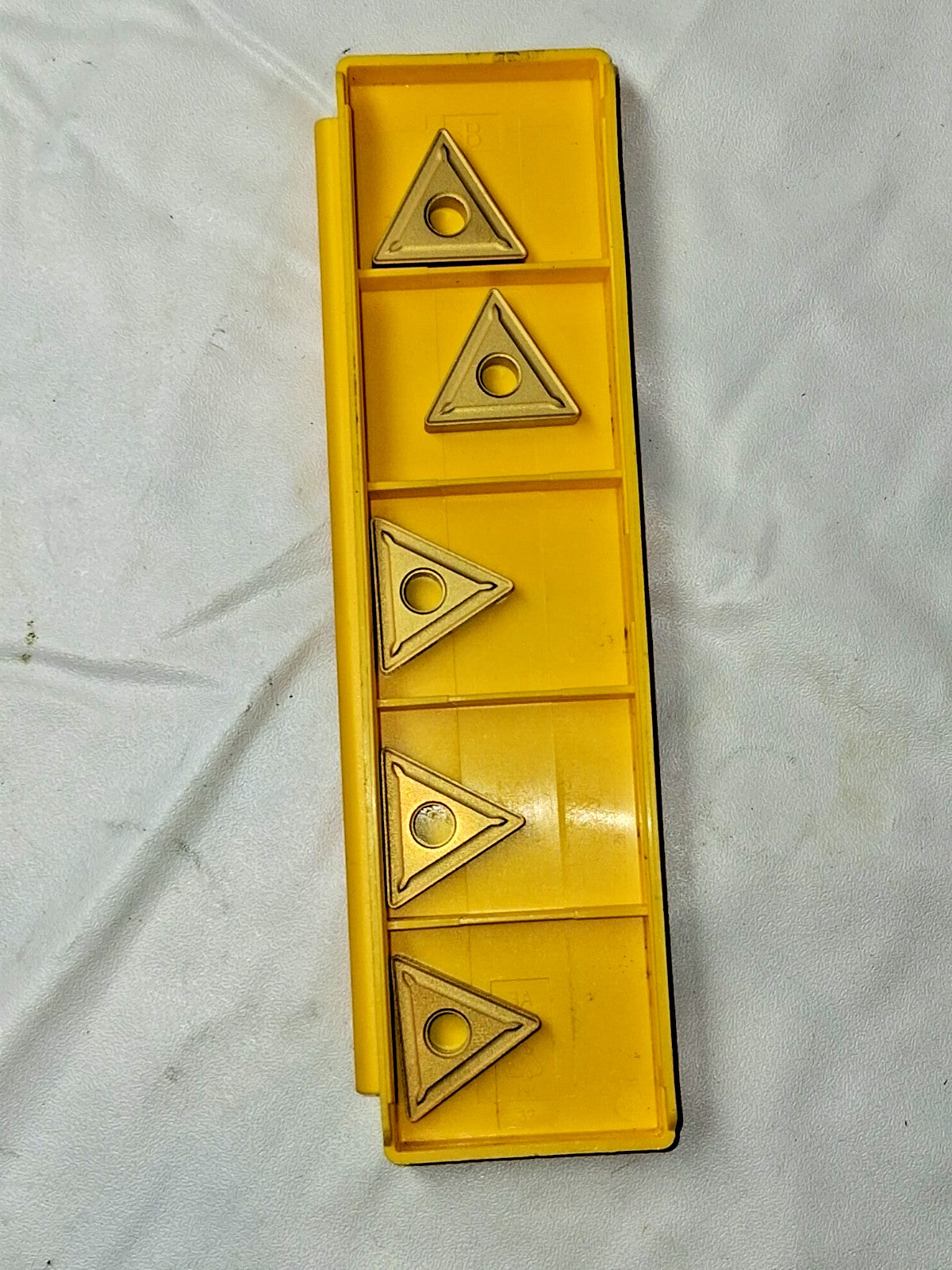

Please review photos, comes as shown.
