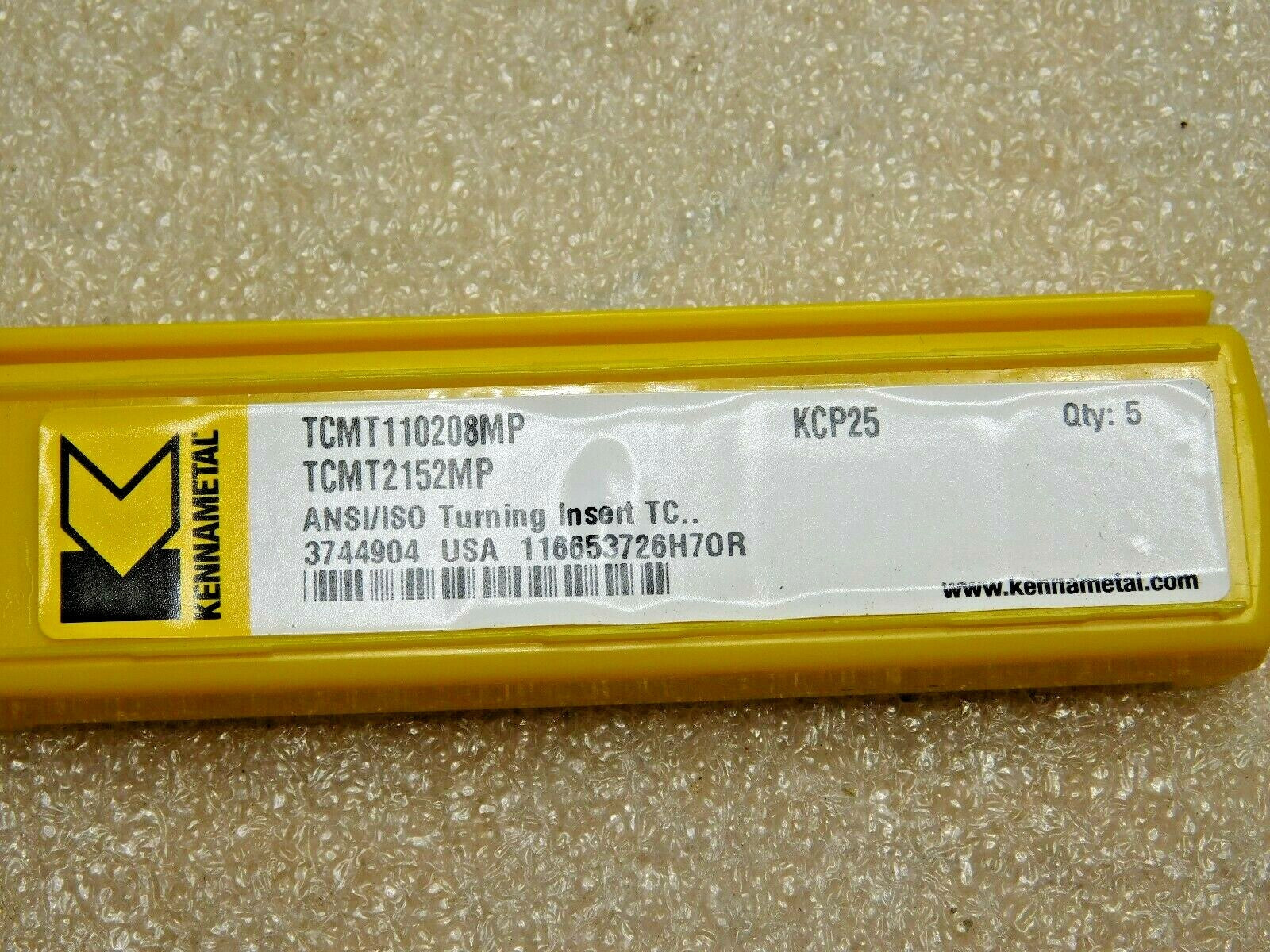

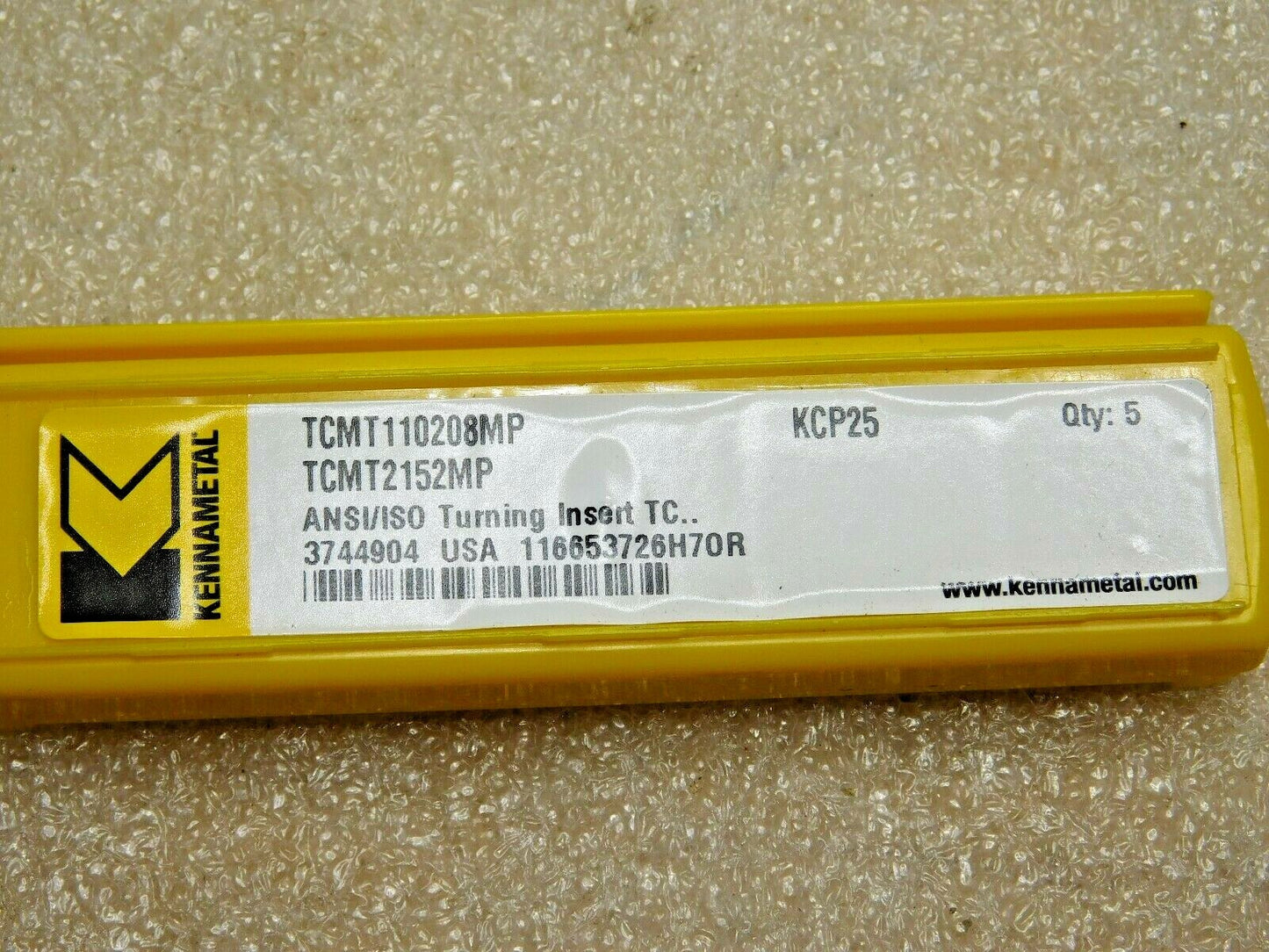

Kennametal Carbide Turning Inserts TCMT21.52 MP Grade KCP25 Qty 5 3744904
Kennametal Carbide Turning Inserts TCMT21.52 MP Grade KCP25 Qty 5 3744904
Regular price
$34.26 USD
Regular price
$70.00 USD
Sale price
$34.26 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Kennametal
MSRP: $70
Model: 3744904
Description:
Insert Style TCMT
Insert Size 21.52
Material Carbide
Length (mm) 11.00
Length (Decimal Inch) 0.4331
Inscribed Circle (Decimal Inch) 0.2500
Inscribed Circle (Inch) 1/4
Thickness (Inch) 3/32
Thickness (Decimal Inch) 0.0938
Corner Radius (Inch) 1/32
Corner Radius (Decimal Inch) 0.0312
Manufacturer's Grade KCP25
Coating TiCN/Al2O3
Material Grade C2/C3/C6/C7
Chip Breaker MP
Hole Diameter (mm) 2.80
Hole Diameter (Decimal Inch) 0.1102
Rake Positive
Relief Angle 7
Coating Process CVD
Included Angle 60
Series Screw-On
Maximum Depth of Cut (mm) 1.25
Maximum Depth of Cut (Decimal Inch) 0.0492
Insert Holding Method Screw
Shape Triangle
*OPEN PACKAGE/BOX FOR INSPECTION AND PICTURES ONLY. Item is in excellent condition. Please Refer to our Pictures and description. SOLD AS IS. If you have any questions, please contact us!

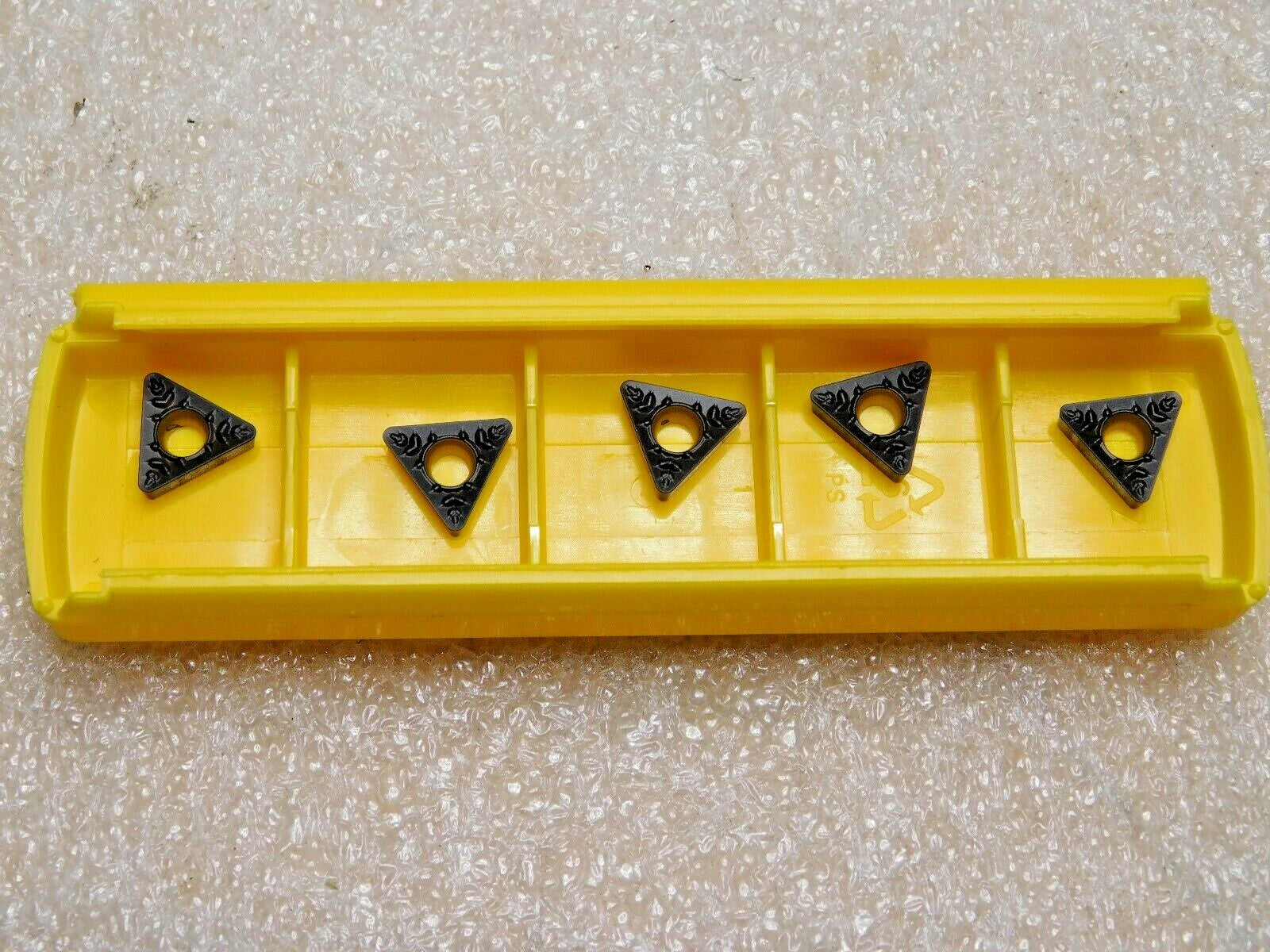

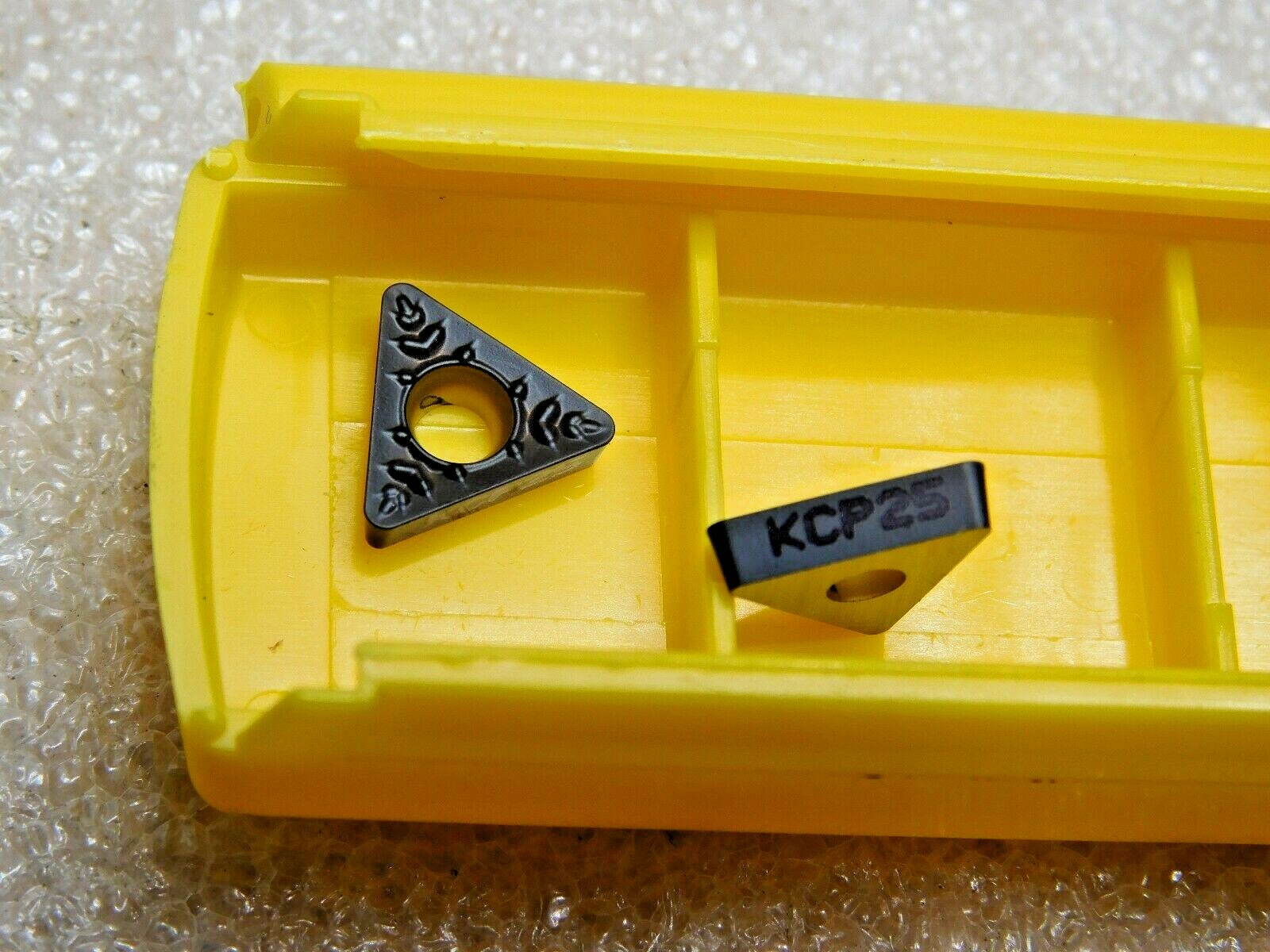

This listing is for One Pack of 5 Carbide Turning Inserts that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
