Kennametal Carbide Turning Inserts SNMP643 Qty 5 1161324

Kennametal
Carbide Turning Inserts

MSRP: $320.00

• Insert Style: SNMP
• ANSI Size Code: 643
• ISO Size Code: 190612
• Insert Shape: S - Square
• Included Angle: 90.00
• Inscribed Circle (Decimal Inch): 0.7500
• Inscribed Circle (Inch): 3/4
• Corner Radius (Inch): 3/64
• Corner Radius (Decimal Inch): 0.0469
• Insert Material: Carbide
• Manufacturer Grade: KC850
• Coating/Finish: TiCN; TiN; TiC
• Relief Angle: 0.000
• Wiper Edge: No
• Insert Thickness (Inch): 1/4
• Insert Thickness (Decimal Inch): 0.2500
• Insert Hand: Neutral Series: KENLOC
• Chip Breaker Operation: Medium Machining Grade Characteristics: Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness
• Side Clearance: Negative
• Number Of Cutting Edges: 8
• Hole Diameter (Decimal Inch): 0.3125
• Hole Diameter (mm): 7.93
• Maximum Depth of Cut (mm): 1.25
• Maximum Depth of Cut (Decimal Inch): 0.0492
• ANSI Insert Code: SNMP643
• ISO Insert Code: SNMP190612
• Insert Holding Method: Pin; Clamp
• Width (Inch): 3/4
• Clearance Code: N
• Tolerance Code: M
• Coating Process: CVD
• Rake: Negative
• Insert Length (Decimal Inch): 0.7500
• Insert Length (Inch): 3/4
• Primary Workpiece Material: Stainless Steel; Steel
• Primary Workpiece Material Code: P; S; K; M
• Secondary Workpiece Material Code: K; M
• Iso Code: SNMP643
• Standards: ISO; ANSI
• Manufacturers Catalog Number: 1161324
• Material Grade: C5; C6
• Proprietary Coating Designation: Multilayer Coating
• Coating Classification: CVD
• Chip Breaker: Common
• Cutting Edge Style: Honed
• Industry Standard Number: SNMP643
• Width (Decimal Inch - 4 Decimals): 0.7500
• Multi-Use Tool: Yes
• Full Radius: No
• Multi-Use Application: Facing; Turning; Boring
• UNSPSC Code: 23242105

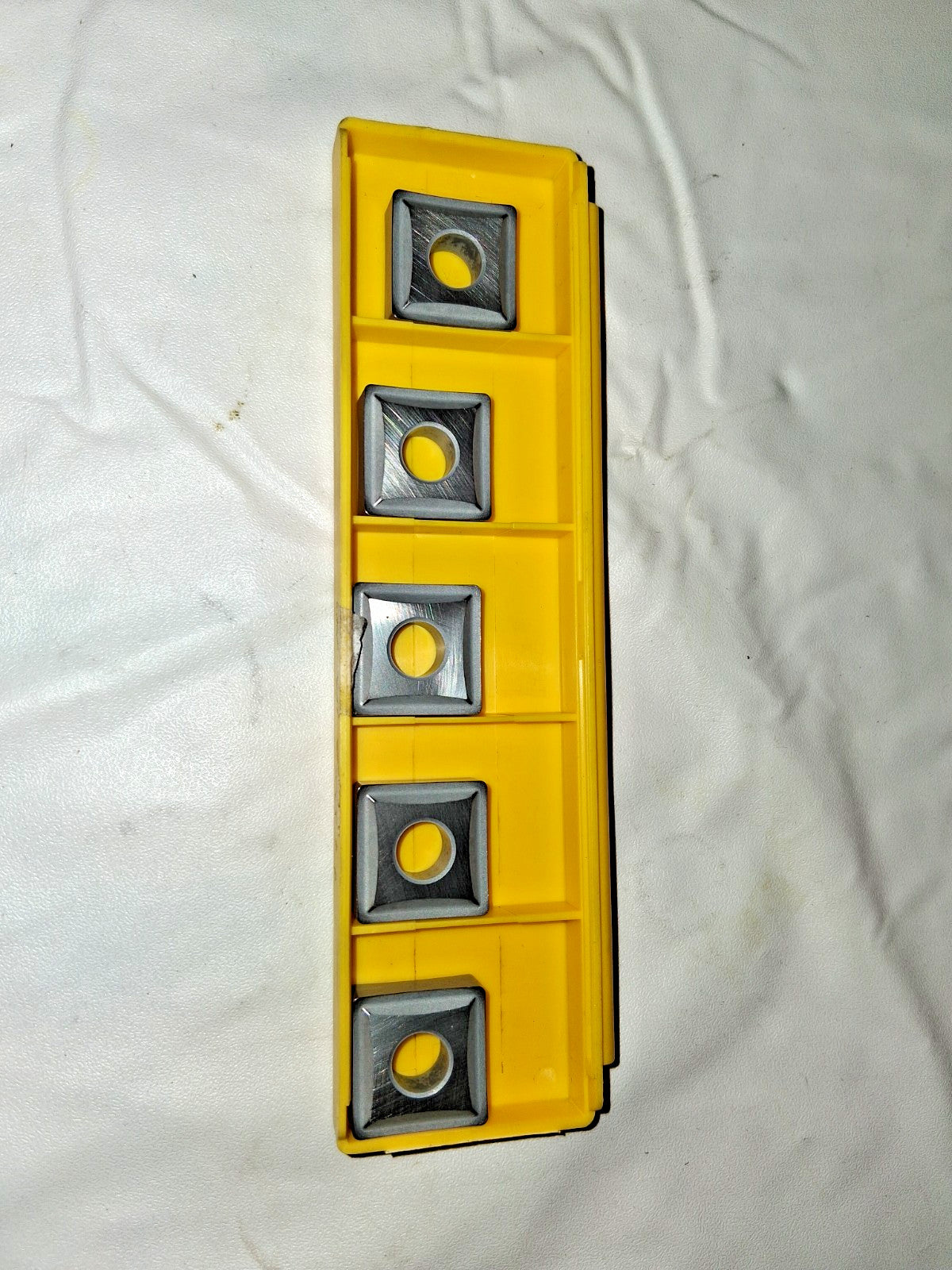

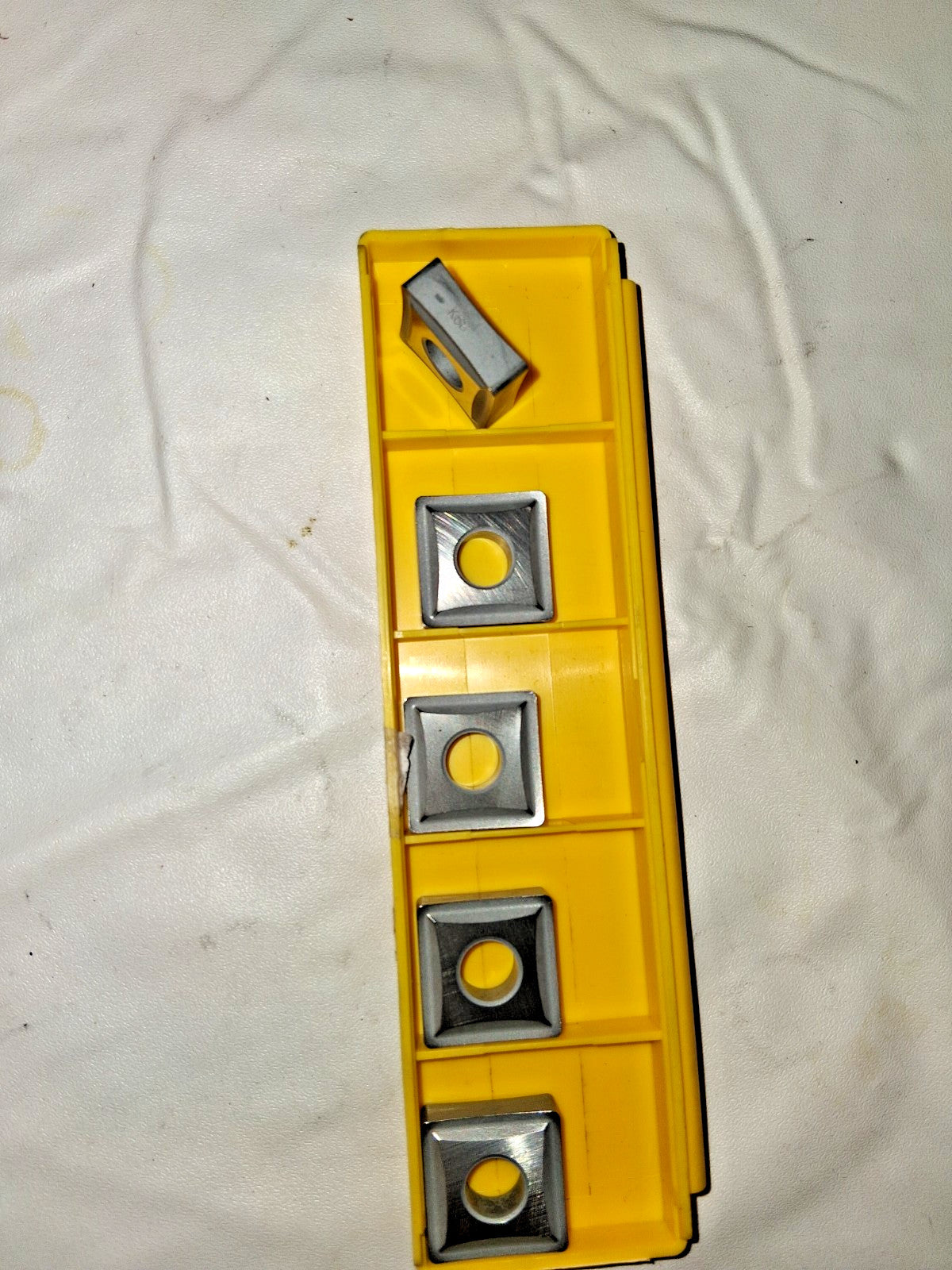

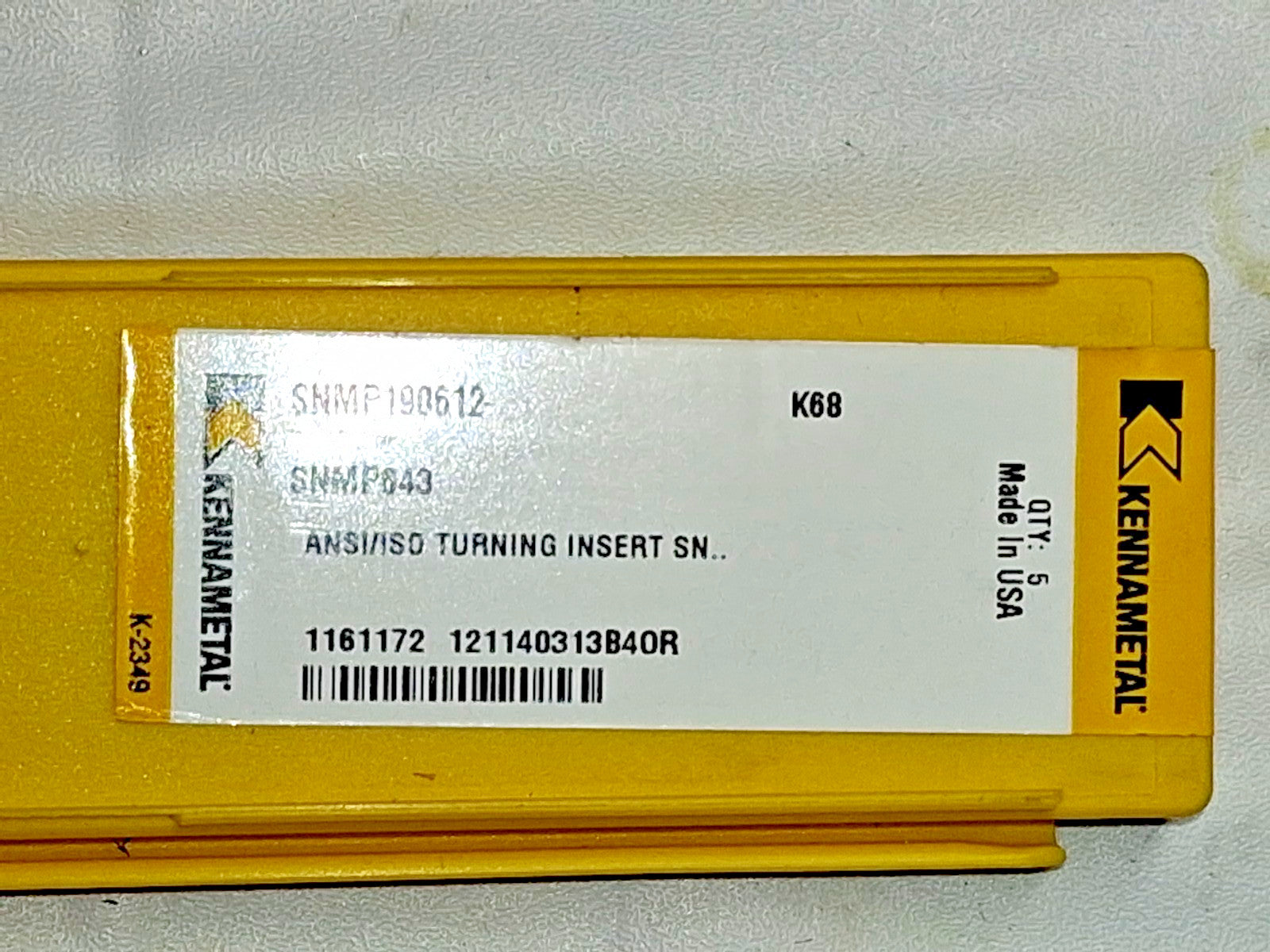

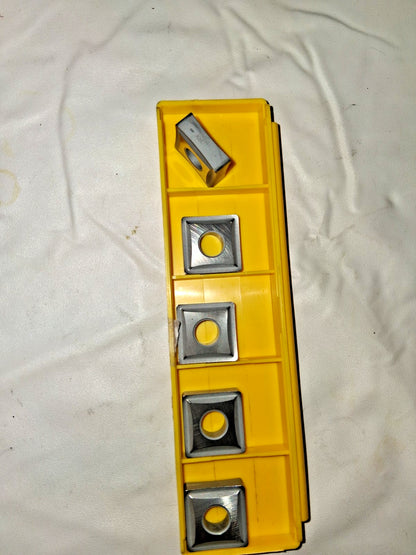

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
