Kennametal Carbide Turning Inserts SNMG544 UN Grade KC9315 box of 5 1566788

Kennametal Carbide Turning Inserts SNMG544 UN Grade KC9315 box of 5 1566788

MSRP: $100

• Manufacturer:Kennametal
• Mfr Part #:1566788
• Insert Style:SNMG
• Insert Size:544
• Material:Carbide
• Inscribed Circle (Decimal Inch) :0.6250
• Inscribed Circle (Inch) :5/8
• Thickness (Inch) :1/4
• Thickness (Decimal Inch) :0.2500
• Corner Radius (Inch) :1/16
• Corner Radius (Decimal Inch) :0.0625
• Manufacturer's Grade:KC9315
• Coating:TiCN/Al2O3/TiN
• Material Grade:C3/C4
• Chip breaker:UN
• Hole Diameter (mm):6.35
• Hole Diameter (Decimal Inch):0.2500
• Rake:Neutral
• Rake Angle:0
• Relief Angle:0
• Coating Process:CVD
• Included Angle:90
• Insert Hand:Neutral
• Series:KENLOC
• Maximum Depth of Cut (mm):1.25
• Maximum Depth of Cut (Decimal Inch):0.0492
• Insert Holding Method:Screw or Clamp
• Shape:Square

Enhance your machining operations with Kennametal's Carbide Turning Inserts. These inserts are designed to provide superior performance and durability, making them the ideal choice for your CNC, metalworking, and manufacturing needs. The box of 5 SNMG544 UN Grade KC9315 inserts is made in Germany and features a square shape with a TiCN/Al2O3/TiN coating. The inserts are suitable for use with various insert types, including turning inserts, and are made from high-quality carbide material. With Kennametal's expertise and German-made quality, you can trust that these inserts will provide reliable performance. Order now and take your machining operations to the next level!

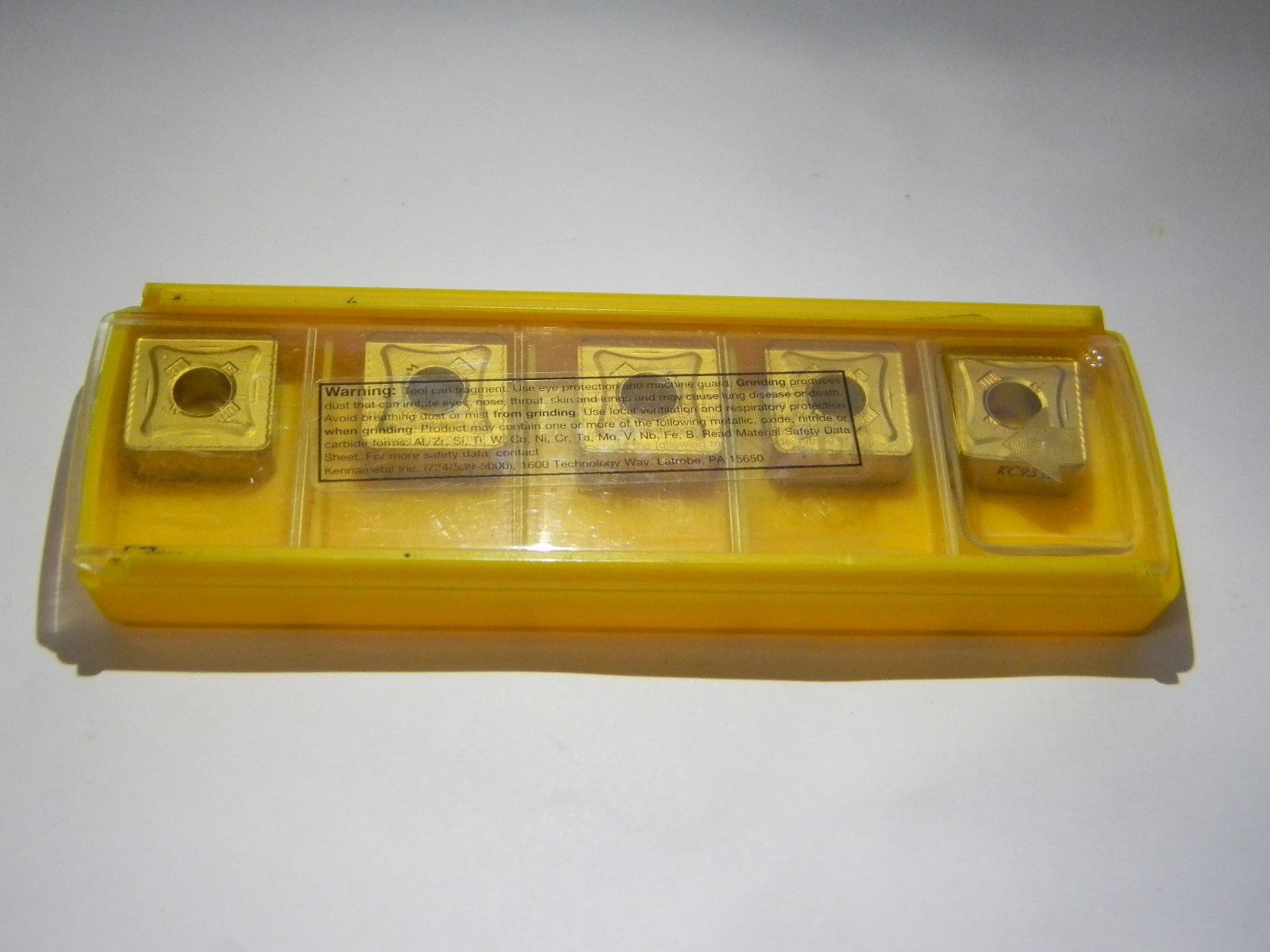

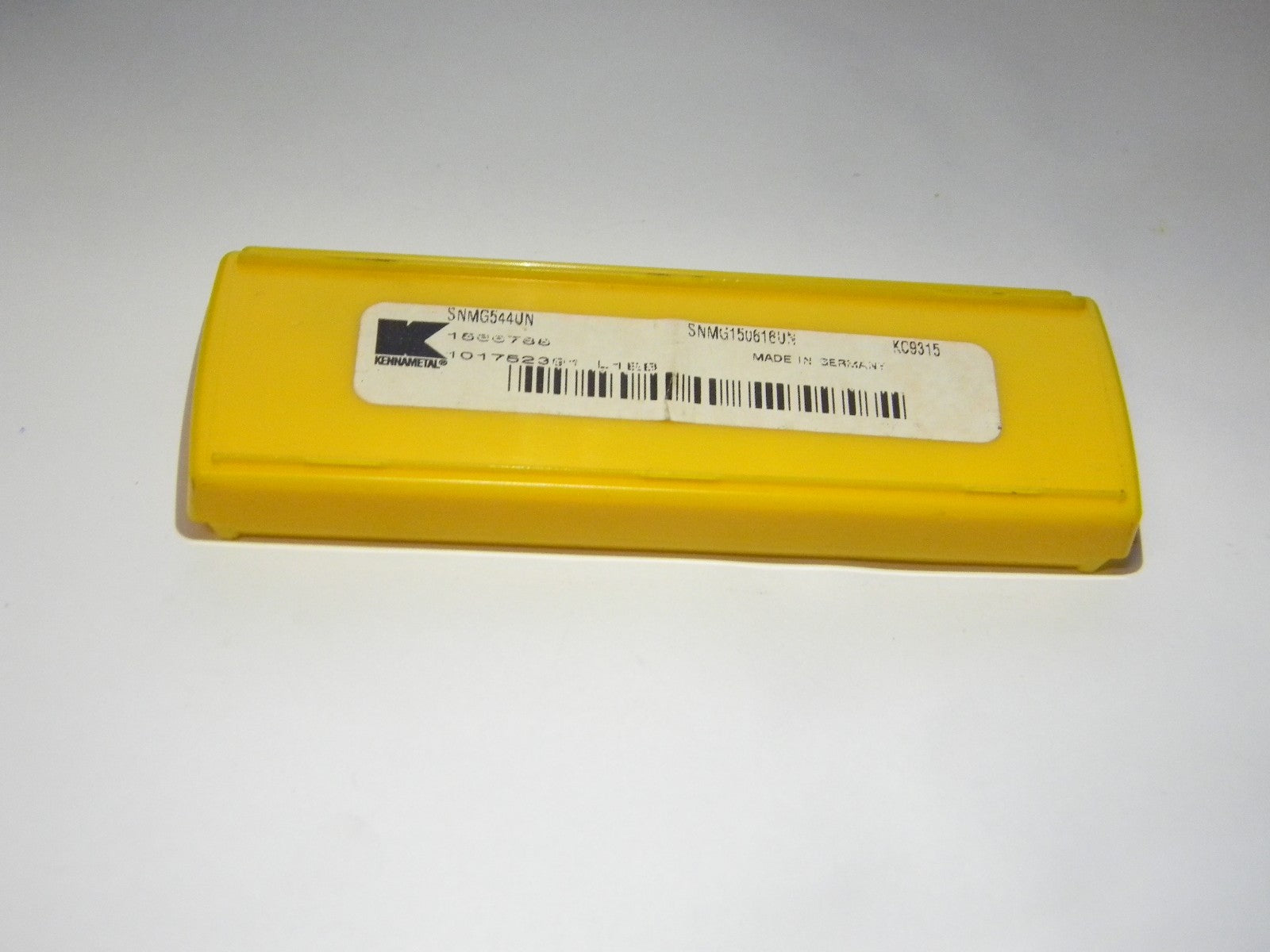

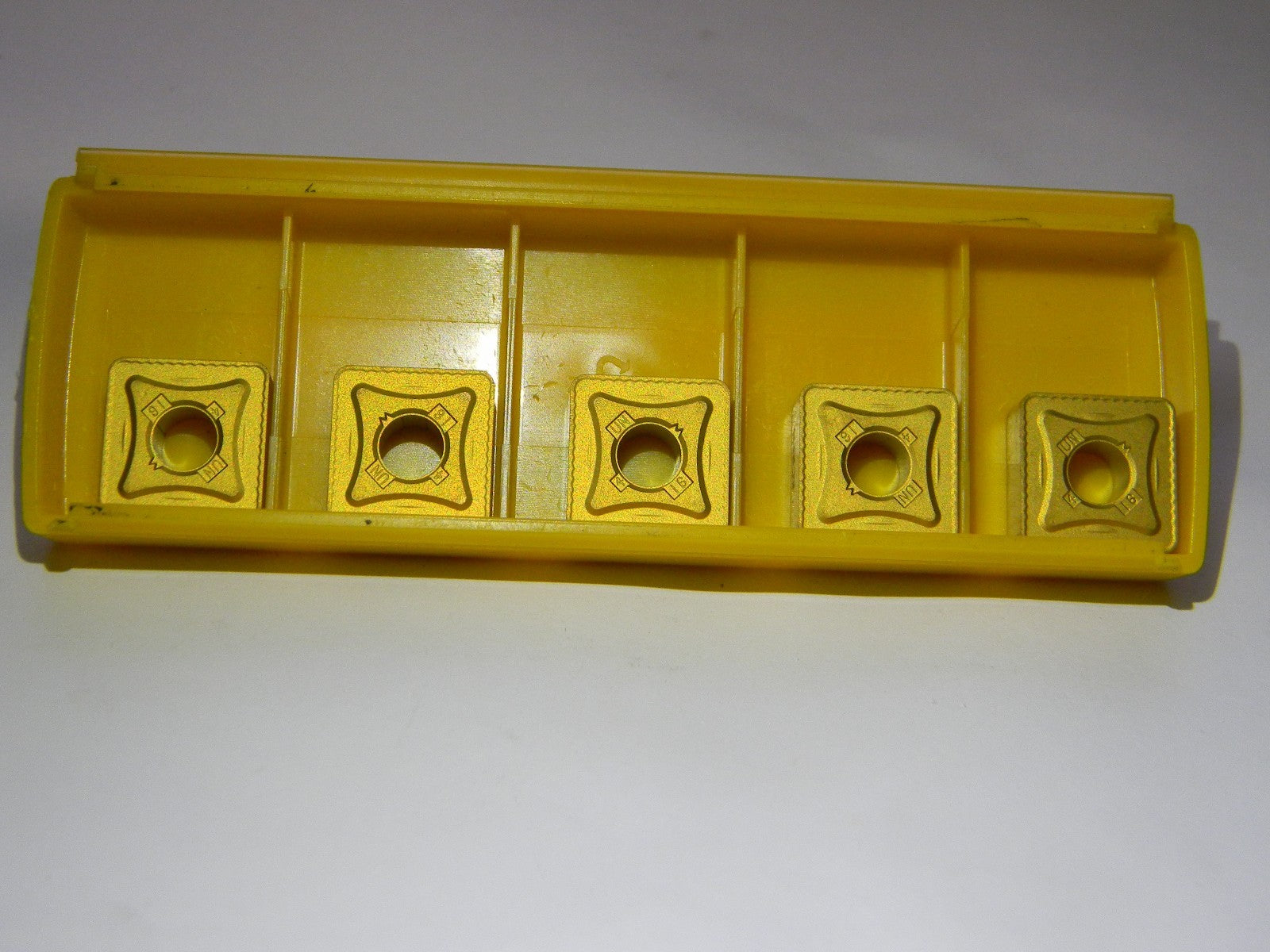

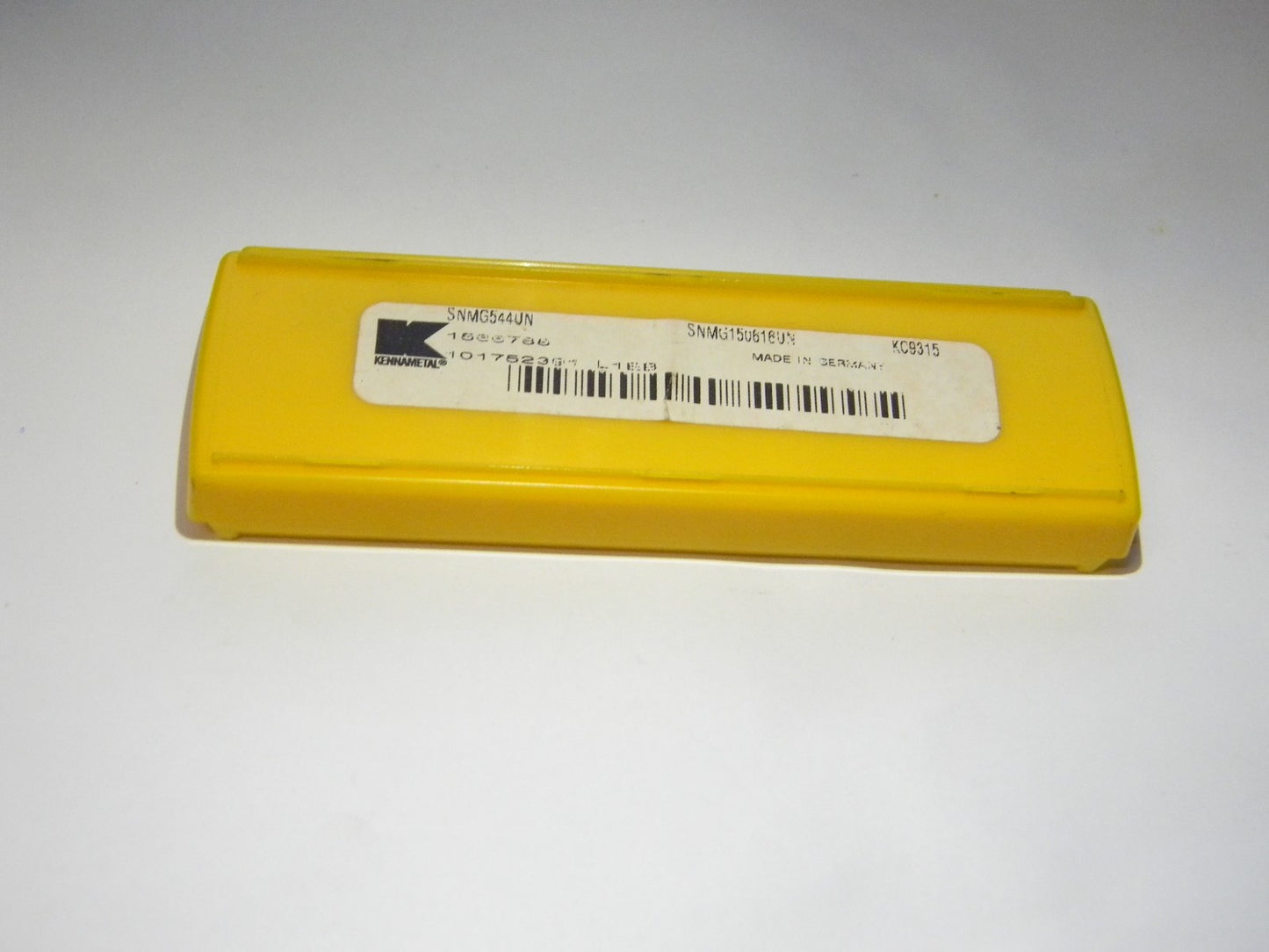

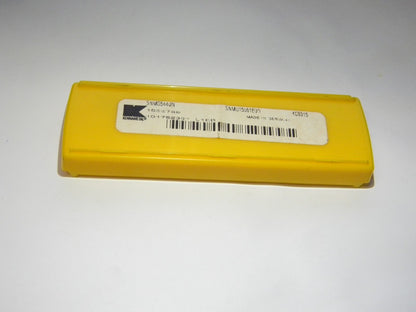

Please review photos, comes as shown.
