Kennametal Carbide Turning Inserts SNMA543 Grade KC9315 Qty 5 1567518
Kennametal Carbide Turning Inserts SNMA543 Grade KC9315 Qty 5 1567518
Regular price
$61.19 USD
Regular price
$125.00 USD
Sale price
$61.19 USD
Shipping calculated at checkout.
Kennametal
MSRP: $125
Model: 1567518
Description:
Insert Style: SNMA
Insert Size: 543
Material: Carbide Carbide
Inscribed Circle (Decimal Inch) : 0.6250
Inscribed Circle (Inch) : 5/8
Thickness (Inch) : 1/4
Thickness (Decimal Inch) : 0.2500
Corner Radius (Inch) : 3/64
Corner Radius (Decimal Inch) : 0.0469
Manufacturer's Grade: KC9315
Coating: TiCN/Al2O3/TiN
Material Grade: C3/C4
Hole Diameter (mm): 6.35
Hole Diameter (Decimal Inch): 0.2500
Rake: Negative
Relief Angle: 0
Coating Process: CVD
Primary Workpiece Material: K
Included Angle: 90
Insert Hand: Neutral
Series: KENLOC
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
Insert Holding Method: Pin & Clamp
Shape: Square

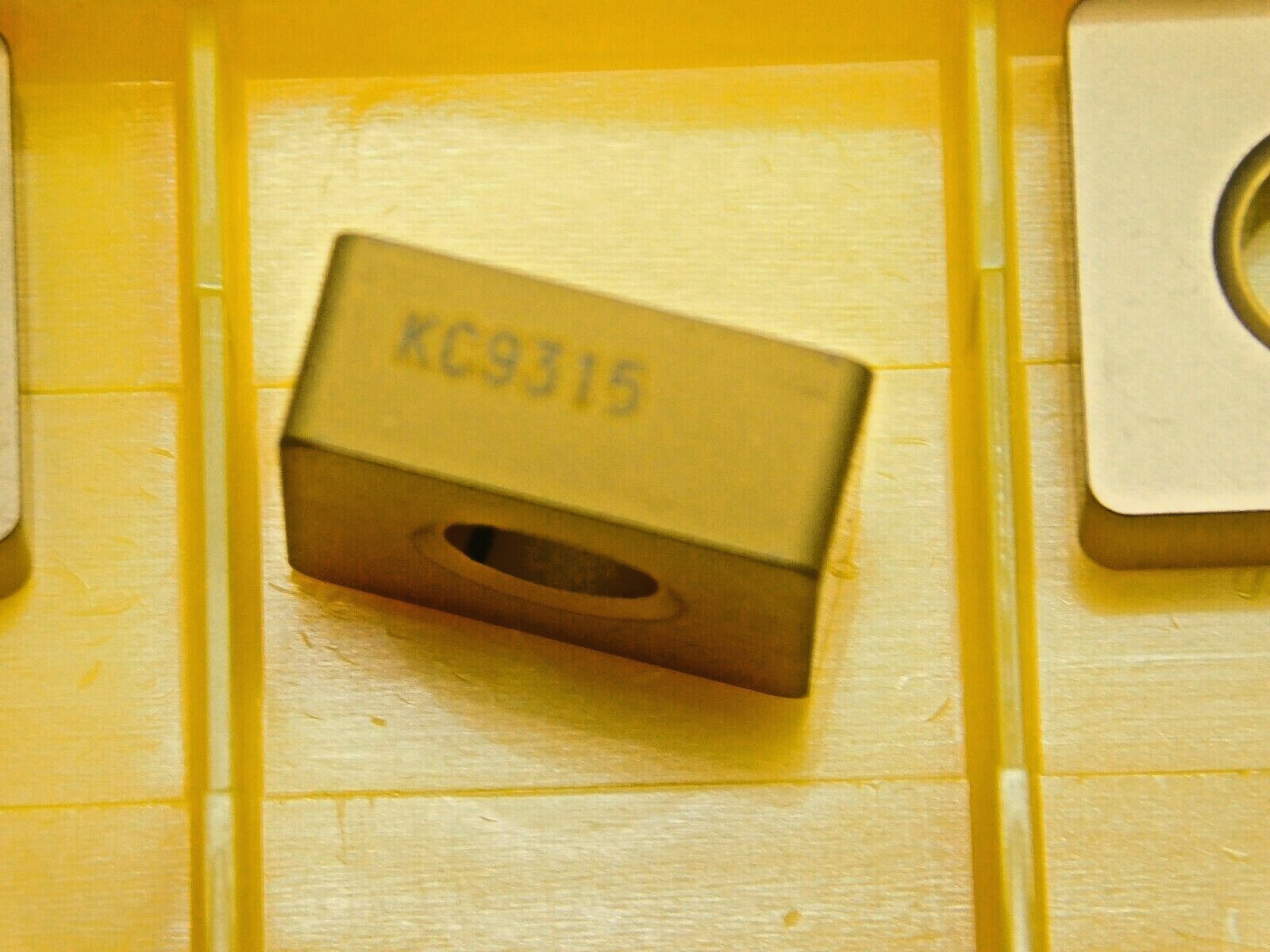

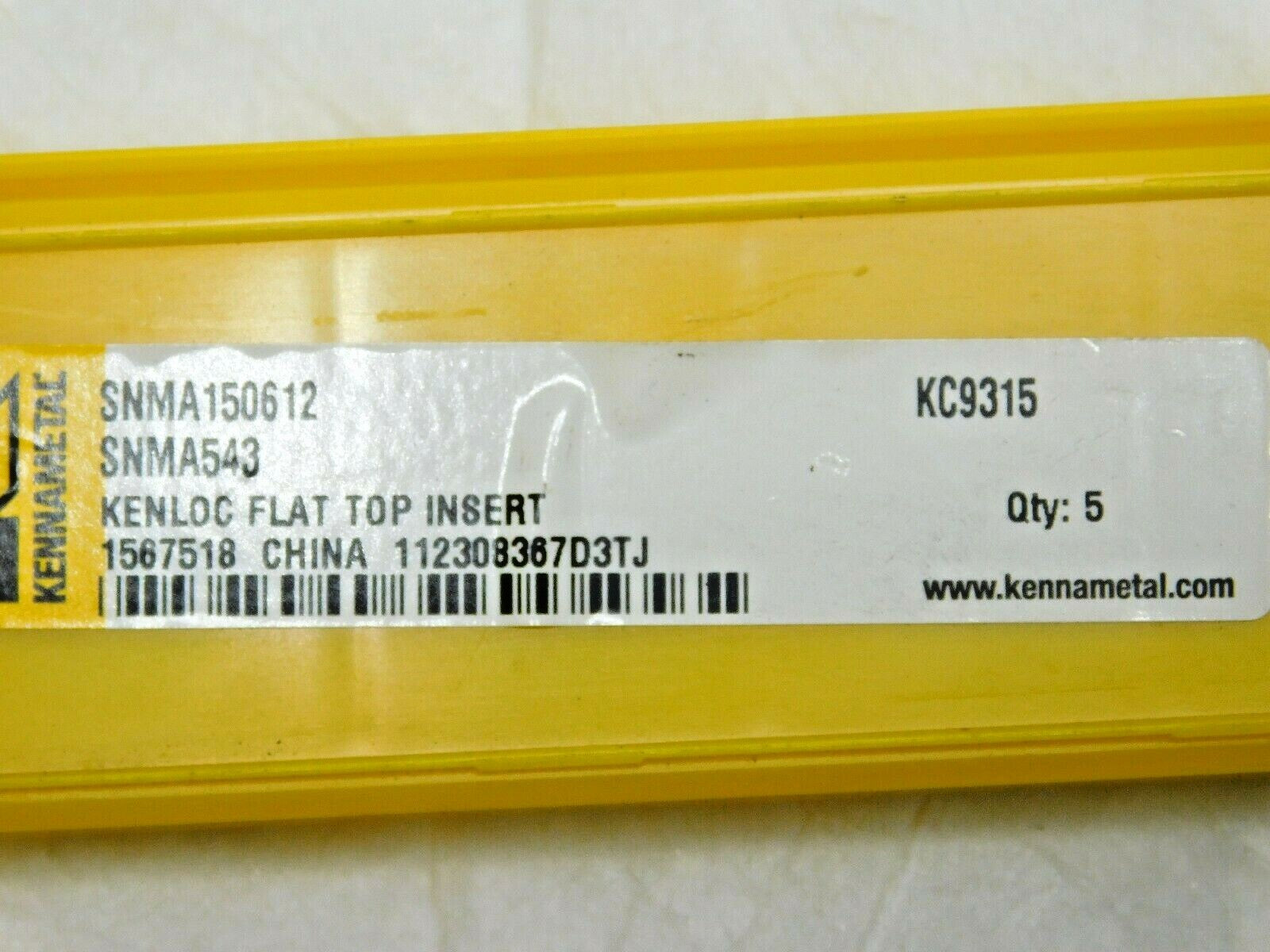

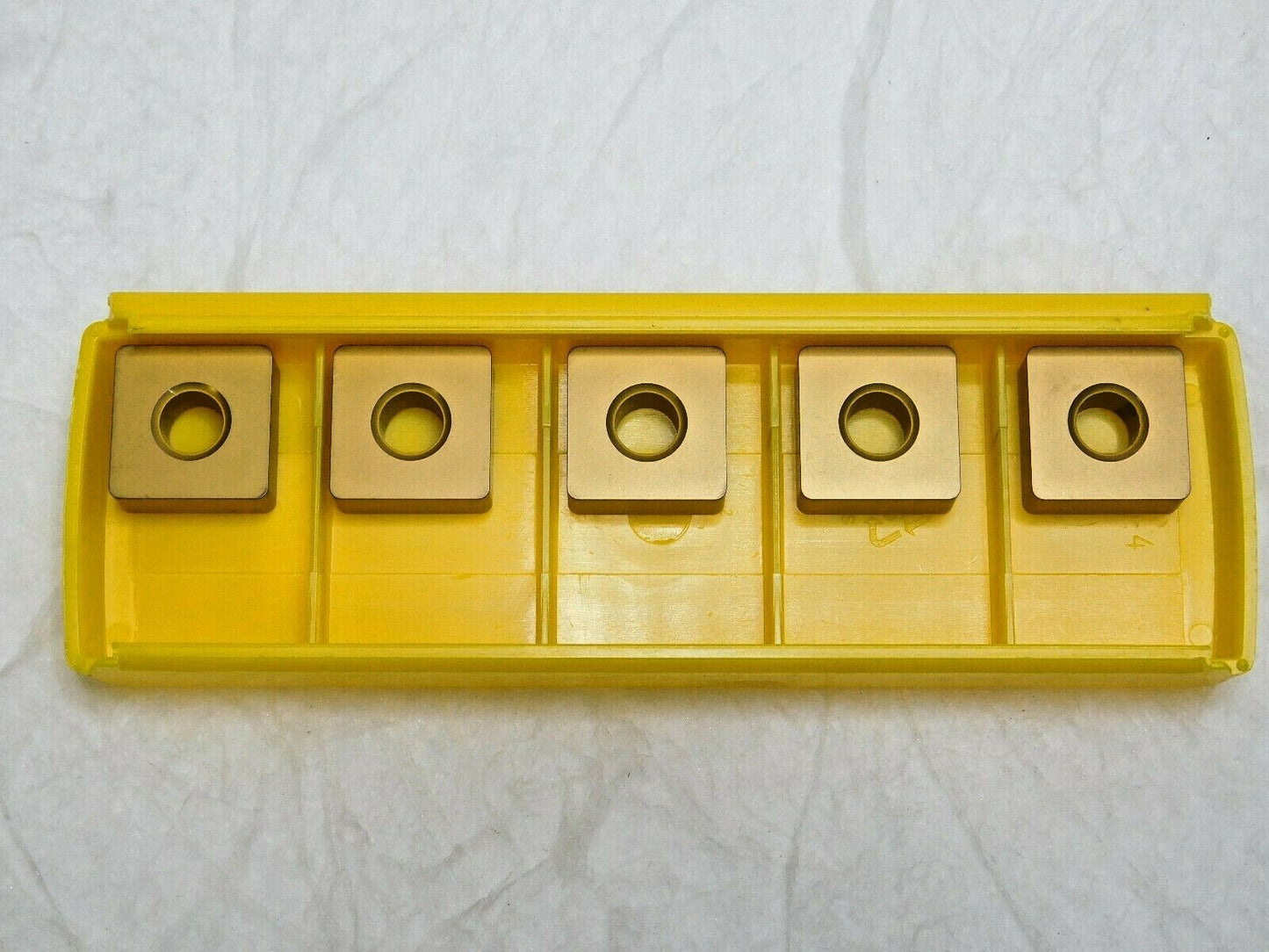

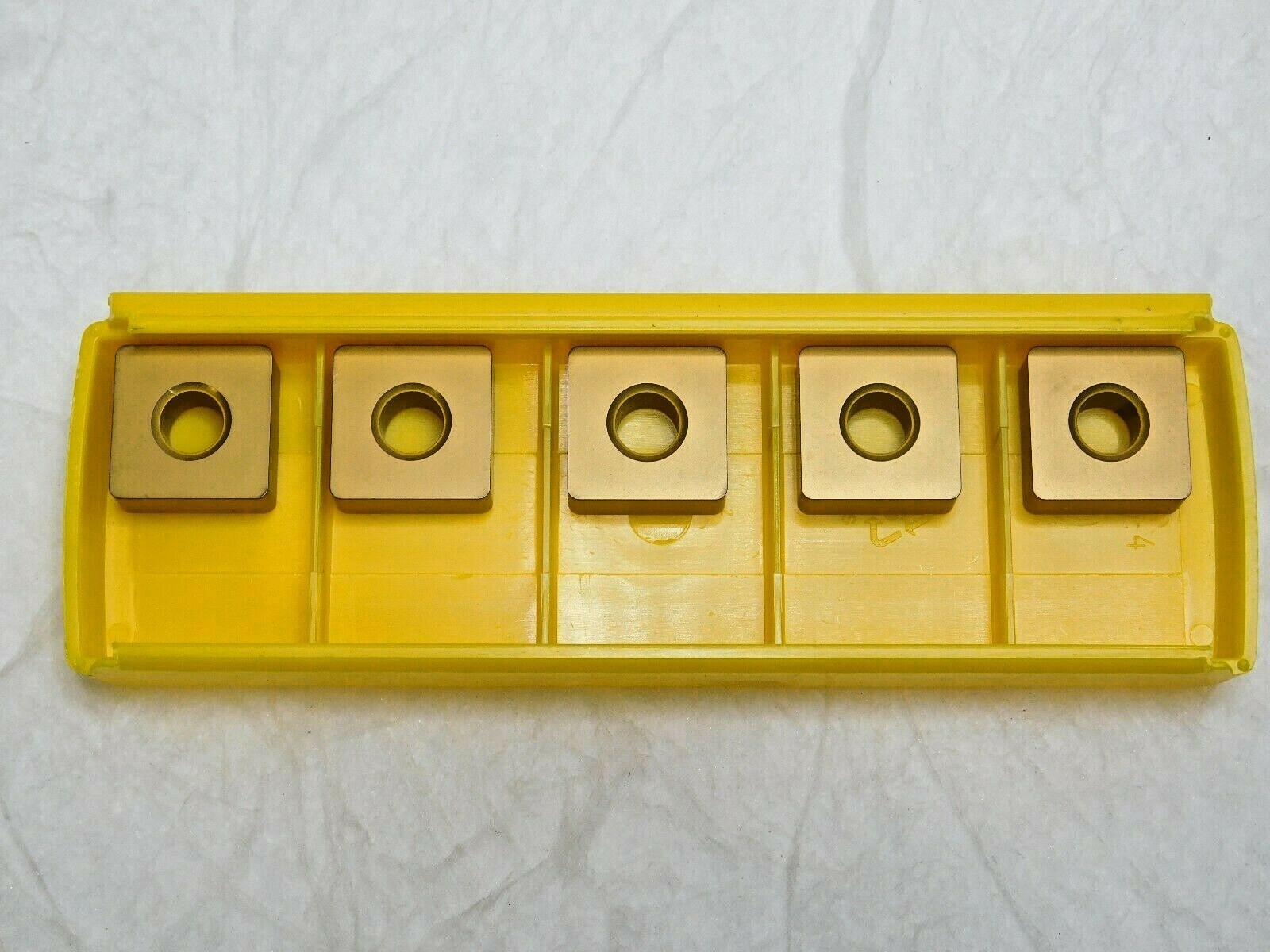

This listing is for One Pack of 5 Carbide Turning Inserts that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
