Kennametal Carbide Turning Inserts QTY5 TPGT21505LF KC5025 1866640

Kennametal
Carbide Turning Inserts 1 pack of 5

MSRP: $150

• Insert Style TPGT
• ANSI Size Code 21.50.5
• ISO Size Code 110202
• Insert Shape T - Triangle
• Included Angle 60
• Inscribed Circle (Decimal Inch) 0.2500
• Inscribed Circle (Inch) 1/4
• Corner Radius (Inch) 1/128
• Corner Radius (Decimal Inch) 0.0079
• Insert Material Carbide
• Manufacturer Grade KC5025
• Coating/Finish TiAlN
• Relief Angle 11
• Wiper Edge No
• Insert Thickness (Inch) 3/32
• Insert Thickness (Decimal Inch) 0.0938
• Insert Hand Neutral
• Series Screw-On
• Chip Breaker Operation Light Machining; Finishing
• Grade Characteristics Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness; Steel (P) - Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness
• Side Clearance Positive
• Number Of Cutting Edges 3
• Insert Shape Code T
• Hole Diameter (Decimal Inch) 0.1102
• Hole Diameter (mm) 2.80
• Maximum Depth of Cut (mm) 1.25
• Maximum Depth of Cut (Decimal Inch) 0.0492
• ANSI Insert Code TPGT21.50.5
• ISO Insert Code TPGT110202
• Insert Holding Method Screw
• Clearance Code P
• Tolerance Code G
• Coating Process PVD
• Length Range (Decimal Inch) 0.4000 - 0.5000
• Rake Positive
• Insert Length (Decimal Inch) 0.4331
• Insert Length (mm) 11.00
• Primary Workpiece Material Stainless Steel; Superalloys & Titanium
• Primary Workpiece Material Code P; S; K; M; N
• Standards ISO; ANSI
• Manufacturers Catalog Number 1866640
• Material Grade C6; C2
• Coating Classification PVD
• Chip Breaker LF
• Rake Angle 5
• Cutting Edge Style Honed
• Industry Standard Number TPGT21505LF
• Width (Decimal Inch - 4 Decimals) 0.4331
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Turning; Boring
• UNSPSC Code 23242105
• Insert Size Code 21505

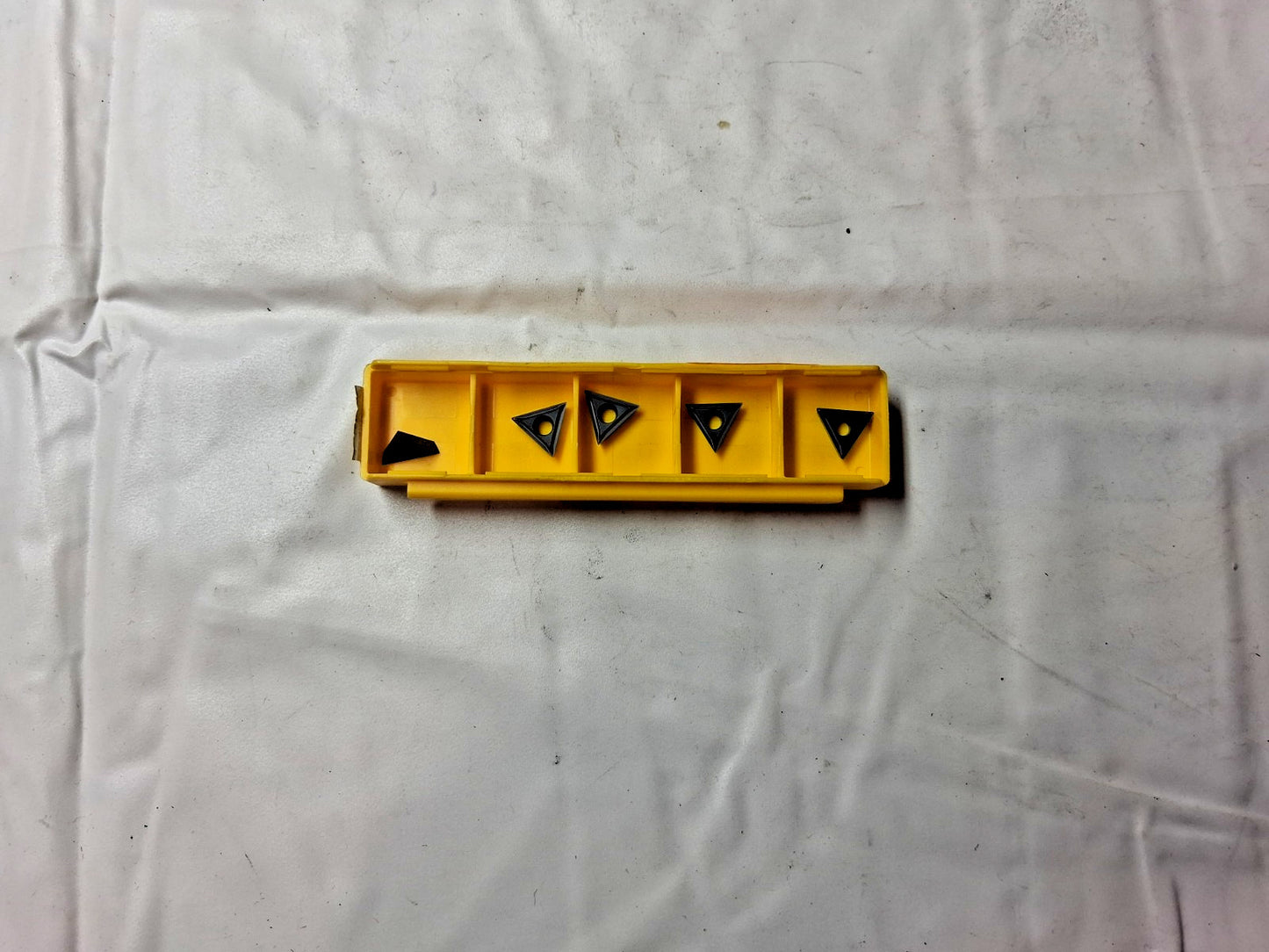

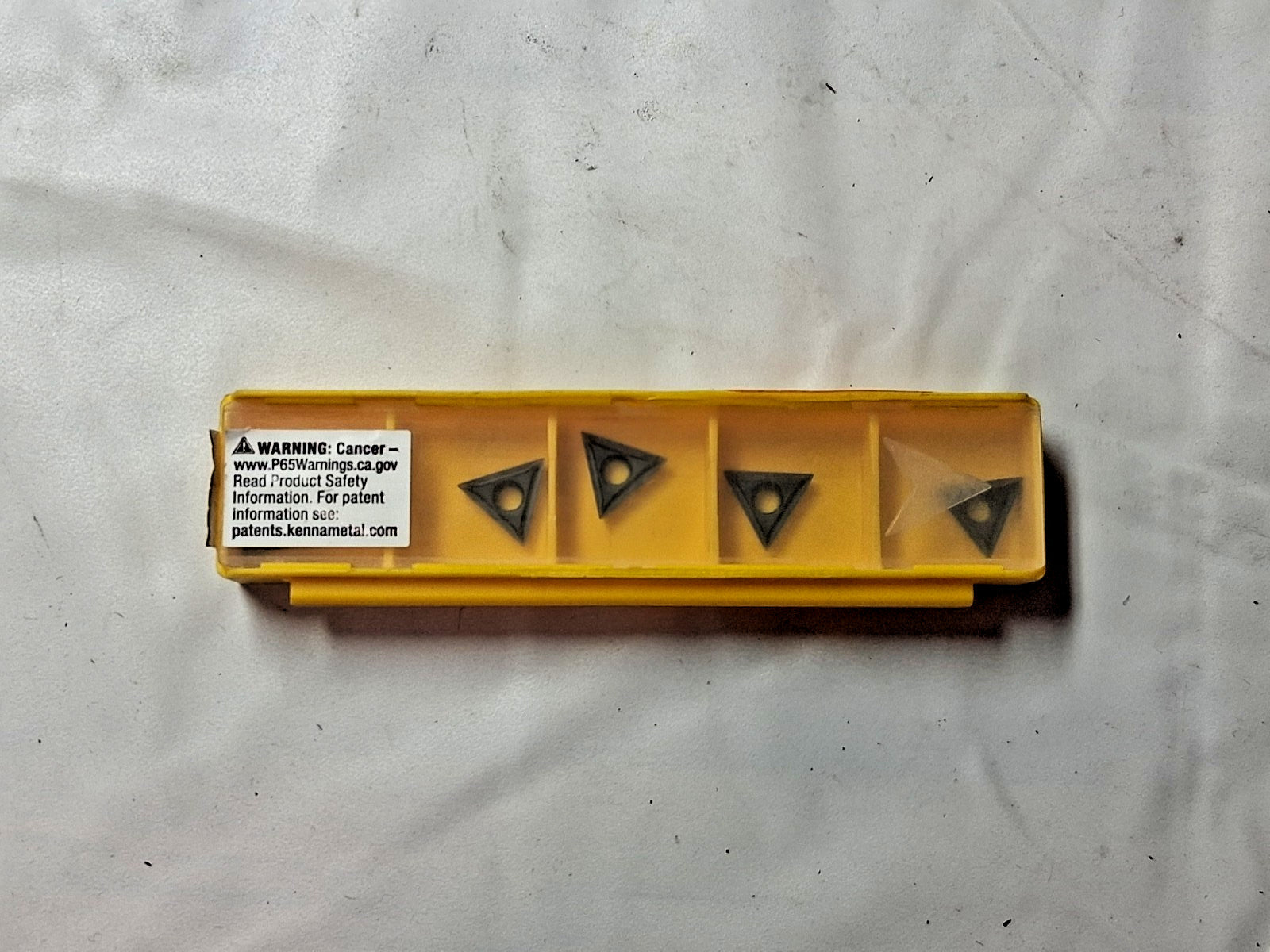

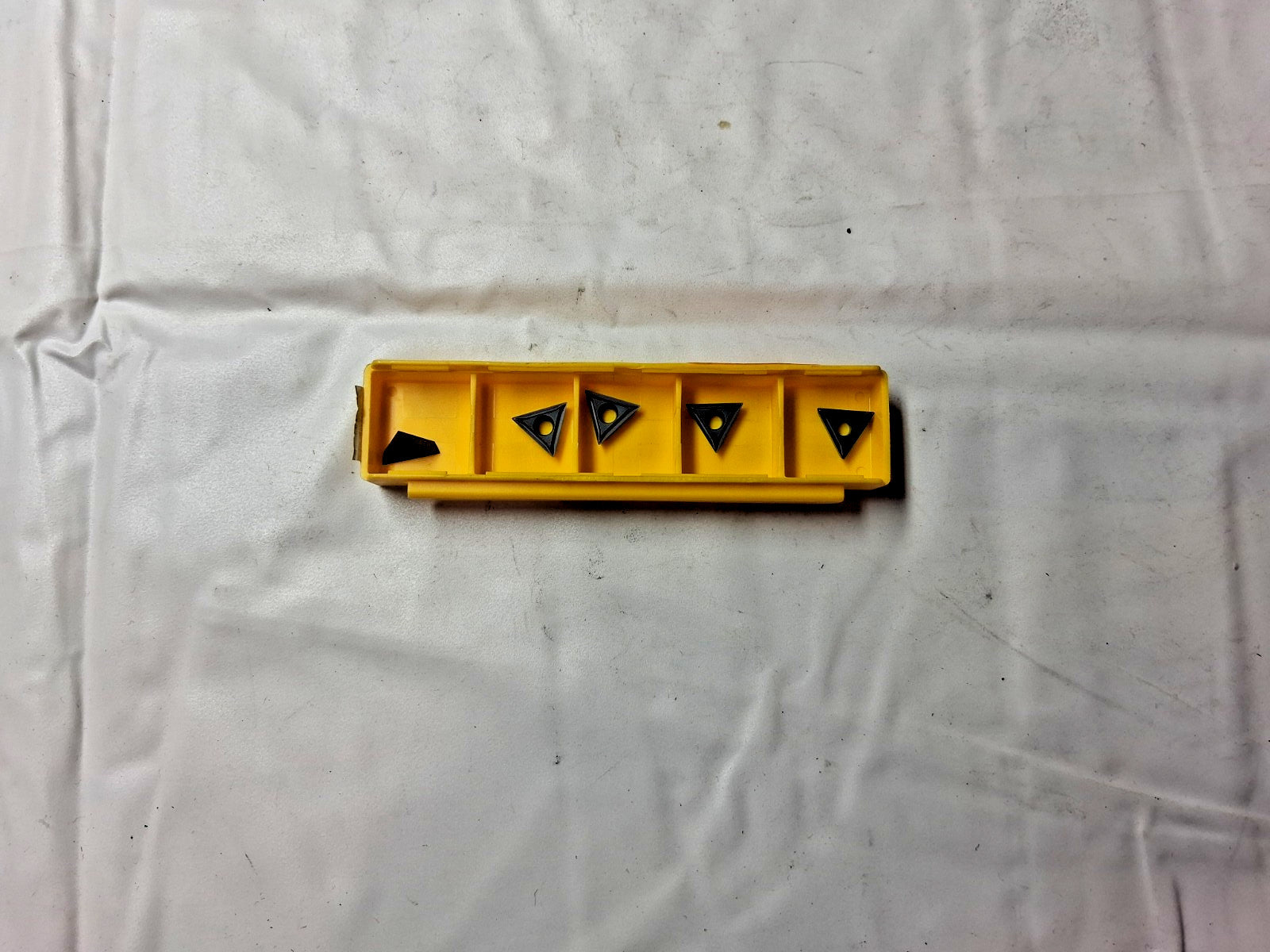

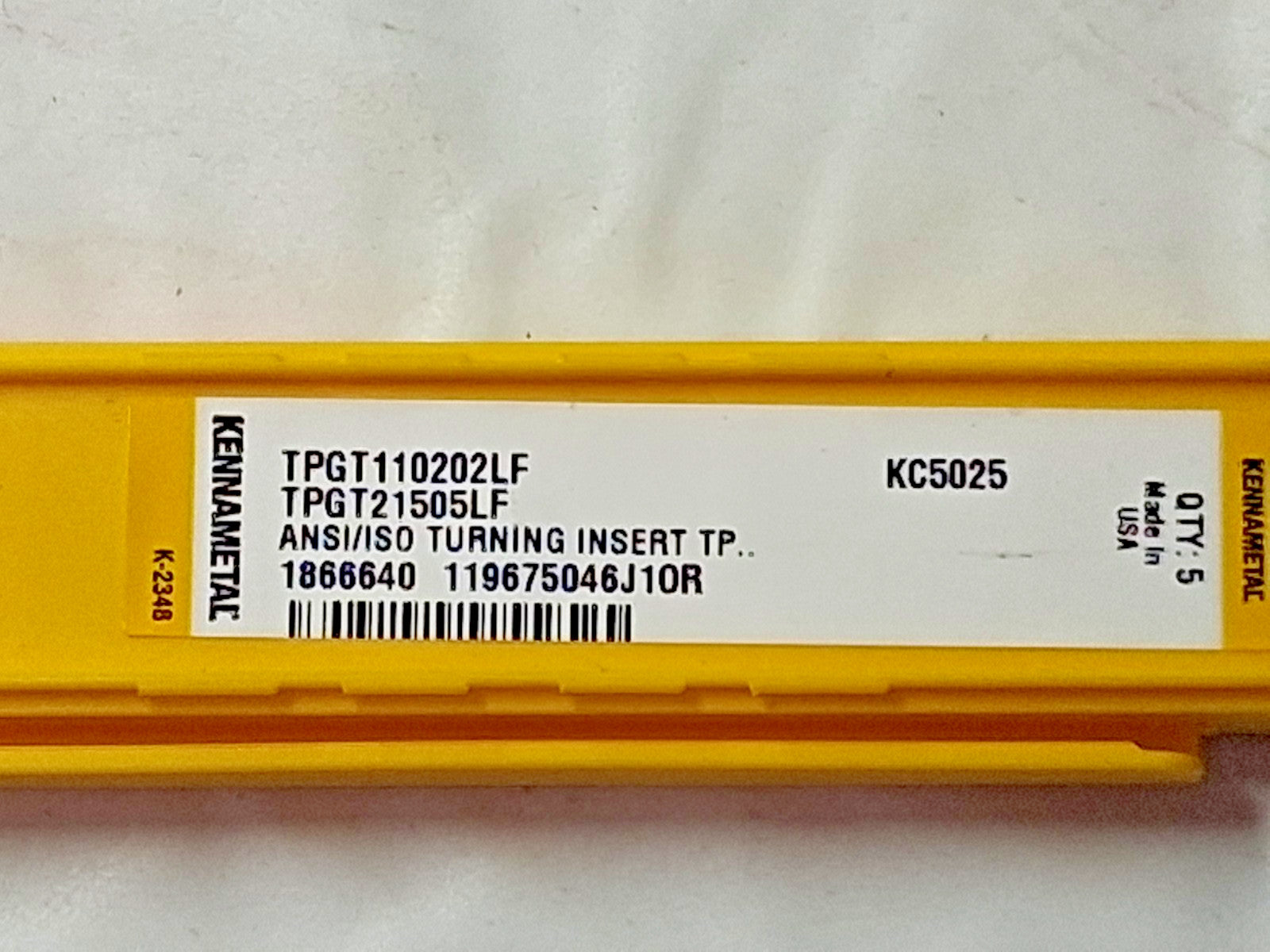

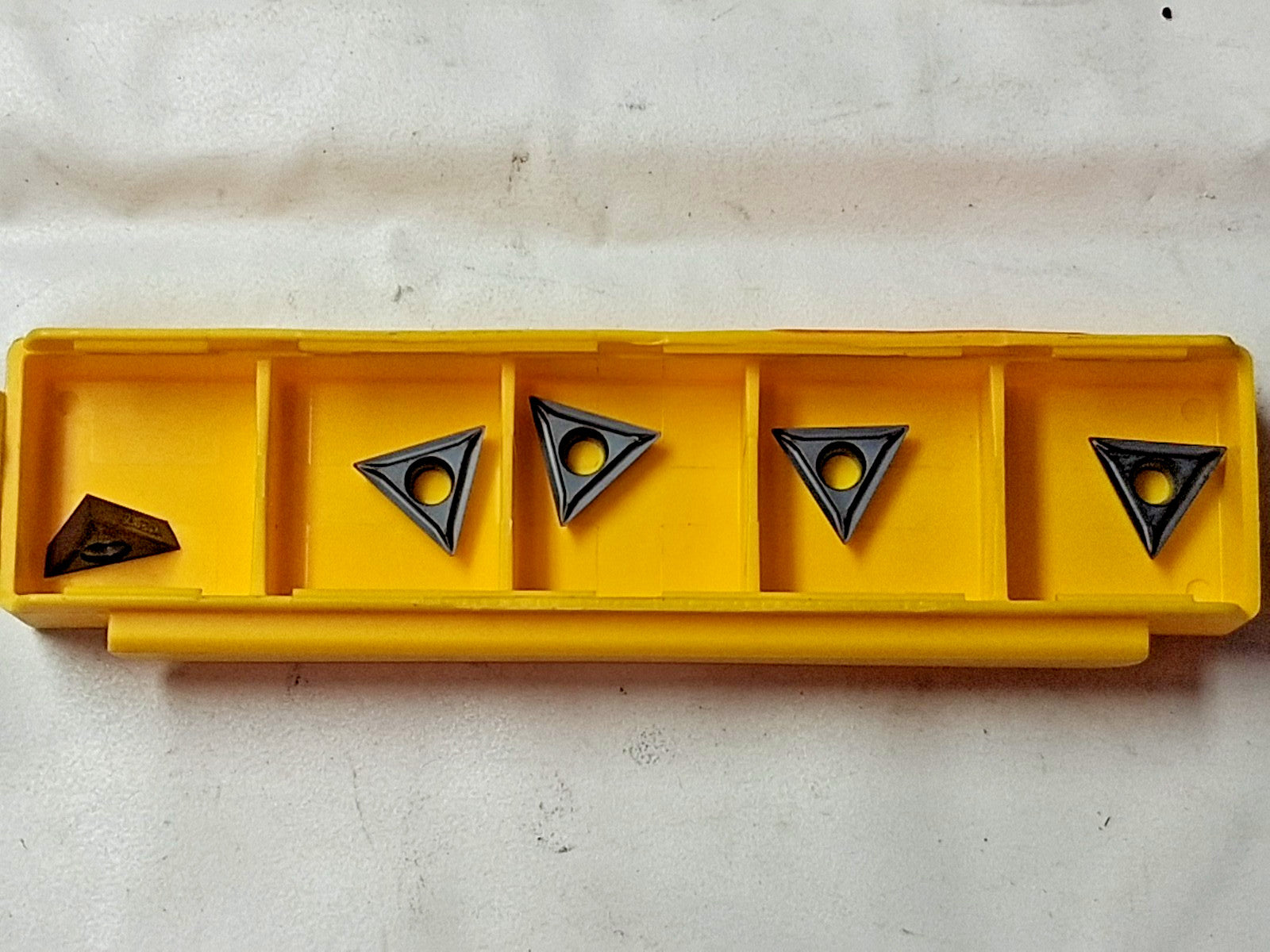

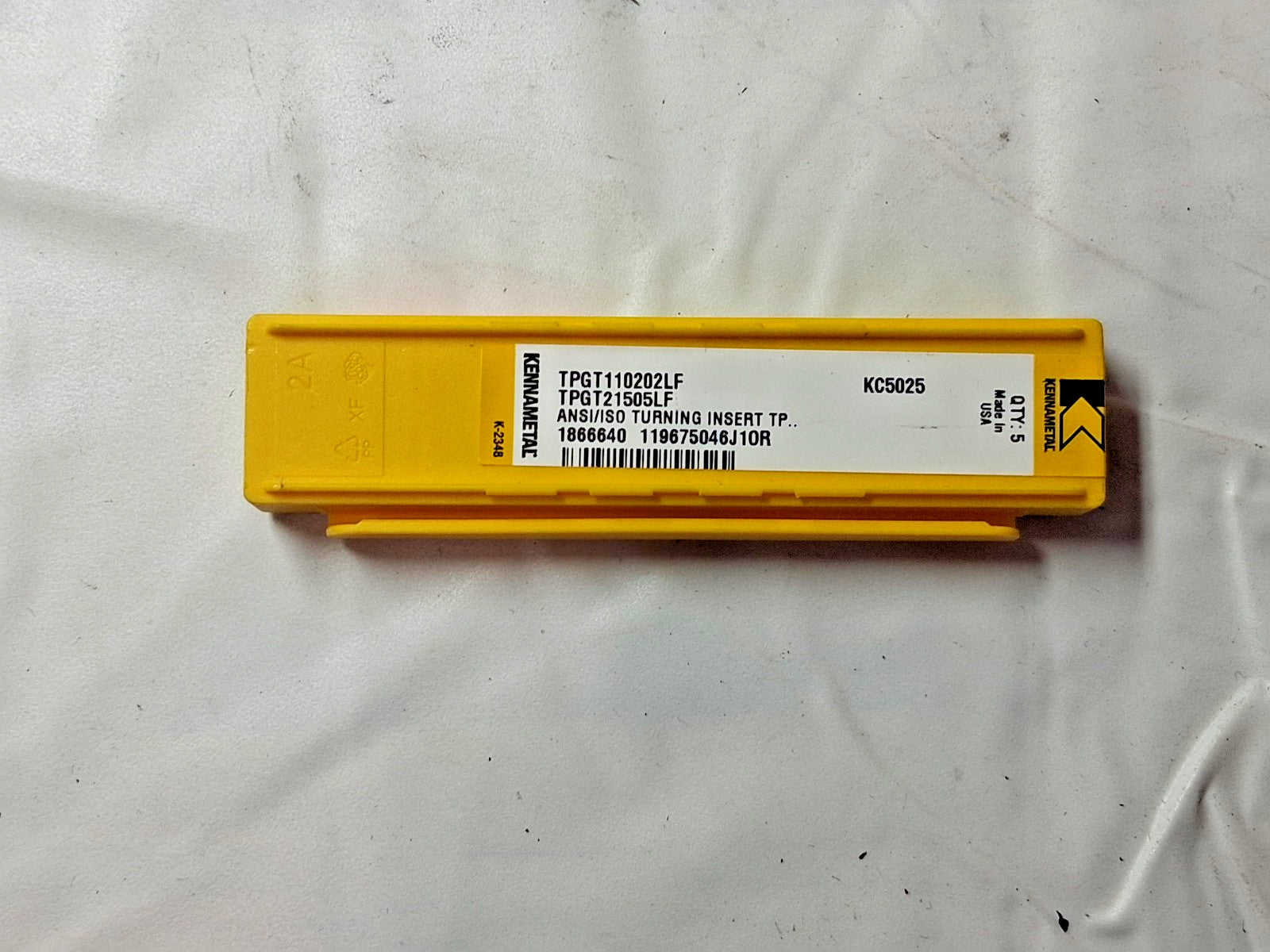

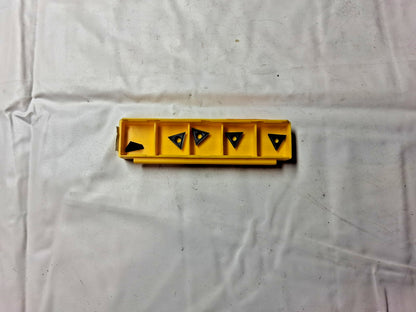

Please review photos, comes as shown.
