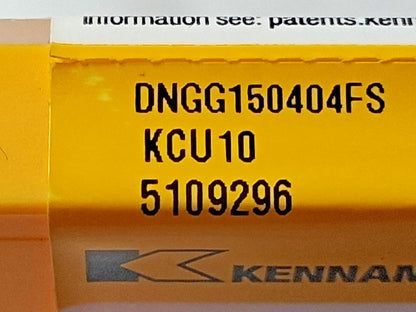

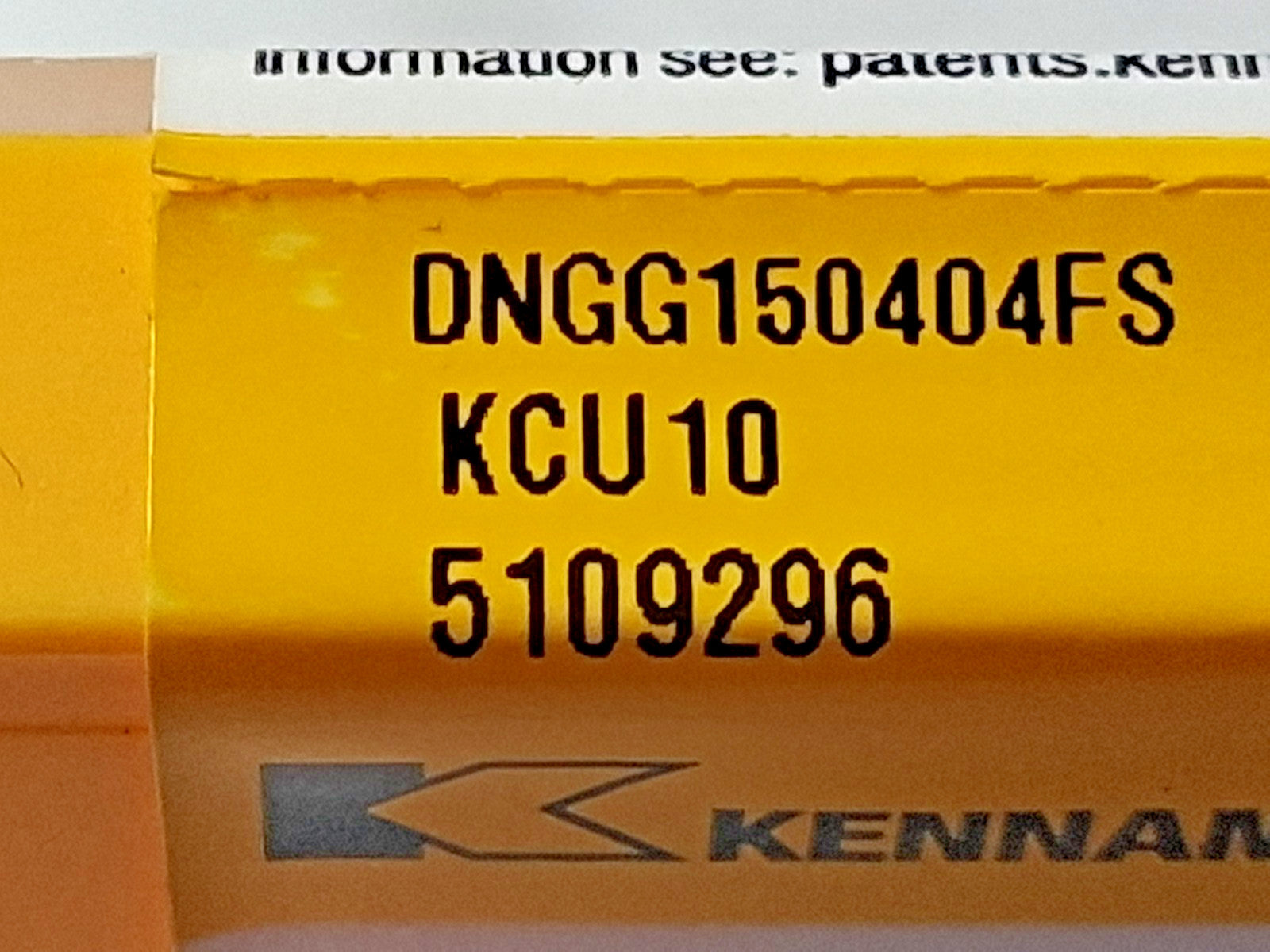

Kennametal Carbide Turning Inserts QTY5 DNGG431FS KCU10 5109296

Kennametal
Carbide Turning Inserts 1 pack of 5


MSRP: $215

• Insert Style DNGG
• ANSI Size Code 431
• ISO Size Code 150404
• Insert Shape D - Diamond (Rhombic) 55-Deg
• Included Angle 55
• Inscribed Circle (Decimal Inch) 0.5000
• Inscribed Circle (Inch) 1/2
• Corner Radius (Inch) 1/64
• Corner Radius (Decimal Inch) 0.0156
• Insert Material Carbide
• Manufacturer Grade KCU10
• Coating/Finish TiAlN
• Relief Angle 0
• Wiper Edge No
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1875
• Insert Hand Neutral
• Series KENLOC
• Chip Breaker Operation Finishing
• Grade Characteristics Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance Negative
• Number Of Cutting Edges 4
• Insert Shape Code D
• Hole Diameter (Decimal Inch) 0.2031
• Maximum Depth of Cut (mm) 2.03
• Maximum Depth of Cut (Decimal Inch) 0.0800
• ANSI Insert Code DNGG431
• ISO Insert Code DNGG150404
• Insert Holding Method Pin; Clamp
• Width (Inch) 1/2
• Clearance Code N
• Tolerance Code G
• Coating Process PVD
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Rake Negative
• Insert Length (Decimal Inch) 1.2208
• Primary Workpiece Material Stainless Steel; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; H; K; M; N
• Iso Code DNGG150404FS
• Standards ISO; ANSI
• Manufacturers Catalog Number 5109296
• Material Grade C3; C4
• Coating Classification PVD
• Chip Breaker FS
• Rake Angle 12
• Cutting Edge Style Honed
• Industry Standard Number DNGG431FS
• Width (Decimal Inch - 4 Decimals) 0.5000
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Back Boring; Facing; Turning; Back Turning; Boring
• UNSPSC Code 23242105
• Insert Size Code 431

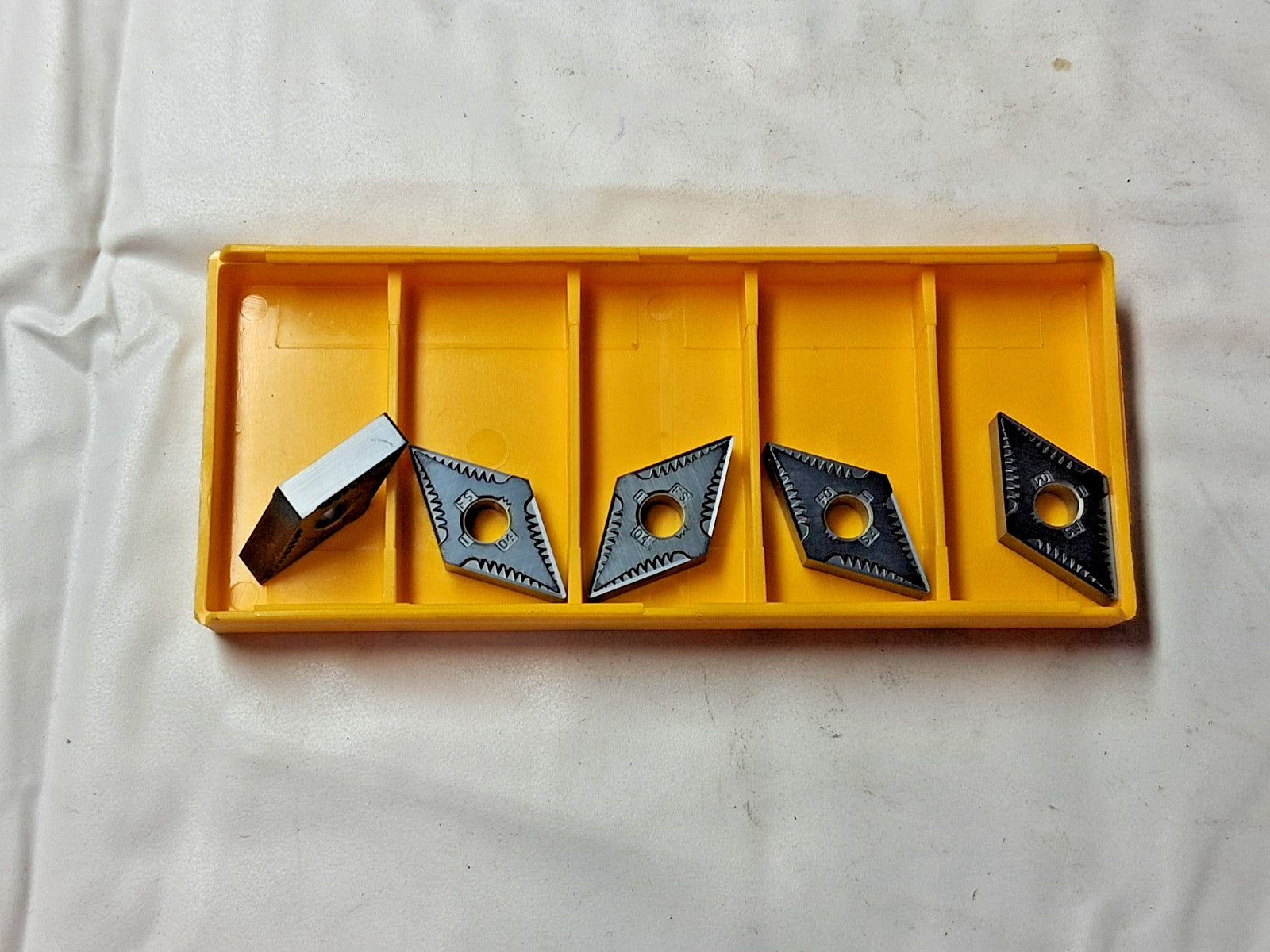

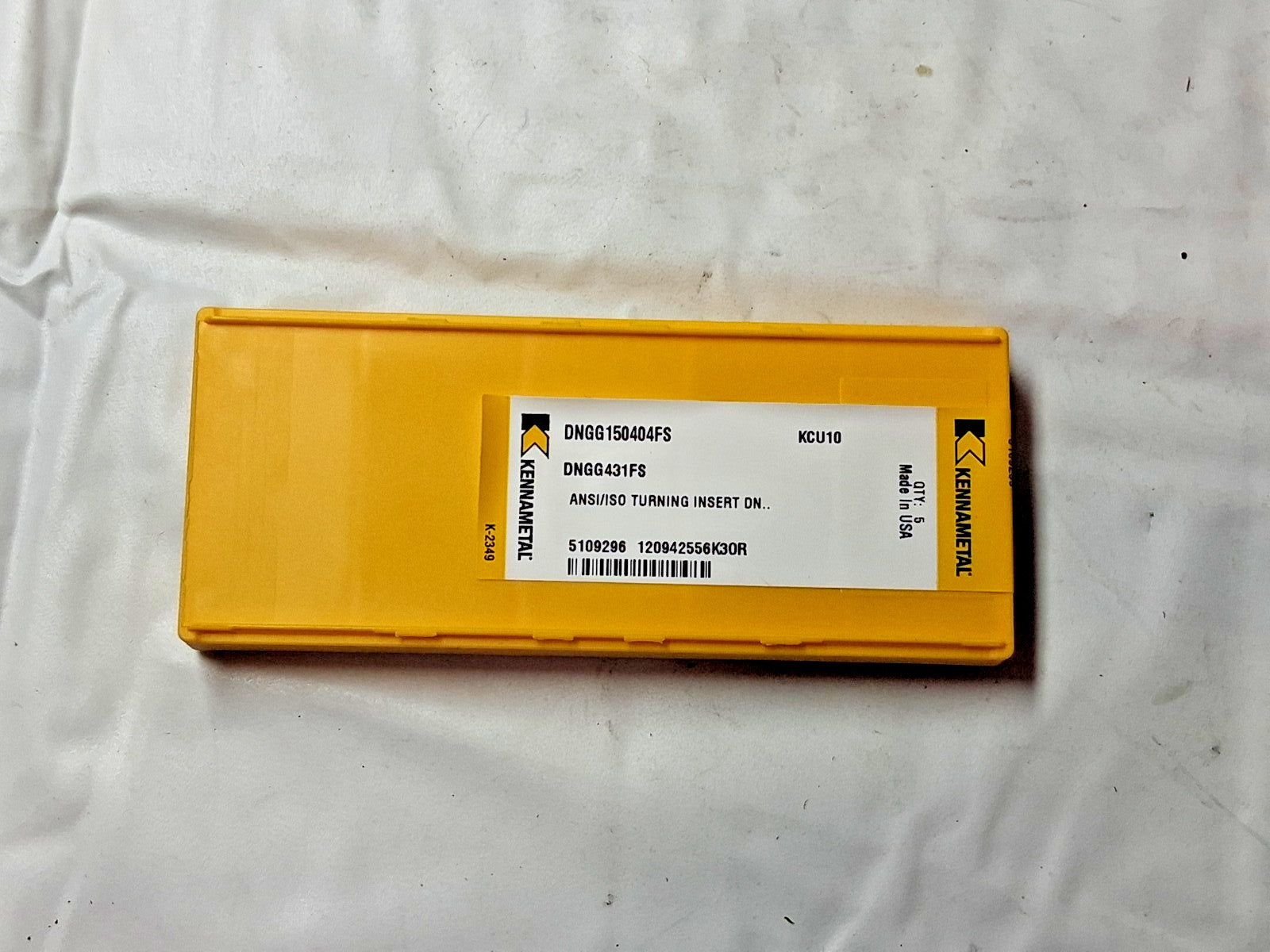

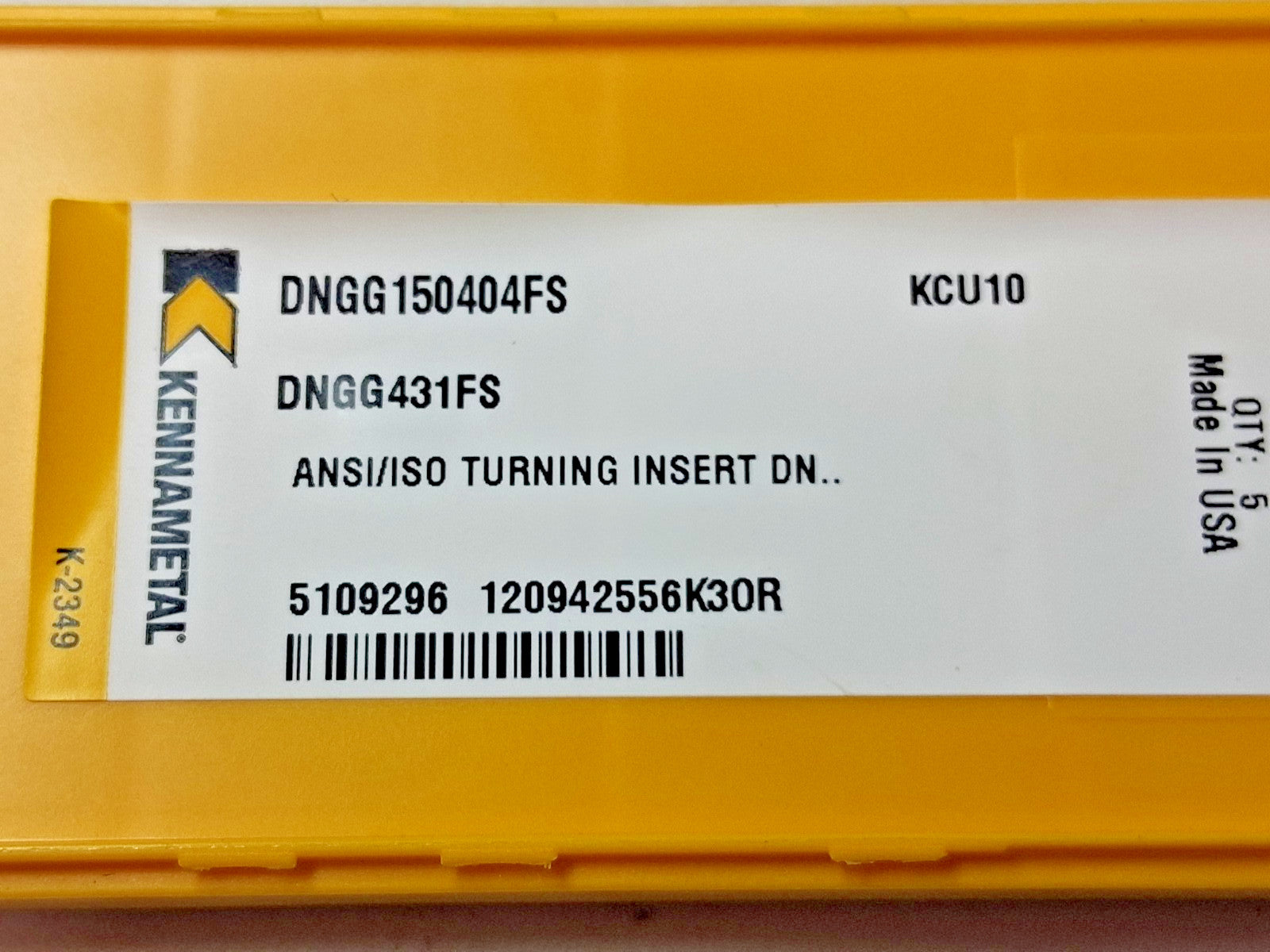

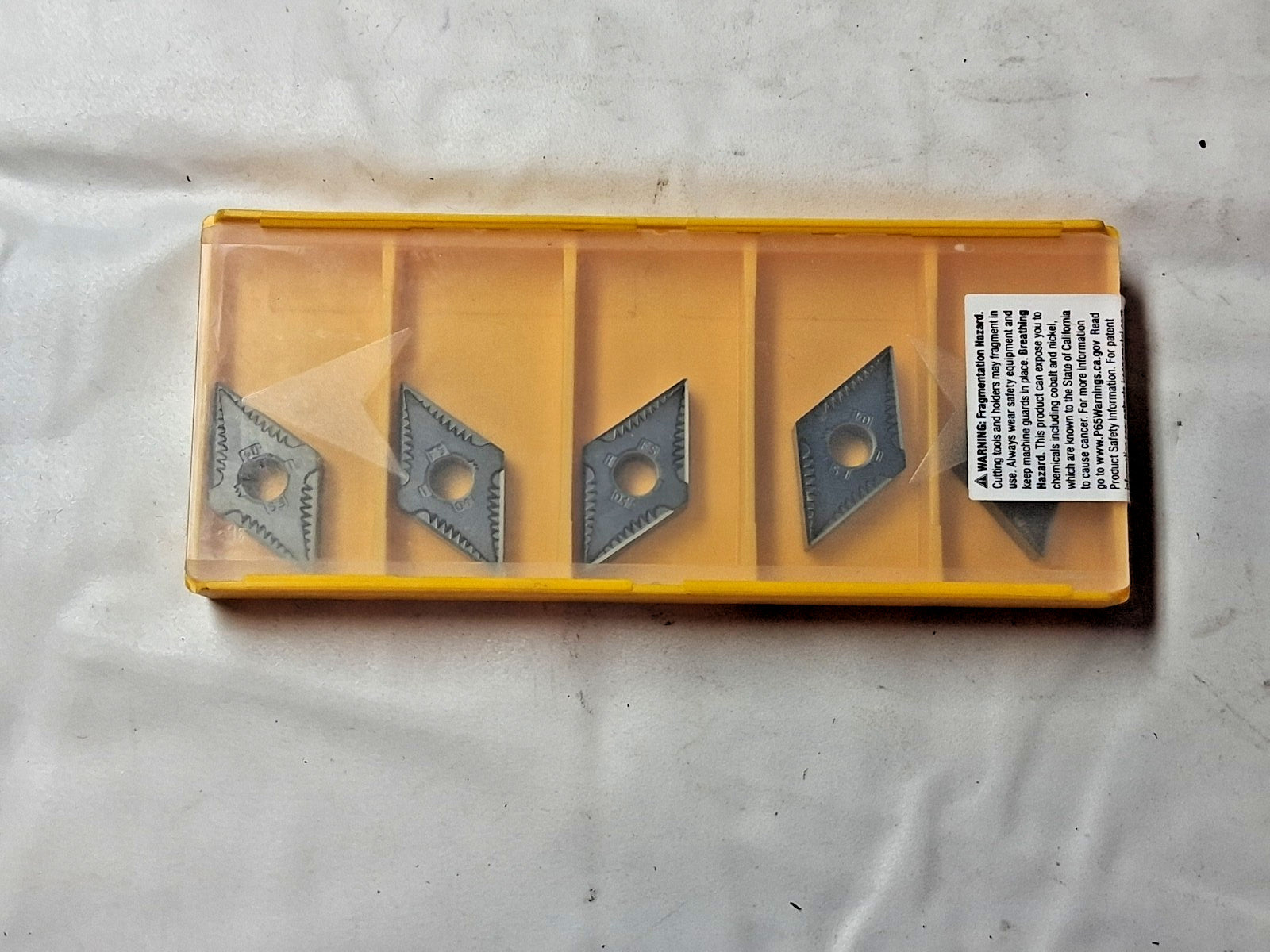

Please review photos, comes as shown.
