Kennametal Carbide Turning Inserts QTY10 VBMT331LF KC5010 1310849

Kennametal
Carbide Turning Inserts

MSRP: $360

• Insert Style VBMT
• ANSI Size Code 331
• ISO Size Code 160404
• Insert Shape V - Diamond (Rhombic) 35-Deg
• Included Angle 35
• Inscribed Circle (Decimal Inch) 0.3750
• Inscribed Circle (Inch) 3/8
• Corner Radius (Inch) 1/64
• Corner Radius (Decimal Inch) 0.0156
• Insert Material Carbide
• Manufacturer Grade KC5010
• Coating/Finish TiAlN
• Relief Angle 5
• Wiper Edge No
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1875
• Insert Hand Neutral
• Series Screw-On
• Chip Breaker Operation Light Machining; Finishing
• Grade Characteristics Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance Positive
• Number Of Cutting Edges 2
• Insert Shape Code V
• Hole Diameter (Decimal Inch) 0.1732
• Hole Diameter (mm) 4.40
• Maximum Depth of Cut (mm) 1.25
• Maximum Depth of Cut (Decimal Inch) 0.0492
• ANSI Insert Code VBMT331
• ISO Insert Code VBMT160404
• Insert Holding Method Screw
• Width (Inch) 3/8
• Clearance Code B
• Tolerance Code M
• Coating Process PVD
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Rake Positive
• Insert Length (Decimal Inch) 1.3076
• Insert Length (mm) 16.61
• Primary Workpiece Material Stainless Steel; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; K; M; N
• Secondary Workpiece Material Code P; S; N
• Standards ISO; ANSI
• Manufacturers Catalog Number 1310849
• Material Grade C3; C4
• Coating Classification PVD
• Chip Breaker LF
• Rake Angle 5
• Cutting Edge Style Honed
• Industry Standard Number VBMT331LF
• Width (Decimal Inch - 4 Decimals) 0.3750
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Back Boring; Facing; Turning; Back Turning; Boring
• UNSPSC Code 23242105
• Insert Size Code 331

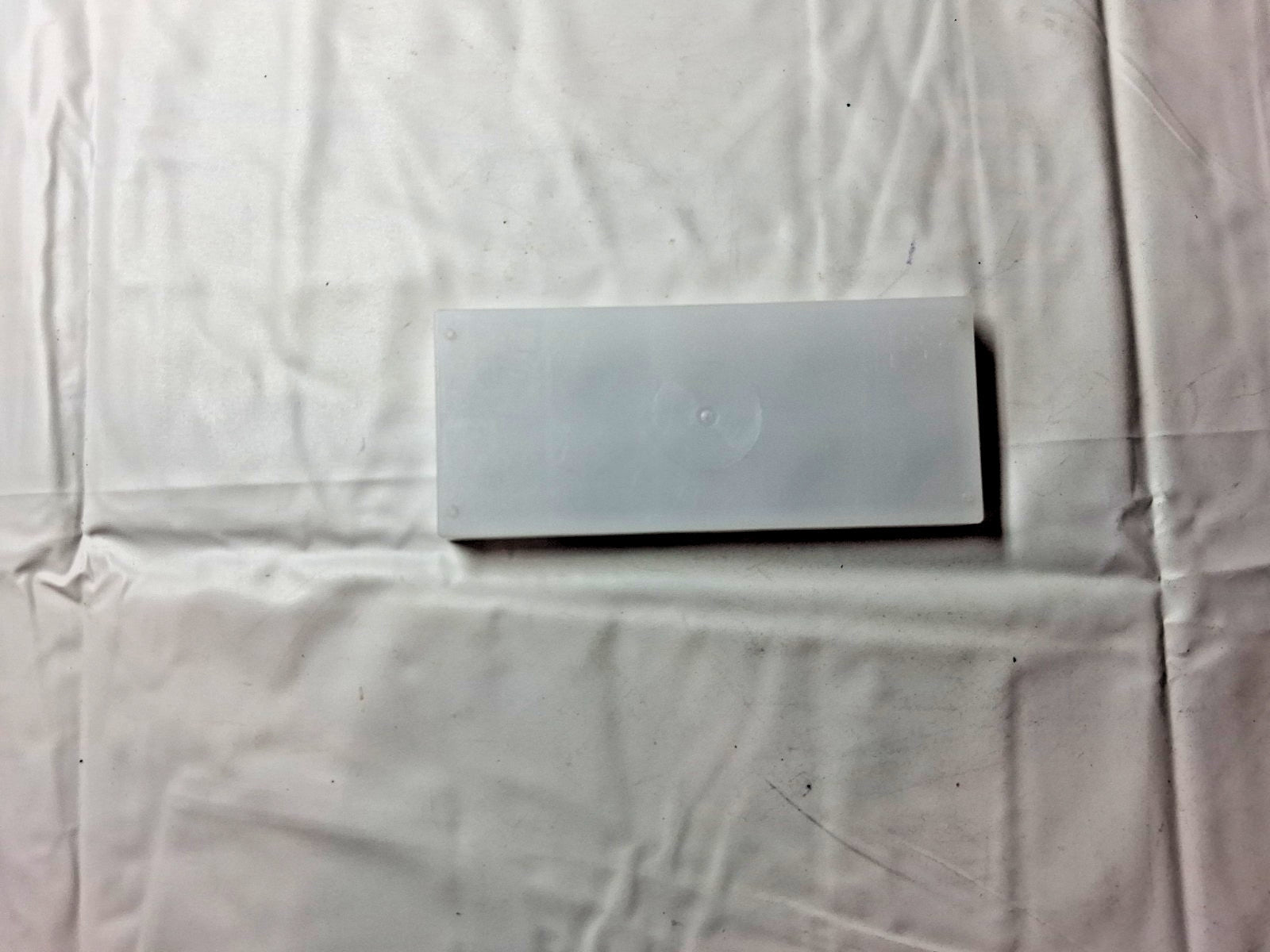

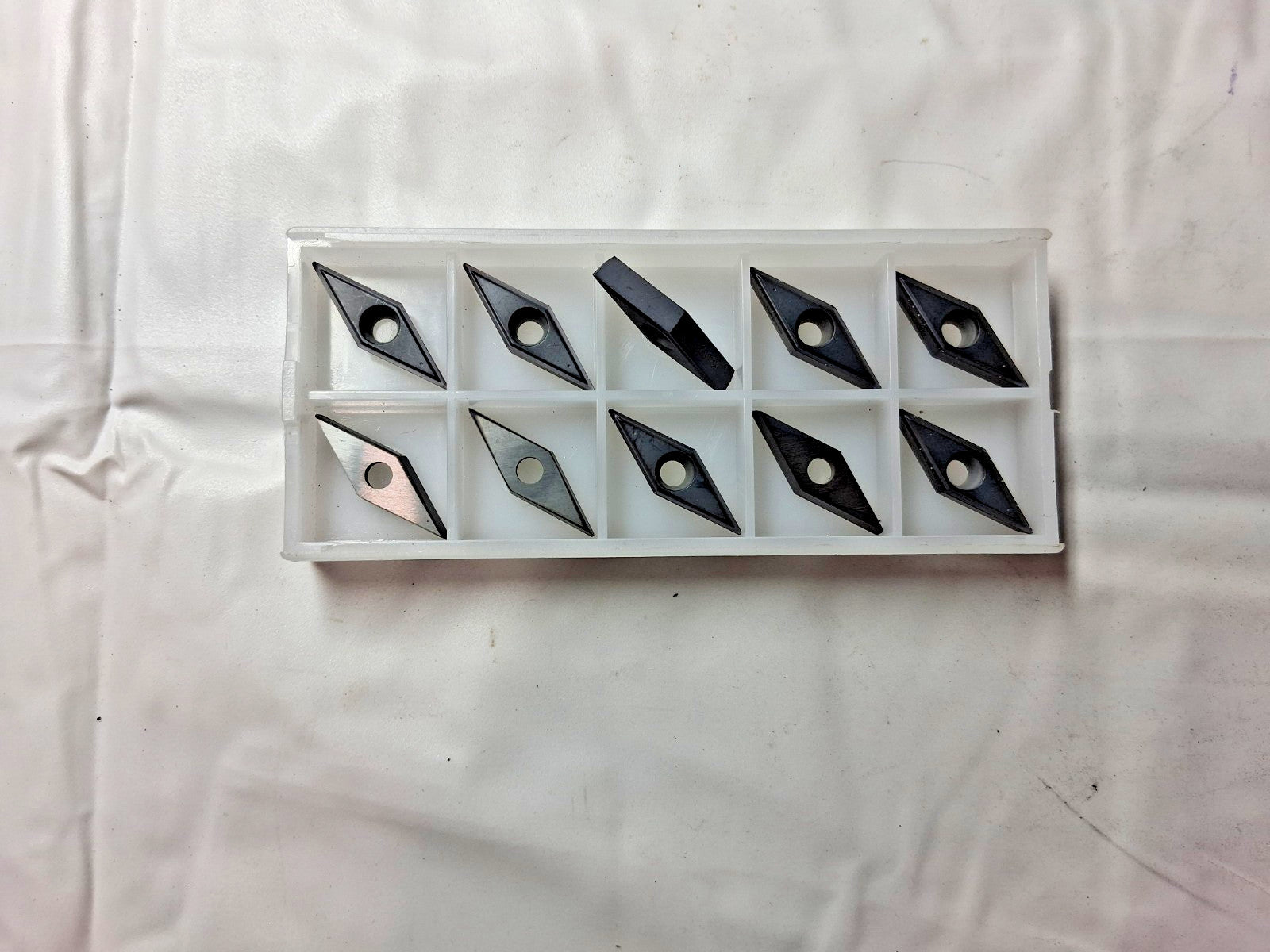

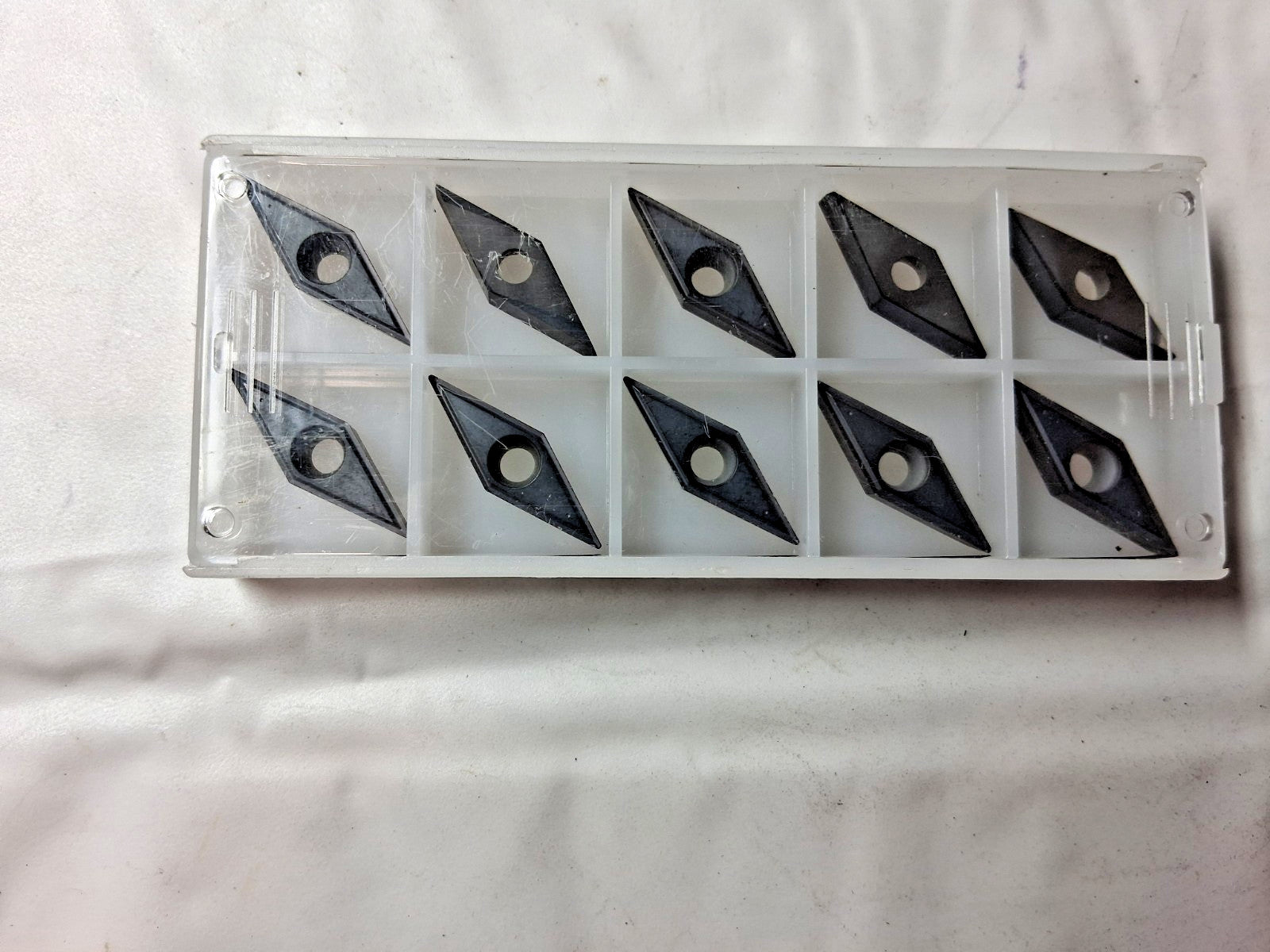

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
