kennametal Carbide Turning Inserts qty 5 CCMT432MF KC9315

kennametal

 Carbide Turning Inserts qty 5 CCMT432MF KC9315
MSRP: $100

•

• Insert Style CCMT
• Insert Size 432
• Material Carbide
• Length (mm) 12.90
• Length (Decimal Inch) 0.5079
• Inscribed Circle (Decimal Inch) 0.5000
• Inscribed Circle (Inch) 1/2
• Thickness (Inch) 3/16
• Thickness (Decimal Inch) 0.1875
• Corner Radius (Inch) 1/32
• Corner Radius (Decimal Inch) 0.0312
• Manufacturer's Grade KC9315
• Coating TiCN/Al2O3/TiN
• Material Grade C3/C4
• Chip Breaker MF
• Hole Diameter (mm) 5.50
• Hole Diameter (Decimal Inch) 0.2165
• Rake Neutral
• Rake Angle 0
• Relief Angle 7
• Coating Process CVD
• Primary Workpiece Material K
• Included Angle 80
• Insert Hand Neutral
• Series Screw-On
• Maximum Depth of Cut (mm) 1.25
• Maximum Depth of Cut (Decimal Inch) 0.0492
• Insert Holding Method Screw
• Shape Diamond

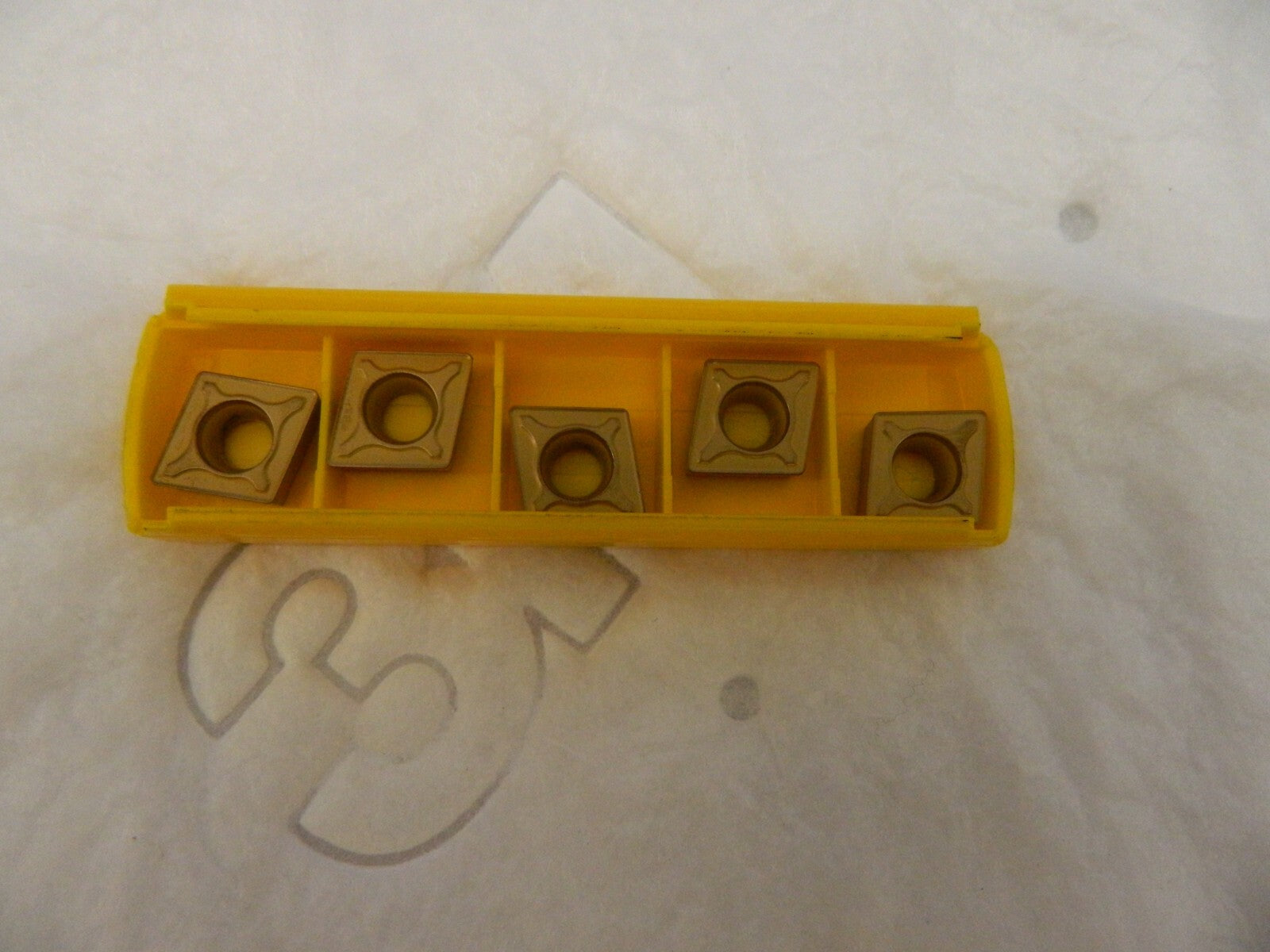

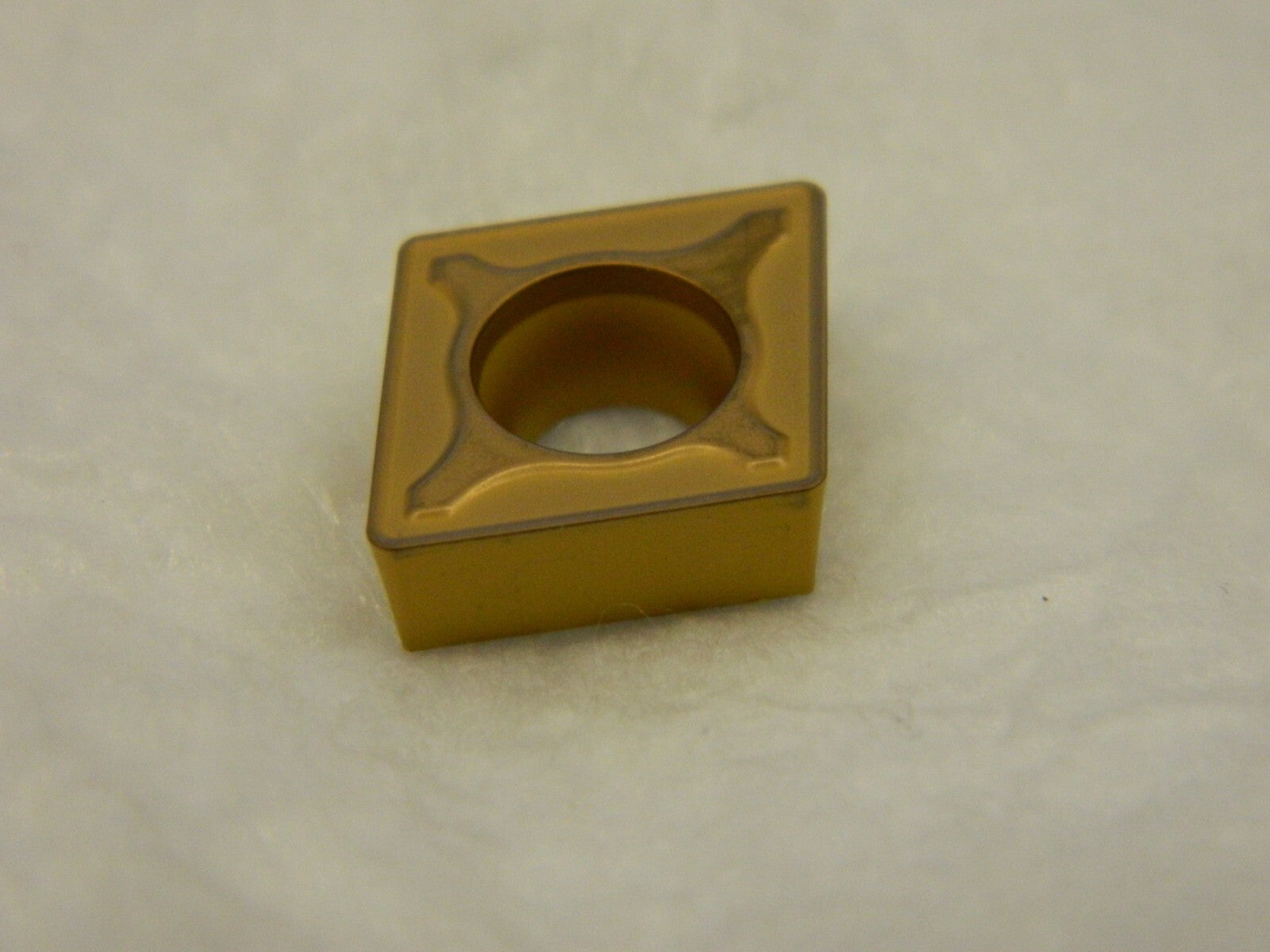

 Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
