Kennametal Carbide Turning Inserts DPGT3250LF KC730 QTY 5 1161935

Kennametal
QTY 5 Carbide Turning Inserts

MSRP: $

• Insert Style: DPGT
• ANSI Size Code: 32.50.2
• ISO Size Code: 11T3005
• ISO Size Code: 11T3005
• Included Angle: 55.00 Insert Shape: D - Diamond (Rhombic) 55-Deg
• Inscribed Circle (Inch): 3/8
• Included Angle: 55.00
• Insert Material: Carbide
• Inscribed Circle (Decimal Inch): 0.3750
• Coating/Finish: TiN
• Inscribed Circle (Inch): 3/8
• Wiper Edge: No
• Corner Radius (Decimal Inch): 0.0039
• Insert Thickness (Decimal Inch): 0.1563 Insert
• Material: Carbide
• Series: Screw-On
• Manufacturer Grade: KC730
• Grade Characteristics: Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Coating/Finish: TiN
• Number Of Cutting Edges: 2
• Relief Angle: 11.000
• Hole Diameter (Decimal Inch): 0.1732
• Wiper Edge: No
• Maximum Depth of Cut (mm): 1.25
• Insert Thickness (Inch): 5/32
• ANSI Insert Code: DPGT32.50.2
• Insert Thickness (Decimal Inch): 0.1563
• Insert Holding Method: Screw Insert Hand: Neutral
• Clearance Code: P
• Series: Screw-On
• Coating Process: PVD
• Chip Breaker Operation: Light Machining; Finishing
• Rake: Positive
• Grade Characteristics: Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Insert Length (mm): 11.63
• Side Clearance: Positive
• Primary Workpiece Material Code: P; K; M
• Number Of Cutting Edges: 2
• Standards: ISO; ANSI Insert Shape Code: D
• Material Grade: C3; C4; C2
• Hole Diameter (Decimal Inch): 0.1732
• Coating Classification: PVD
• Hole Diameter (mm): 4.40
• Rake Angle: 5
• Maximum Depth of Cut (mm): 1.25
• Industry Standard Number: DPGT32502LF
• Maximum Depth of Cut (Decimal Inch): 0.0492
• Multi-Use Tool: Yes
• ANSI Insert Code: DPGT32.50.2
• Multi-Use Application: Back Boring; Facing; Turning; Back Turning; Boring
• ISO Insert Code: DPGT11T3005
• Insert Size Code: 32502
• Insert Holding Method: Screw

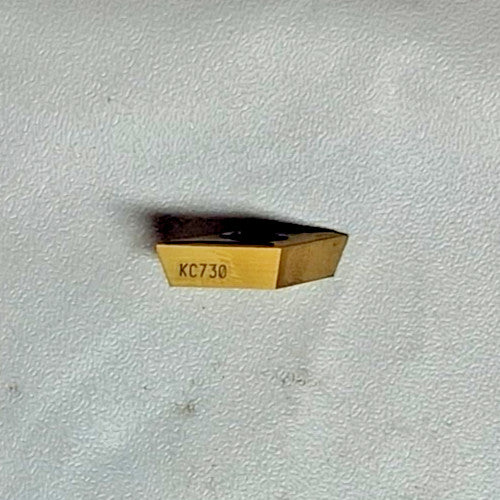

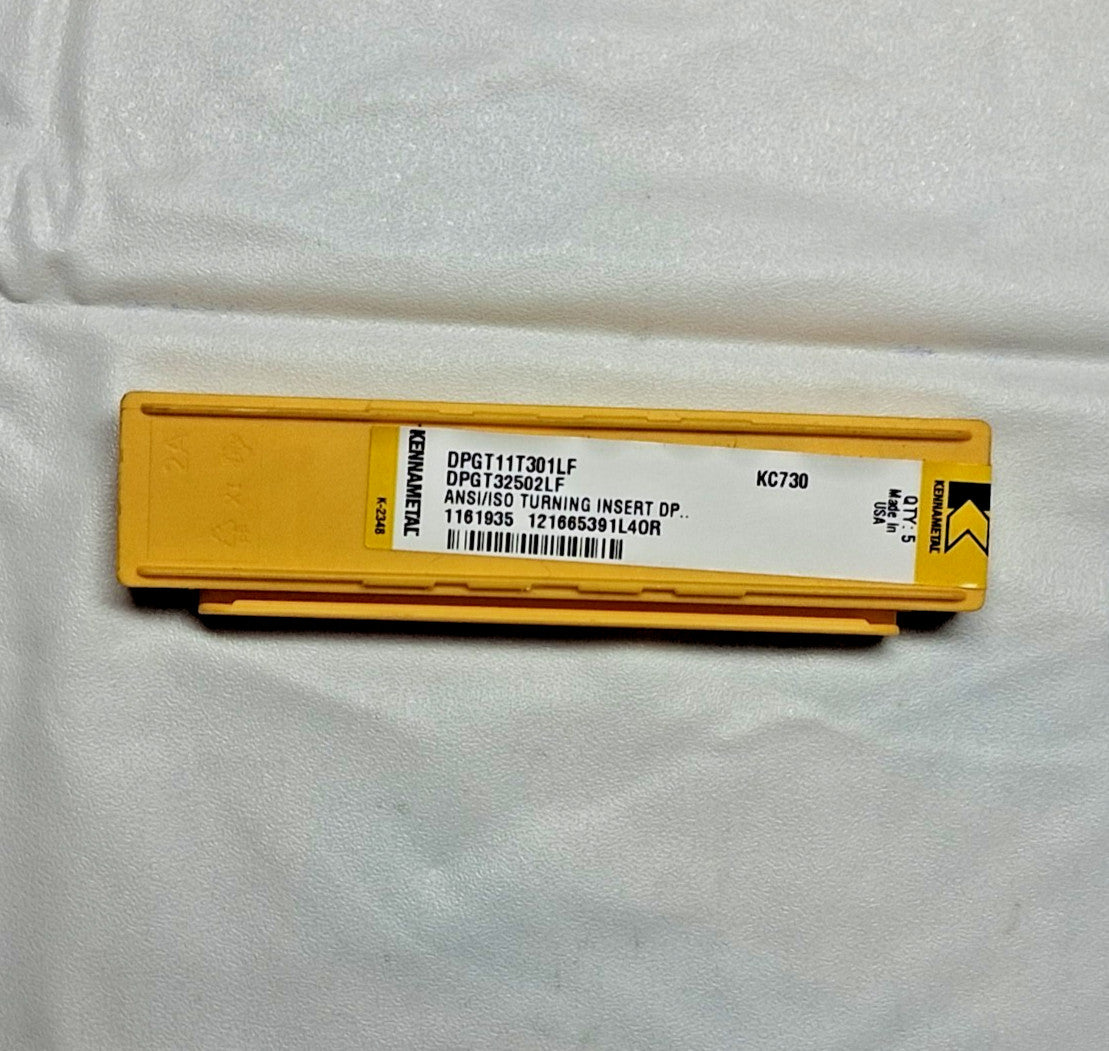

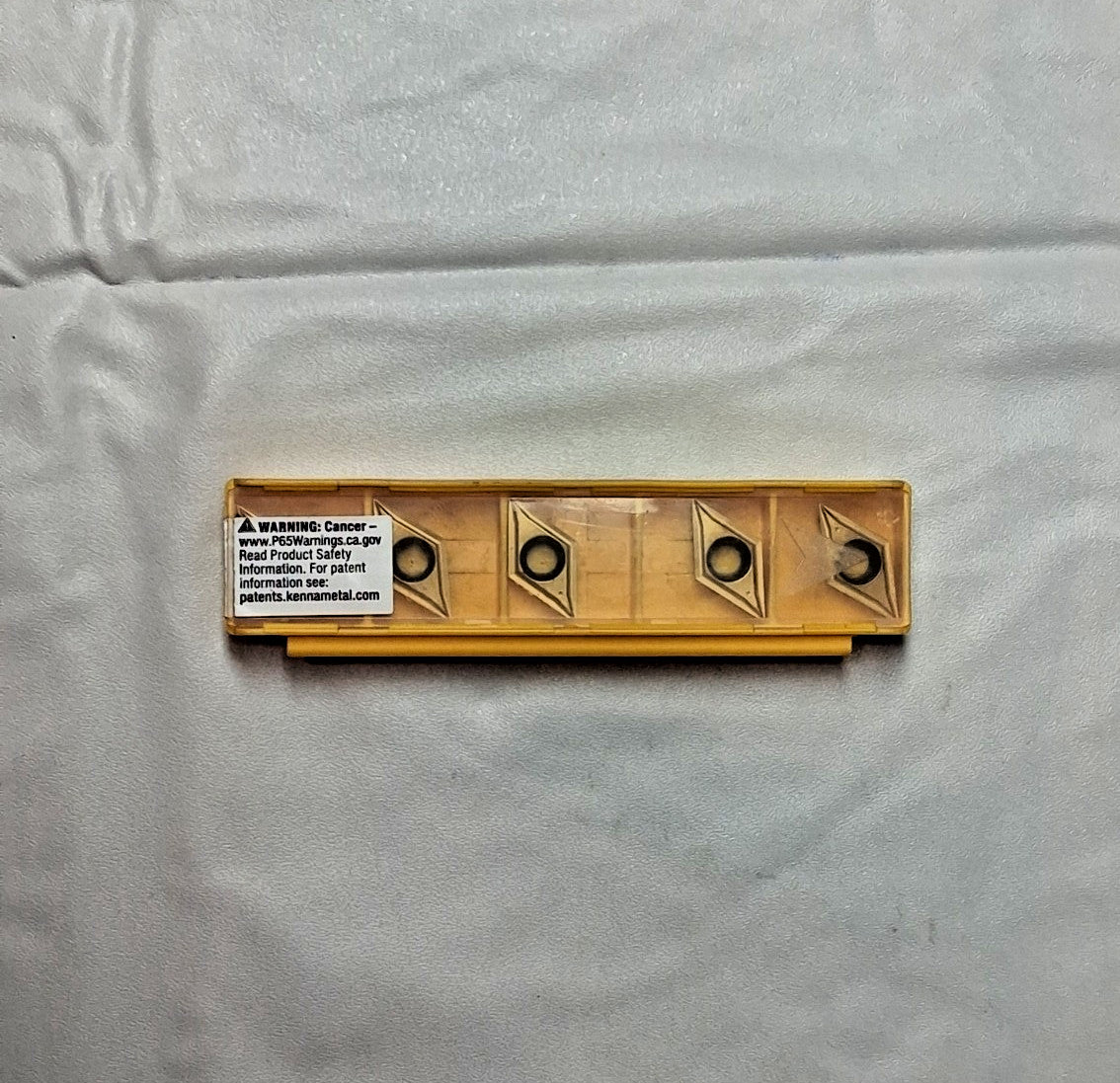

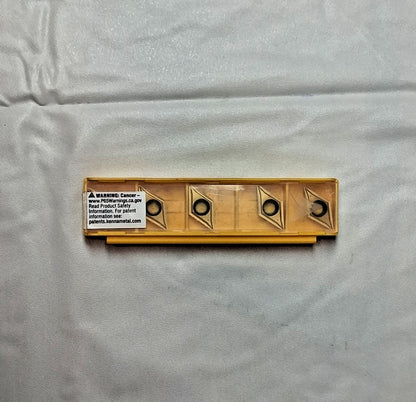

Please review photos, comes as shown.
