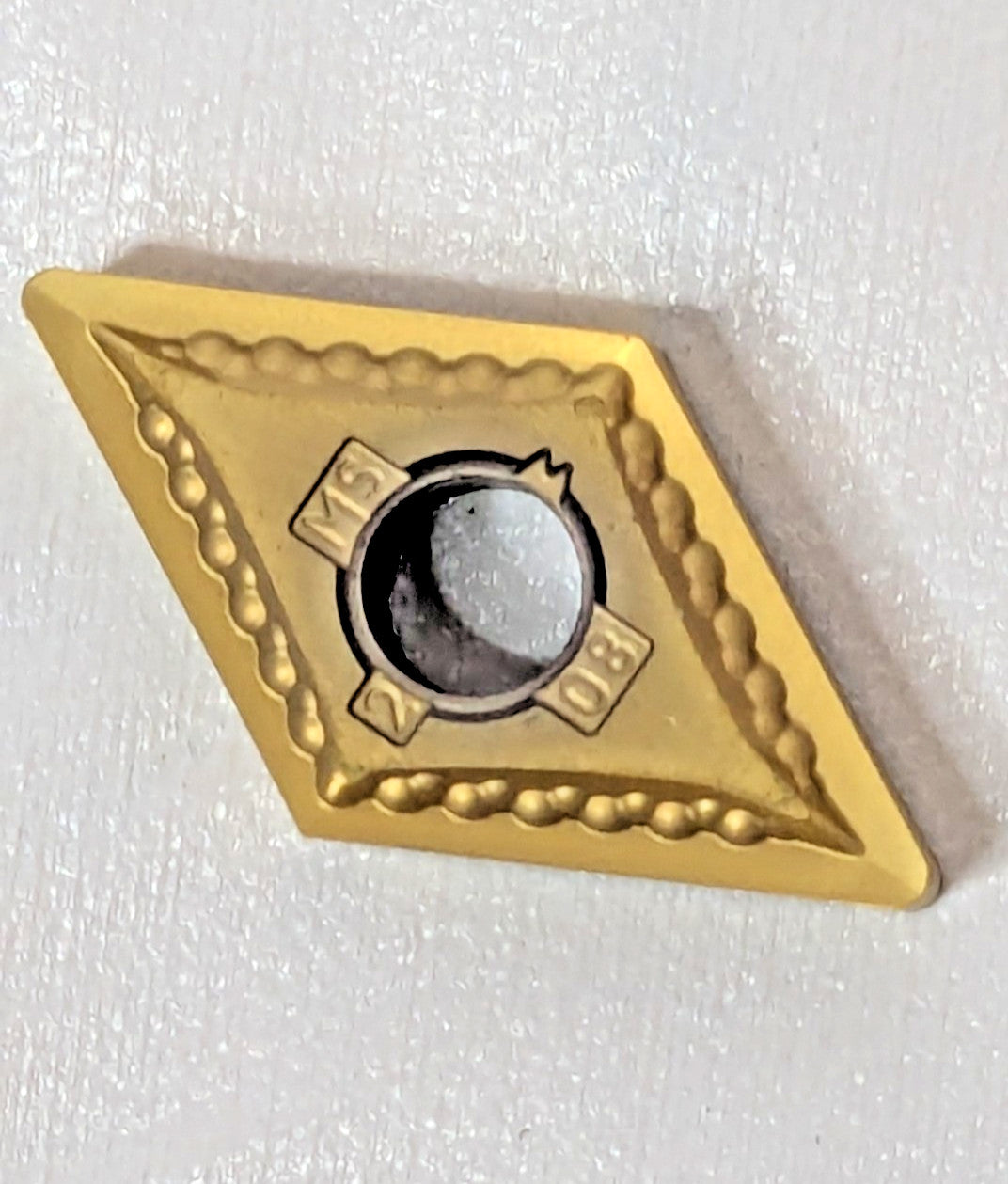

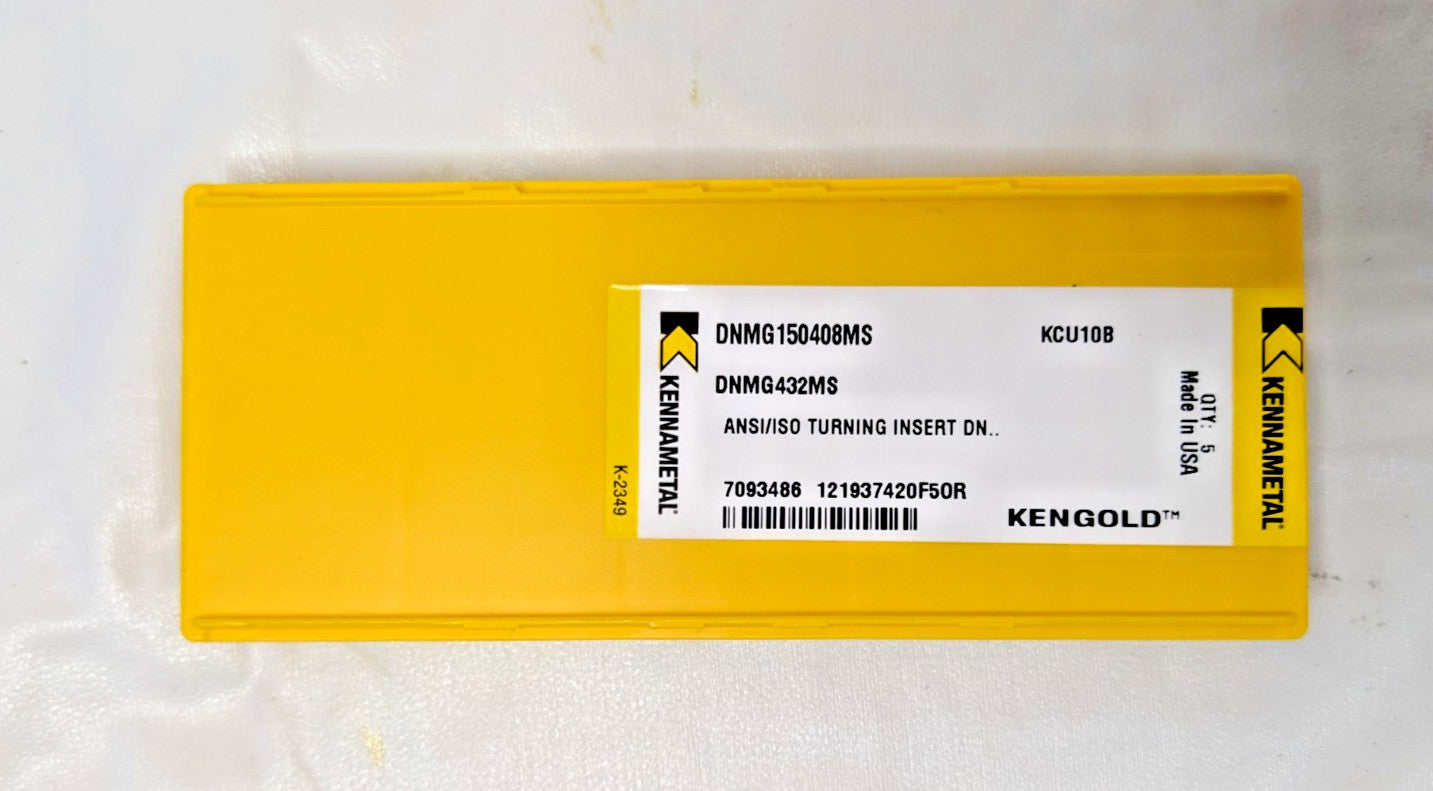

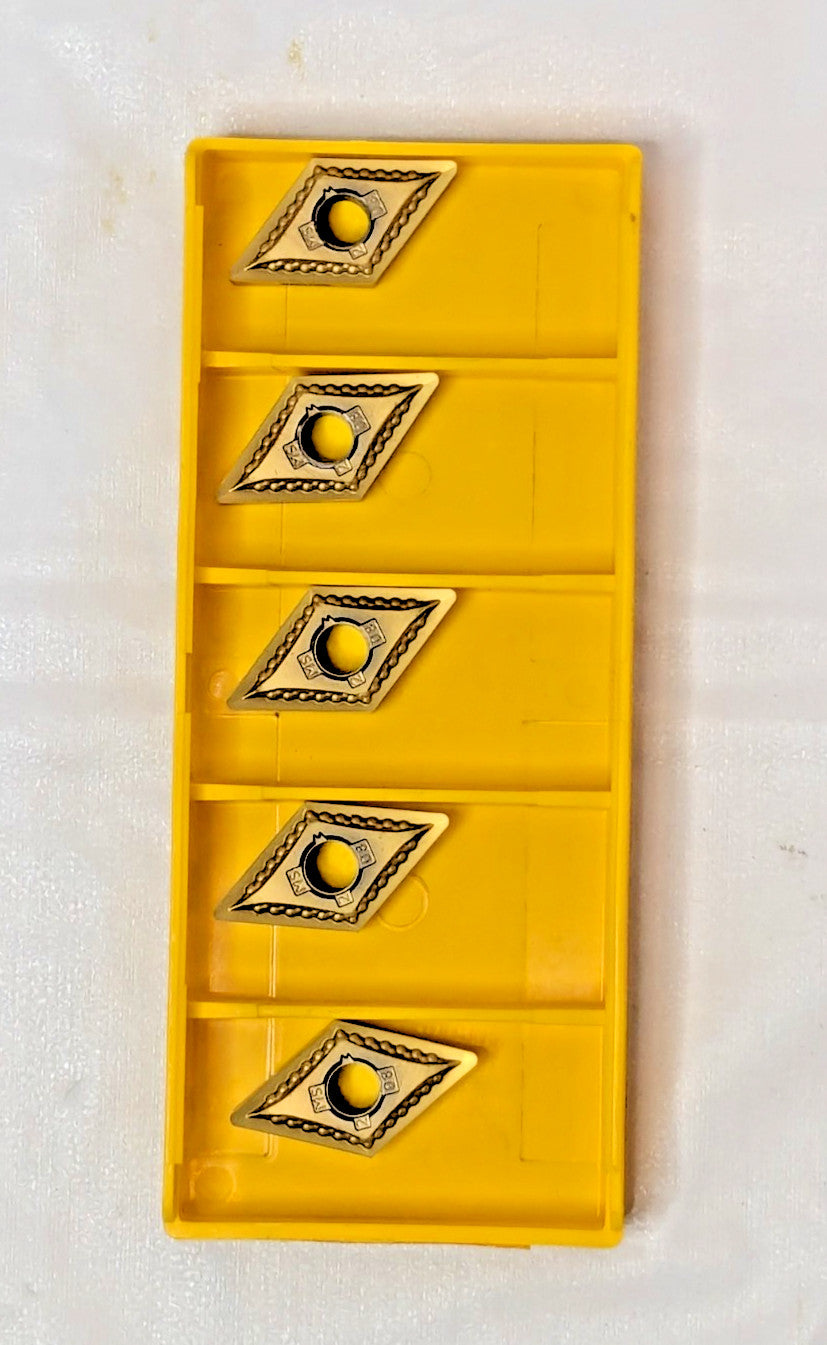

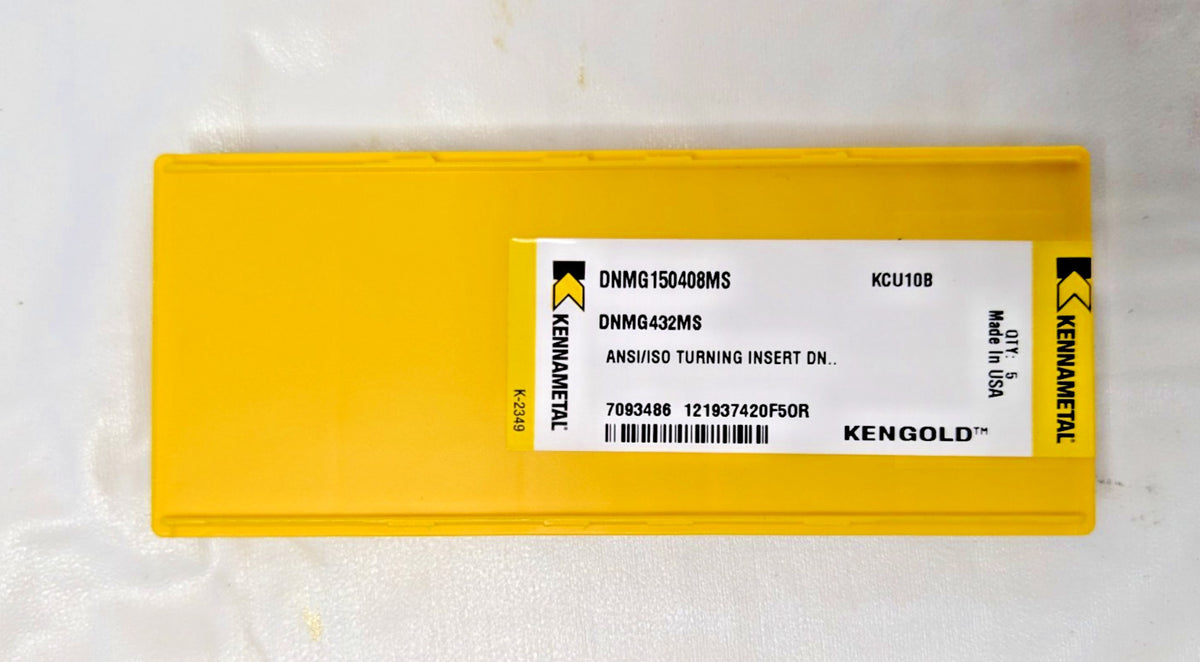

Kennametal Carbide Turning Inserts DNMG432MS KCU10B Qty 5 7093486

Kennametal
Carbide Turning Insert

MSRP: $160.00

• Insert Style: DNMG
• ANSI Size Code: 432
• ISO Size Code: 150408
• Insert Shape: D - Diamond (Rhombic) 55-Deg
• Included Angle: 55.00
• Inscribed Circle (Decimal Inch): 0.5000
• Corner Radius (Inch): 1/32
• Corner Radius (mm): 0.80
• Corner Radius (Decimal Inch): 0.0313
• Insert Material: Carbide
• Manufacturer Grade: KCU10B
• Coating/Finish: AlTiN
• Relief Angle: 0.000
• Insert Thickness (Inch): 3/16
• Insert Thickness (Decimal Inch): 0.1875
• Insert Thickness: 4.76
• Insert Hand: Neutral
• Chip Breaker Operation: Medium Machining; Roughing
• Grade Characteristics: Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance: Negative
• Number Of Cutting Edges: 4
• ANSI Insert Code: DNMG432
• ISO Insert Code: DNMG150408
• Width (Inch): 3/16
• Clearance Code: N
• Tolerance Code: M
• Primary Workpiece Material Code: P; S; K; M; N
• Chip Breaker: MS
• Width (Decimal Inch - 4 Decimals): 0.1875
• Width (mm - 2 Decimals): 4.76
• UNSPSC Code: 23242105

Please review photos, comes as shown.
