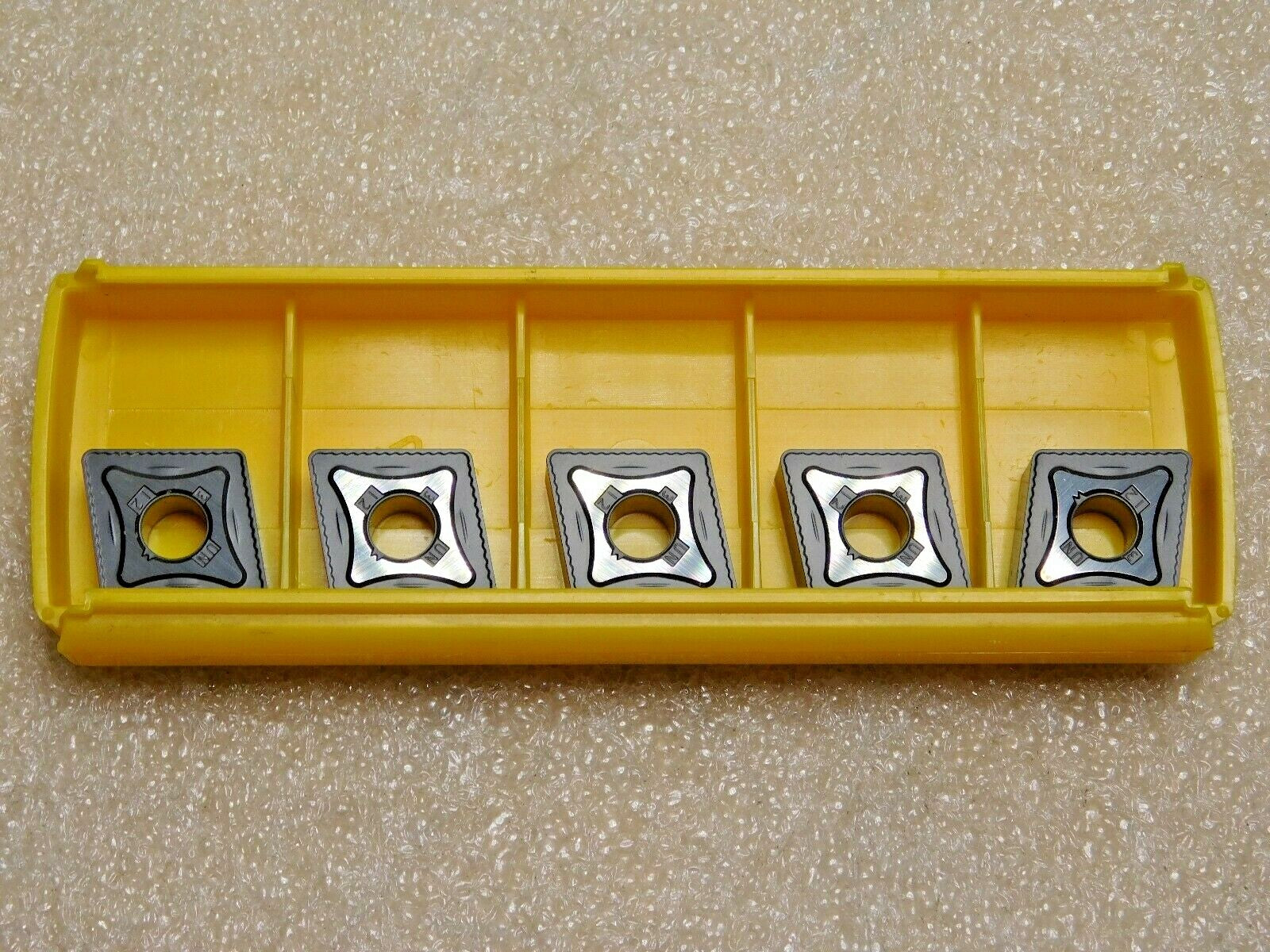

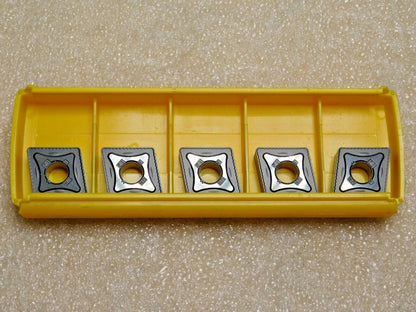

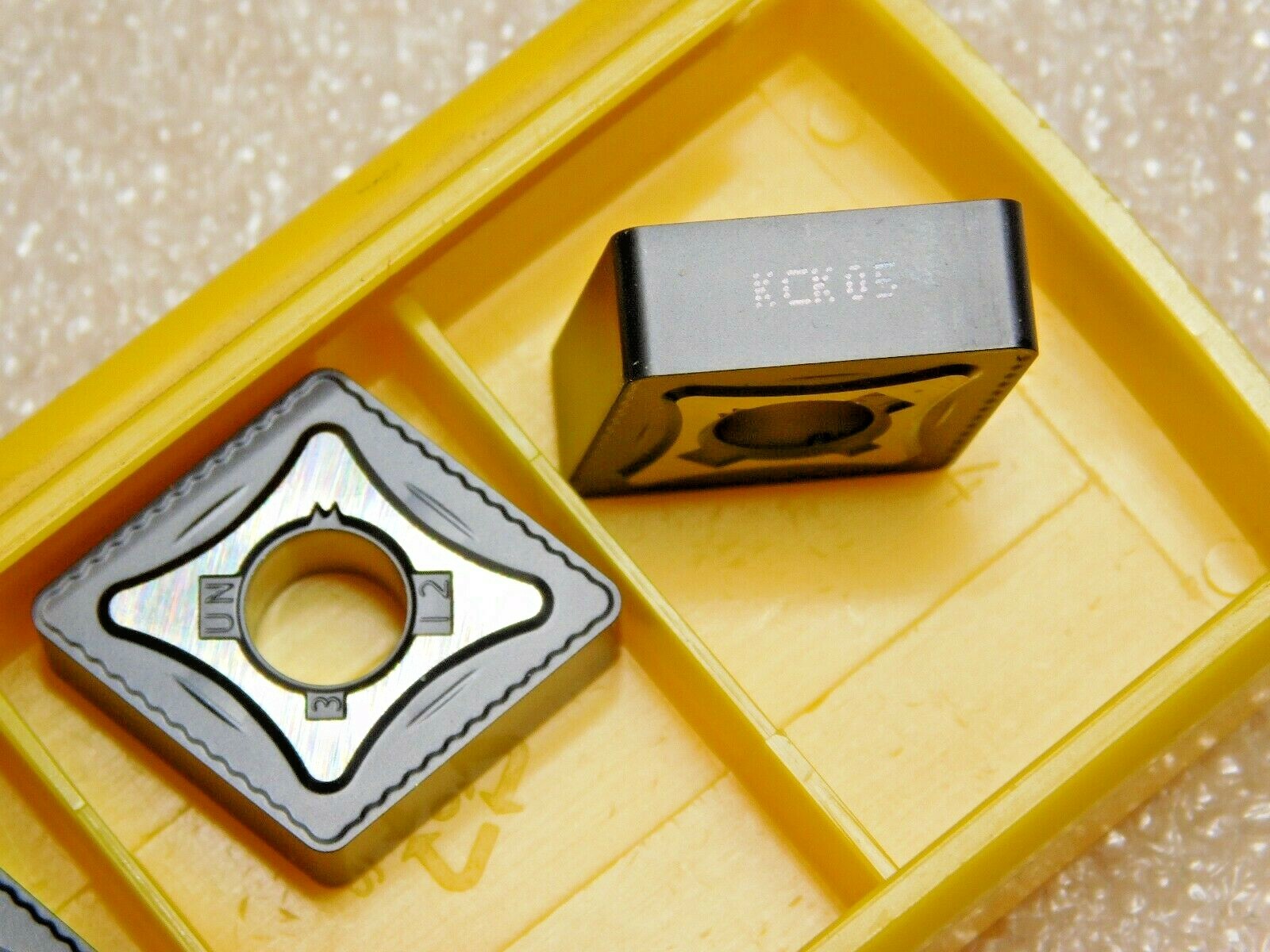

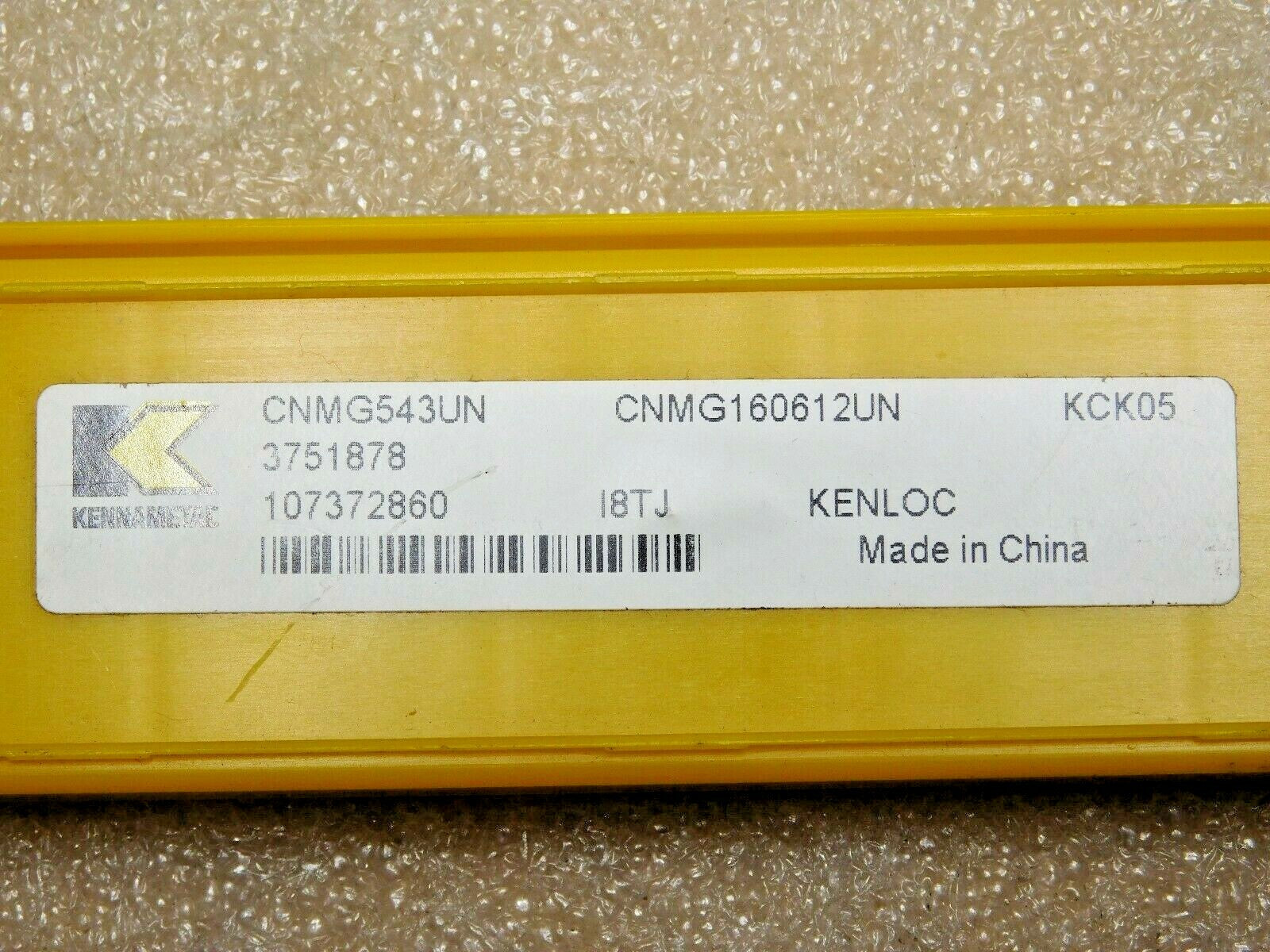

Kennametal Carbide Turning Inserts CNMG543UN Grade KCK05 Qty 5 3751878
Kennametal Carbide Turning Inserts CNMG543UN Grade KCK05 Qty 5 3751878
Regular price
$48.95 USD
Regular price
$100.00 USD
Sale price
$48.95 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Kennametal
MSRP: $100
Model: 3751878
Description:
Insert Style: CNMG
Insert Size: 543
Material: Carbide
Length (mm) : 16.12
Length (Decimal Inch) : 0.6346
Inscribed Circle (Decimal Inch) : 0.6250
Inscribed Circle (Inch) : 5/8
Thickness (Inch) : 1/4
Thickness (Decimal Inch) : 0.2500
Corner Radius (Inch) : 3/64
Corner Radius (Decimal Inch) : 0.0469
Manufacturer's Grade: KCK05
Coating: TiCN/Al2O3
Material Grade: C3/C4
Chip Breaker: UN
Hole Diameter (mm): 6.35
Hole Diameter (Decimal Inch): 0.2500
Rake: Neutral
Rake Angle: 0
Relief Angle: 0
Coating Process: CVD
Primary Workpiece Material: K
Secondary Workpiece Material: N
Included Angle: 80
Series: KENLOC
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
Insert Holding Method: Pin & Clamp
Shape: Diamond
*OPEN PACKAGE/BOX FOR INSPECTION AND PICTURES ONLY. Item is in excellent condition.
This listing is for One Pack of 5 Turning Inserts that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
