Kennametal Carbide Turning Inserts CCMT432 LF Grade KCK05 Qty 5 3752073
Kennametal Carbide Turning Inserts CCMT432 LF Grade KCK05 Qty 5 3752073
Regular price
$48.95 USD
Regular price
$100.00 USD
Sale price
$48.95 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Kennametal
MSRP: $100
Model: 3752073
Description:
Insert Style: CCMT
Insert Size: 432
Material: Carbide
Length (mm) : 12.90
Length (Decimal Inch) : 0.5079
Inscribed Circle (Decimal Inch) : 0.5000
Inscribed Circle (Inch) : 1/2
Thickness (Inch) : 3/16
Thickness (Decimal Inch) : 0.1875
Corner Radius (Inch) : 1/32
Corner Radius (Decimal Inch) : 0.0312
Manufacturer's Grade: KCK05
Coating: TiCN/Al2O3
Material Grade: C3/C4
Chip Breaker: LF
Hole Diameter (mm): 5.50
Hole Diameter (Decimal Inch): 0.2165
Rake: Positive
Rake Angle: 5
Relief Angle: 7
Coating Process: CVD
Primary Workpiece Material: K
Secondary Workpiece Material: N
Included Angle: 80
Series: Screw-On
Maximum Depth of Cut (mm): 1.25
Maximum Depth of Cut (Decimal Inch): 0.0492
Insert Holding Method: Screw
Shape: Diamond
*OPEN PACKAGE/BOX FOR INSPECTION AND PICTURES ONLY. Item is in excellent condition.

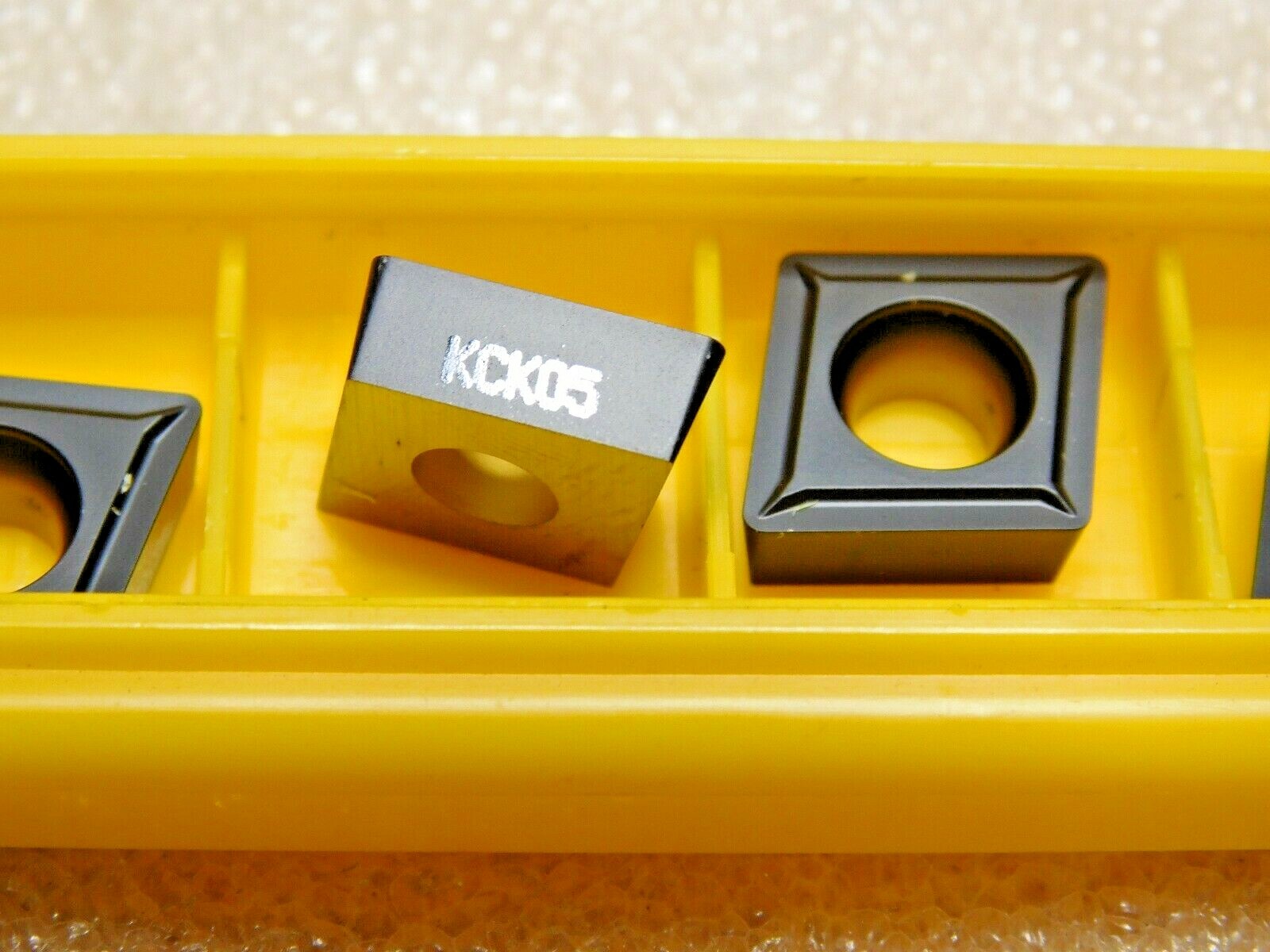

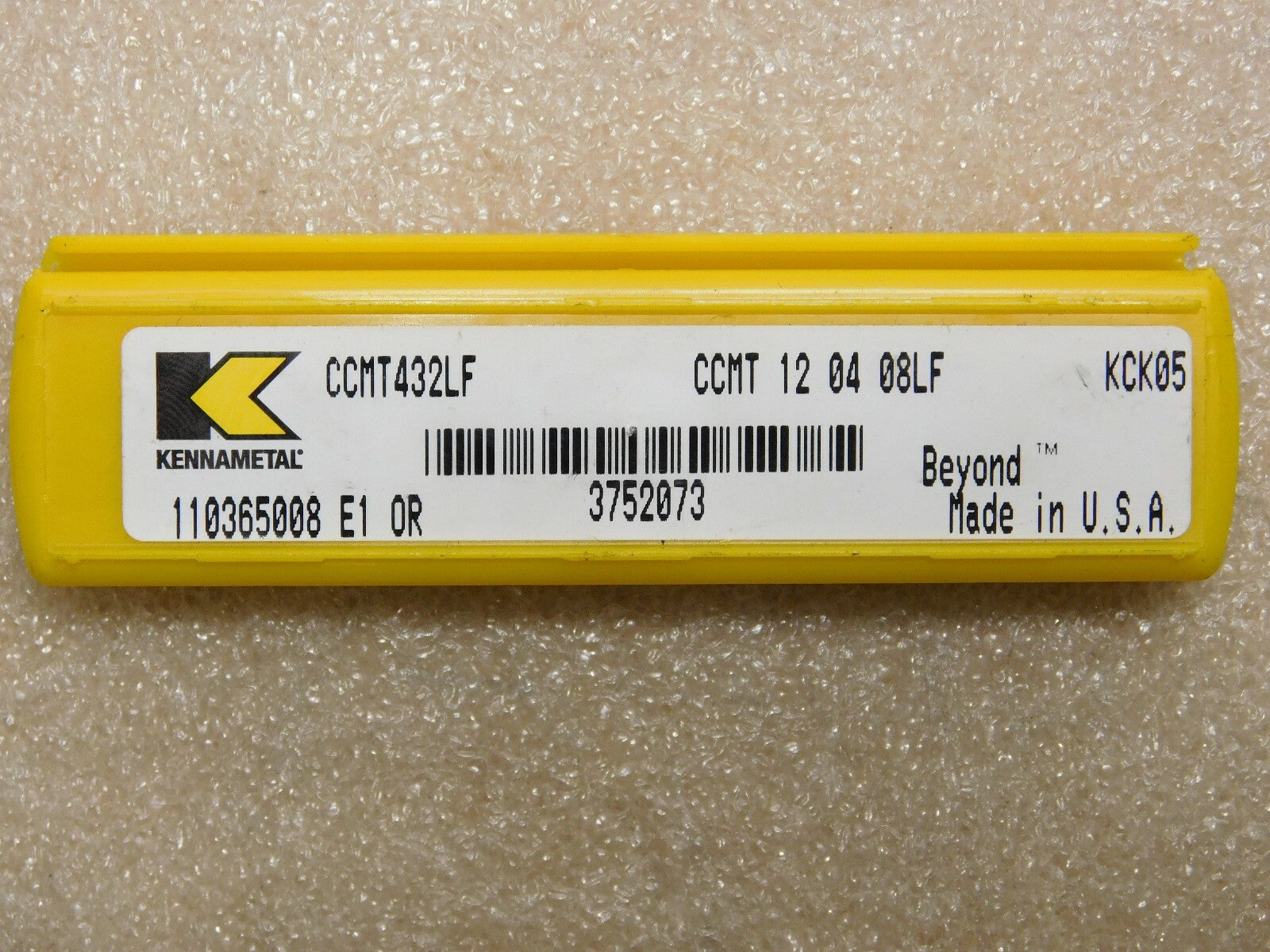

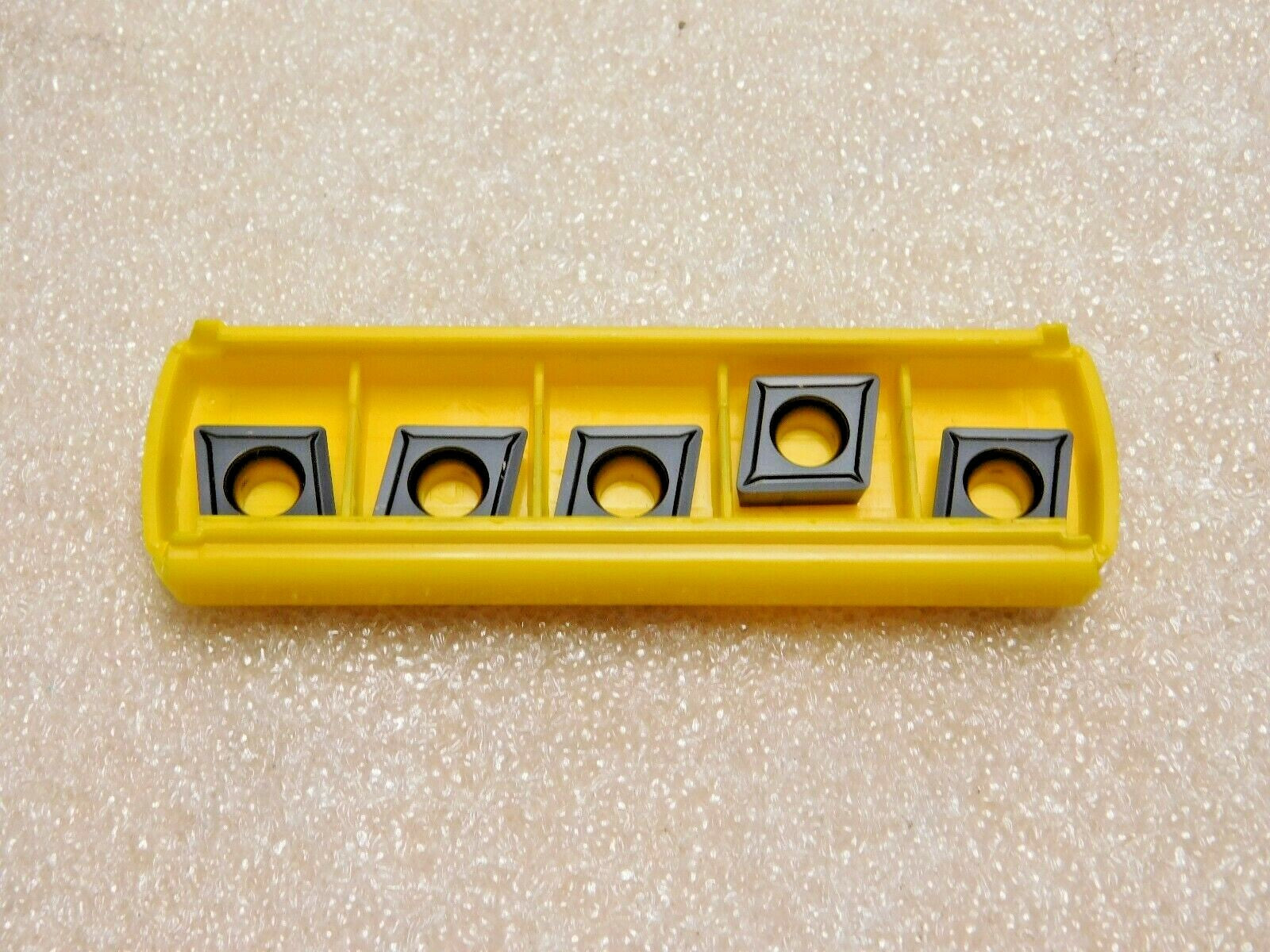

This listing is for One Pack of 5 Turning Inserts that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
