Kennametal

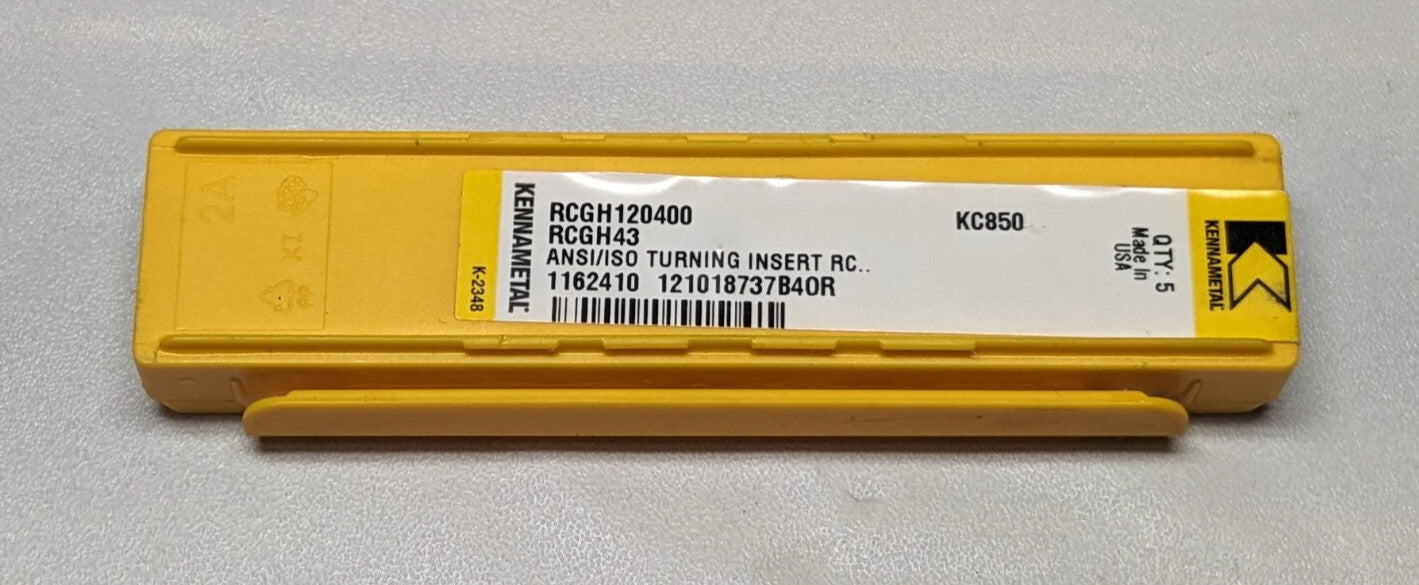

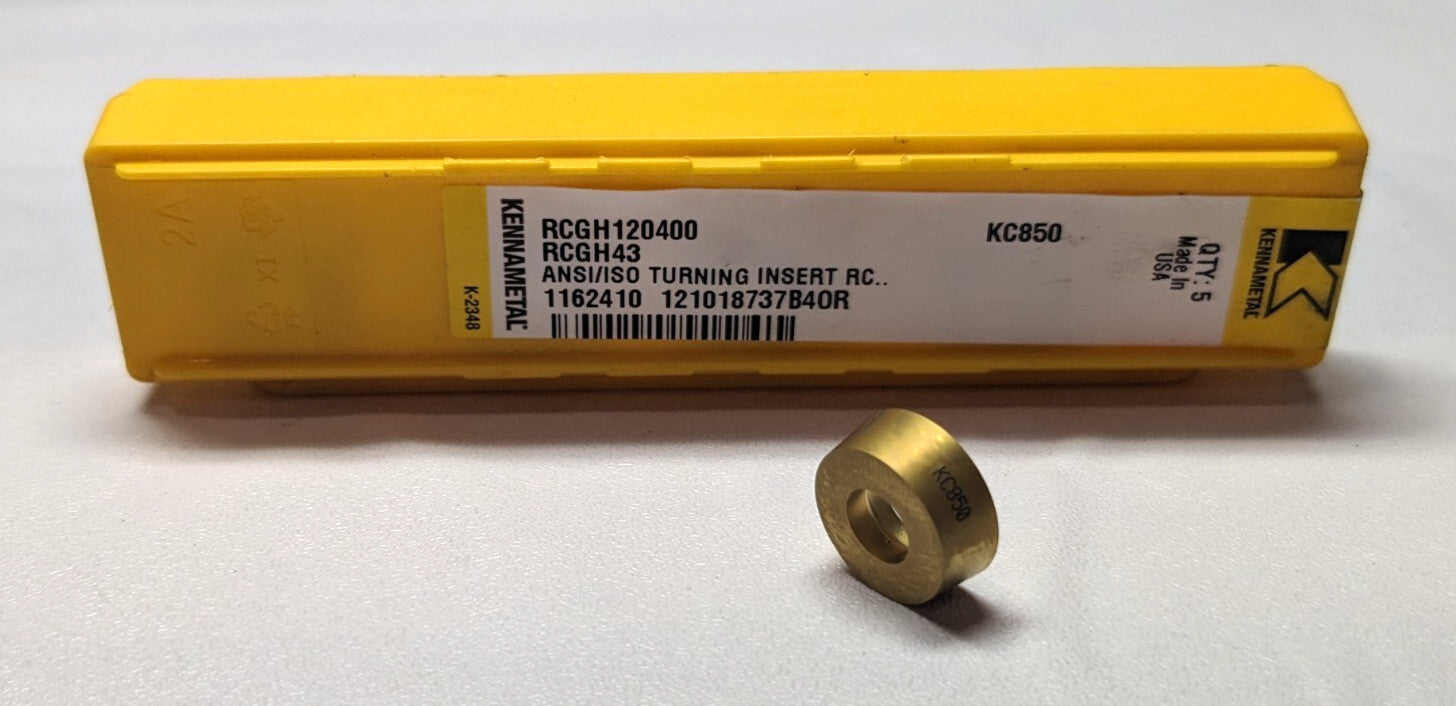

Turning Insert: RCGH43 KC5010  QTY 5

MSRP: $150.00

• ANSI Insert Code    RCGH43
• ISO Insert Code   RCGH120400
• Relief Angle    7
• Insert Style    RCGH
• Corner Radius (Inch)  1/4
• Corner Radius (Decimal Inch)   0.2500
• Included Angle  360
• Manufacturer Grade  KC5010
• Coating/Finish        TiAlN
• Wiper Edge    No
• Insert Hand    Neutral
• Insert Thickness (Inch)     3/16
• Insert Thickness (Decimal Inch)      0.1875
• Series   KENDEX
• Inscribed Circle (Decimal Inch) 0.5000
• Inscribed Circle (Inch)  1/2
• Insert Material          Carbide
• Insert Shape      R - Round
• Chip Breaker Operation         Medium Machining
• Grade Characteristics    Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance    Positive
• Number Of Cutting Edges  4
• Insert Shape Code        R
• Hole Diameter (Decimal Inch)  0.2165
• Hole Diameter (Mm) ( - 0 Decimals) 5.50
• Maximum Depth of Cut (mm)    1.25
• Maximum Depth of Cut (Decimal Inch)      0.0492
• Insert Holding Method       Screw
• Width (Inch)     1/2
• Clearance Code   C
• Tolerance Code   G
• Coating Process   PVD
• Rake  Positive
• Insert Length (Decimal Inch)     0.5000
• Insert Length (Inch)  1/2
• Primary Workpiece Material      Stainless Steel; Superalloys & Titanium; Steel
• Primary Workpiece Material Code      P; S; K; M; N
• Standards    ISO; ANSI
• Material Grade   C3; C4
• Coating Classification    PVD
• Chip Breaker        Common
• Cutting Edge Style      Honed
• Industry Standard Number   RCGH43
• Width (Decimal Inch - 4 Decimals)     0.5000
• Multi-Use Tool      Yes
• Full Radius   Yes
• Multi-Use Application    Facing; Turning; Boring
• ANSI Size Code   43
• ISO Size Code  120400
• Insert Size Code   43
• Country of Origin   UNITED STATES

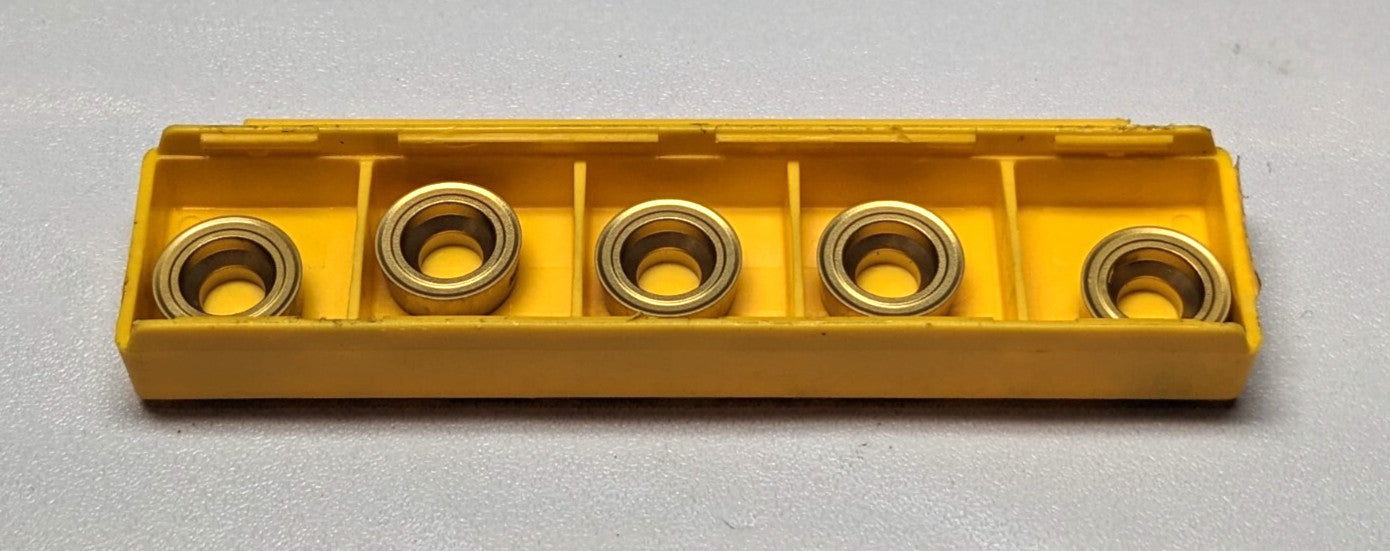

*This sale is for a NEW 5 Pack of Inserts.  Opened for photos only.  You will receive exactly what is shown in our pictures.  SOLD AS IS, WITHOUT WARRANTY.

Please review photos, comes as shown.
