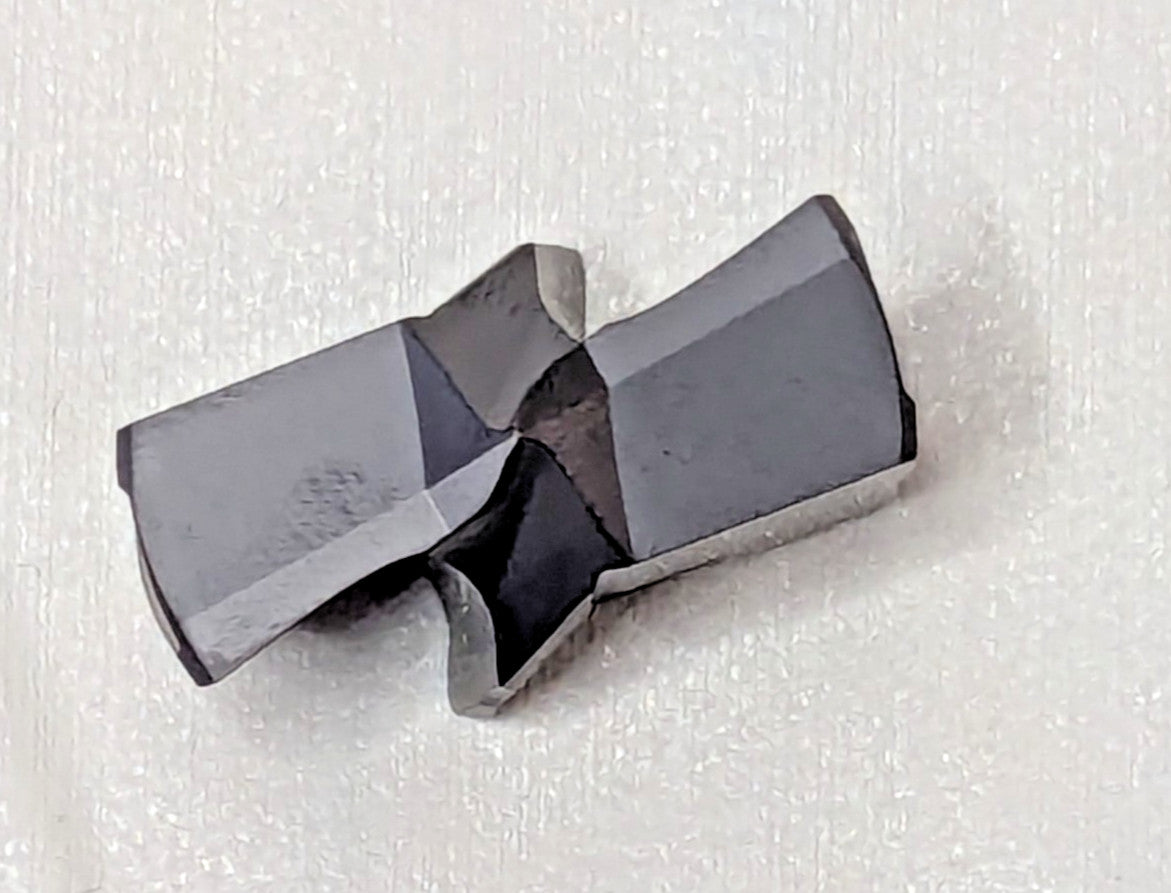

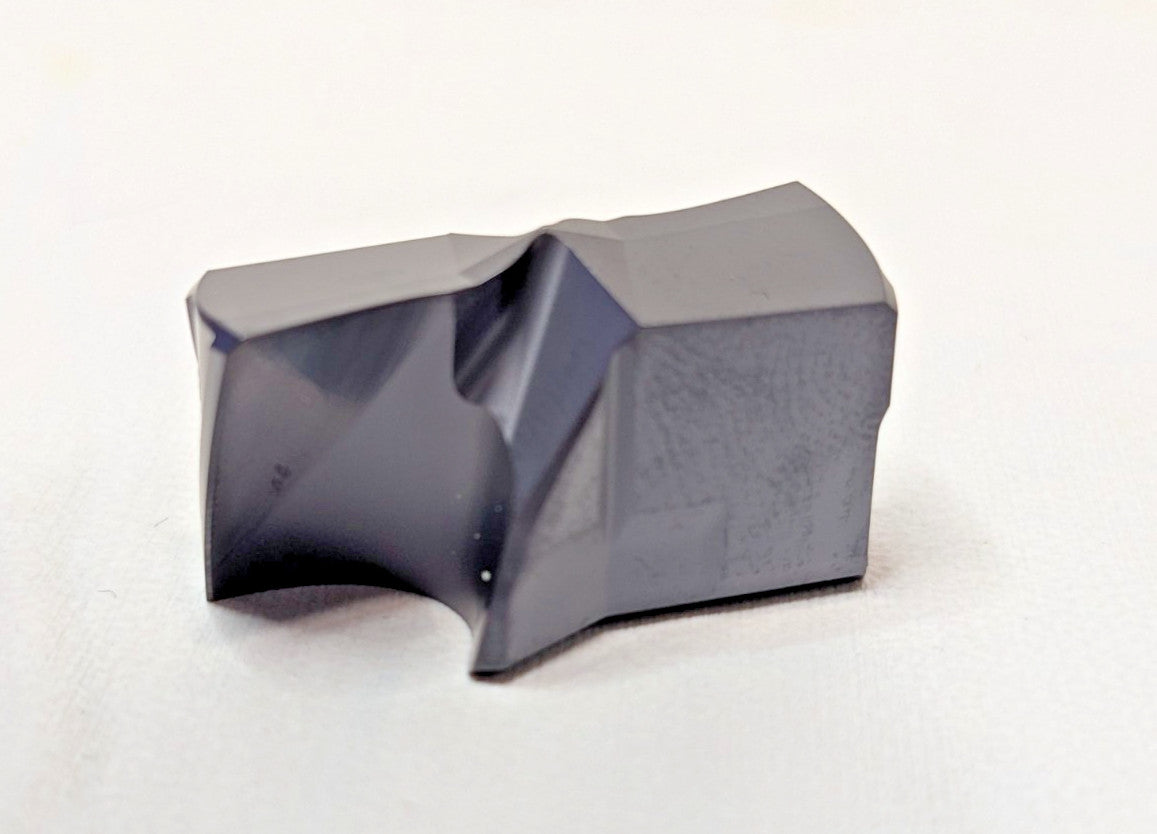

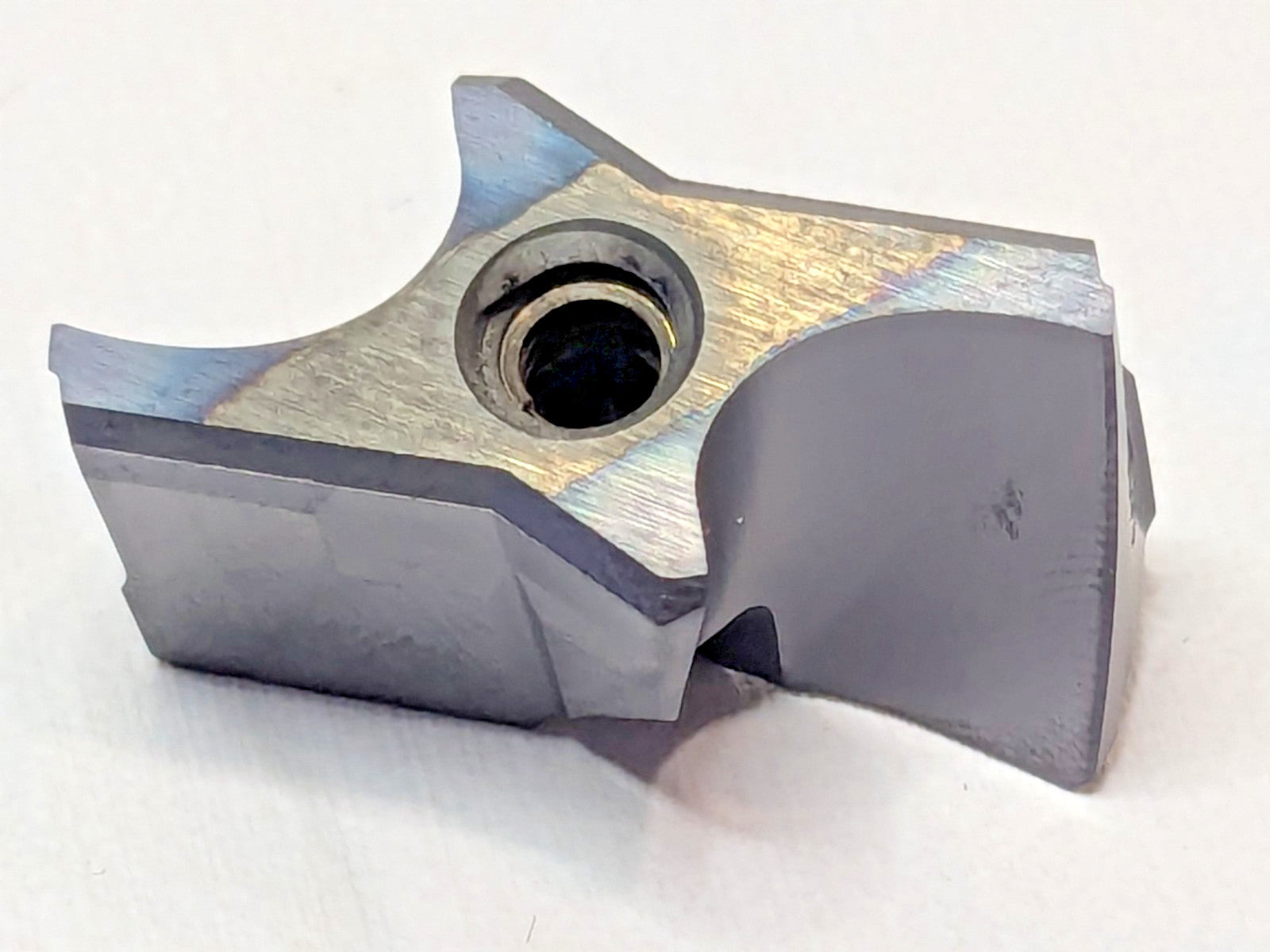

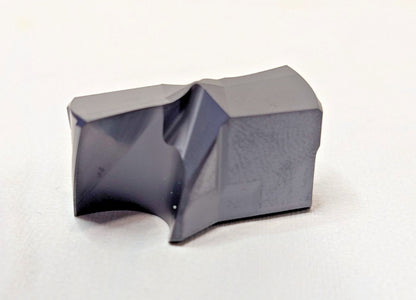

Kennametal Carbide Replaceable Drill Tip 1.0039" Dia 25.50 mm Dia 5981591

Kennametal
Carbide Replaceable Drill Tip

MSRP: $290.00

• Cutting Diameter (Decimal Inch): 1.0039
• Cutting Diameter (mm): 25.50
• Tip Material: Solid Carbide

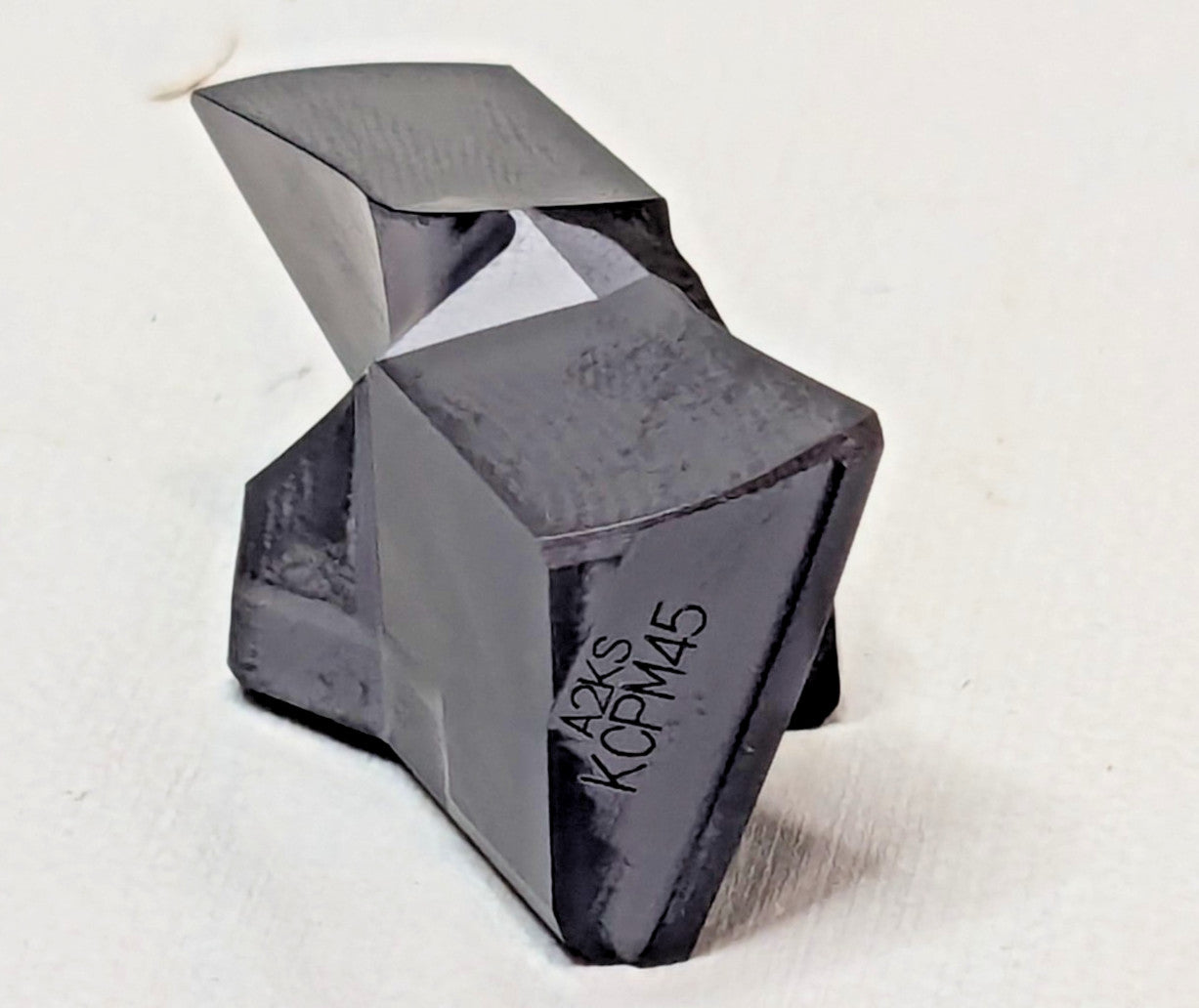

• Manufacturer Grade: KCPM45
• Material Grade: Fine Grain
• Series: KSEM
• Coating Process: PVD
• Insert Geometry: FEG
• Insert Seat Size: 5
• Functional Length (Decimal Inch): 0.5015
• Primary Workpiece Material: Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code: P; S; K; M; N
• Height (mm): 14.00
• Overall Length/Projection (Decimal Inch): 0.5405
• Drill Point Angle: 140
• Flute Type: Straight
• Insert Holding Method: Clamp

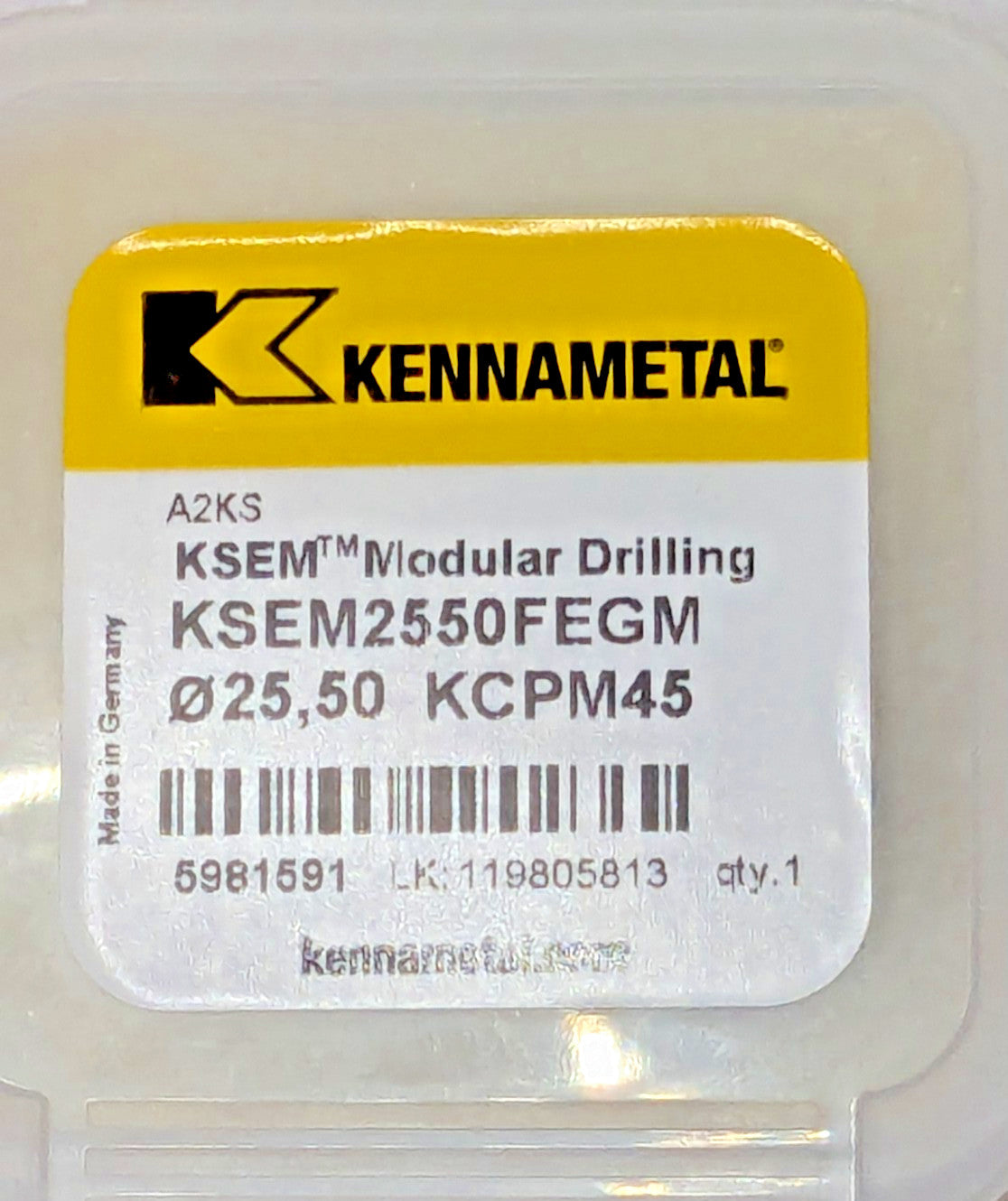

• ISO Number: KSEM2550FEGM
• Coolant Through: No
• Flute Length (mm): 13.00
• Point Type: Flat
• Spiral Type: Straight
• Style: KSEM
• Applications: Drilling; Drilling:InclinedEntry; Drilling:Cross-HoleDrilling; Drilling:InclinedExit; ToolDimensions:2flute/4margin/coolant; Drilling:FlatBottom; CounterBoring
• UNSPSC Code: 23242105
• Coating/Finish: TiAlN
• Included Angle Degree: 140
• Number Of Flutes: 2

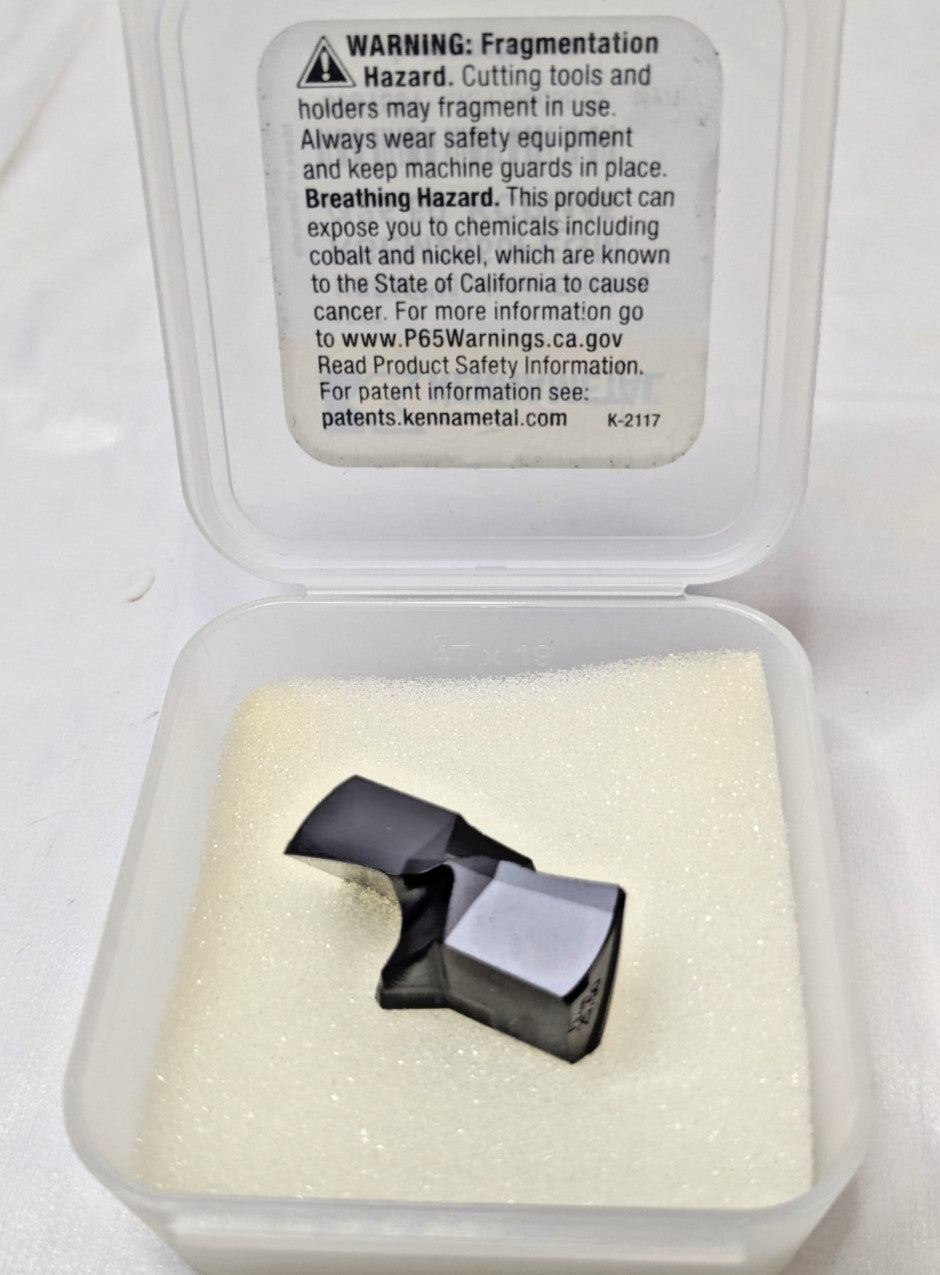

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
