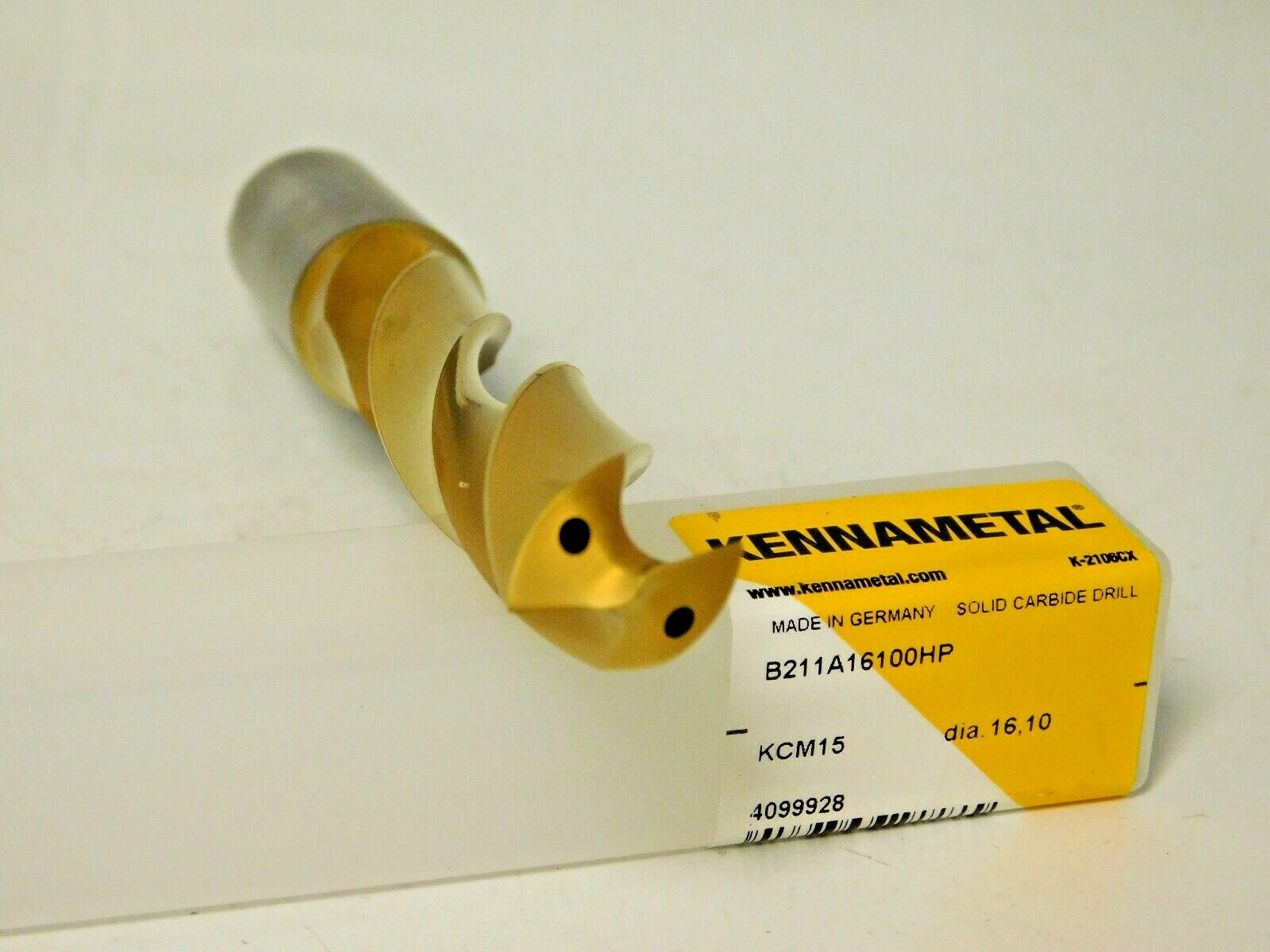

Kennametal Carbide Jobber Drill 0.6339" B211A16100HP Grade KCM15 4099928
Kennametal Carbide Jobber Drill 0.6339" B211A16100HP Grade KCM15 4099928
Regular price
$235.85 USD
Regular price
$500.00 USD
Sale price
$235.85 USD
Shipping calculated at checkout.
Kennametal
MSRP: $500
Model: 4099928
Description:
Drill Bit Size (mm) : 16.10
Drill Bit Size (Decimal Inch) : 0.6339
Drill Point Angle: 135
Drill Bit Material: Solid Carbide
Drill Bit Finish/Coating: Multilayer TiCN
Flute Type: Spiral
Cutting Direction: Right Hand
Shank Type: Straight
Coolant Through: Yes
Flute Length (mm): 93.00
Flute Length (Decimal Inch): 3.6614
Overall Length (mm): 143.00
Overall Length (Decimal Inch): 5.6299
Flute Length x Diameter Ratio: 5xD
Point Type: Standard
Shank Diameter (mm): 18.00
Shank Diameter (Decimal Inch): 0.7087
Maximum Drilling Depth (Decimal Inch): 2.7953
Maximum Drilling Depth (mm): 71.00
Spiral Type: Regular Spiral
Shank Length (Decimal Inch): 1.8898
Specification Designation: DIN
Web Configuration: Tapered
Drill Bit Diameter Tolerance (mm): 0.007 to 0.025
Number of Flutes: 2
Specification Number: DIN 6537K
Material Grade: KCM15
Series/List: B211A-HP
This listing is for One Jobber Drill that is in the picture as well as described. Comes exactly as shown in photos. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
