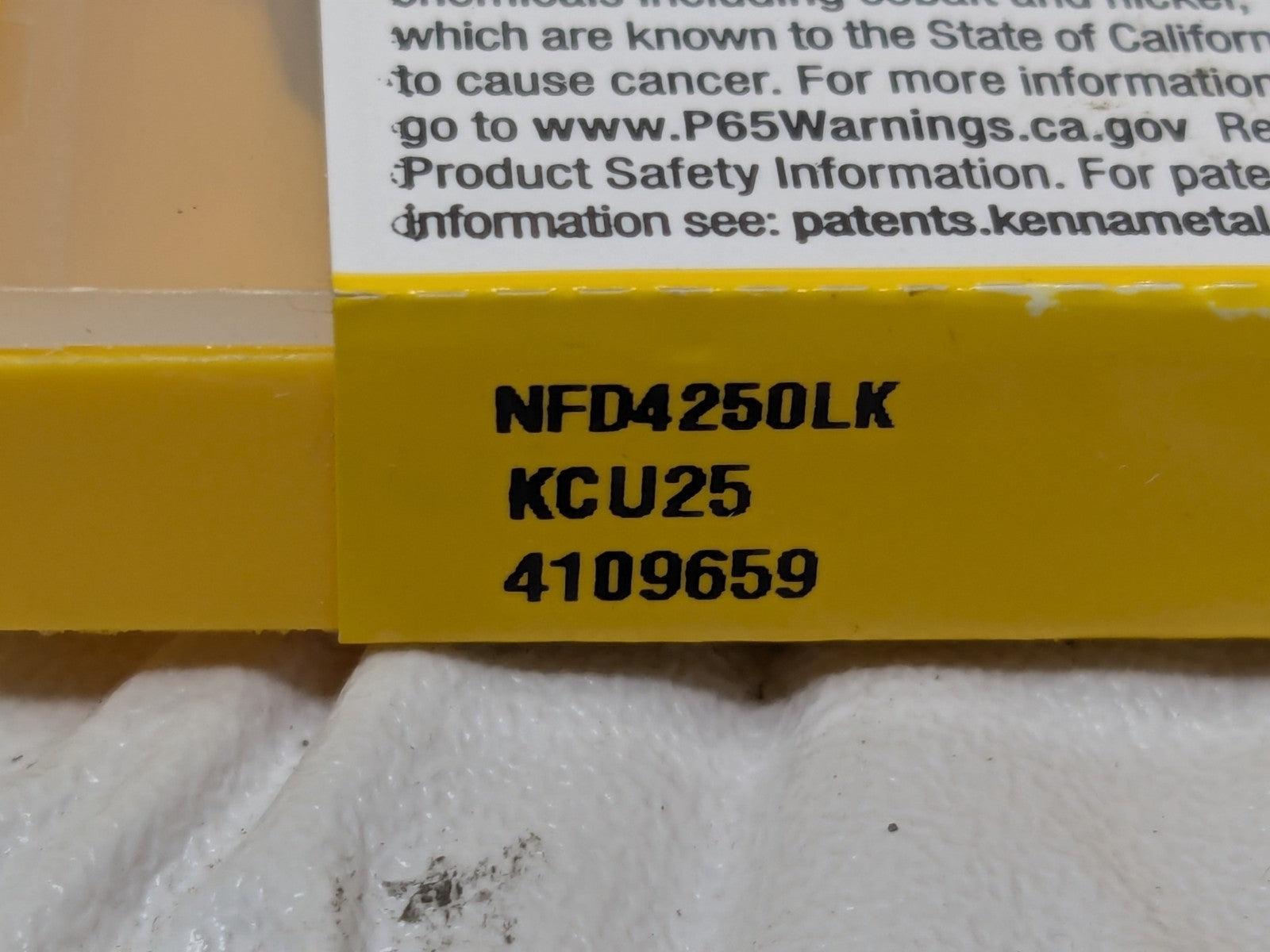

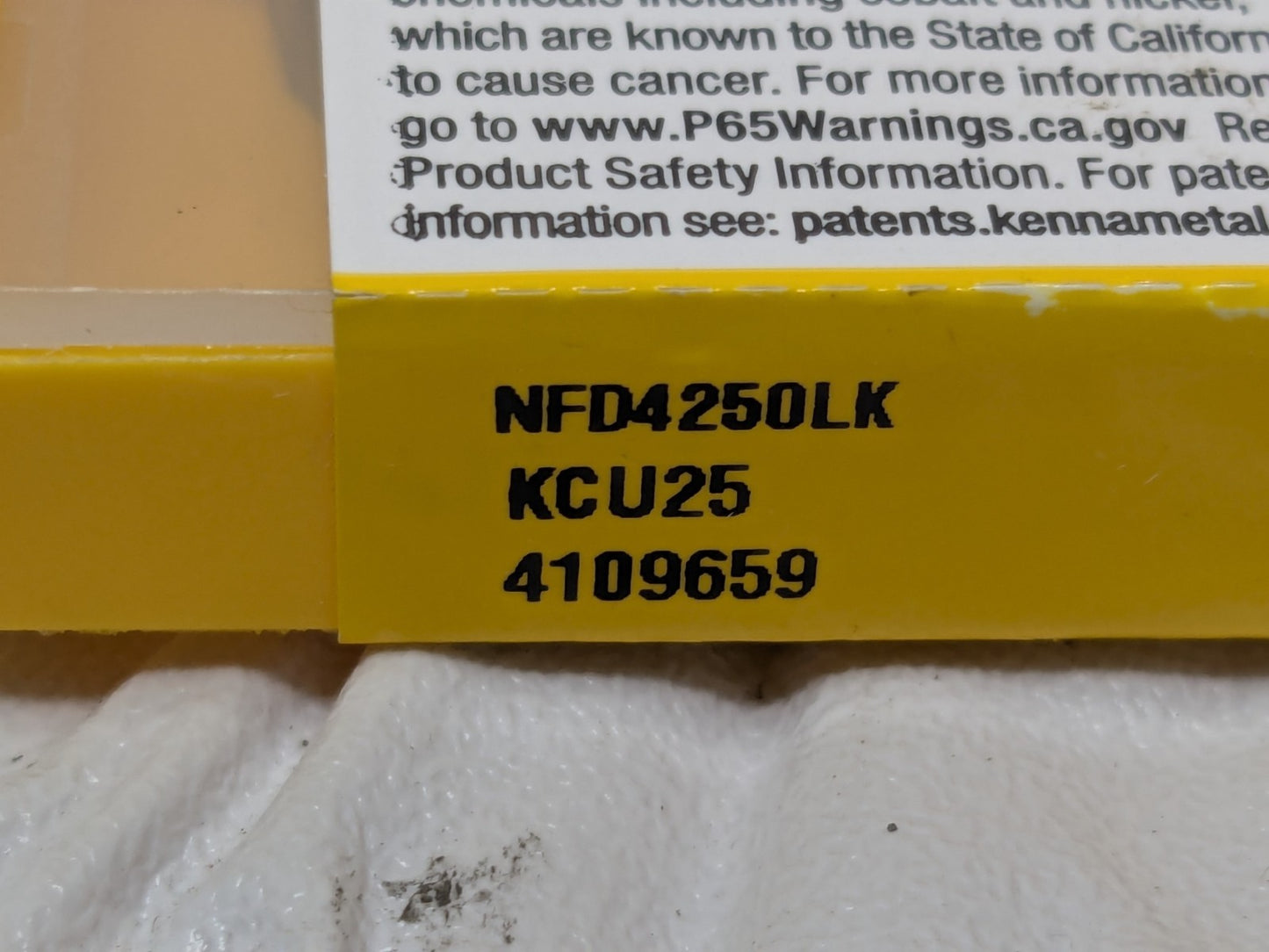

Kennametal Carbide Grooving Inserts NFD4250LK KCU25 QTY 5 4109659

Kennametal
Carbide Grooving Inserts

MSRP: $180

• Insert Style: NFD Cutting
• Width (Decimal Inch): 0.2500
• Cutting Width (mm): 6.35
• Insert Hand: Left Hand
• Maximum Depth of Cut (Decimal Inch): 0.5000
• Maximum Depth of Cut (mm): 12.70
• Insert Material: Carbide
• Manufacturer Grade: KCU25
• Full Radius: No
• Corner Radius (Decimal Inch): 0.0224
• Corner Radius (mm): 0.57
• Measurement Type: Metric
• Insert Holding Method: Clamp
• Insert Size: 4250
• Material Grade: C6; C2
• Cutting Height (mm): 11.51
• Maximum Depth Of Cut Range (Decimal Inch): 0.3000 to 1.0000
• Cutting Height (Decimal Inch): 0.4530
• Maximum Depth Of Cut Range (mm): 10.00 to 20.00
• Multi-use Tool: No
• Series: Top Notch
• Coating Process: PVD
• Rake Angle: 12
• UNSPSC Code: 23242105
• Chip Breaker: K
• Insert Seat Size: 4
• Overall Width (mm): 6.50
• Overall Width (Decimal Inch - 4 Decimals): 0.256
• Included Angle Degree: 55
• Coating/Finish: AlTiN

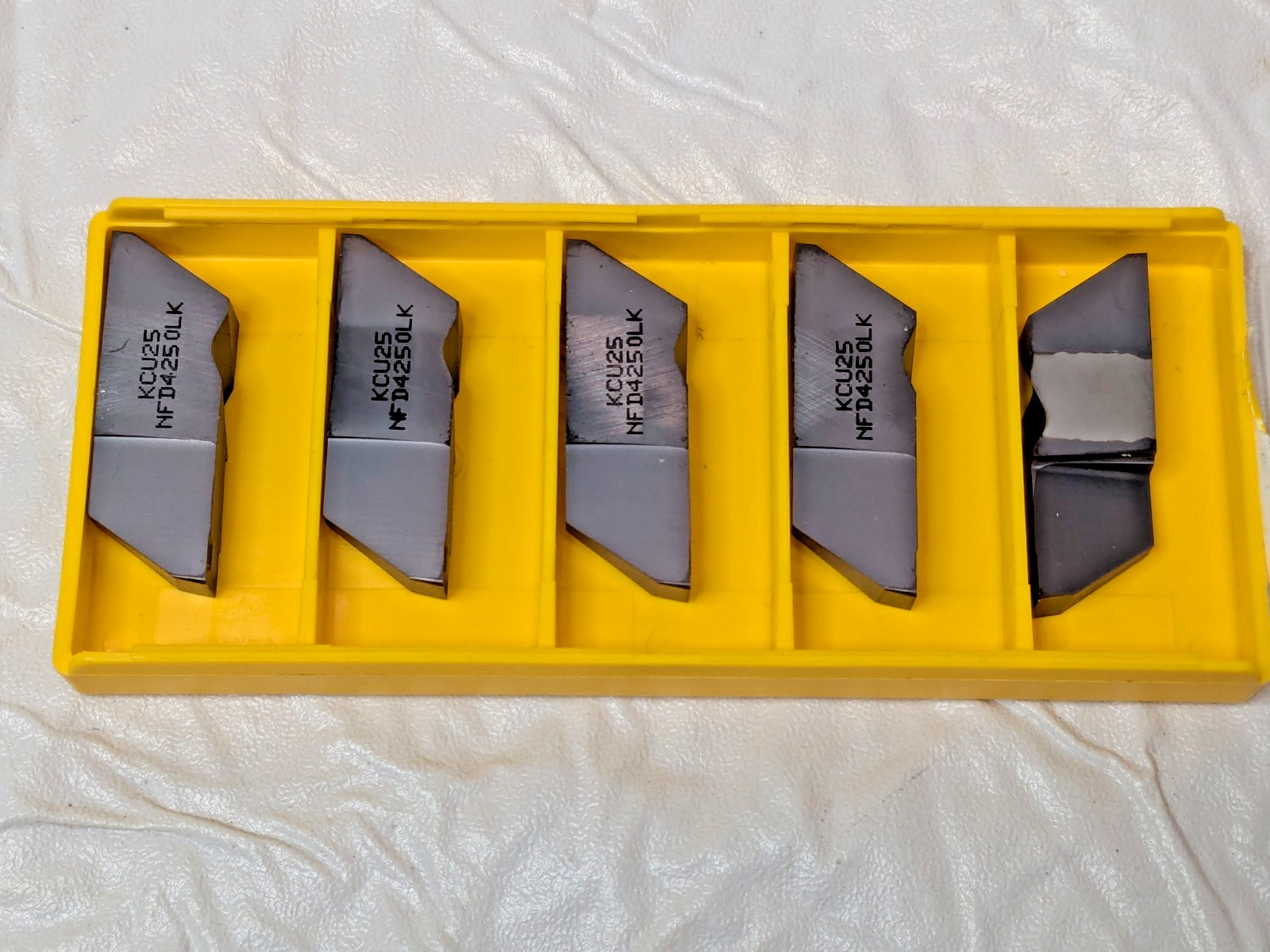

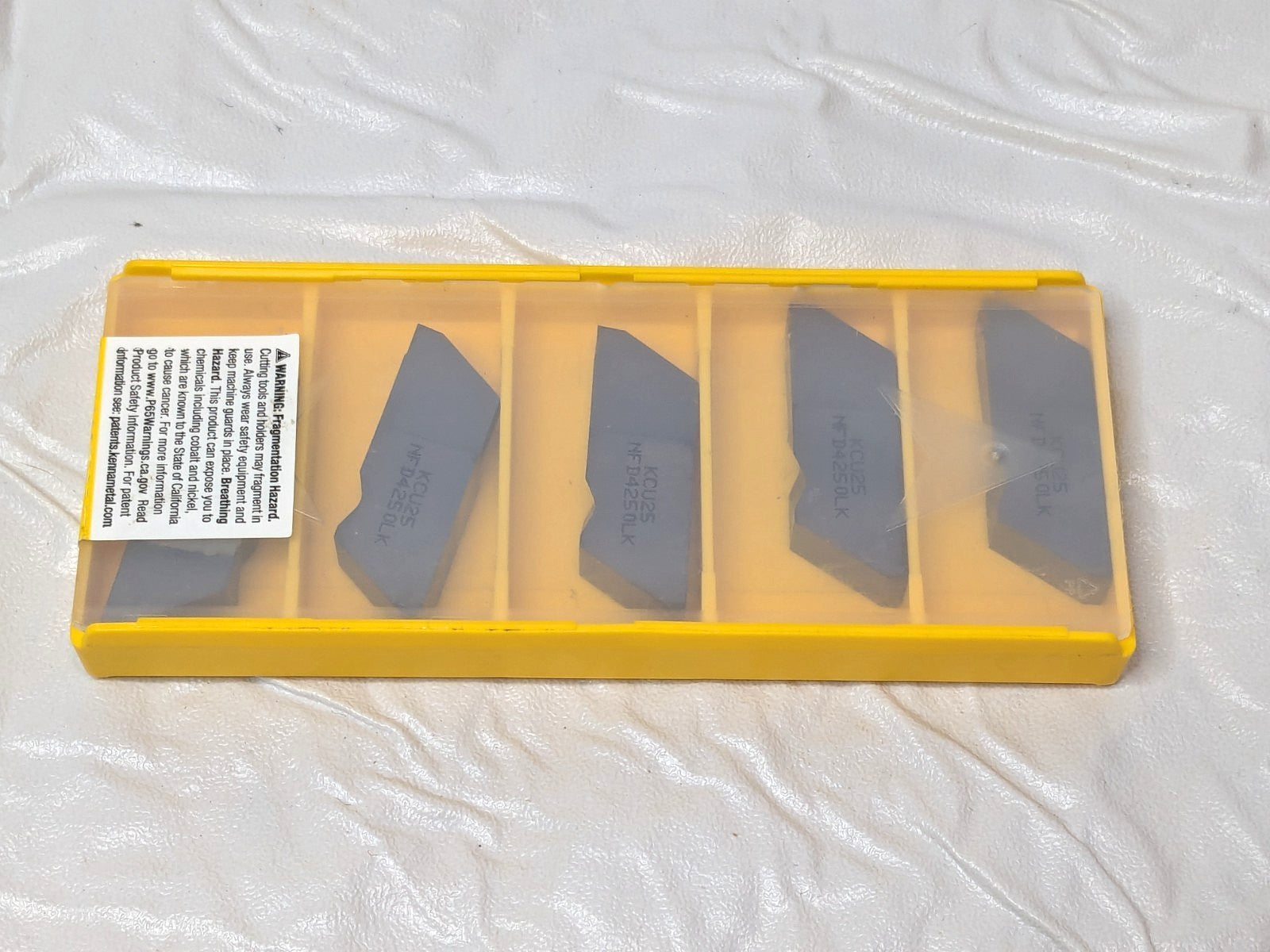

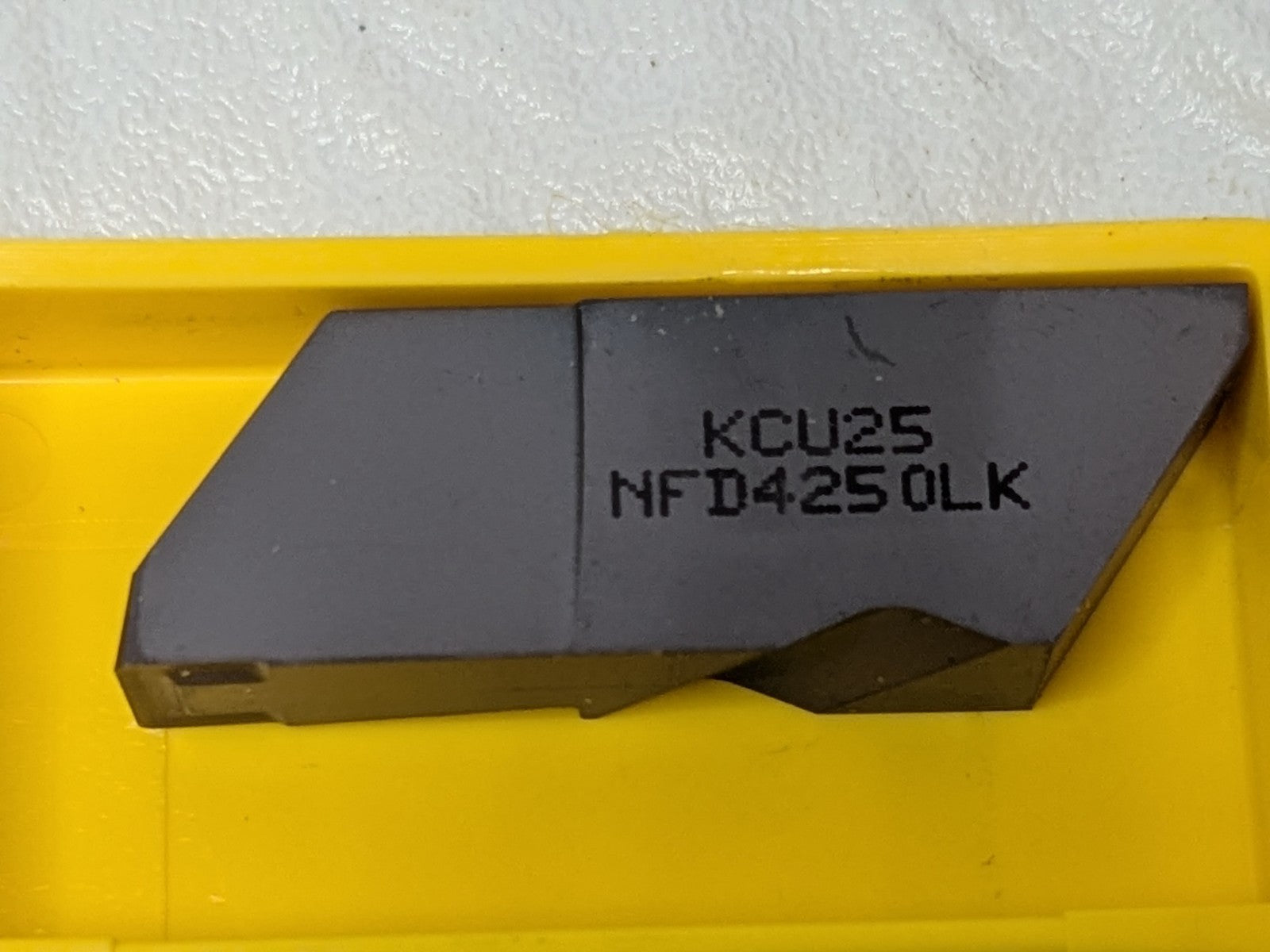

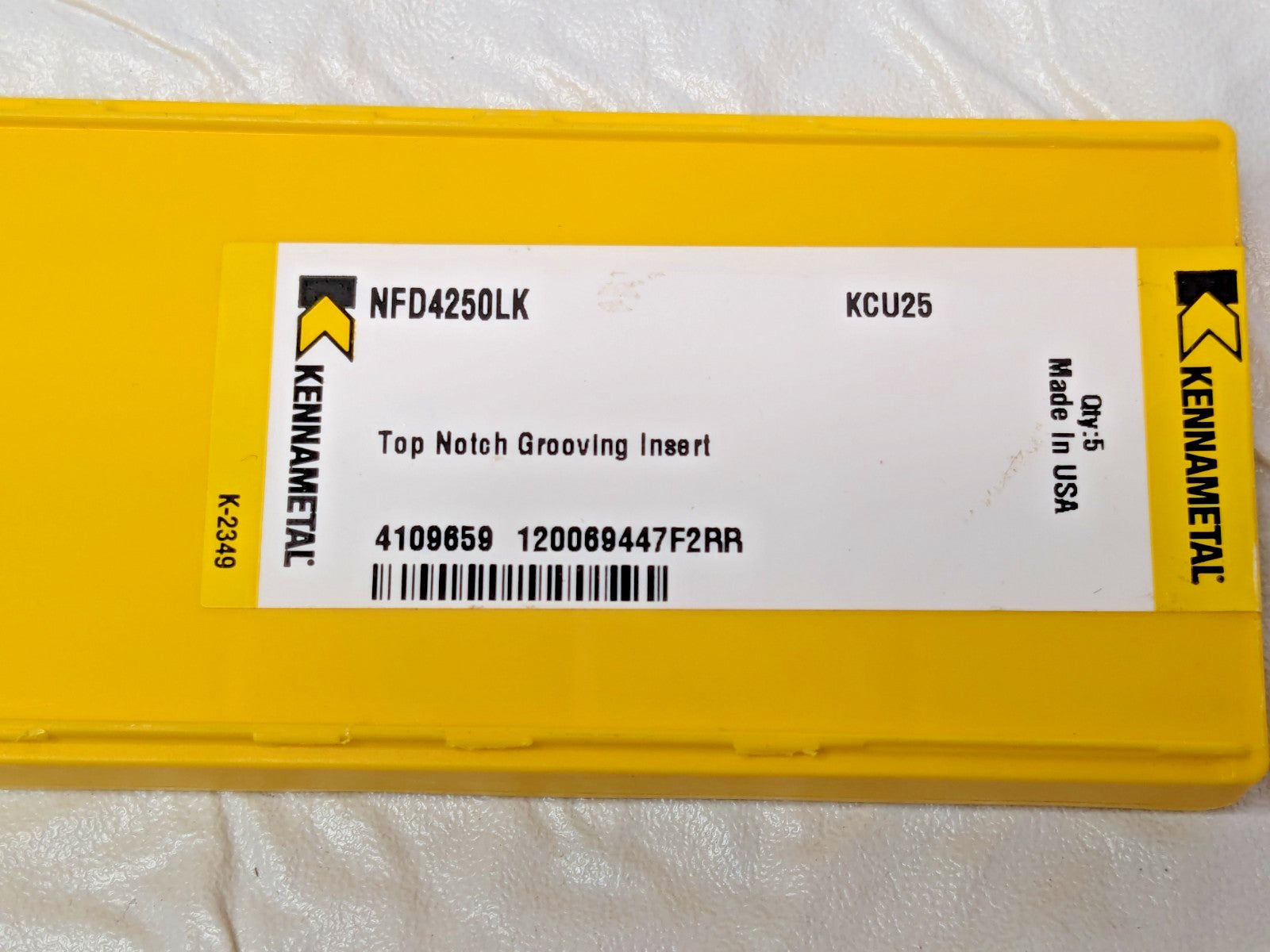

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
