Kennametal Carbide Grooving Insert 3012NP K Grade KC5025 4.83mm Qty 5 1818439

Kennametal
1 Lot of 5 Carbide Grooving Inserts

• Insert Style NP
• Insert Size 3012
• Material Carbide
• Cutting Width (mm) 4.83
• Cutting Width (Decimal Inch) 0.1902
• Maximum Depth of Cut (mm) 5.08
• Maximum Depth of Cut (Decimal Inch) 0.2000
• Material Grade C2/C6
• Manufacturer's Grade KC5025
• Coating TiAlN
• Insert Hand Right Hand
• Lead Angle 3
• Insert Seat Size 3
• Chipbreaker K
• Multi-Use Tool No
• Corner Radius (mm) 0.34
• Corner Radius (Decimal Inch) 0.0135
• Coating Process PVD
• Series Top Notch
• Rake Angle 10
• Rake Positive
• Included Angle 55
• Series Number Top Notch
• Material Grade C2/C6
• Material Carbide
• Insert Seat Size 3
• Maximum Depth of Cut (mm) 5.08
• Insert Style NP
• Series Top Notch
• Series Top Notch
• Maximum Depth of Cut (mm) 5.08
• Rake Positive
• Maximum Depth of Cut (Decimal Inch) 0.2000
• Material Carbide
• Material Grade C2/C6
• Manufacturer's Grade KC5025
• Insert Style NP
• Insert Size 3012
• Corner Radius (Inch) 0.0135
• Coating Process PVD
• Coating TiAlN
• MultiUseTool No

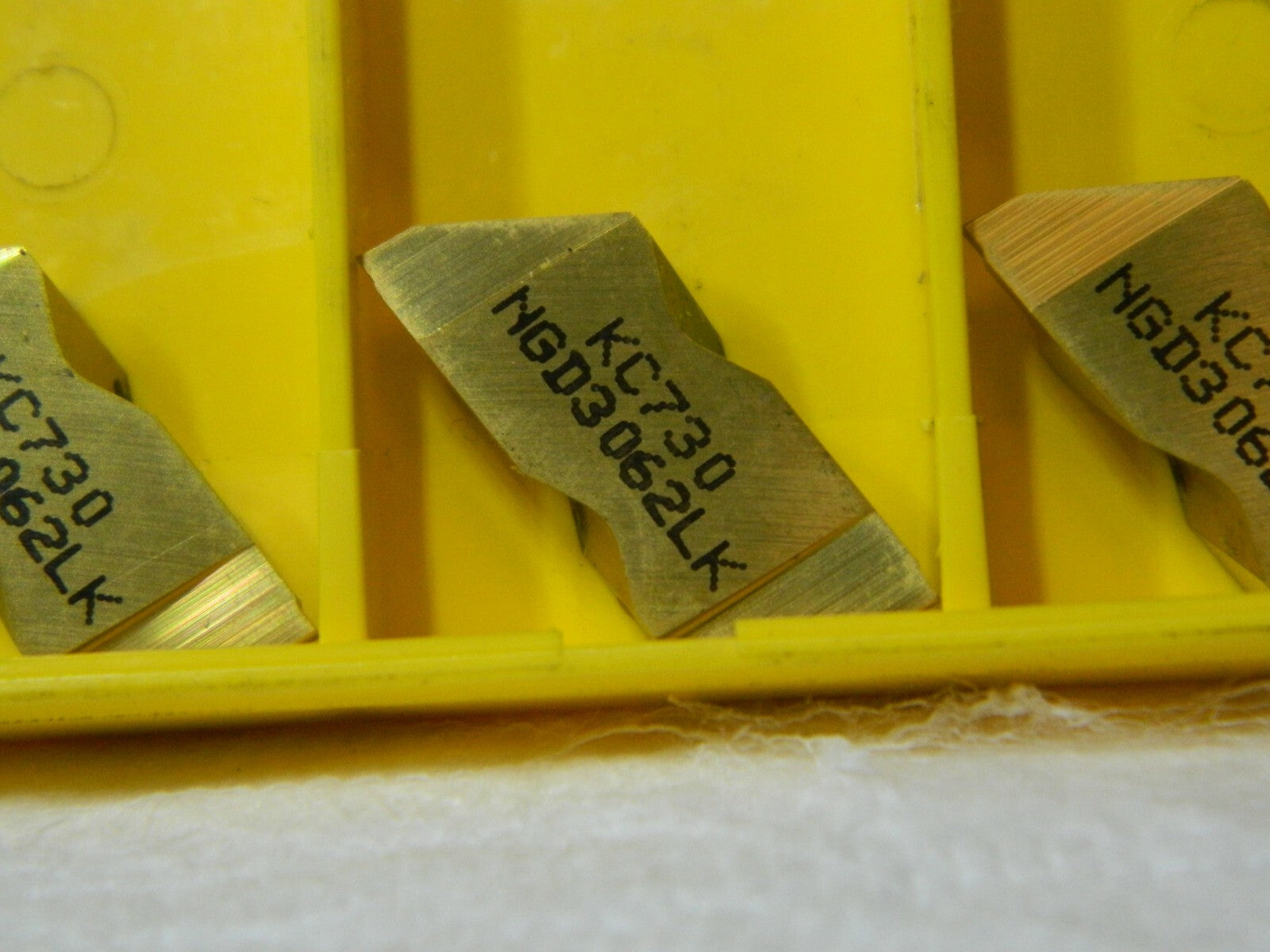

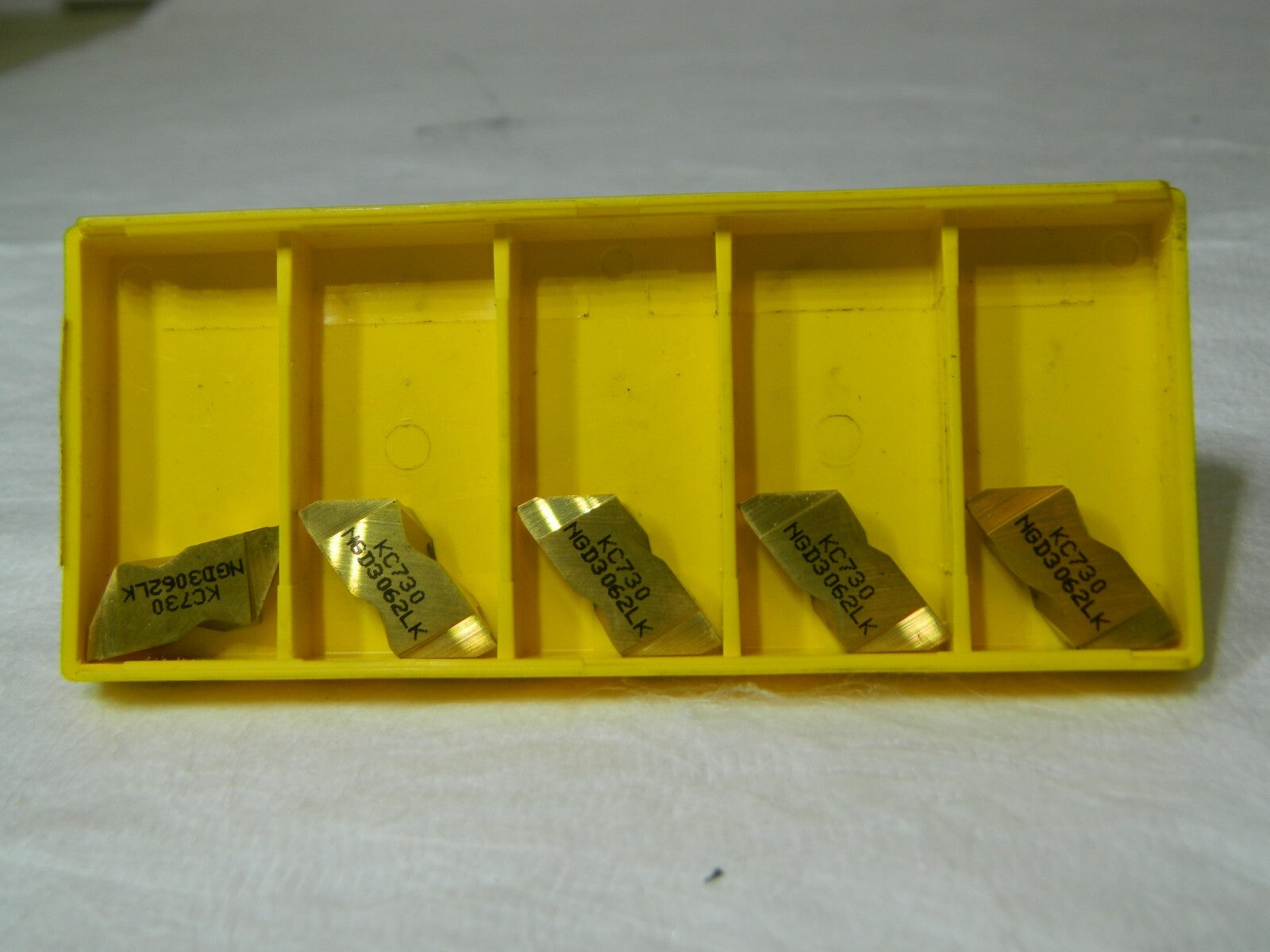

Please review photos, comes as shown.
