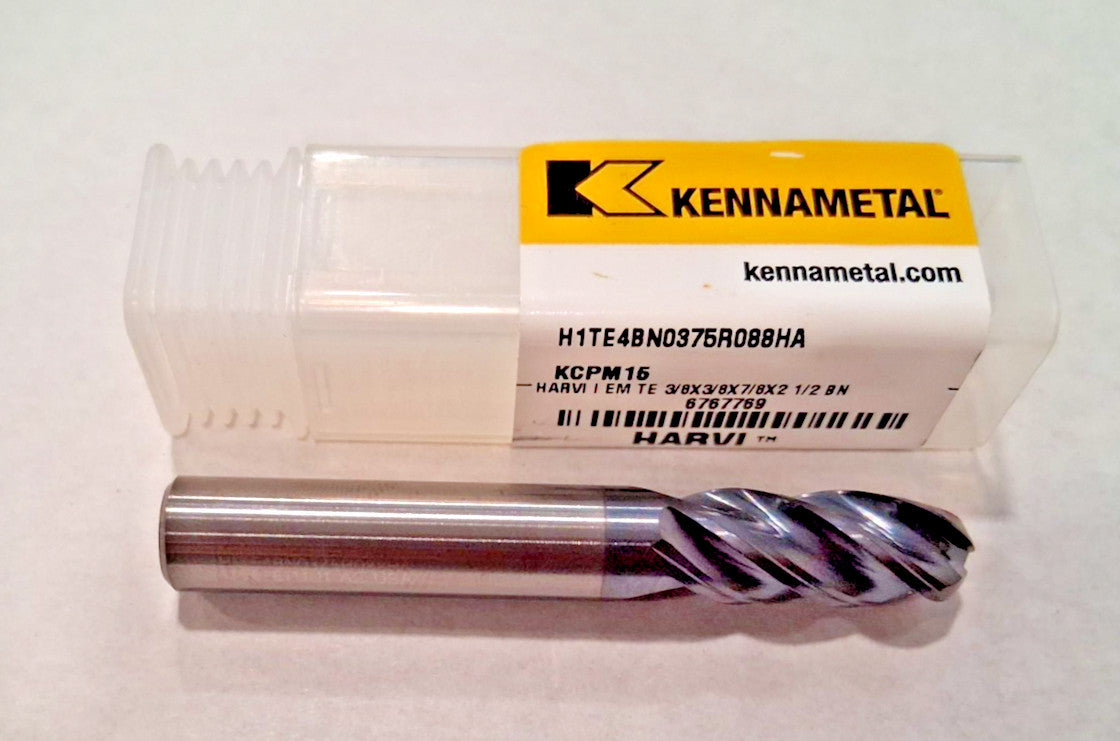

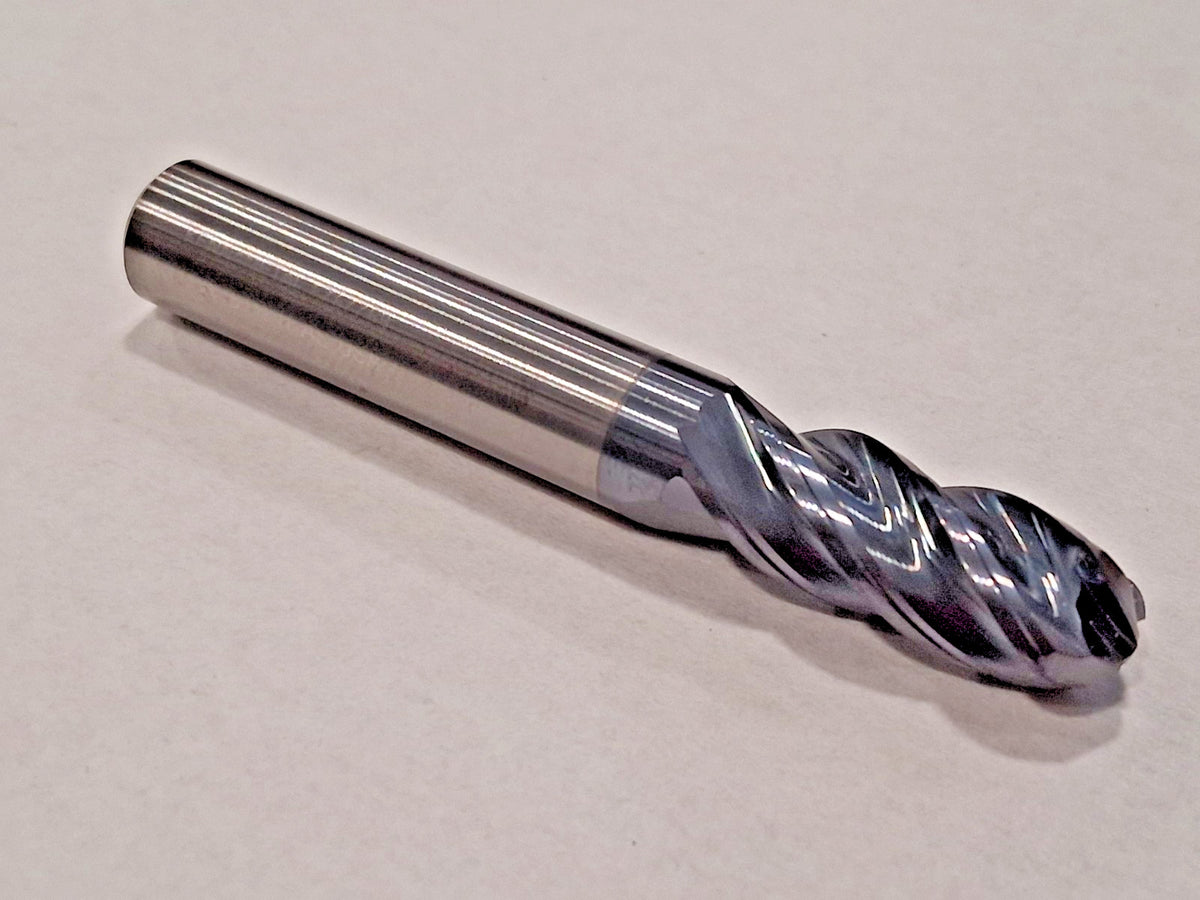

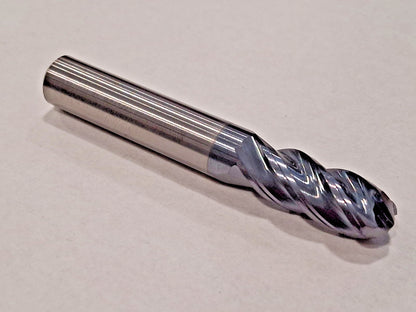

Kennametal Ball End Mill 3/8" Dia 7/8" LOC 4FL Carbide 6767769

Kennametal
Ball End Mill

MSRP: $170.00

• Mill Diameter (Decimal Inch): 0.3750
• Mill Diameter (Inch): 3/8
• Number Of Flutes: 4
• End Mill Material: Solid Carbide
• Length of Cut (Decimal Inch): 0.8750
• Length of Cut (Inch): 7/8
• Shank Diameter (Decimal Inch): 0.3700
• Shank Diameter (Inch): 3/8
• Overall Length (Inch): 2-1/2
• Overall Length (Decimal Inch): 2.5000
• Single Or Double End: Single
• Coating/Finish Family: AlTiN
• Centercutting: Yes
• Cutting Direction: Right Hand
• Flute Direction: Right Hand
• Extended Reach: No
• Coolant Through: No
• Helix Angle: 36-39
• Primary Workpiece Material: High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials
• Primary Workpiece Material Code: P; S; H; K; M
• Coating/Finish: AlTiN
• Variable Helix: Yes
• Variable Index: No
• Chipbreaker: No
• Flute Type: Spiral
• Shank Type: Straight-Cylindrical
• Material Grade: KCPM15
• Length Type: Standard
• Coating Classification: PVD
• Helix Style: Variable
• Nose Radius (Decimal Inch): 0.1875
• Neck Length (Decimal Inch): 0.0000
• Neck Length (mm): 29.84
• Reach Length (Decimal Inch): 0.8750
• Series: H1TEBN..N-L
• System Of Measurement: Fractional Inch
• Additional Information: Versatile Solid Carbide End Mill for Steels, Stainless Steel, Cast Iron, & High Temperature Alloys. Harvi™ I Te Solid Carbide End Mills Cover a Variety of Operations, Including Dynamic Milling, & Extreme Ramping Operations. Harvi™ I Te Solid Carbide End Mills Stand for Maximum Metal Removal, Maximum Productivity, Maximum Benefit. Harvi™ I Te Solid Carbide End Mills Feature Asymmetrical Divided Flutes, Variable Helix, Twisted End Face, Facteted Eccentric Relief, & Chip Gashes Within the Flutes. Center Cutting for Plunging & Ramping Operations.
• Manufacturers Catalog Number: H1TE4BN0375R088HA
• Material Removal Type: Roughing & Finishing
• UNSPSC Code: 27112803

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
