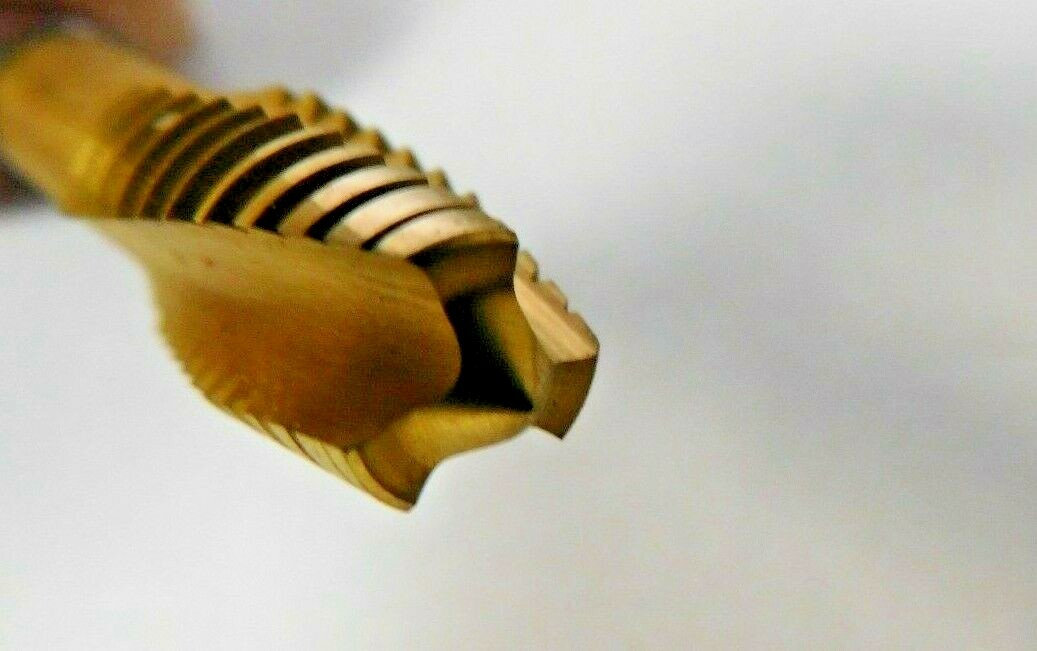

Kennametal 7/16-14 UNC 3 Flute 3BX Plug Spiral Flute Tap 4116682
Kennametal 7/16-14 UNC 3 Flute 3BX Plug Spiral Flute Tap 4116682
Regular price
$23.58 USD
Regular price
$50.00 USD
Sale price
$23.58 USD
Shipping calculated at checkout.
Kennametal
MSRP: $50.00
Model: 4116682
Description:
Thread Size (Inch) 7/16-14
Chamfer Plug
Class of Fit 3BX
Number of Flutes 3
Material Powdered Metal
Finish/Coating TiN/CrC/C
Thread Direction Right Hand
Flute Direction Left Hand
Through Coolant NonThrough Coolant
Overall Length (Decimal Inch) 3.1600
Overall Length (mm) 80.26
Helix Angle 15
Thread Standard UNC
Thread Length (Decimal Inch) 0.7100
Thread Length (mm) 18.03
Flute Type Slow Spiral
Series/List T620
Neck Length (Decimal Inch) 0.7795
Tapping Depth (Decimal Inch) 1.4900
Tapping Depth (mm) 37.85
Shank Diameter (Decimal Inch) 0.3230
Shank Diameter (mm) 8.20
Shank Length (Decimal Inch) 1.6732
Shank Length (mm) 43
Material Application Non-Ferrous Materials; Stainless Steel

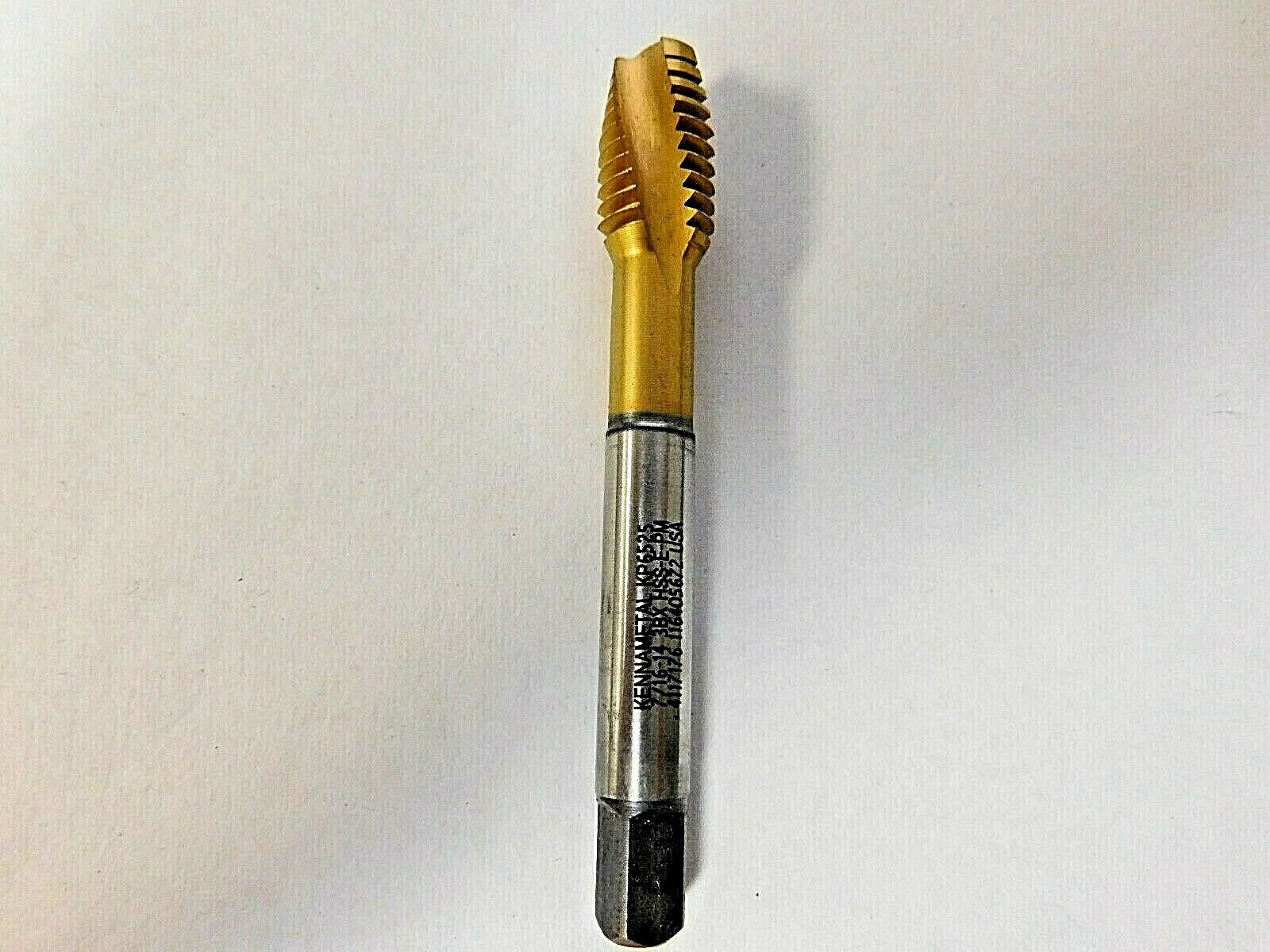

This listing is for One Tap that is in the picture as well as described. Please ask any questions prior to buying!
