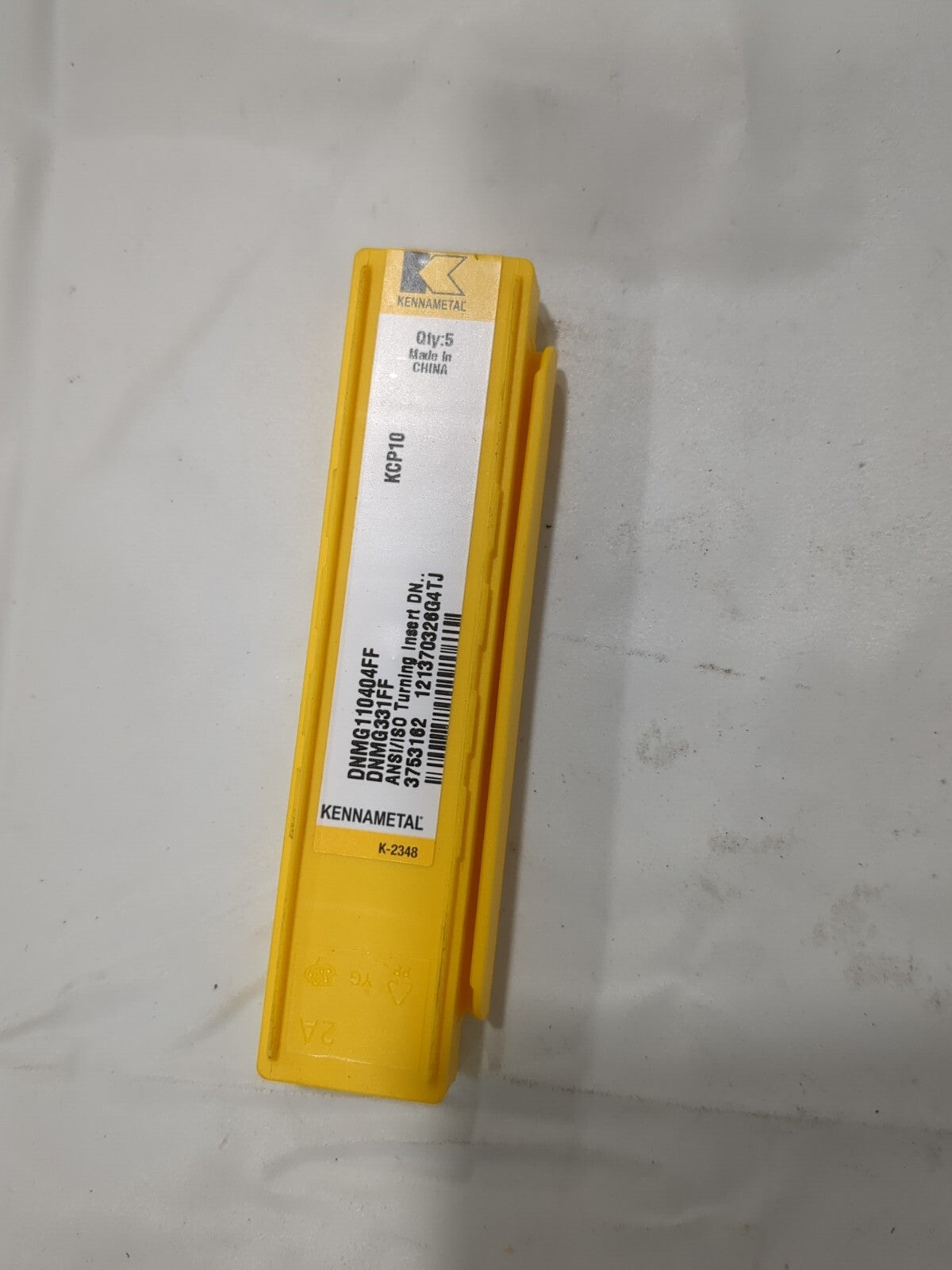

KENNAMETAL 5pk Turning Insert: DNMG331FF KCP10, Carbide 3753162

KENNAMETAL

5pk Turning Insert: DNMG331FF KCP10, Carbide 3753162

MSRP: $120

• ANSI Insert Code DNMG331
• ISO Insert Code DNMG110404
• Relief Angle 0
• Insert Style DNMG
• Corner Radius (Inch) 1/64
• Corner Radius (Decimal Inch) 0.0156
• Included Angle 55
• Manufacturer Grade KCP10
• Coating/Finish TiCN; Al2O3
• Wiper Edge No
• Insert Hand Neutral
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1875
• Series KENLOC
• Inscribed Circle (Decimal Inch) 0.3750
• Inscribed Circle (Inch) 3/8
• Insert Material Carbide
• Insert Shape D - Diamond (Rhombic) 55-Deg
• Chip Breaker Operation Finishing
• Grade Characteristics Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness; Steel (P) - High Wear-Resistance
• Side Clearance Negative
• Number Of Cutting Edges 4
• Insert Shape Code D
• Hole Diameter (Decimal Inch) 0.1500
• Hole Diameter (Mm) ( - 0 Decimals) 3.81
• Maximum Depth of Cut (mm) 1.25
• Maximum Depth of Cut (Decimal Inch) 0.0492
• Insert Holding Method Pin; Clamp
• Width (Inch) 3/8
• Clearance Code N
• Tolerance Code M
• Coating Process MTCVD
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Rake Negative
• Insert Length (Decimal Inch) 0.9156
• Insert Length (mm) 11.63
• Primary Workpiece Material Cast Iron; Steel
• Primary Workpiece Material Code P; N
• Standards ISO; ANSI
• Manufacturers Catalog Number 3753162
• Material Grade C3; C7
• Proprietary Coating Designation Multilayer Coating
• Coating Classification CVD
• Chip Breaker FF
• Rake Angle 20
• Cutting Edge Style Honed
• Industry Standard Number DNMG331FF
• Width (Decimal Inch - 4 Decimals) 0.3750
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Back Boring; Facing; Turning; Back Turning; Boring
• ANSI Size Code 331
• ISO Size Code 110404
• UNSPSC Code 23242105
• Insert Size Code 331
• Country of Origin China
• Ordered as Part # 3753162

(Description).

Please review photos, comes as shown.
