Kennametal 5pc Turning Inserts DNGP432 KC730 Carbide 1160914

Kennametal

 5pc Turning Inserts DNGP432 KC730 Carbide 1160914

MSRP: $190

• ANSI Insert Code DNGP432
• ISO Insert Code DNGP150408
• Relief Angle 0
• Insert Style DNGP
• Corner Radius (Inch) 1/32
• Corner Radius (Decimal Inch) 0.0313
• Included Angle 55
• Manufacturer Grade KC730
• Coating/Finish TiN
• Wiper Edge No
• Insert Hand Neutral
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1875
• Series KENLOC
• Inscribed Circle (Decimal Inch) 0.5000
• Inscribed Circle (Inch) 1/2
• Insert Material Carbide
• Insert Shape D - Diamond (Rhombic) 55-Deg
• Chip Breaker Operation Medium Machining
• Grade Characteristics Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
• Side Clearance Negative
• Number Of Cutting Edges 4
• Insert Shape Code D
• Hole Diameter (Decimal Inch) 0.2031
• Hole Diameter (Mm) ( - 0 Decimals) 5.16
• Maximum Depth of Cut (mm) 1.25
• Maximum Depth of Cut (Decimal Inch) 0.0492
• Insert Holding Method Pin; Clamp
• Width (Inch) 1/2
• Clearance Code N
• Tolerance Code G
• Coating Process PVD
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Rake Negative
• Insert Length (Decimal Inch) 1.2208
• Insert Length (mm) 15.50
• Primary Workpiece Material Stainless Steel; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; K; M
• Secondary Workpiece Material Code S; M
• Standards ISO; ANSI
• Manufacturers Catalog Number 1160914
• Material Grade C3; C4; C2
• Proprietary Coating Designation TiN
• Coating Classification PVD
• Chip Breaker Common
• Rake Angle 10
• Cutting Edge Style Honed
• Industry Standard Number DNGP432
• Width (Decimal Inch - 4 Decimals) 0.5000
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Back Boring; Facing; Turning; Back Turning; Boring
• ANSI Size Code 432
• ISO Size Code 150408
• UNSPSC Code 23242105
• Insert Size Code 432
• Country of Origin UNITED STATES

(Description).

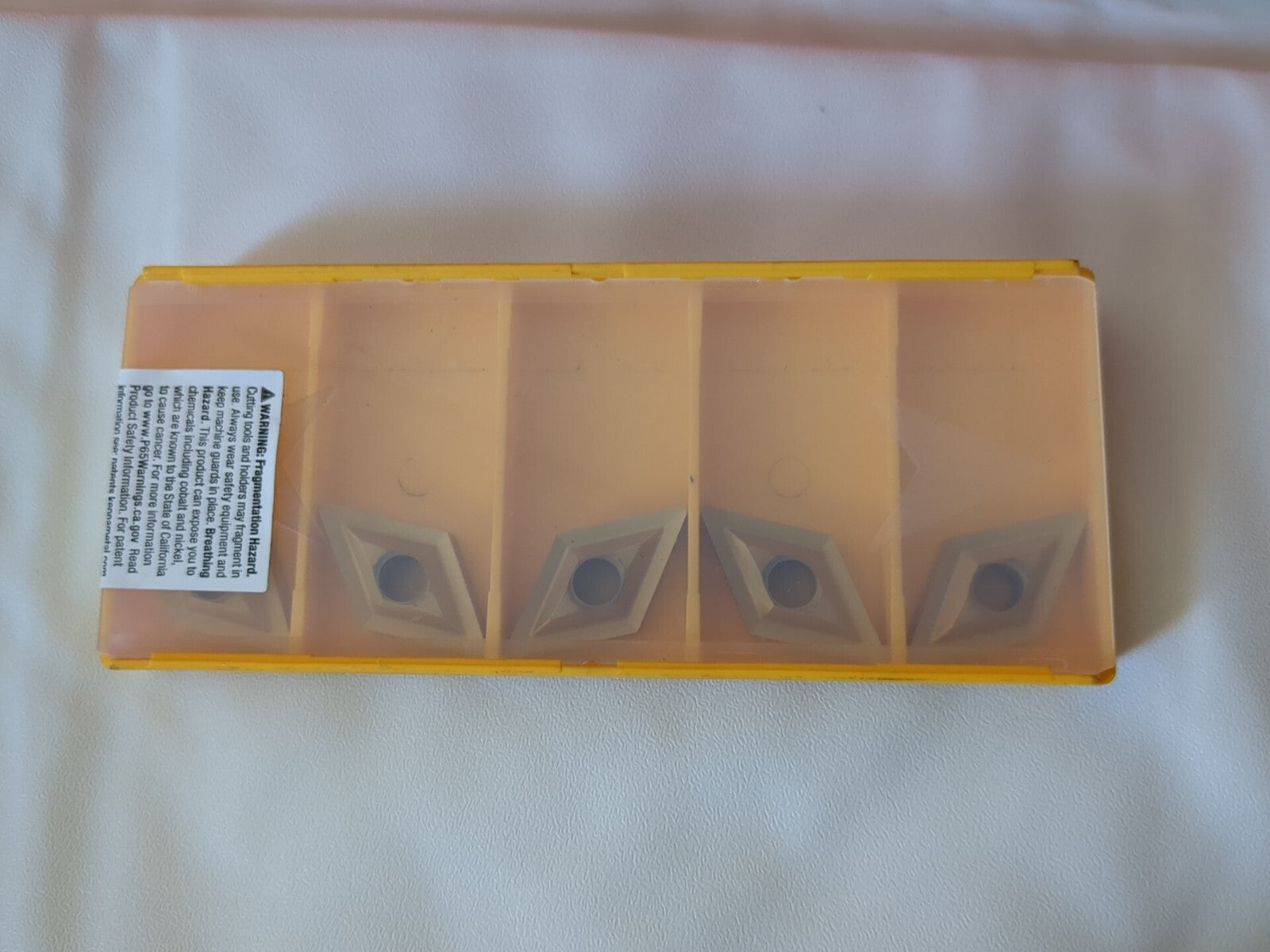

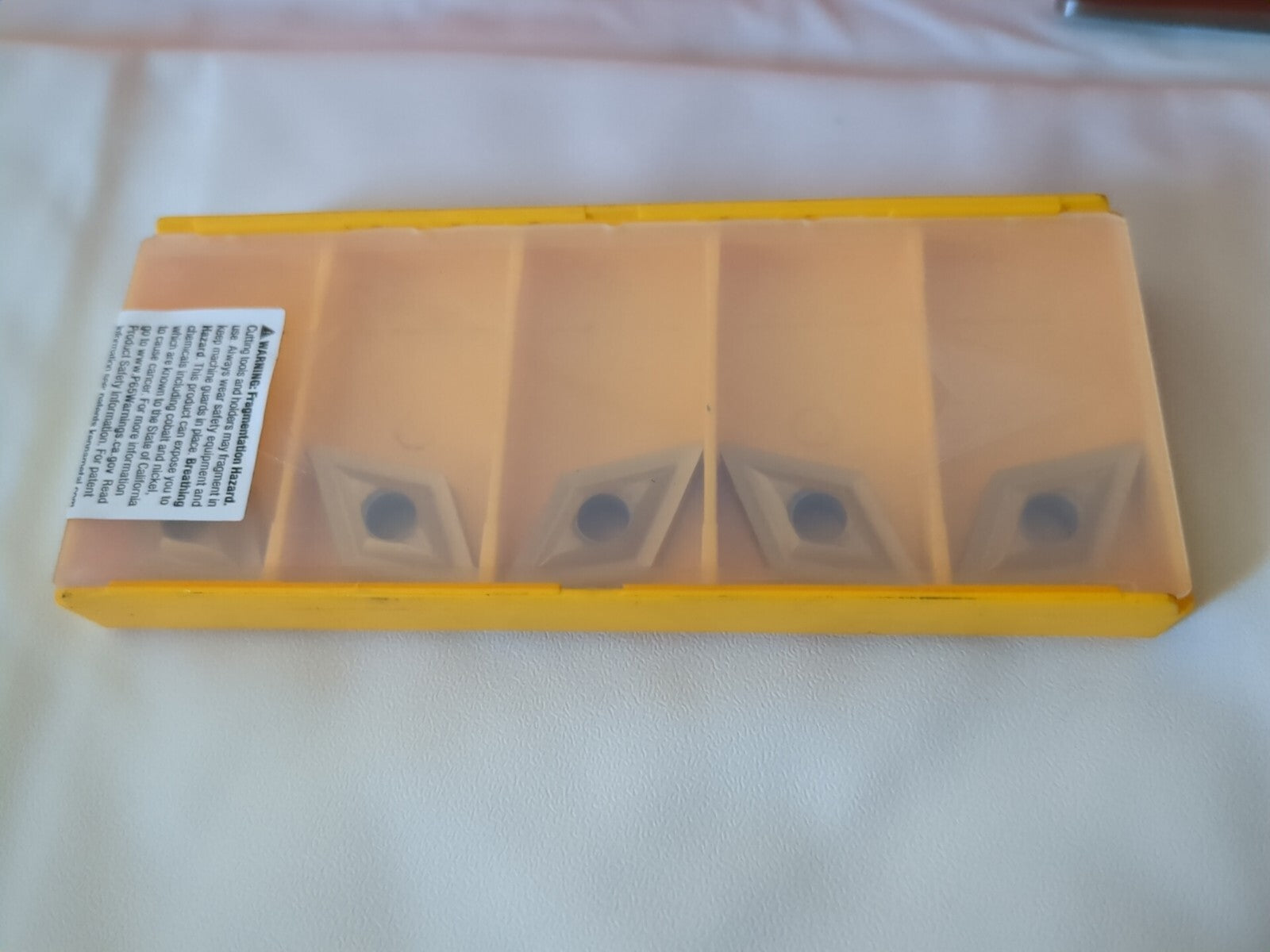

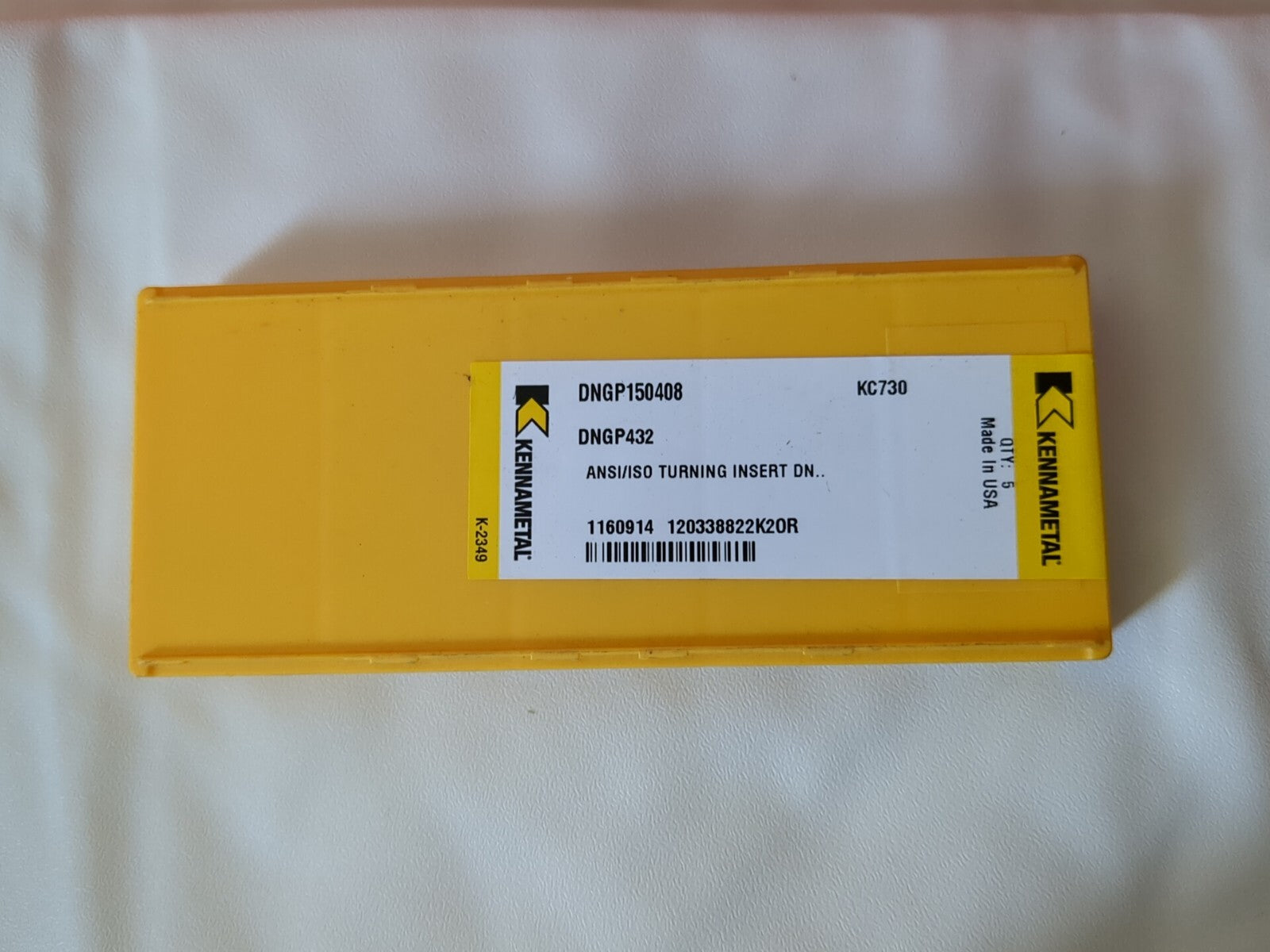

Please review photos, comes as shown.
