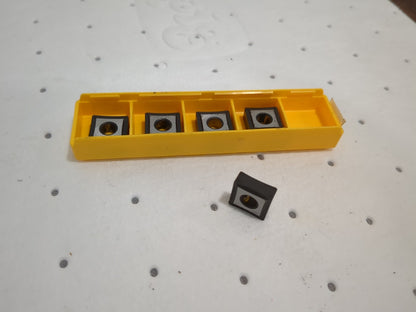

KENNAMETAL 5ct Turning Inserts SNMP432K KCP25 Carbide 3753484

KENNAMETAL 5ct Turning Inserts SNMP432K KCP25 Carbide 3753484

MSRP: $120

• ANSI Insert Code SNMP432
• ISO Insert Code SNMP120408
• Relief Angle 0
• Insert Style SNMP
• Corner Radius (Inch) 1/32
• Corner Radius (Decimal Inch) 0.0313
• Included Angle 90
• Manufacturer Grade KCP25
• Coating/Finish TiCN; Al2O3
• Wiper Edge No
• Insert Hand Neutral
• Insert Thickness (Inch) 3/16
• Insert Thickness (Decimal Inch) 0.1875
• Series KENLOC
• Inscribed Circle (Decimal Inch) 0.5000
• Inscribed Circle (Inch) 1/2
• Insert Material Carbide
• Insert Shape S - Square
• Grade Characteristics Steel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
• Side Clearance Negative
• Number Of Cutting Edges 8
• Insert Shape Code S
• Hole Diameter (Decimal Inch) 0.2031
• Hole Diameter (Mm) ( - 0 Decimals) 5.16
• Maximum Depth of Cut (mm) 1.25
• Maximum Depth of Cut (Decimal Inch) 0.0492
• Insert Holding Method Pin; Clamp
• Width (Inch) 1/2
• Clearance Code N
• Tolerance Code M
• Coating Process MTCVD
• Length Range (Decimal Inch) 0.5000 - 0.6000
• Rake Negative
• Insert Length (Decimal Inch) 0.5000
• Insert Length (Inch) 1/2
• Primary Workpiece Material Cast Iron; Steel
• Primary Workpiece Material Code P; N
• Standards ISO; ANSI
• Manufacturers Catalog Number 3753484
• Material Grade C3; C6; C7; C2
• Proprietary Coating Designation Multilayer Coating
• Coating Classification CVD
• Chip Breaker K
• Rake Angle 10
• Cutting Edge Style Honed
• Industry Standard Number SNMP432K
• Width (Decimal Inch - 4 Decimals) 0.5000
• Multi-Use Tool Yes
• Full Radius No
• Multi-Use Application Facing; Turning; Boring
• ANSI Size Code 432
• ISO Size Code 120408
• UNSPSC Code 23242105
• Insert Size Code 432

This Kennametal 5ct turning insert is a high-quality tool that is perfect for metalworking and manufacturing applications. Made with durable carbide material, this insert is designed to provide reliable performance and long-lasting wear. With its precise design and superior quality, this turning insert is an excellent choice for anyone who wants to achieve the best results in their metalworking projects. Whether you are a professional or a DIY enthusiast, this insert is sure to provide you with the strength and performance you need to get the job done. So why wait? Order your Kennametal 5ct turning insert today and experience the power of this exceptional tool!

Please review photos, comes as shown.
