KENNAMETAL 4pc Corner Radius End Mill: 6 mm Dia 5 Fl Solid Carbide 3524488

KENNAMETAL 4pc Corner Radius End Mill: 6 mm Dia 5 Fl Solid Carbide 3524488

MSRP: $200

• Mill Diameter (Decimal Inch) 0.2362
• Mill Diameter (mm) 6.00
• Number Of Flutes 5
• Length of Cut (mm) 13.00
• Single Or Double End Single
• End Mill Material Solid Carbide
• Coating/Finish AlTiN
• Centercutting No
• Flute Direction Right Hand
• Corner Radius (Decimal Inch) 0.0591
• Variable Index No
• Variable Helix No
• Cutting Direction Right Hand
• Corner Radius (mm) 1.50
• Overall Length (mm) 63.00
• Coolant Through No
• Pitch Normal
• Chipbreaker No
• End Type Corner Radius
• Length Of Cut (Decimal Inch - 4 Decimals) 0.5118
• Length Type Standard
• Flute Type Spiral
• Extended Reach Yes
• Shank Type Straight-Cylindrical
• Material Removal Type Roughing & Finishing
• Shank Diameter (mm) 6
• Neck Diameter (mm) 5.64
• Neck Diameter (Decimal Inch) 0.2220
• Reach Length (Decimal Inch) 0.7087
• Reach Length (mm) 18.00
• Mill Diameter Tolerance -0.020000/-0.038000 mm
• Shank Diameter Tolerance +0.000/-0.008 mm
• Primary Workpiece Material Hard Material; Cast Iron; Superalloys & Titanium; Steel
• Primary Workpiece Material Code P; S; H; K
• UNSPSC Code 27112803
• Material Grade Submicron
• Series UDDE
• Material Application Hard Material; Cast Iron; Superalloys & Titanium; Steel
• Coating Classification PVD
• For Use With. ER Single Angle Standard Collets
• Helix Style High

This KENNAMETAL 4pc Corner Radius End Mill is a reliable choice for your metalworking needs. With a diameter of 6mm and 5 flutes, it is perfect for finishing your projects with precision. Made of solid carbide, this end mill is durable and built to last. The overall length of this unit is 63.00mm and it was manufactured in Israel. It is a unit type end mill and the length of cut is 13.00mm. The brand is KENNAMETAL and the mill diameter is 6.00mm. The shank diameter is also 6mm. This end mill is ideal for those in the CNC, metalworking, and manufacturing industry.

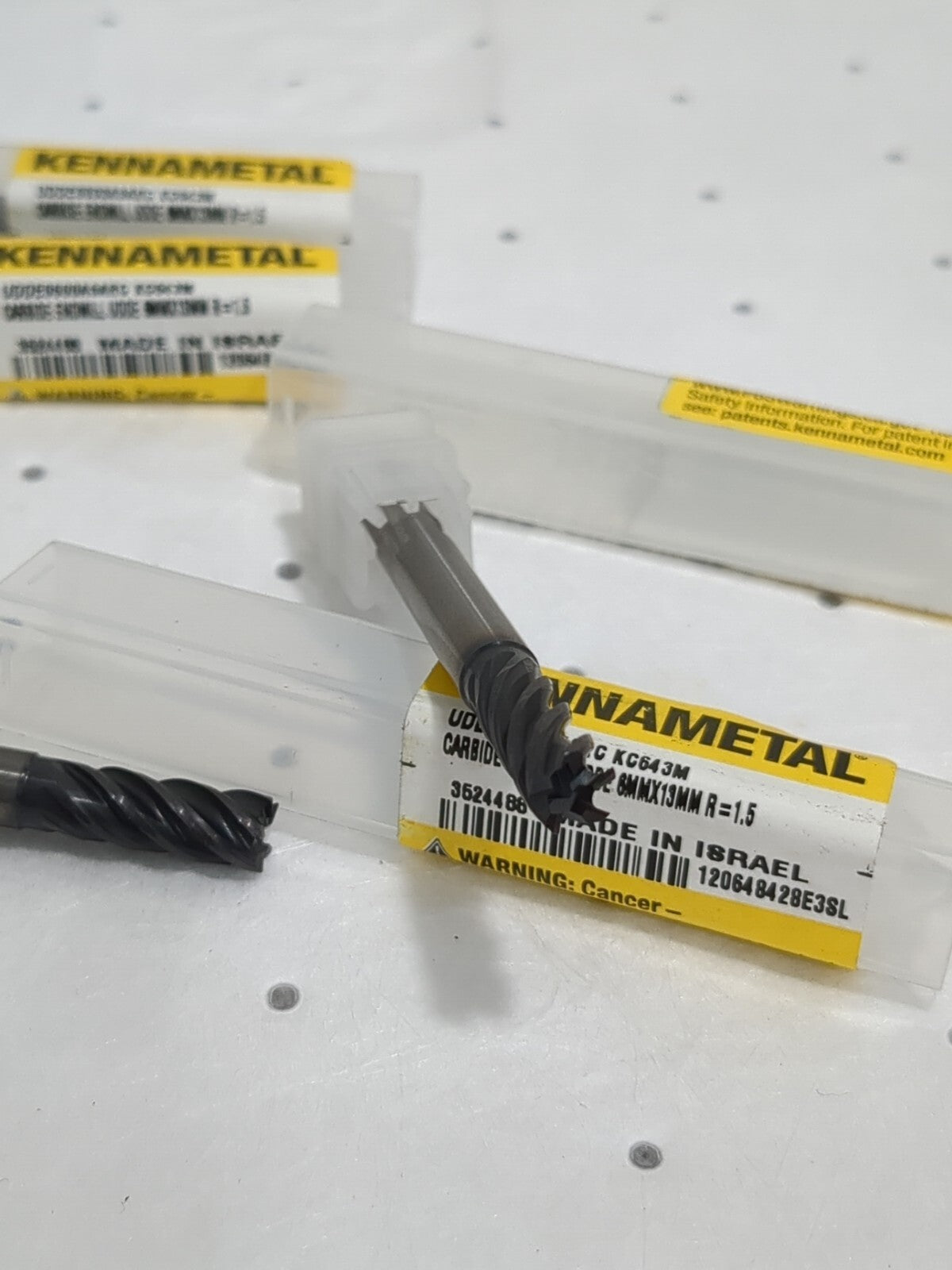

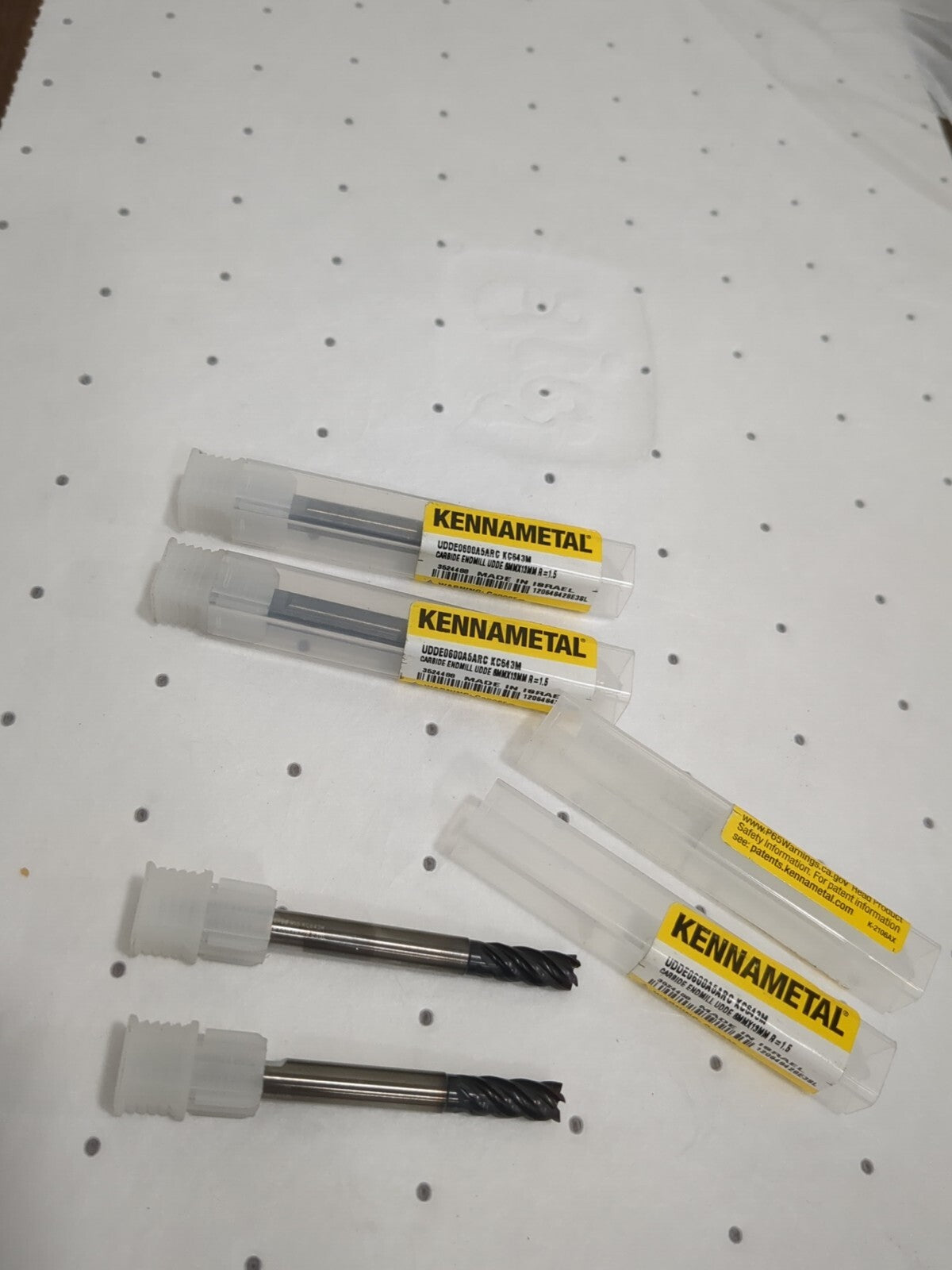

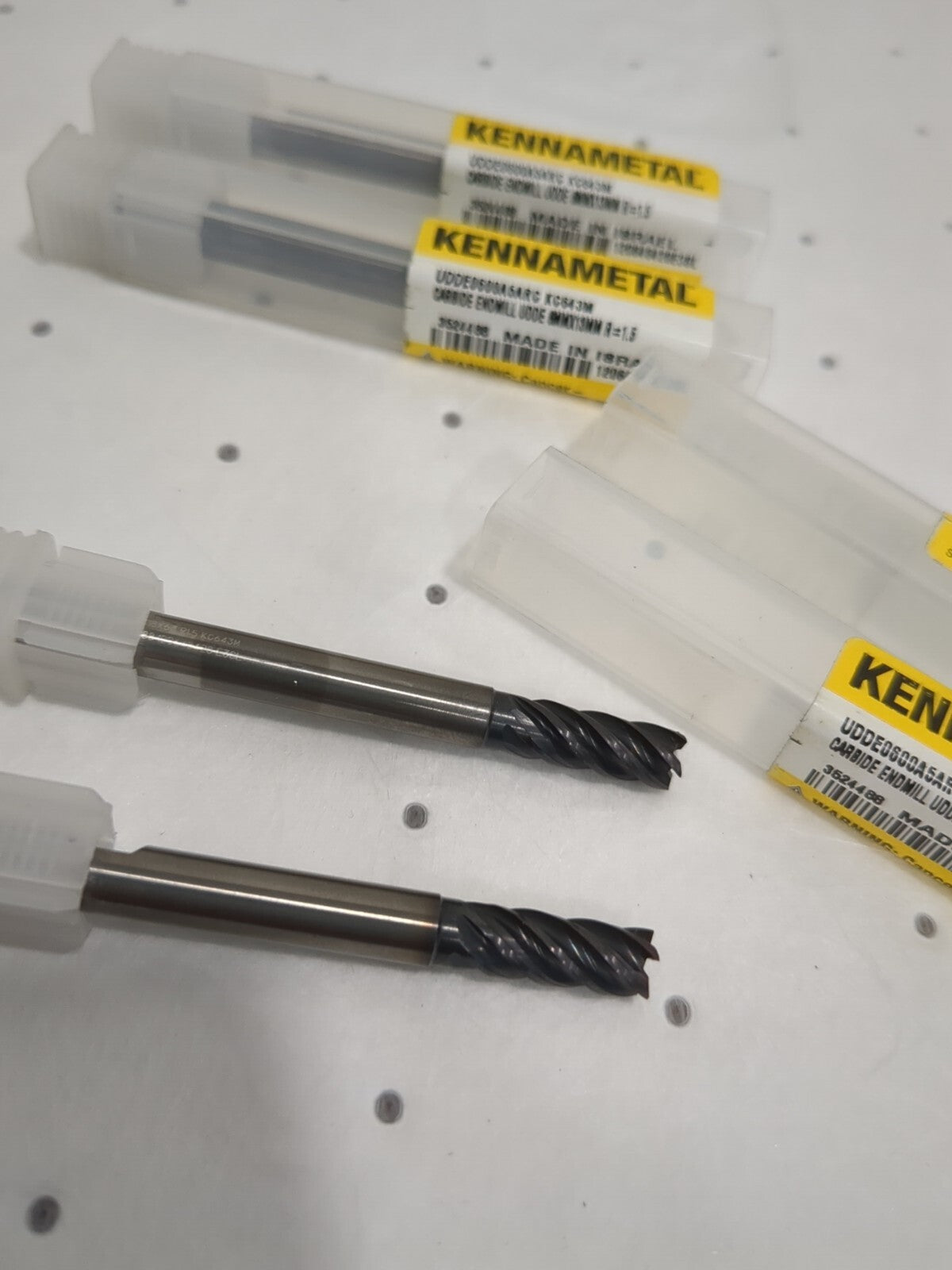

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
