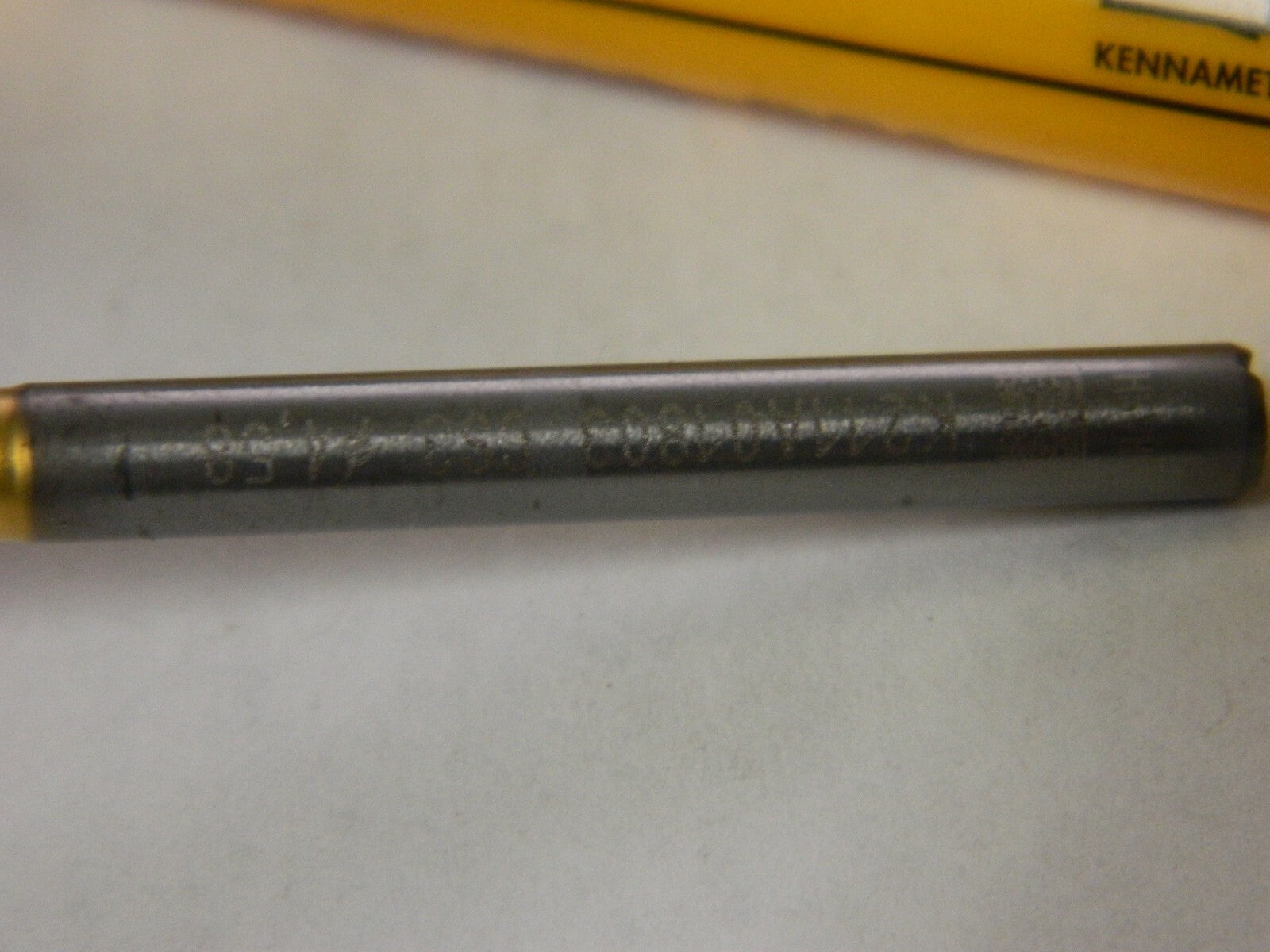

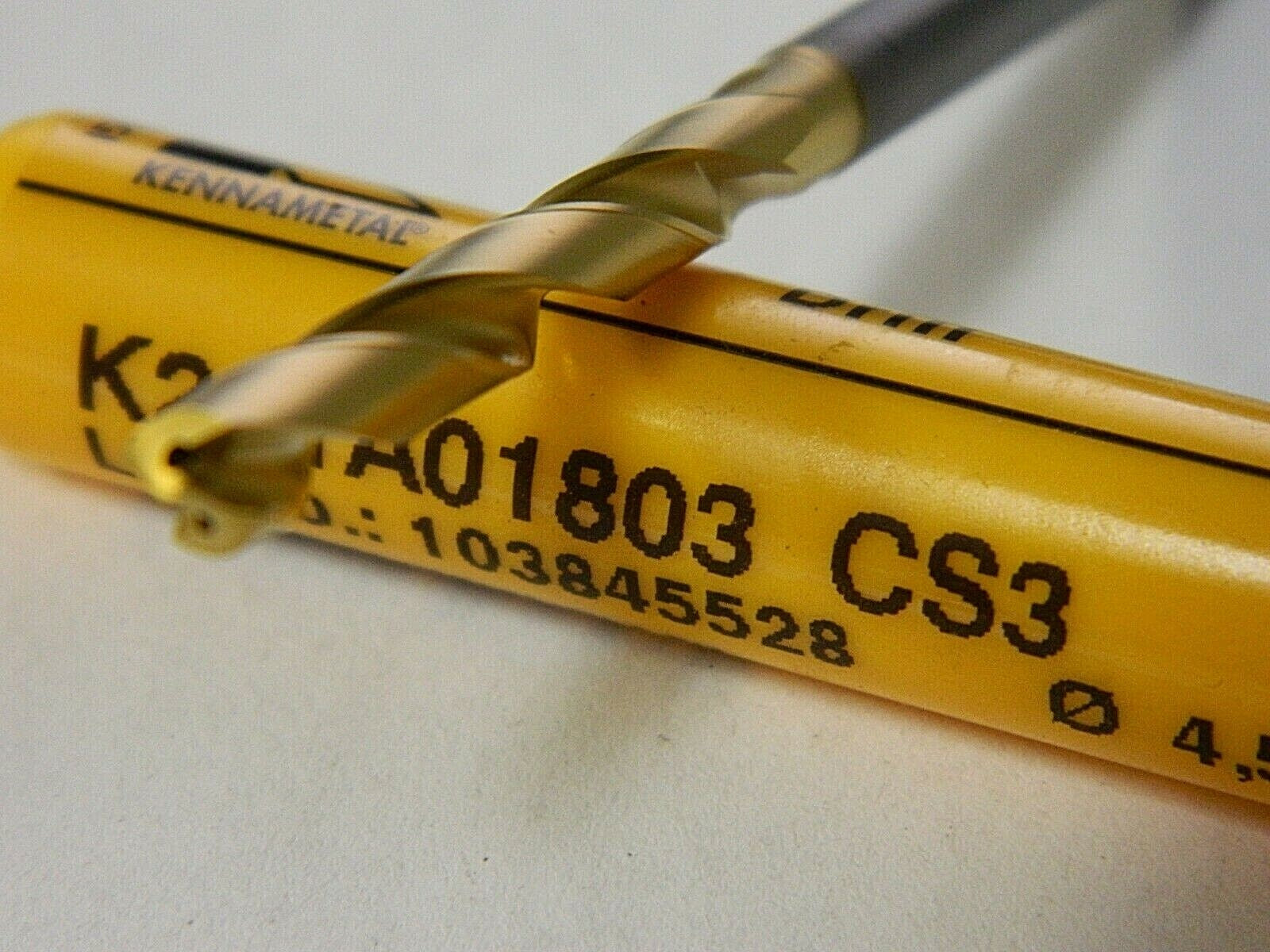

Kennametal 4.58mm 135° Solid Carbide Jobber Drill QTY 2 4099190
Kennametal 4.58mm 135° Solid Carbide Jobber Drill QTY 2 4099190
Regular price
$51.89 USD
Regular price
$110.00 USD
Sale price
$51.89 USD
Shipping calculated at checkout.
Kennametal
MSRP: $110.00
Model: 4099190
Description:
Drill Bit Size (mm) : 4.58
Drill Bit Size (Decimal Inch) : 0.1803
Drill Point Angle: 135
Drill Bit Material: Solid Carbide
Drill Bit Finish/Coating: Multilayer TiCN
Flute Type: Spiral
Cutting Direction: Right Hand
Shank Type: Straight
Coolant Through: Coolant Through
Flute Length (mm): 35.00
Flute Length (Decimal Inch): 1.3780 --
Overall Length (mm): 74.00
Overall Length (Decimal Inch): 2.9134 --
Flute Length x Diameter Ratio: 5xD
Point Type: Standard --
Shank Diameter (mm): 4.76 --
Shank Diameter (Inch): 3/16
Shank Diameter (Decimal Inch): 0.1875 --
Maximum Drilling Depth (Decimal Inch): 1.1260 --
Maximum Drilling Depth (mm): 28.60
Spiral Type: Regular Spiral --
Shank Length (mm): 36.50
Shank Length (Decimal Inch): 1.4370 --
Drill Point Length (mm): 0.86 --
Drill Point Length (Decimal Inch): 0.0339 --
Web Configuration: Tapered --
Drill Bit Diameter Tolerance (mm): 0.004 to 0.016 --
Drill Bit Diameter Tolerance (Decimal Inch): 0.0002 to 0.0006 --
Number of Flutes: 2
Material Grade: KCM15
Series/List: K211A-HP
This listing is for One Lot of 2 that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
