Kennametal

 4.2mm 135° Solid Carbide Jobber Drill 4096501

MSRP: $100

• Drill Bit Size (mm) 4.20
• Drill Bit Size (Decimal Inch) 0.1654
• Drill Point Angle 135
• Drill Bit Material Solid Carbide
• Drill Bit Finish/Coating Multilayer TiCN
• Flute Type Spiral
• Cutting Direction Right Hand
• Shank Type Straight
• Coolant Through Coolant Through
• Flute Length (mm) 36.00
• Flute Length (Decimal Inch) 1.4173
• Overall Length (mm) 74.00
• Overall Length (Decimal Inch) 2.9134
• Flute Length x Diameter Ratio 5xD
• Point Type Standard
• Shank Diameter (mm) 6.00
• Shank Diameter (Decimal Inch) 0.2362
• Maximum Drilling Depth (Decimal Inch) 1.1417
• Maximum Drilling Depth (mm) 29.00
• Spiral Type Regular Spiral
• Shank Length (mm) 36.00
• Shank Length (Decimal Inch) 1.4173
• Specification Designation DIN
• Drill Point Length (mm) 0.79
• Drill Point Length (Decimal Inch) 0.0312
• Web Configuration Tapered
• Drill Bit Diameter Tolerance (mm) 0.004 to 0.016
• Drill Bit Diameter Tolerance (Decimal Inch) 0.0002 to 0.0006
• Number of Flutes 2
• Specification Number DIN 6537K
• Material Grade KCM15
• Series/List B211A-HP

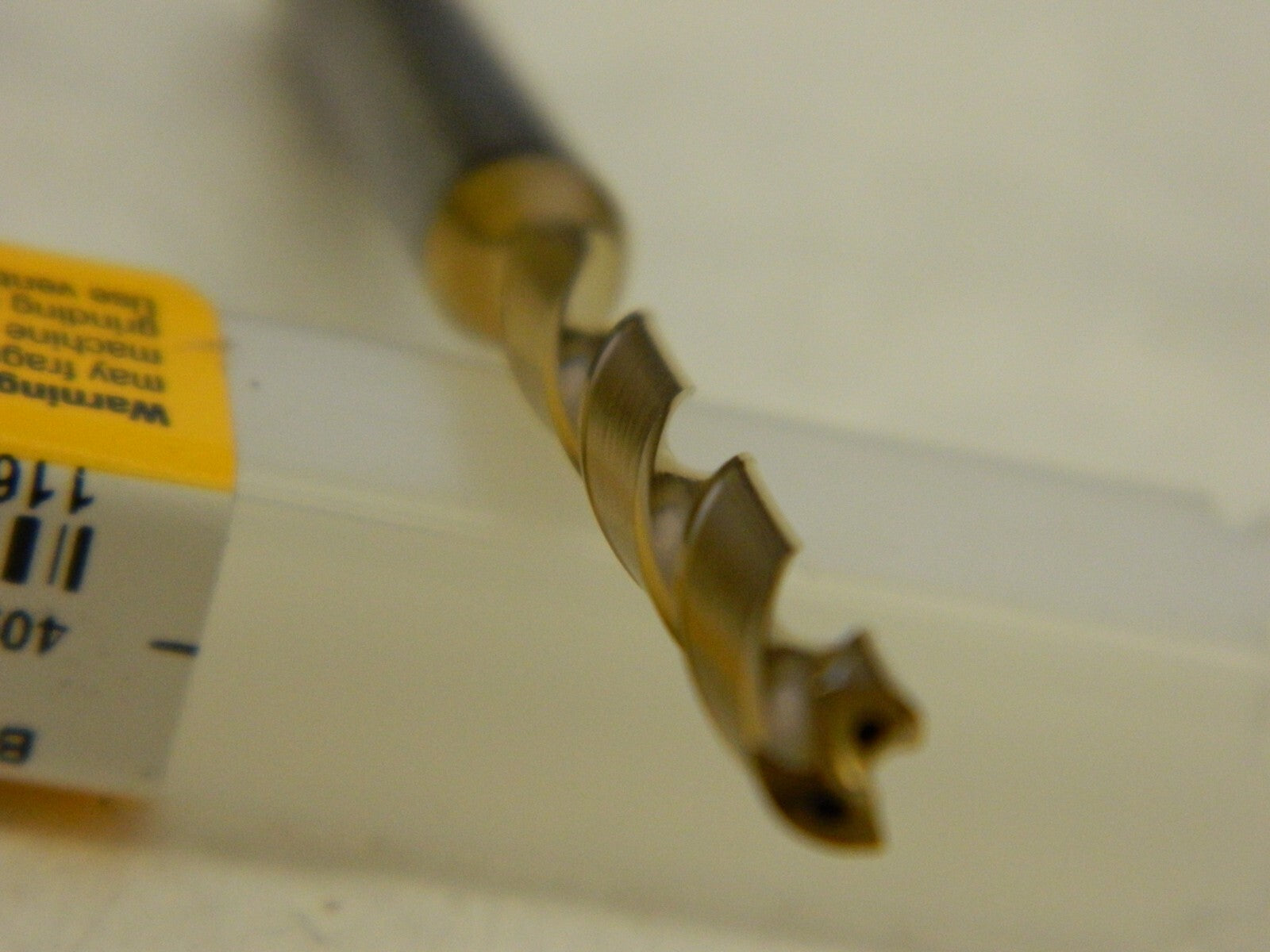

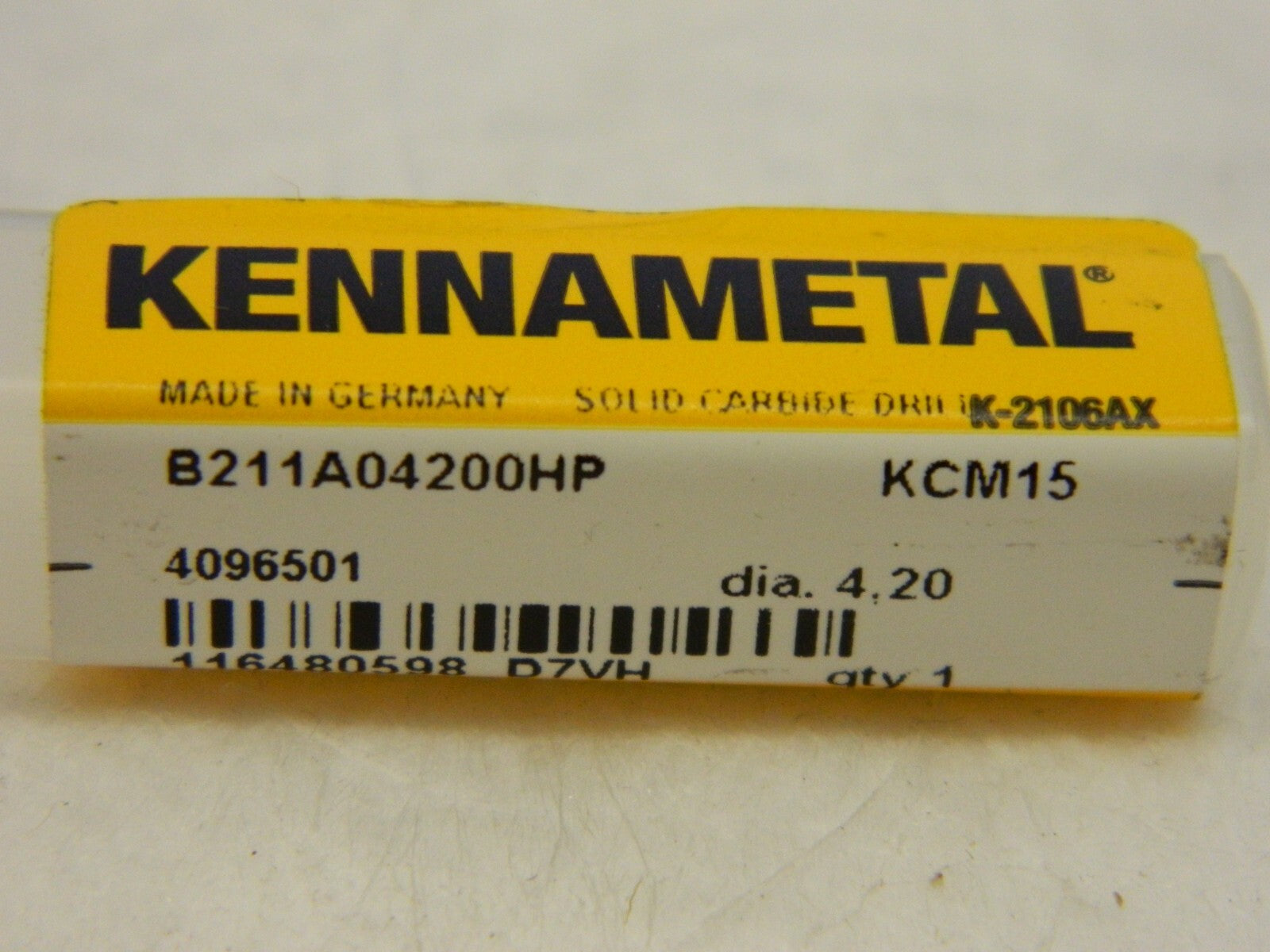

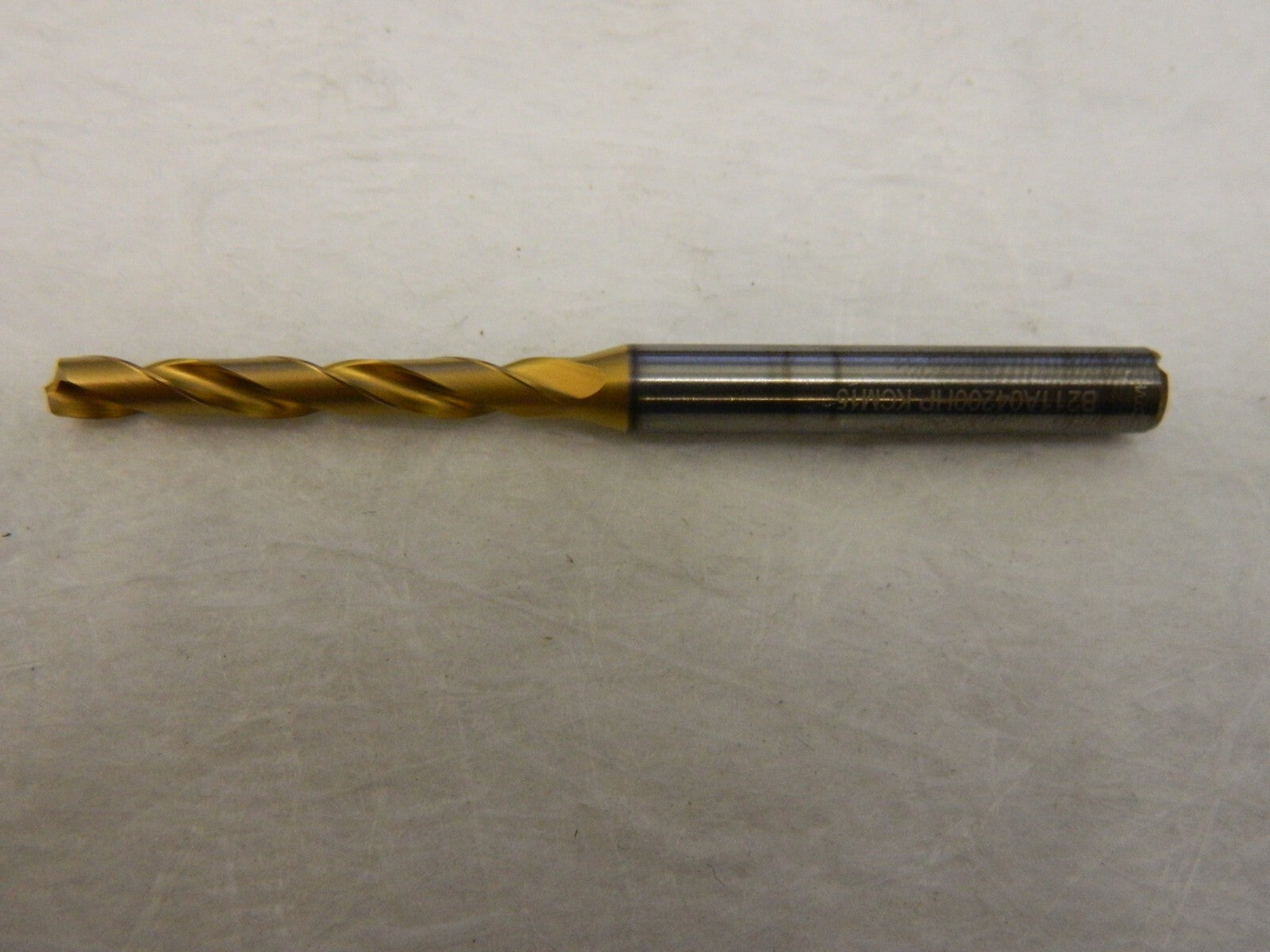

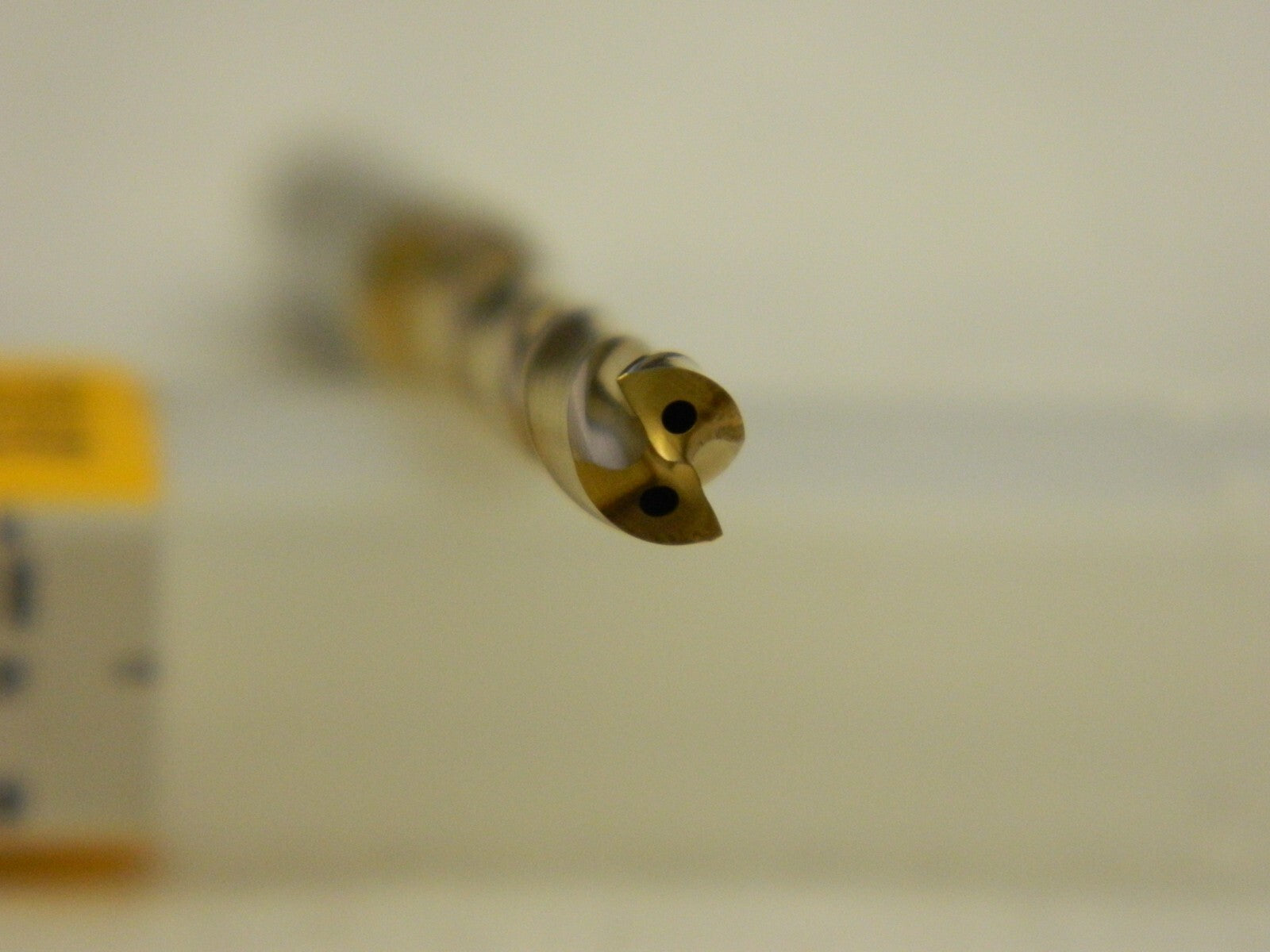

 Please review photos, comes as shown.
