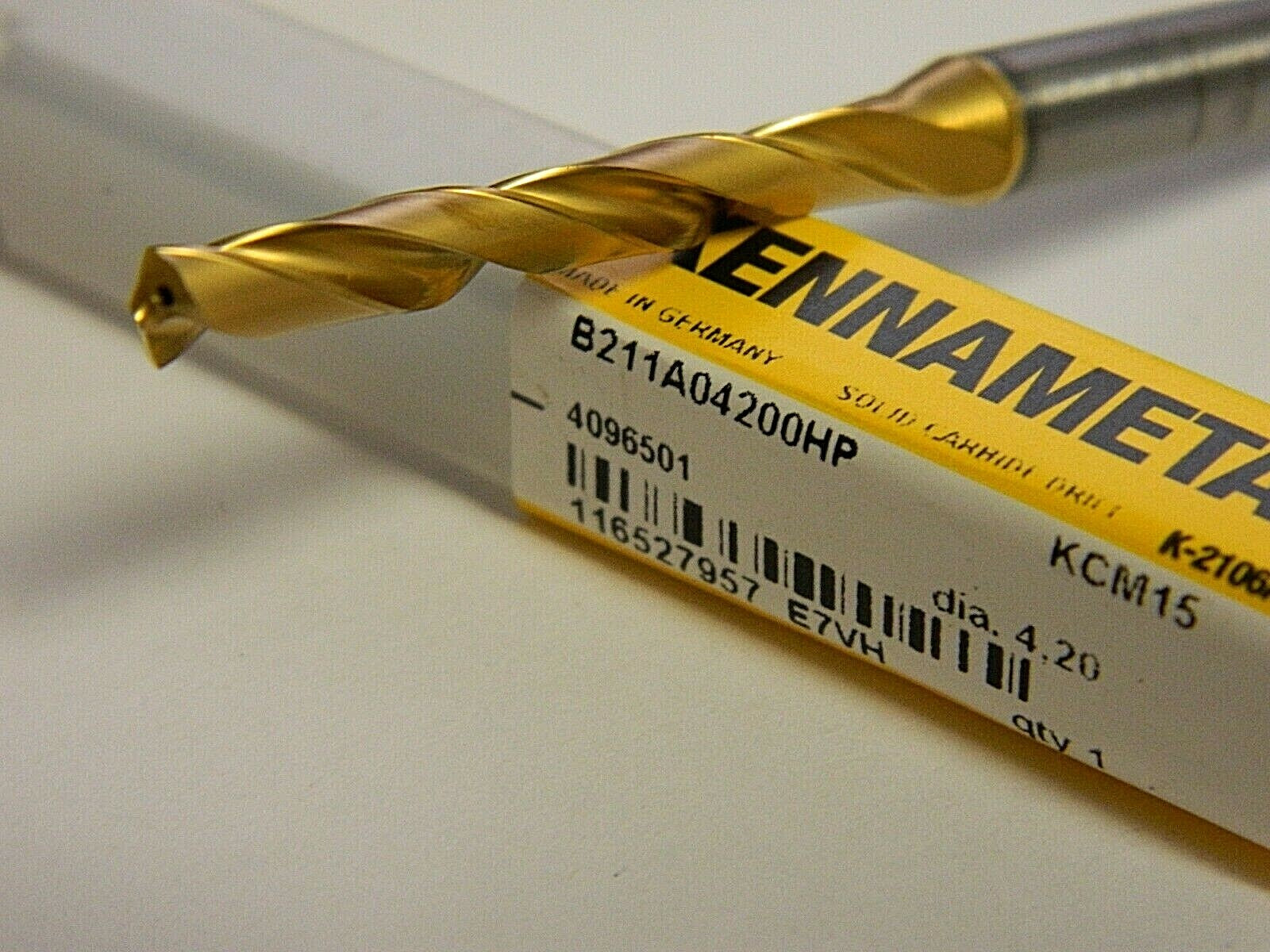

Kennametal 4.2mm 135° Solid Carbide Jobber Drill 4096501
Kennametal 4.2mm 135° Solid Carbide Jobber Drill 4096501
Regular price
$54.47 USD
Regular price
$120.00 USD
Sale price
$54.47 USD
Shipping calculated at checkout.
Couldn't load pickup availability
MSRP: $120.00
Model: 4096501
Description:
Drill Bit Size (mm) 4.20
Drill Bit Size (Decimal Inch) 0.1654
Drill Point Angle 135
Drill Bit Material Solid Carbide
Drill Bit Finish/Coating Multilayer TiCN
Flute Type Spiral
Cutting Direction Right Hand
Shank Type Straight
Coolant Through Coolant Through
Flute Length (mm) 36.00
Flute Length (Decimal Inch) 1.4173
Overall Length (mm) 74.00
Overall Length (Decimal Inch) 2.9134
Flute Length x Diameter Ratio 5xD
Point Type Standard
Shank Diameter (mm) 6.00
Shank Diameter (Decimal Inch) 0.2362
Maximum Drilling Depth (Decimal Inch) 1.1417
Maximum Drilling Depth (mm) 29.00
Spiral Type Regular Spiral
Shank Length (mm) 36.00
Shank Length (Decimal Inch) 1.4173
Specification Designation DIN
Drill Point Length (mm) 0.79
Drill Point Length (Decimal Inch) 0.0312
Web Configuration Tapered
Drill Bit Diameter Tolerance (mm) 0.004 to 0.016
Drill Bit Diameter Tolerance (Decimal Inch) 0.0002 to 0.0006
Number of Flutes 2
Specification Number DIN 6537K
Material Grade KCM15
Series/List B211A-HP
This listing is for One that is in the picture as well as described. Please ask any questions prior to buying!
