Kennametal 3094NR Grade KCU25 Carb Grooving Insert QTY 2 4109920
Kennametal 3094NR Grade KCU25 Carb Grooving Insert QTY 2 4109920
Regular price
$29.37 USD
Regular price
$60.00 USD
Sale price
$29.37 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Kennametal
MSRP: $60.00
Model: 4109920
Description:
Insert Style NR
Insert Size 3094
Material Carbide
Cutting Width (mm) 4.78
Cutting Width (Decimal Inch) 0.1882
Maximum Depth of Cut (mm) 3.81
Maximum Depth of Cut (Decimal Inch) 0.1500
Material Grade C2/C6
Manufacturer's Grade KCU25
Coating AlTiN
Insert Hand Right Hand
Cutting Height (mm) 8.74
Cutting Height (Decimal Inch) 0.3440
Insert Seat Size 3
Multi-Use Tool No
Corner Radius (mm) 2.39
Corner Radius (Decimal Inch) 0.0941
Coating Process PVD
Overall Length (mm) 22.35
Overall Length (Decimal Inch) 0.8799
Series Top Notch
Overall Width (mm) 4.98
Overall Width (Decimal Inch) 0.1960
Included Angle 55

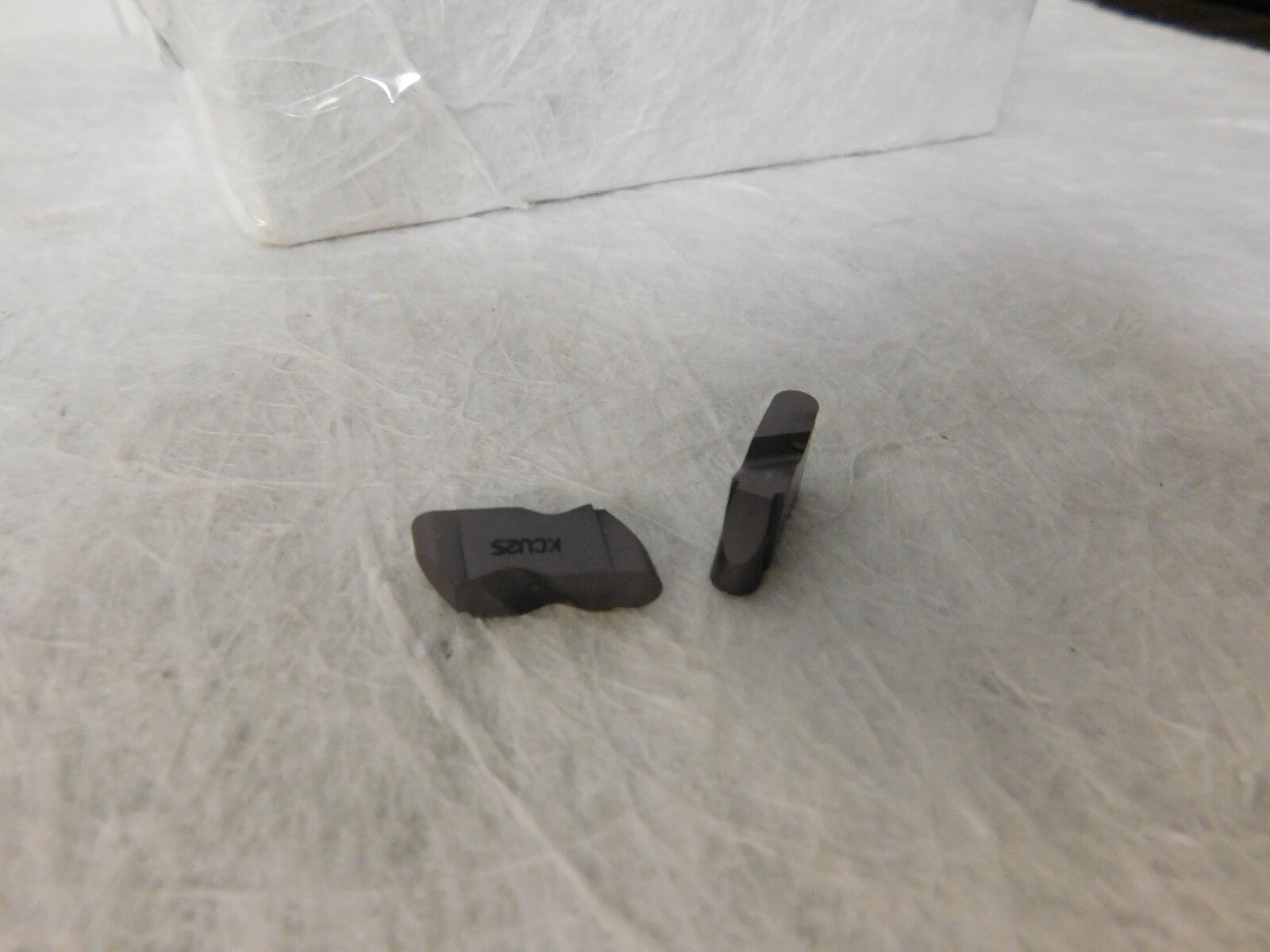

This listing is for One Pack of 2 inserts that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
