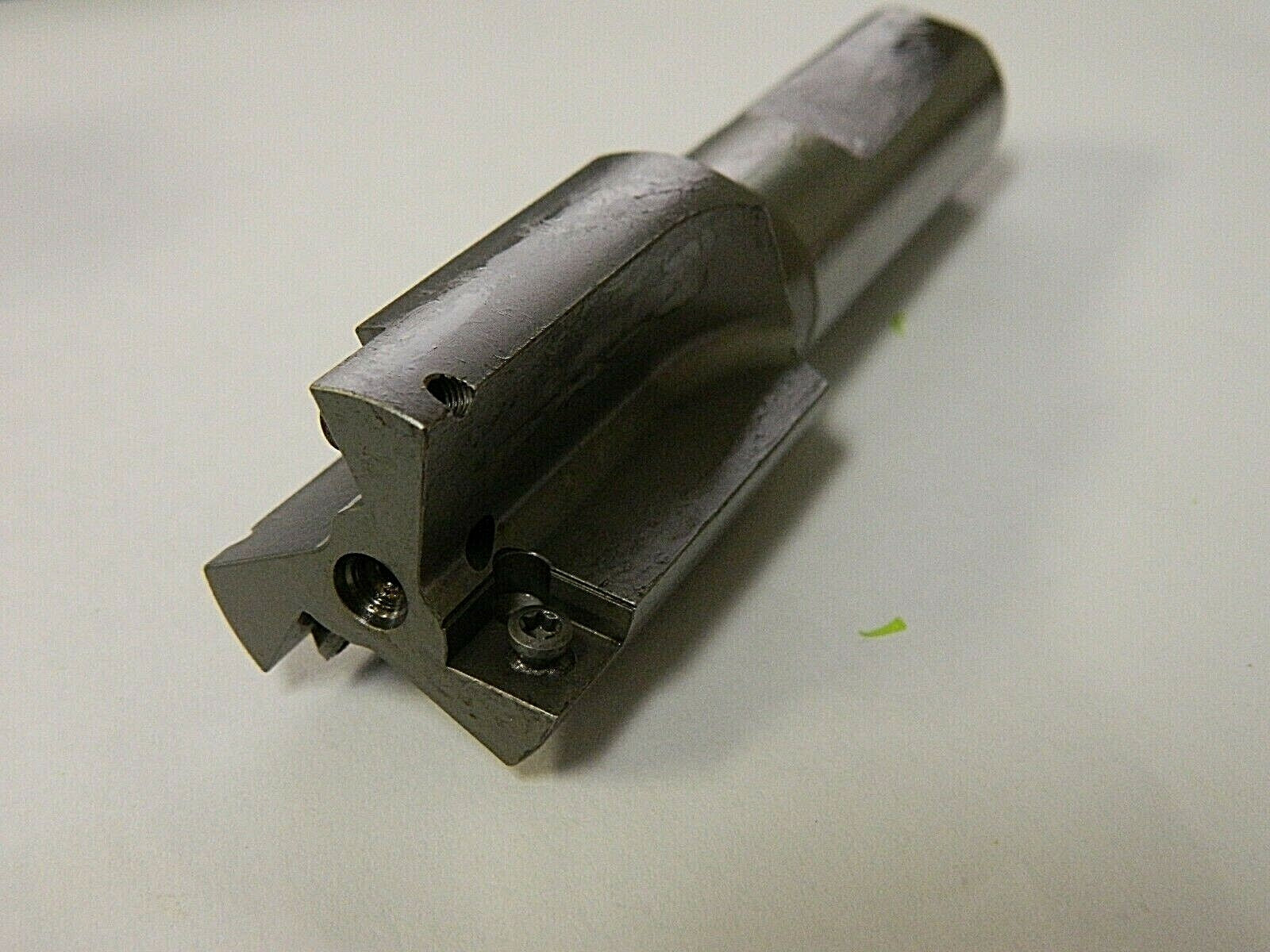

Kennametal 30.17mm Diam 23mm Max Depth 3 Insert Indexable Counterbore 1246166
Kennametal 30.17mm Diam 23mm Max Depth 3 Insert Indexable Counterbore 1246166
Regular price
$88.11 USD
Regular price
$180.00 USD
Sale price
$88.11 USD
Shipping calculated at checkout.
MSRP: $180.00
Model:
Description:
Counterbore Diameter (mm) 30.17
Counterbore Diameter (Decimal Inch) 1.1878
Maximum Counterbore Depth (mm) 23.00
Maximum Counterbore Depth (Decimal Inch) 0.9055
Shank Diameter (mm) 20.00
Shank Diameter (Decimal Inch) 0.7874
Number of Counterbore Inserts 3
Insert Style SPHX 090304R..
Minimum Cutting Diameter (mm) 15.00
Overall Length (mm) 101.00
Overall Length (Decimal Inch) 3.9764
Number of Flutes 3
Toolholder Material Steel
Shank Type Whistle Notch
Series S2S
Through Coolant NonThrough Coolant
Insert Holding Method Screw
Head Length (mm) 51.00
Head Length (Decimal Inch) 2.0079
Shank Length (mm) 50.00
Shank Length (Decimal Inch) 1.9685
This listing is for One that is in the picture as well as described. Please ask any questions prior to buying!
