KENNAMETAL 2pc Milling Insert EDCT180512PDFRLDJ KC410M Solid Carbide 2451578

KENNAMETAL

2pc Milling Insert EDCT180512PDFRLDJ KC410M Solid Carbide 2451578

MSRP: $55

• Insert Style EDCT
• Insert Size 18
• Insert Material Solid Carbide
• Insert Shape Parallelogram
• Manufacturer Grade KC410M
• Corner Radius (Decimal Inch) 0.0472
• Corner Radius (mm) 1.20
• Number Of Cutting Edges 2
• Thickness (Decimal Inch - 4 Decimals) 0.2165
• Coating/Finish Titanium Diboride
• Relief Angle 15.00
• Insert Size Code 1812
• Inscribed Circle (Decimal Inch) 0.4319
• Thickness Range (Decimal Inch) 0.2000 to 0.2200
• Corner Radius (Inch) 3/64
• Inscribed Circle Range (Decimal Inch) 0.4000 to 0.5000
• Length Range (Decimal Inch) 0.7000 to 0.9000
• Insert Hand Right Hand
• Series EDCT
• Coating Process PVD
• Rake Positive
• Primary Workpiece Material Non-Ferrous Metal
• Primary Workpiece Material Code N
• Ansi Code EC1812FJ
• Iso Code EDCT180512PDFRLDJ
• Standards ISO; ANSI
• Cutting Edge Style Sharp
• Manufacturers Catalog Number EDCT180512PDFRLDJ
• Cutter Series Compatibility Mill 1-18
• Chip Breaker LD
• UNSPSC Code 23291601
• Material Application Non-Ferrous Metal
• Insert Holding Method Screw
• Coating Classification PVD
• Single or Double Sided Insert Single
• Included Angle Degree 70
• Width (Decimal Inch - 4 Decimals) 0.4319
• Multi-Use Tool Yes
• Length (Decimal Inch - 4 Decimals) 0.8570
• Country of Origin UNITED STATES
• Ordered as Part # 2451578

(Description).

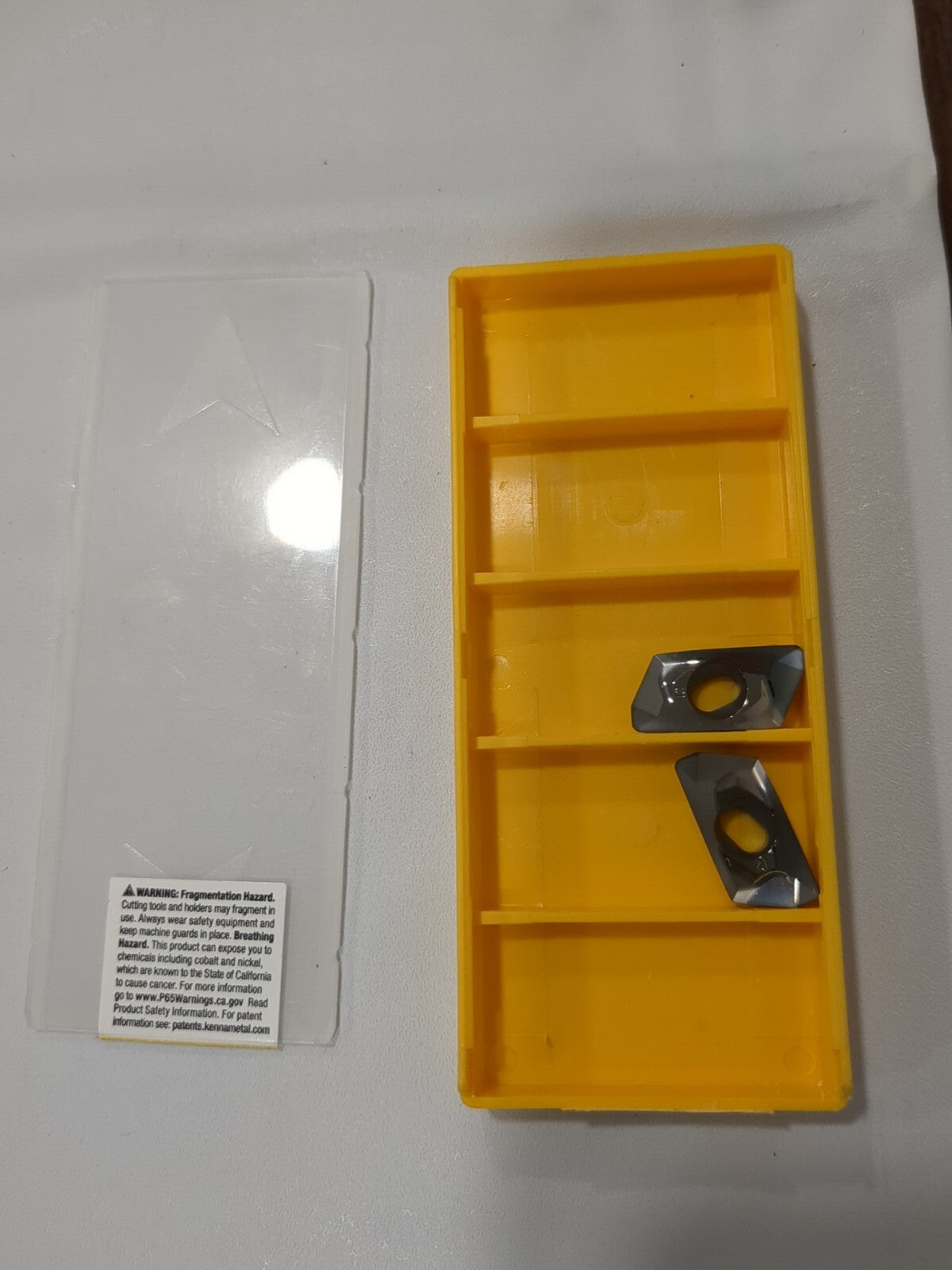

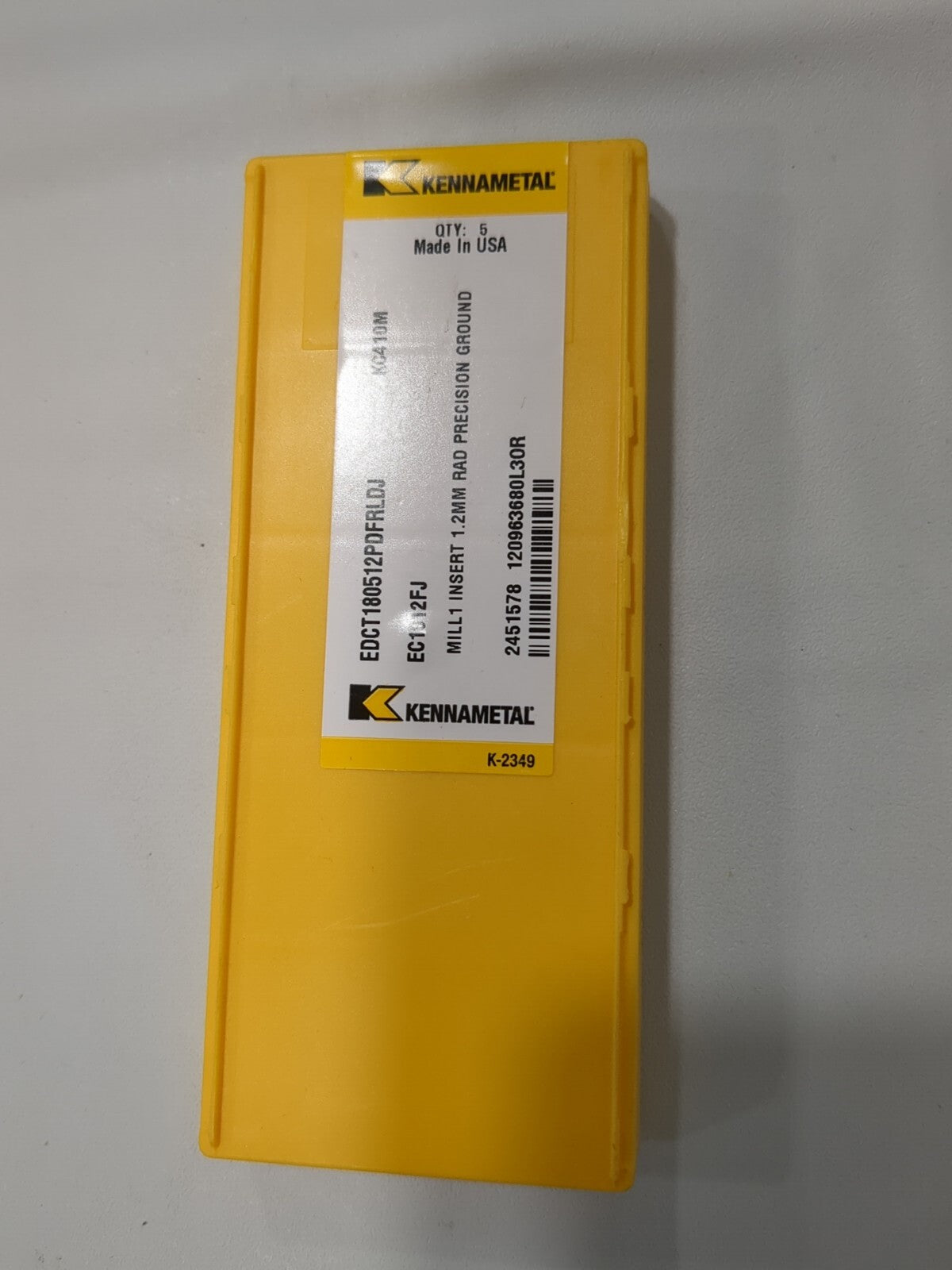

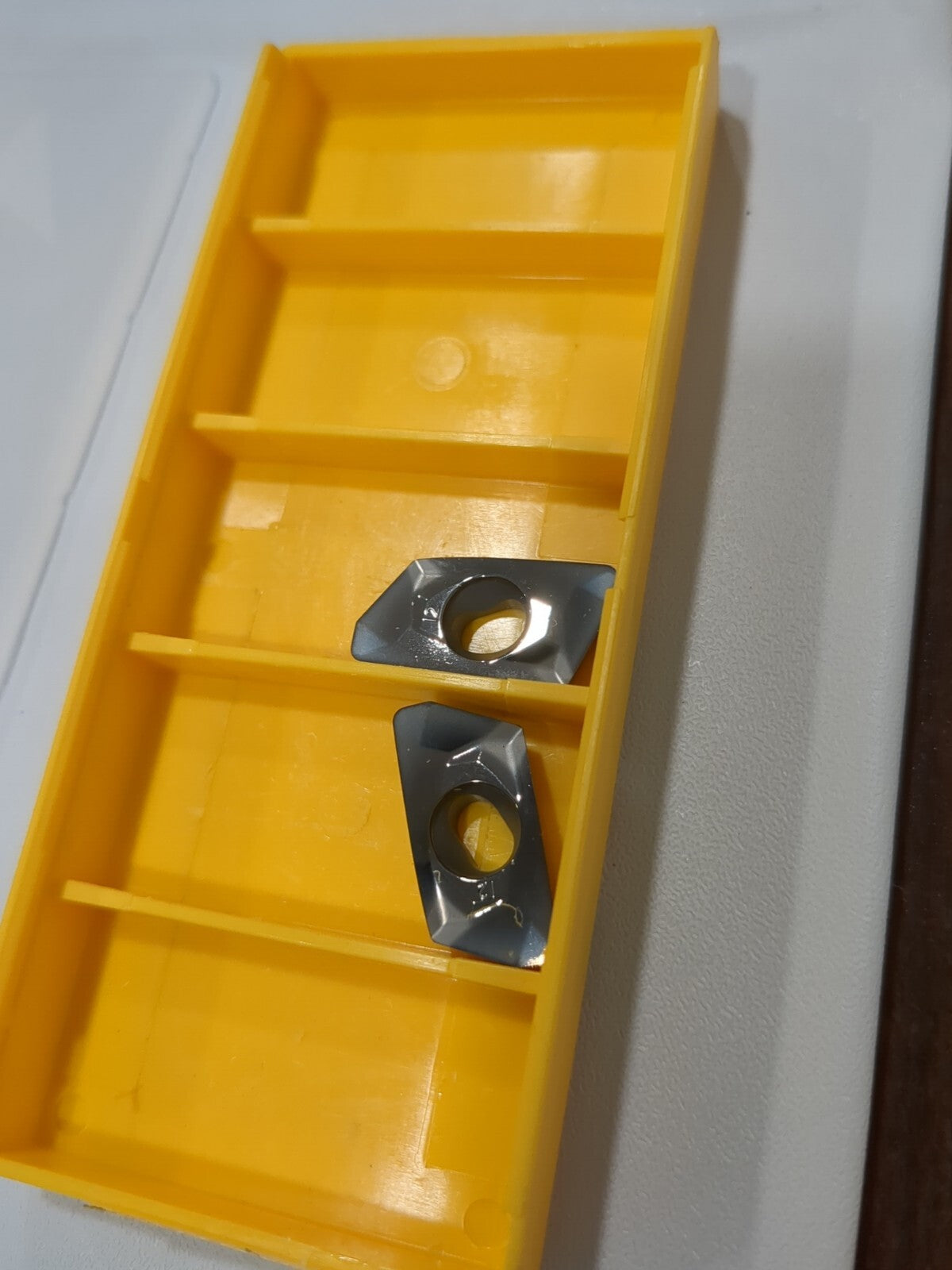

Please review photos, comes as shown.
