Kennametal 2.3mm 140° Spiral Flute Solid Carbide Screw Machine Drill Bit 4148812

Kennametal
Screw Machine Drill Bit

MSRP: $60

• Drill Bit Size (Decimal Inch) 0.0906
• Drill Bit Size (mm) 0.0906in; 2.3mm; 2.30
• Drill Point Angle 140
• Drill Bit Material Solid Carbide
• Drill Bit Finish/Coating Multilayer TiAlN
• Flute Type Spiral
• Overall Length 2.2835in; 58.0mm
• Cutting Direction Right Hand
• Flute Length 0.5118in; 13.0mm
• Drill Bit Size Range (Decimal Inch) 0.0000 - 0.1000
• Drill Bit Size Range (mm) 0.00 - 3.50
• Shank Type Straight
• Coolant Through Yes
• Series B051A-CPG
• Maximum Drilling Depth 0.3937in; 10.0mm
• Shank Length 1.1024in; 28.0mm
• Drill Point Length 0.0143in; 0.36mm
• Flute Length (mm) 13.00
• Flute Length (Decimal Inch) 0.5118
• Overall Length (Inch) 2.2835in
• Overall Length (mm) 58.00
• Flute Length (Inch) 0.5118in; 13.0mm
• Flute Length x Diameter Ratio 3xD
• Point Type Standard
• Drill Bit Diameter Tolerance -0.0006 to 0.0000 in; -0.014 to 0.000 mm
• Shank Diameter (mm) 4.00
• Shank Diameter (Decimal Inch) 0.1575in; 4.0mm
• Specification Designation DIN
• Maximum Drilling Depth (mm) 10.0mm
• Maximum Drilling Depth (Decimal Inch) 0.3937
• Number of Flutes 2
• Spiral Type Regular Spiral
• Shank Length (mm) 28.00
• Shank Length (Decimal Inch) 1.1024in
• Threaded Shank No
• Shank Length (Inch) 1.1024
• Drill Point Length (mm) 0.36mm
• Drill Point Length (Decimal Inch) 0.0143
• Drill Bit Diameter Tolerance (Decimal Inch) -0.0006 to 0.0000
• Web Configuration Tapered
• Drill Bit Diameter Tolerance (mm) -0.0006 to 0.0000 in; -0.014 to 0.000 mm; -0.014 to 0.000
• Drill Tip Finish/Coating None
• Specification Number DIN 6537K
• Series/List B051A-CPG
• Length Type Stub

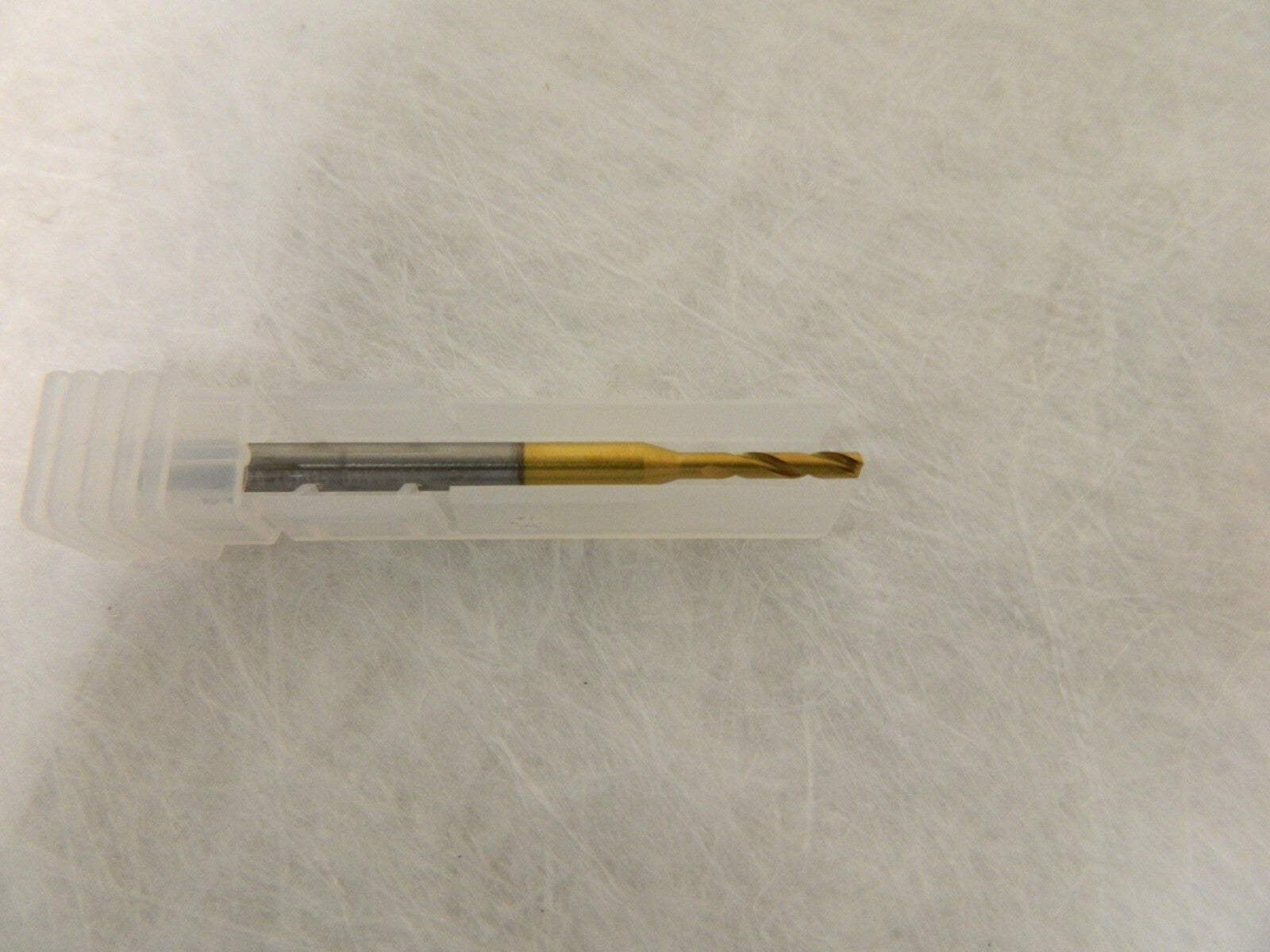

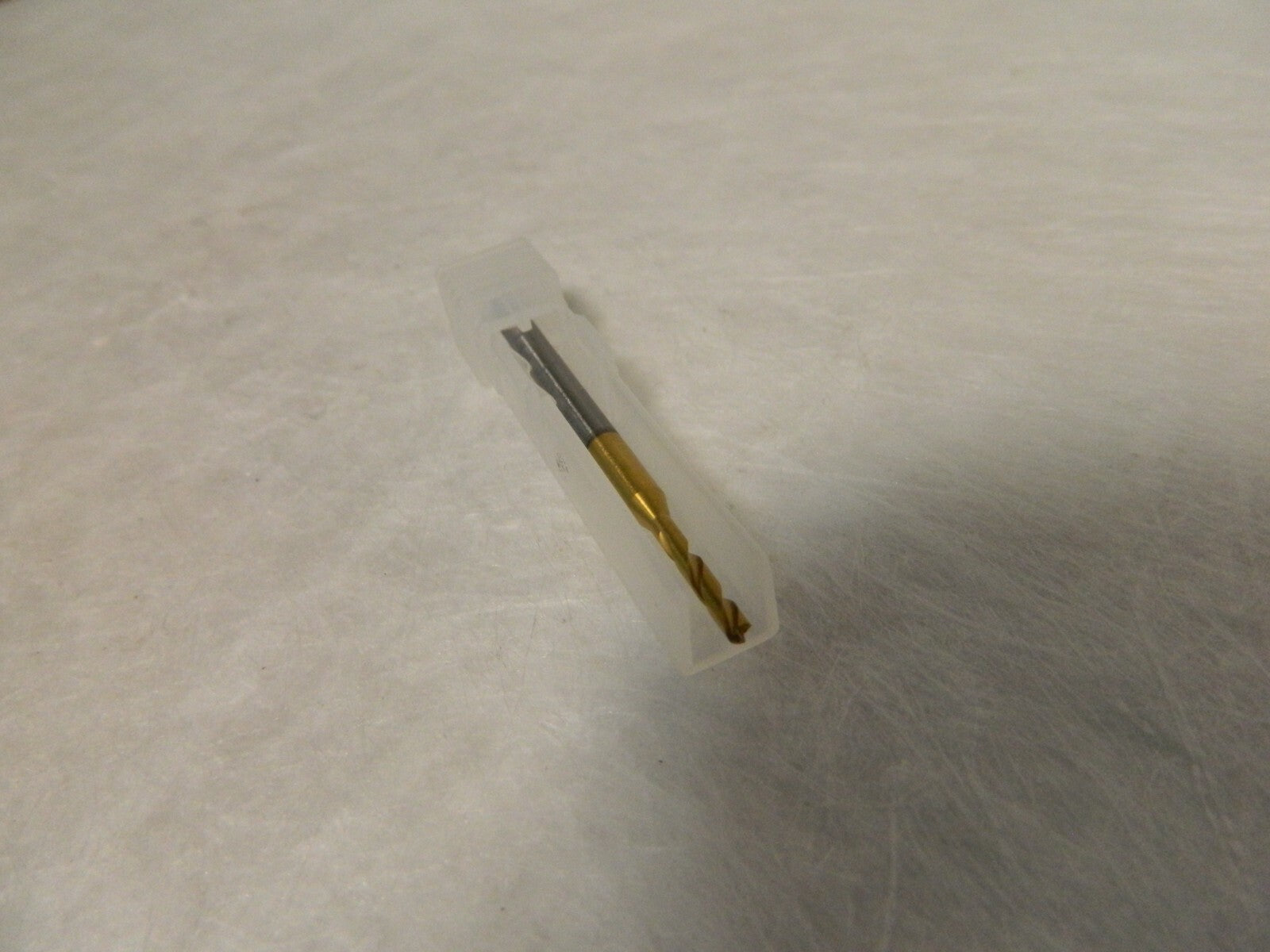

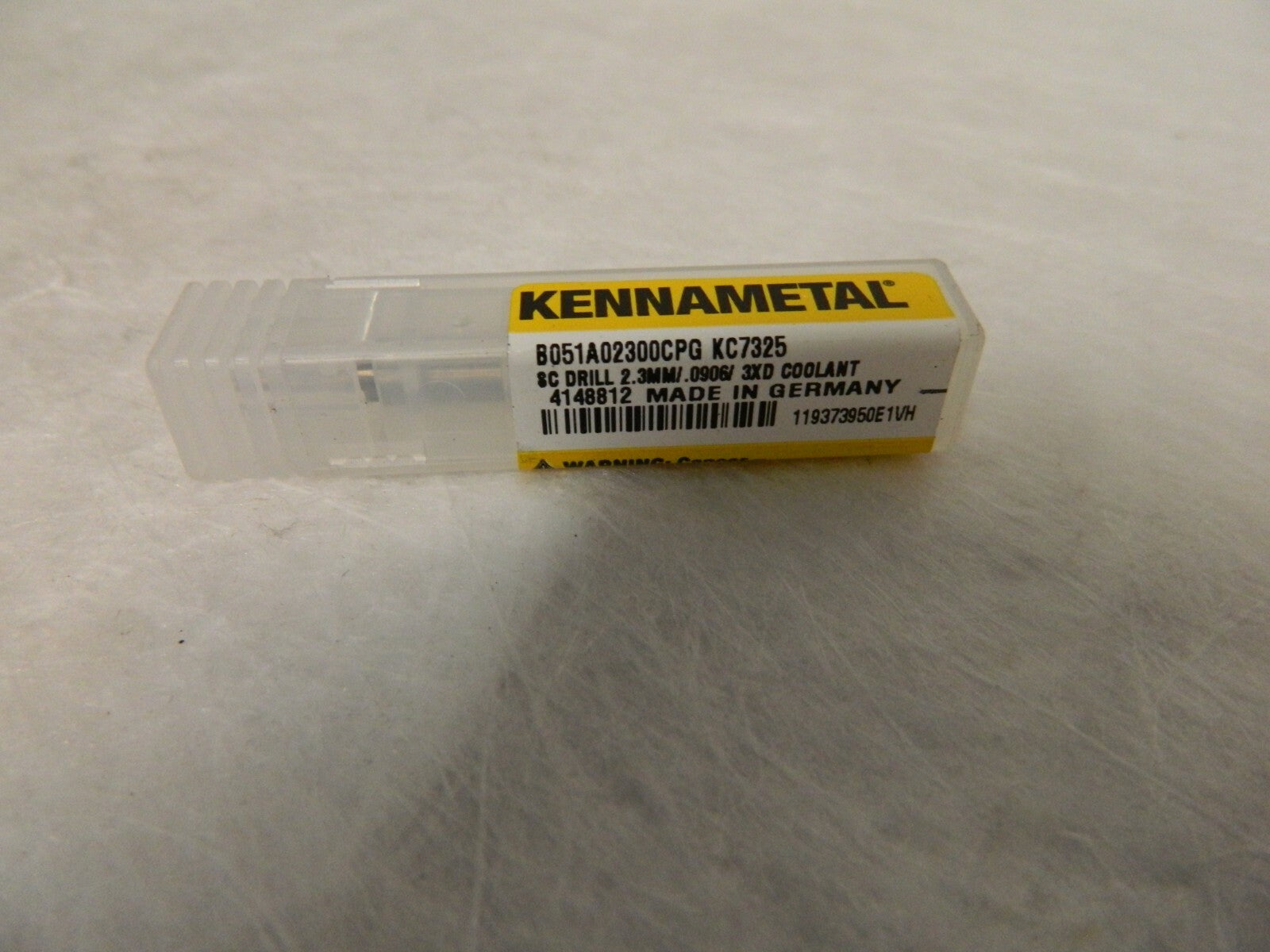

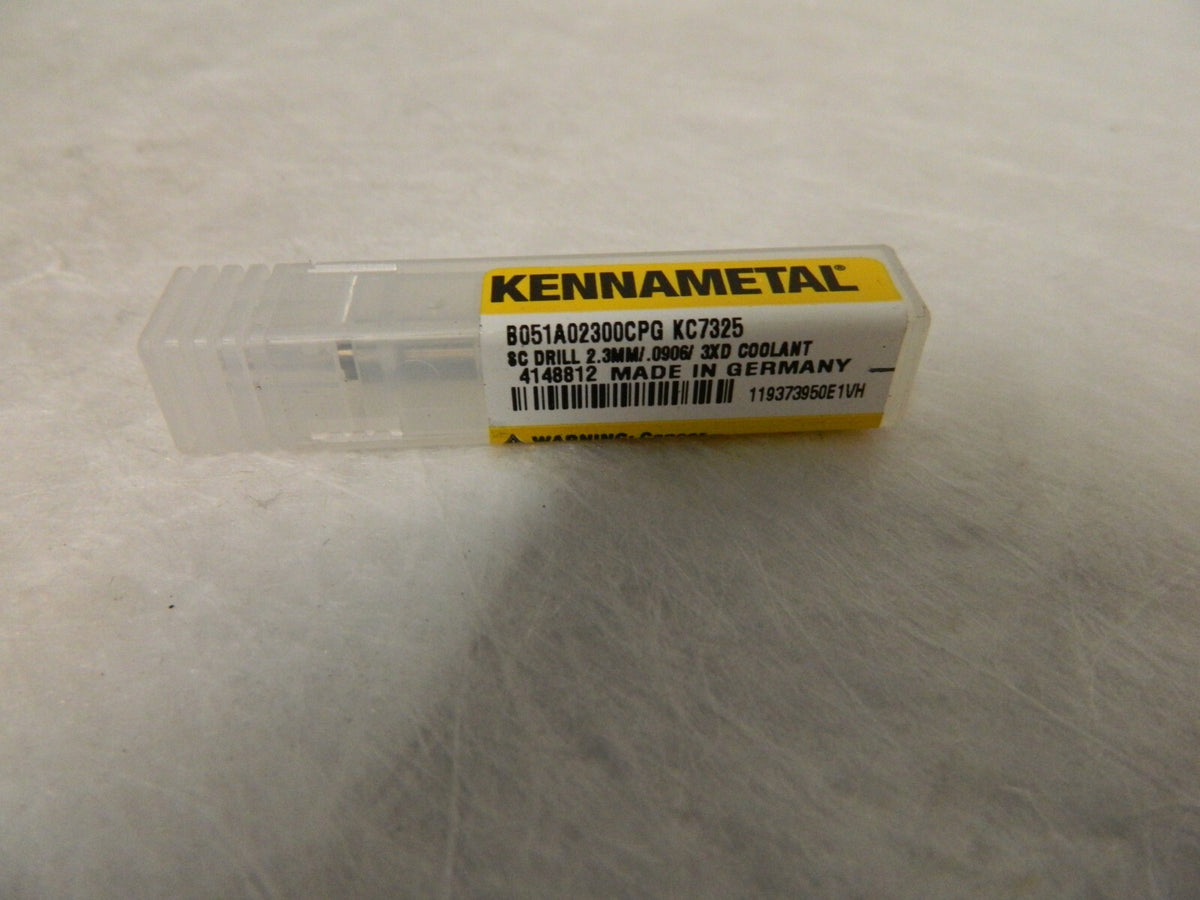

Please review photos, comes as shown.
