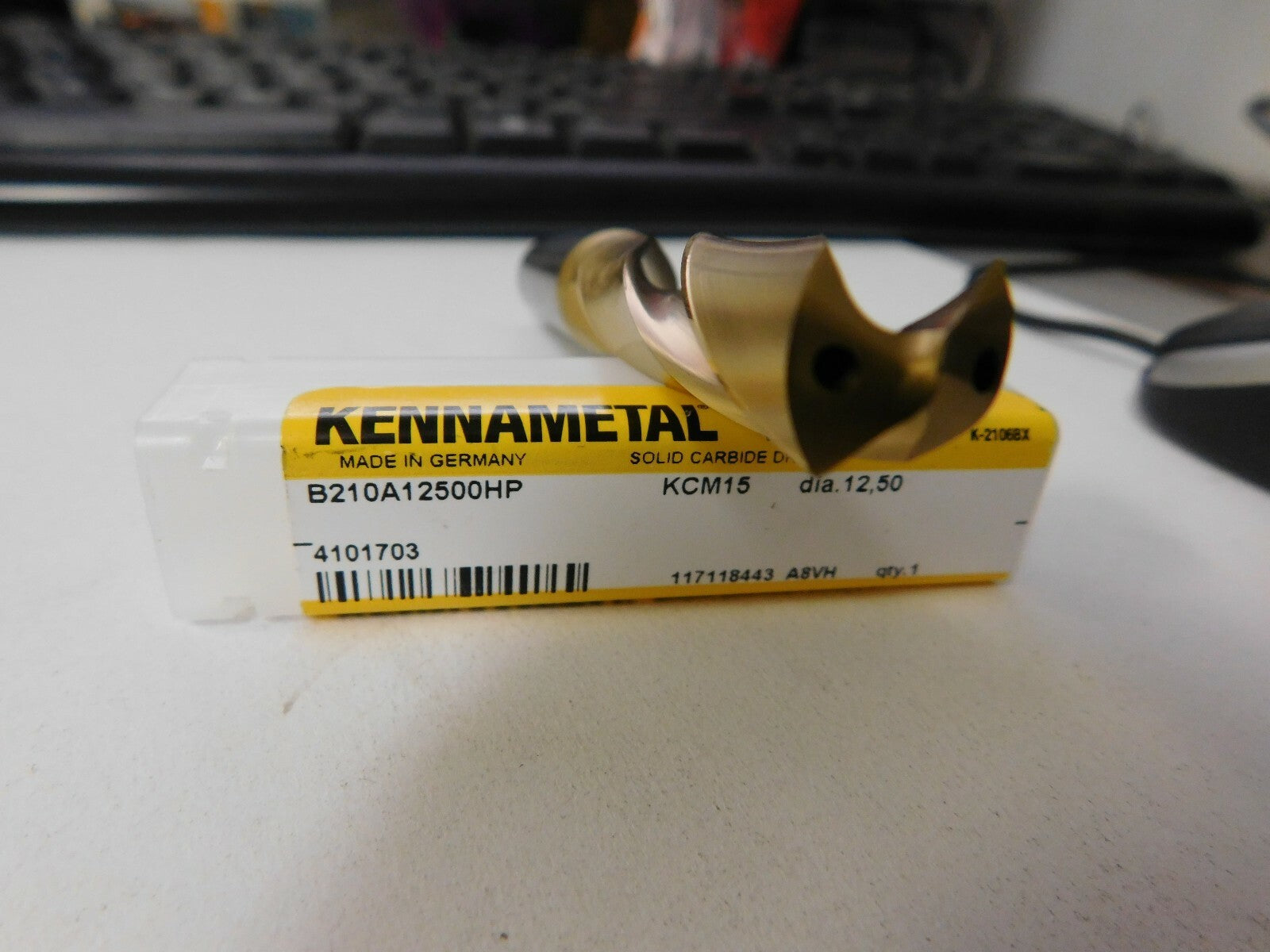

Kennametal 12.5mm 135° Spiral Flute Solid Carbide Screw Machine Drill Bit 410170
Kennametal 12.5mm 135° Spiral Flute Solid Carbide Screw Machine Drill Bit 410170
Regular price
$99.06 USD
Regular price
$210.00 USD
Sale price
$99.06 USD
Shipping calculated at checkout.
Kennametal
MSRP: $210.00
Model: 4101703
Description:
Drill Bit Size (Decimal Inch) : 0.4921
Drill Bit Size (mm) : 12.50
Drill Point Angle: 135
Drill Bit Material: Solid Carbide
Drill Bit Finish/Coating: Multilayer TiCN
Flute Type: Spiral
Cutting Direction: Right Hand
Shank Type: Straight
Flute Length (mm): 60.00
Flute Length (Decimal Inch): 2.3622 --
Overall Length (mm): 107.00
Overall Length (Decimal Inch): 4.2126 --
Flute Length x Diameter Ratio: 3xD
Point Type: Standard SGL Point
Shank Diameter (mm): 14.00
Shank Diameter (Decimal Inch): 0.5512 --
Specification Designation: DIN --
Maximum Drilling Depth (mm): 43.00
Maximum Drilling Depth (Decimal Inch): 1.6929 --
Spiral Type: Regular Spiral
Shank Length (mm): 45.00
Shank Length (Decimal Inch): 1.7717 --
Threaded Shank: No --
Number of Flutes: 2
Drill Point Length (mm): 2.33 1.85
Drill Point Length (Decimal Inch): 0.0917 --
Web Configuration: Tapered --
Drill Bit Diameter Tolerance (mm): +0.007 to +0.025 --
Drill Bit Diameter Tolerance (Decimal Inch): +0.0003 to +0.0010 --
Drill Tip Finish/Coating: None
Specification Number: DIN 6537K --
Series/List: B210A-HP
Length Type: Stub
This listing is for One Carbide Screw Machine Drill Bit that is in the picture as well as described. Please ask any questions prior to buying!
