Kennametal #11 135° Solid Carbide Jobber Drill 4096509
Kennametal #11 135° Solid Carbide Jobber Drill 4096509
Regular price
$49.93 USD
Regular price
$110.00 USD
Sale price
$49.93 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Kennametal
MSRP: $110.00
Model: 4096509
Description:
Drill Bit Size (Wire) : #11
Drill Bit Size (Decimal Inch) : 0.1910
Drill Point Angle: 135
Drill Bit Material: Solid Carbide
Drill Bit Finish/Coating: Multilayer TiCN
Flute Type: Spiral
Cutting Direction: Right Hand
Shank Type: Straight
Coolant Through: Yes
Flute Length (mm): 44.00
Flute Length (Decimal Inch): 1.7323
Overall Length (mm): 82.00
Overall Length (Decimal Inch): 3.2283 --
Flute Length x Diameter Ratio: 5xD
Point Type: Standard --
Shank Diameter (mm): 6.00
Shank Diameter (Decimal Inch): 0.2362 --
Maximum Drilling Depth (Decimal Inch): 1.3780
Maximum Drilling Depth (mm): 35.00
Spiral Type: Regular Spiral --
Shank Length (mm): 36.00
Shank Length (Decimal Inch): 1.4173
Specification Designation: DIN --
Drill Point Length (mm): 0.91
Drill Point Length (Decimal Inch): 0.0359
Web Configuration: Tapered --
Drill Bit Diameter Tolerance (mm): 0.004 to 0.016 --
Drill Bit Diameter Tolerance (Decimal Inch): 0.0002 to 0.0006 --
Number of Flutes: 2
Specification Number: DIN 6537K --
Material Grade: KCM15
Series/List: B211A-HP

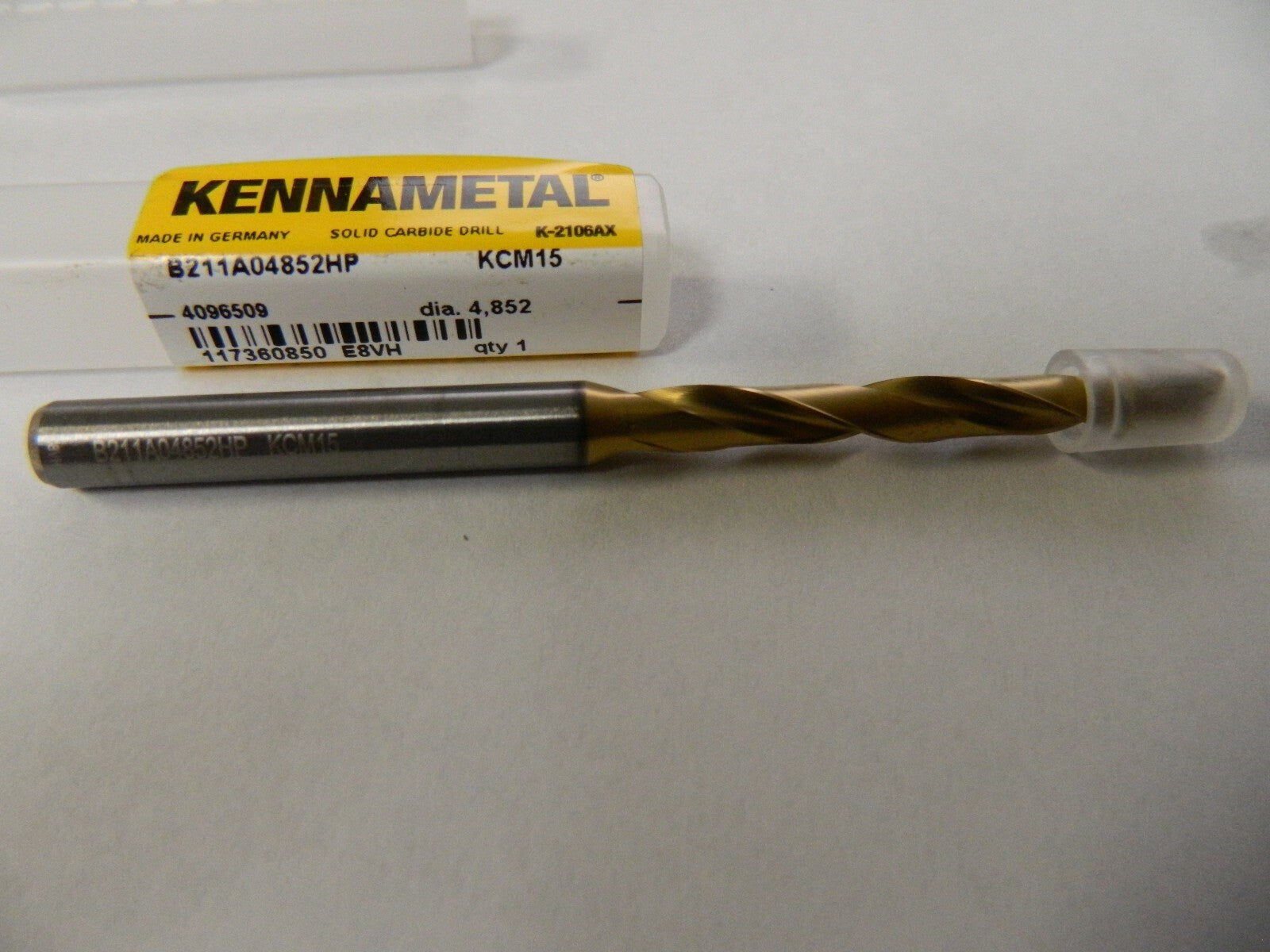

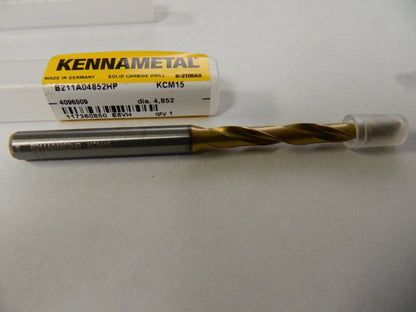

This listing is for One Bit that is in the picture as well as described. Please ask any questions prior to buying!
Florida customer's are required to pay a 7% sales tax.
