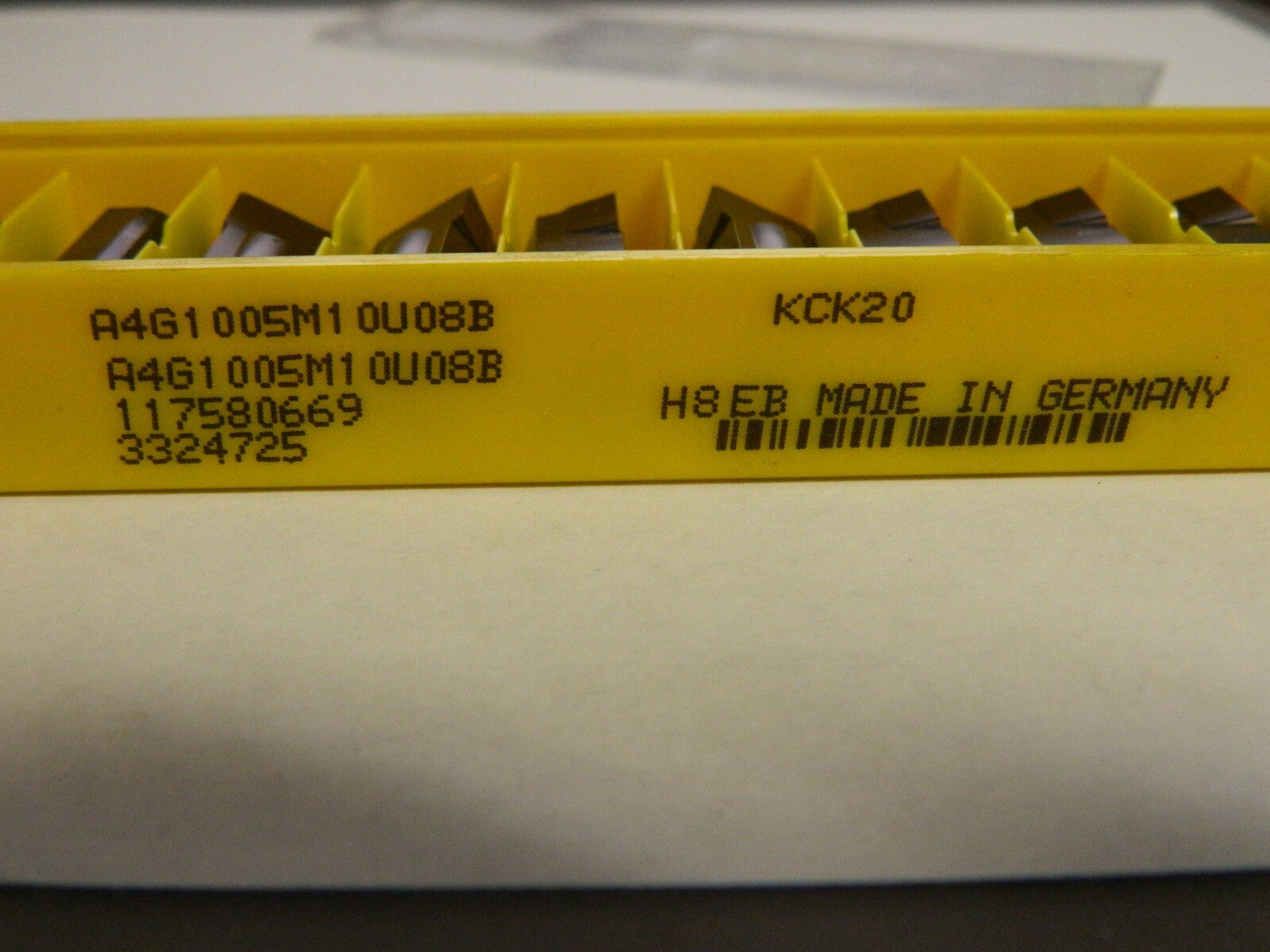

Kennametal 1005G B Grade KCK20 10.05mm CW Carbide Grooving Insert QTY 10 3324725
Kennametal 1005G B Grade KCK20 10.05mm CW Carbide Grooving Insert QTY 10 3324725
Regular price
$102.80 USD
Regular price
$210.00 USD
Sale price
$102.80 USD
Shipping calculated at checkout.
Couldn't load pickup availability
MSRP: $210.00
Model:
Description:
Insert Style G
Insert Size 1005
Material Carbide
Cutting Width (mm) 10.05
Cutting Width (Decimal Inch) 0.3957
Maximum Depth of Cut (mm) 8.10
Maximum Depth of Cut (Decimal Inch) 0.3190
Material Grade C3/C4
Manufacturer's Grade KCK20
Coating TiCN/Al2O3
Insert Hand Neutral
Cutting Height (mm) 8.76
Cutting Height (Decimal Inch) 0.3450
Insert Seat Size 10
Chipbreaker B
Multi-Use Application Grooving; Turning
Multi-Use Tool Yes
Corner Radius (mm) 0.79
Corner Radius (Decimal Inch) 0.0310
Coating Process CVD
Overall Length (mm) 30.00
Overall Length (Decimal Inch) 1.1810
Series A4
Included Angle 90
Series Number A4
Material Grade C3/C4
Material Carbide
Insert Seat Size 10
Overall Length (mm) 30.00
Maximum Depth of Cut (mm) 8.10
Insert Style G
Series A4
Series A4
Maximum Depth of Cut (mm) 8.10
Maximum Depth of Cut (Decimal Inch) 0.3190
Material Carbide
Material Grade C3/C4
Manufacturer's Grade KCK20
Insert Style G
Insert Size 1005
Corner Radius (Inch) 0.0310
Coating Process CVD
Coating TiCN/Al2O3
Single/DoubleEnd Double
Multi Use Application Grooving; Turning
MultiUseTool Yes

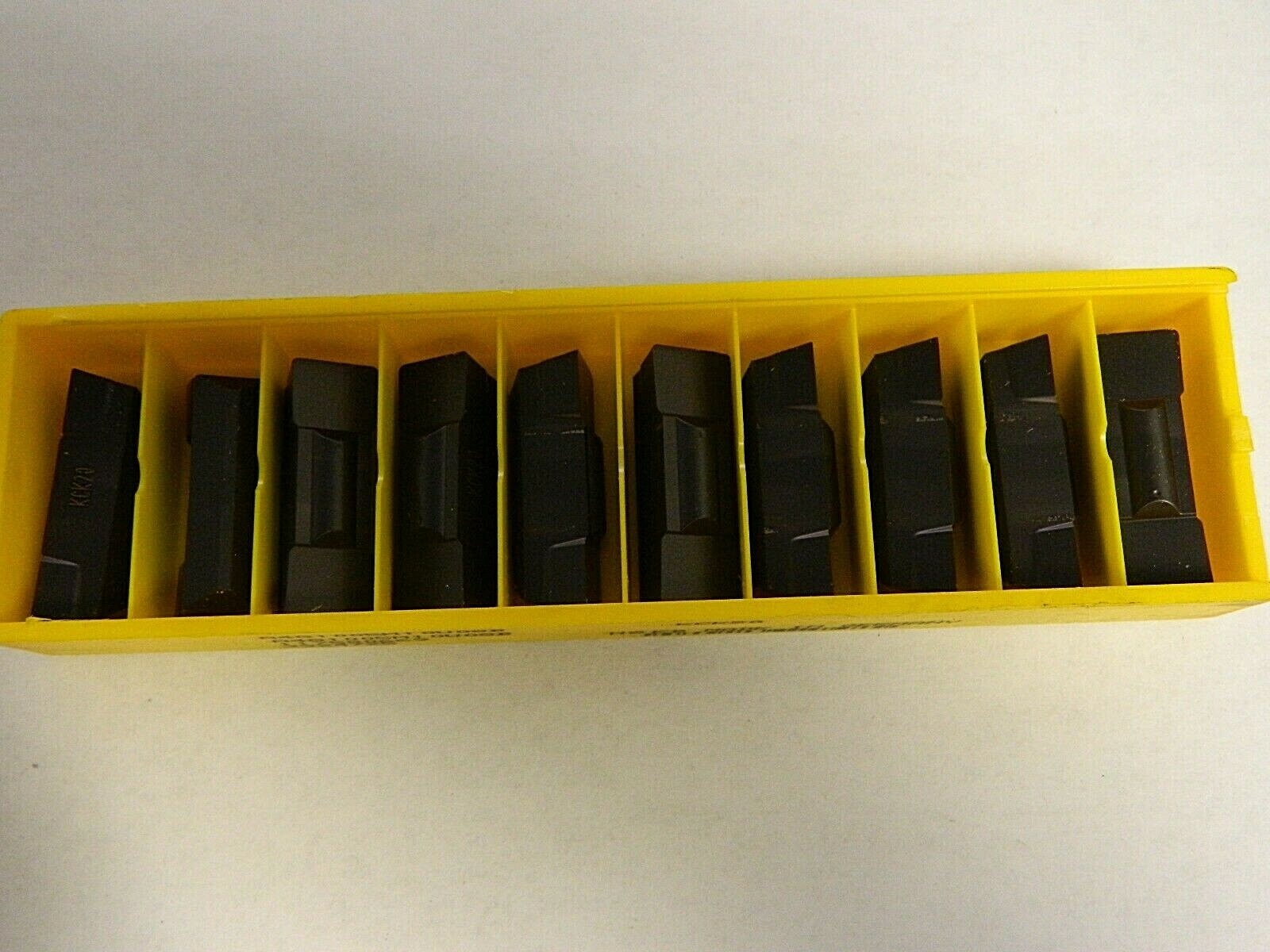

This listing is for One Pack of 10 that is in the picture as well as described. Please ask any questions prior to buying!
