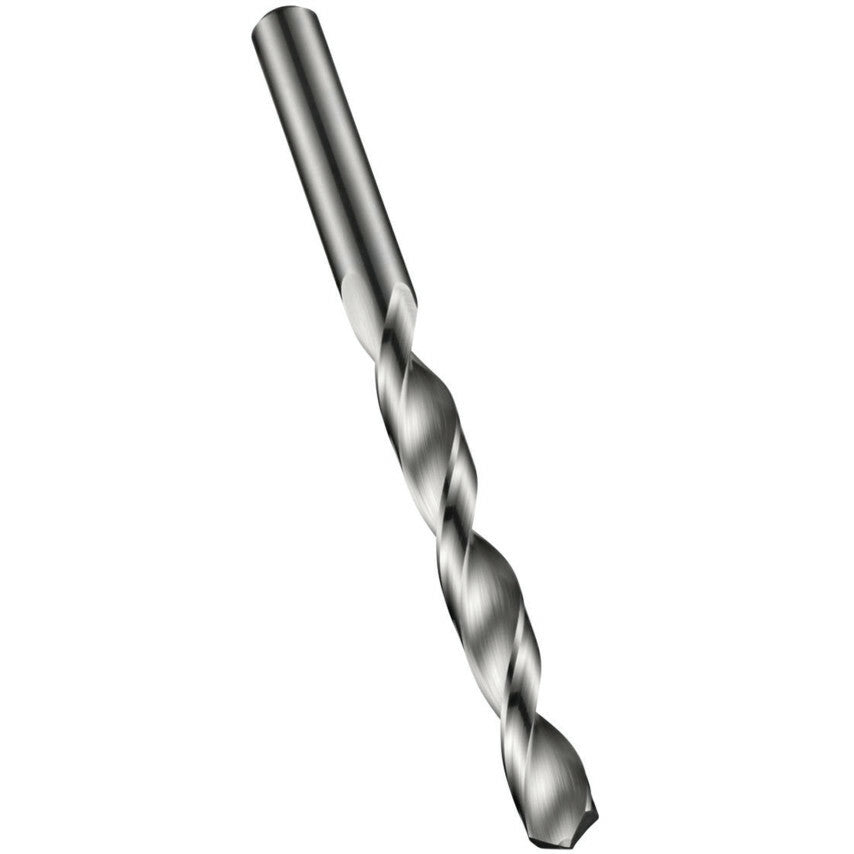

Kennametal 10.3mm 135° Solid Carbide Jobber Drill 4099807
Kennametal 10.3mm 135° Solid Carbide Jobber Drill 4099807
Regular price
$51.89 USD
Regular price
$110.00 USD
Sale price
$51.89 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Kennametal
MSRP: $110.00
Model: 4099807
Description:
Drill Bit Size (mm) : 10.30
Drill Bit Size (Decimal Inch) : 0.4055
Drill Point Angle: 135
Drill Bit Material: Solid Carbide
Drill Bit Finish/Coating: Multilayer TiCN
Flute Type: Spiral
Cutting Direction: Right Hand
Shank Type: Straight
Coolant Through: Yes
Flute Length (mm): 71.00
Flute Length (Decimal Inch): 2.7953
Overall Length (mm): 118.00
Overall Length (Decimal Inch): 4.6457 --
Flute Length x Diameter Ratio: 5xD
Point Type: Standard --
Shank Diameter (mm): 12.00
Shank Diameter (Decimal Inch): 0.4724 --
Maximum Drilling Depth (Decimal Inch): 2.2047
Maximum Drilling Depth (mm): 56.00
Spiral Type: Regular Spiral --
Shank Length (mm): 45.00
Shank Length (Decimal Inch): 1.7717
Specification Designation: DIN --
Drill Point Length (mm): 1.92
Drill Point Length (Decimal Inch): 0.0756
Web Configuration: Tapered --
Drill Bit Diameter Tolerance (mm): 0.007 to 0.025 --
Drill Bit Diameter Tolerance (Decimal Inch): 0.0003 to 0.0010 --
Number of Flutes: 2
Specification Number: DIN 6537K --
Material Grade: KCM15
Series/List: B211A-HP
This listing is for One Jobber Drill that is in the picture as well as described. Please ask any questions prior to buying!
THIS IS A STOCK PHOTO TO GIVE BASIC IDEA OF WHAT PRODUCT IS PLEASE REFER TO LISTING FOR DIMENSIONS AND PRODUCT INFORMATION REGARDING LISTED ITEM
