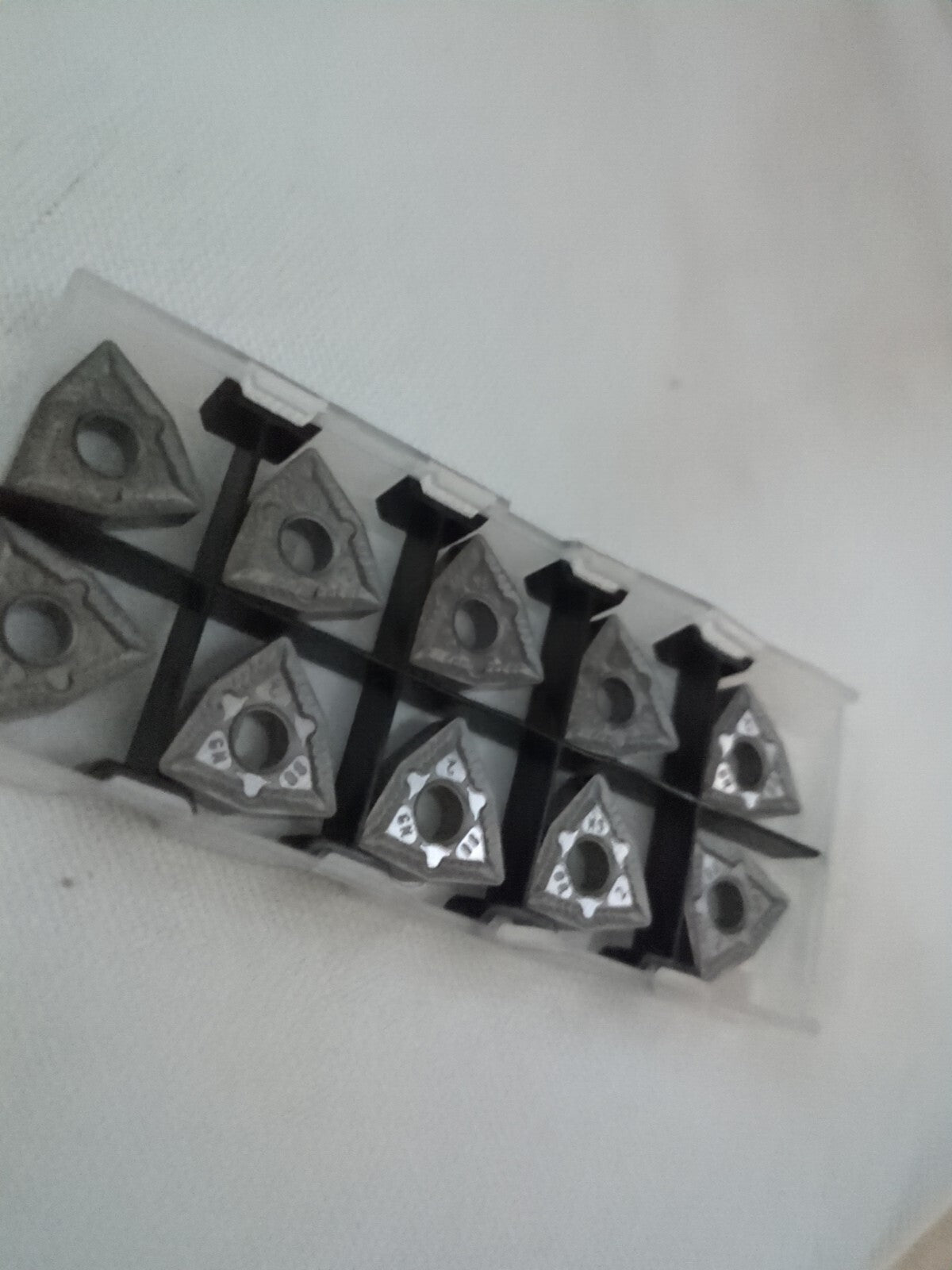

ISCAR Turning Inserts: WNMG 432-GN IC-2, Carbide5503262

ISCAR Turning Inserts: WNMG 432-GN IC-2, Carbide5503262

MSRP: $120

• Insert Style WNMG
• Insert Size Code 432
• Insert Shape Trigon
• Included Angle 80
• Inscribed Circle (Decimal Inch) 0.5000
• Corner Radius (Decimal Inch) 0.0315
• Insert Material Carbide
• Manufacturer Grade IC20
• Coating/Finish Bright/Uncoated
• Relief Angle 0
• Insert Thickness (Decimal Inch) 0.1874
• Insert Shape Code W
• Corner Radius (Inch) 1/32
• Maximum Depth of Cut (mm) 4.50
• Maximum Depth of Cut (Decimal Inch) 0.1772
• Inscribed Circle (Inch) 1/2
• Insert Holding Method Pin; Clamp
• Insert Thickness (Inch) 3/16
• Clearance Code N
• Tolerance Code M
• Series Isoturn
• Coating Process Uncoated
• Length Range (Decimal Inch) 0.3000 - 0.4000
• Insert Length (Decimal Inch) 0.3425
• Insert Length (mm) 8.70
• Primary Workpiece Material Universal
• Primary Workpiece Material Code S; H; K; M; N
• Iso Code ISO 13399
• Standards ISO 13399
• UNSPSC Code 23242105
• Chip Breaker GN

(Description).

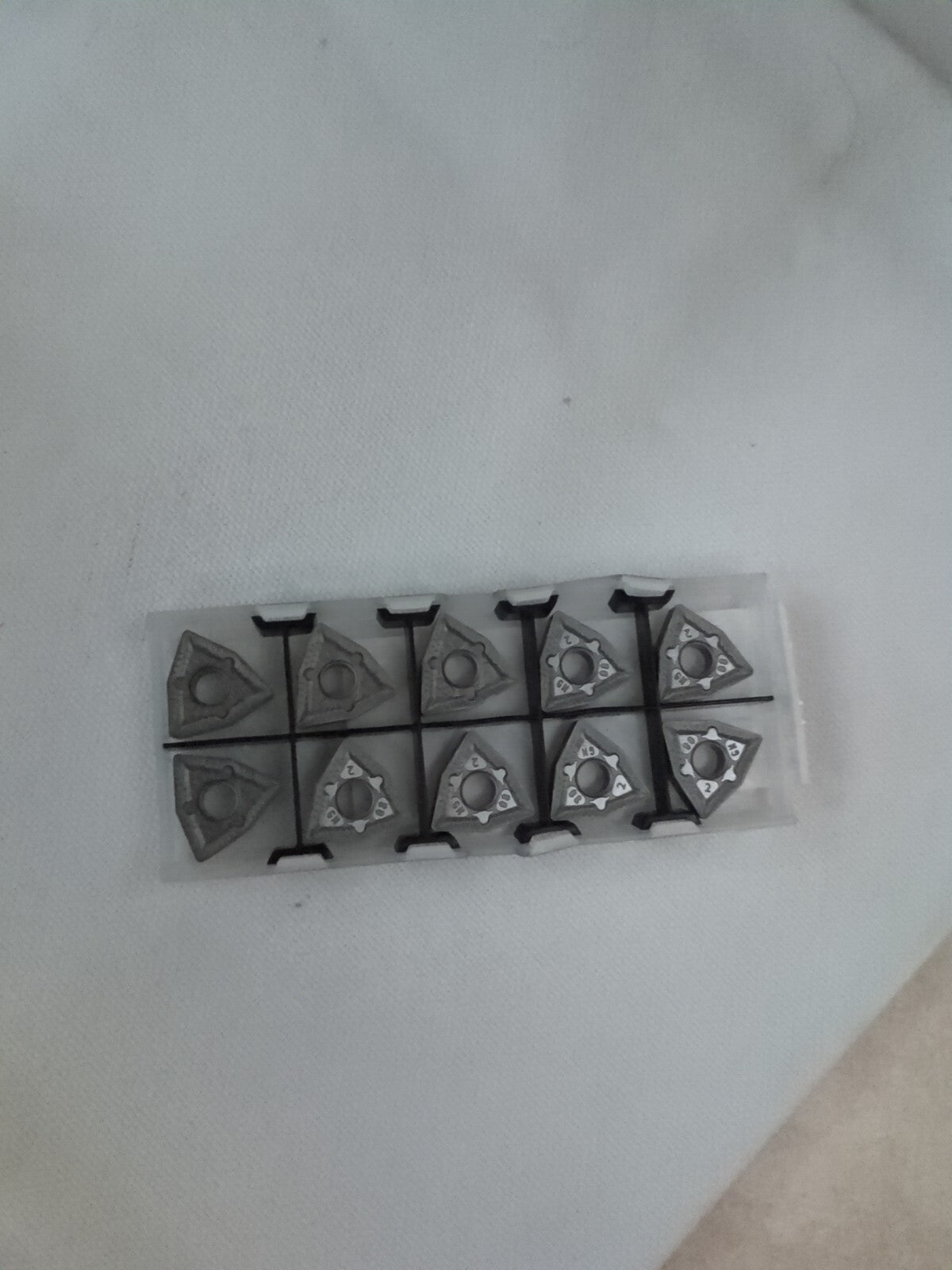

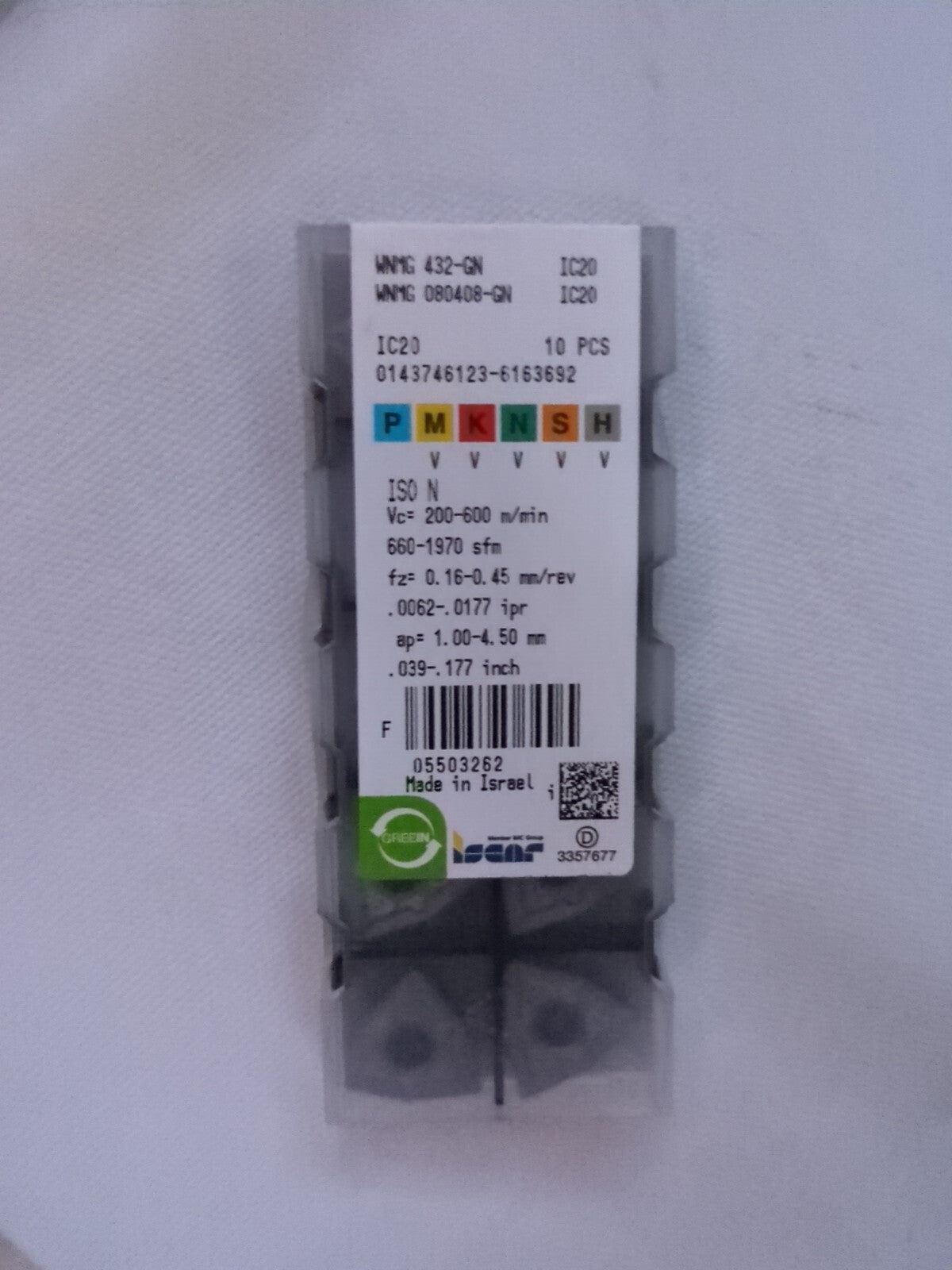

Please review photos, comes as shown.

Fast shipping, straight from our warehouse in sunny Florida!
