ISCAR

Turning Inserts qty 10: SNMG644R3M IC806, Solid Carbide 3302387
MSRP: $200

• Insert Style SNMG
• Insert Shape Code S
• Insert Size Code 644
• Insert Shape Square
• Coating/Finish AlTiN
• Manufacturer Grade IC806
• Corner Radius (mm) 1.60
• Corner Radius (Decimal Inch) 0.0630
• Insert Material Solid Carbide
• Maximum Depth of Cut (mm) 11.00
• Maximum Depth of Cut (Decimal Inch) 0.4330
• Inscribed Circle (mm) 19.05
• Inscribed Circle (Decimal Inch) 0.7500
• Width (Inch) 3/4
• Insert Hand Right Hand
• Insert Thickness 6.35
• Insert Thickness (Decimal Inch) 0.2500
• Clearance Code N
• Tolerance Code M
• Included Angle 90.0
• Series Isoturn
• Coating Process PVD
• Length Range (Decimal Inch) 0.7000 - 10.0000
• Rake Positive
• Insert Length (Decimal Inch) 0.7500
• Insert Length (mm) 19.05
• Primary Workpiece Material S
• Primary Workpiece Material Code S
• Secondary Workpiece Material None
• Iso Code SNMG 644 R3M
• Standards ISO 13399
• Manufacturers Catalog Number 3302387
• Proprietary Coating Designation SumoTec
• Chip Breaker M
• Width (Decimal Inch - 4 Decimals) 0.7500
• Width (Mm - 2 Decimals) 19.05

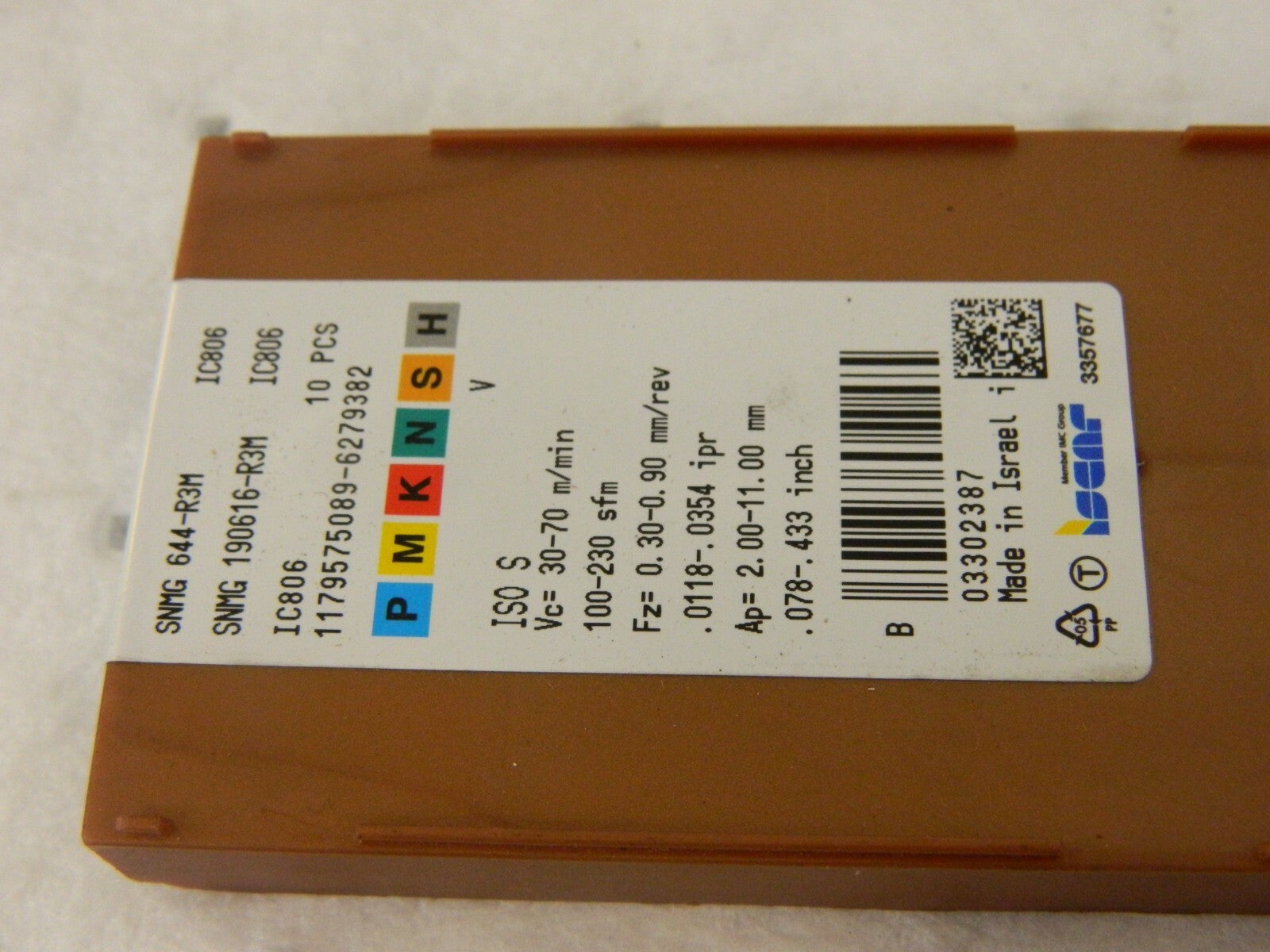

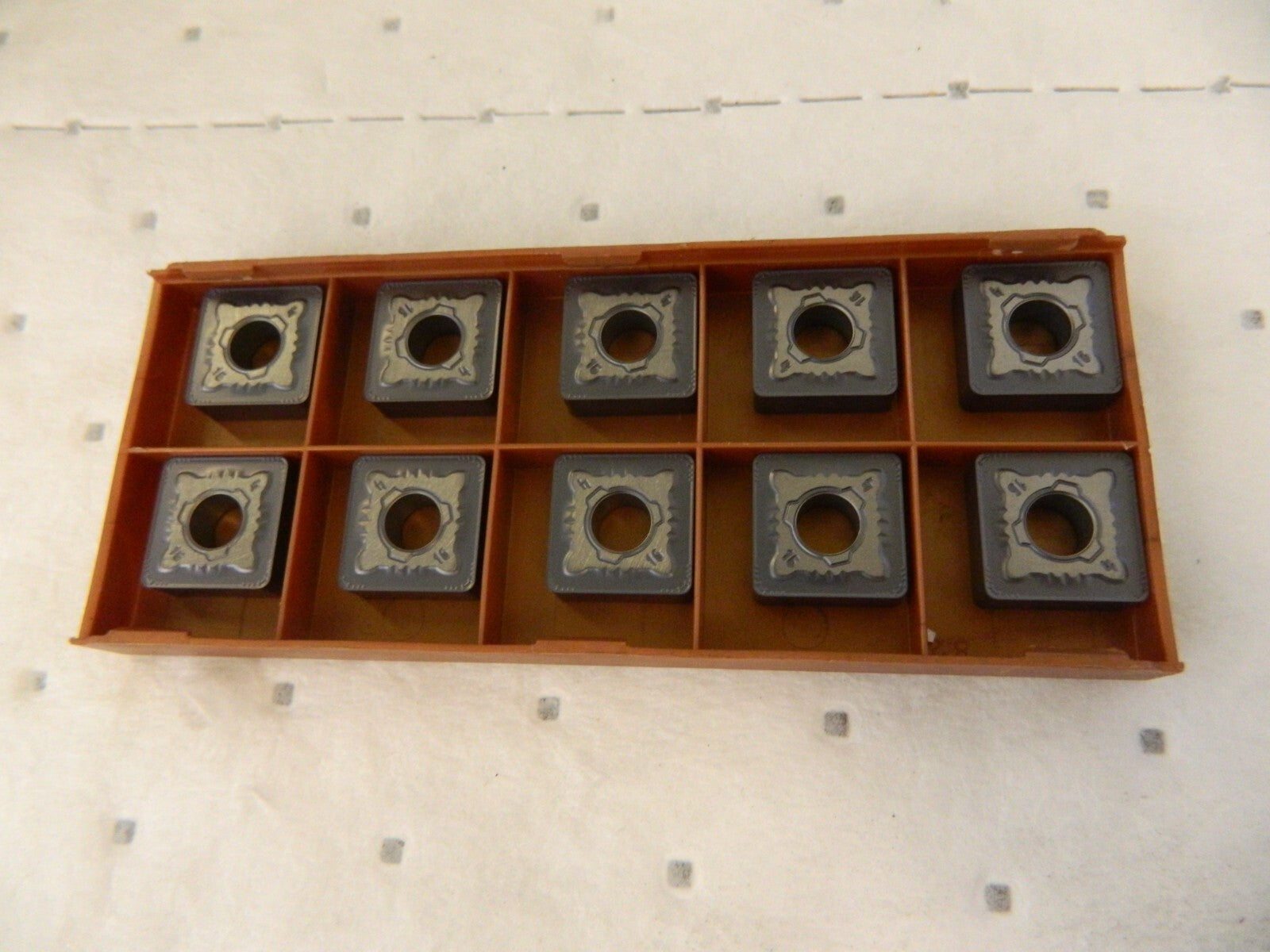

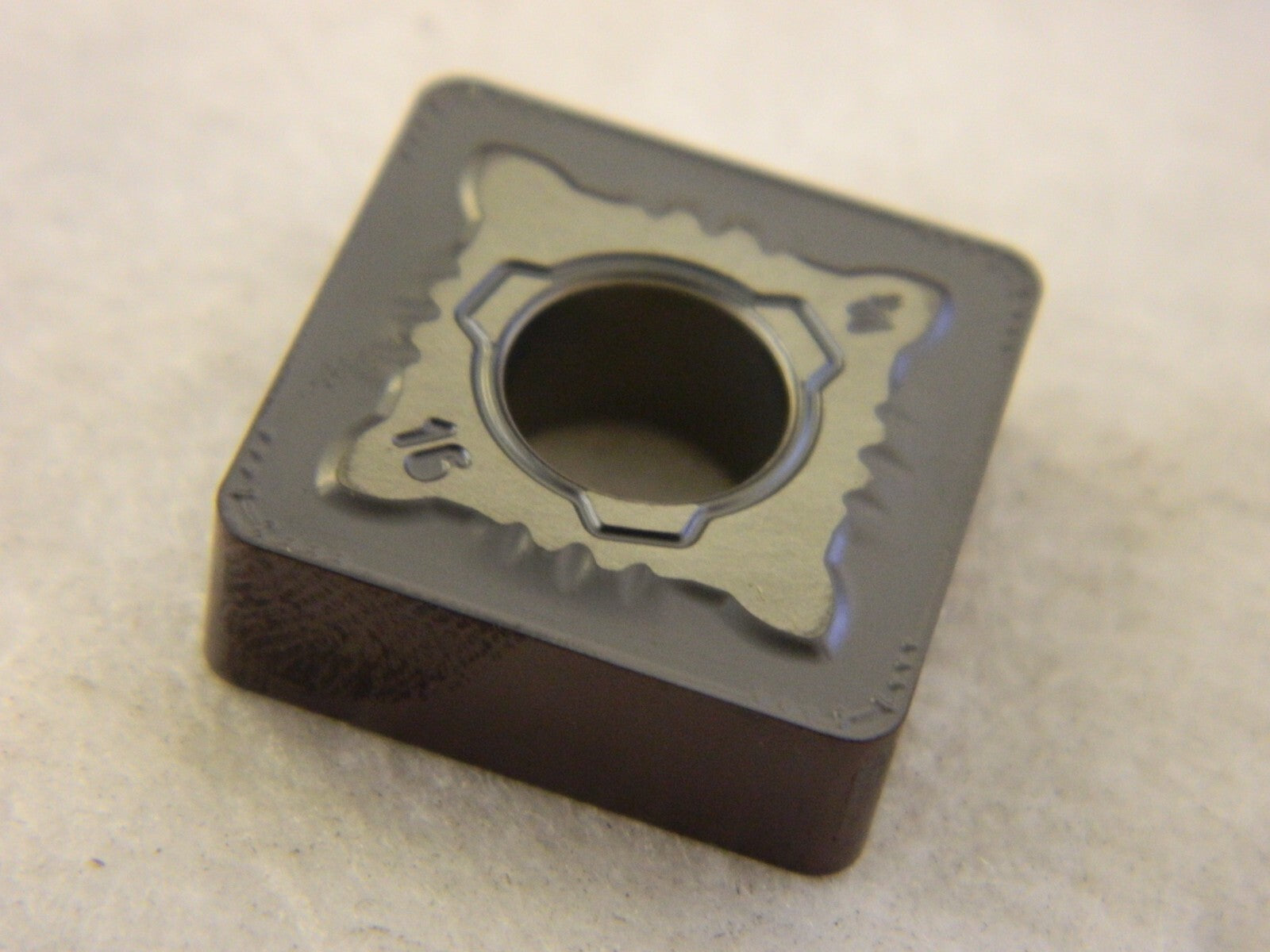

Please review photos, comes as shown.
